Name: Aluminum Tube Enclosure Mounting Plate
Brand: Blu-Sub
SKU: BS-SSC-ATEMP-ALU-WIA1
Price: 33.95 CAD
Availability: InStock

$33.95

20 Units Available for Quick Ship - Ships in 1-2 Business Days

Additional Units Made to Order - Ships in 2-5 Weeks

Shipping calculated at checkout.

Width

Wide 46mm

Narrow 10mm

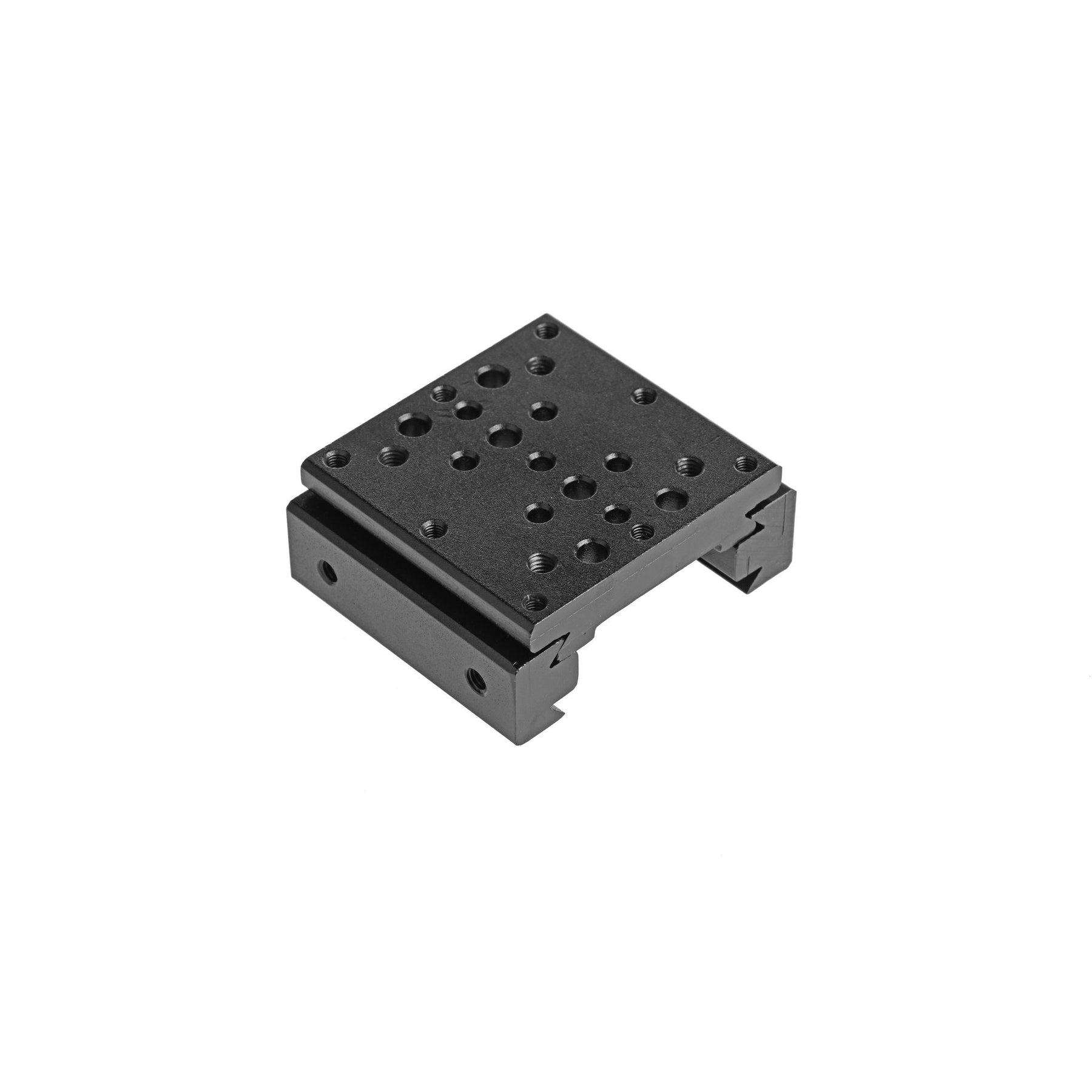

The Enclosure Plate is designed for the secure installation and fixation of the Blu-Sub Subsea Aluminum Tubes. Constructed from durable black anodized aluminum, it offers full compatibility with the Arca-Swiss interface across all tube variants.

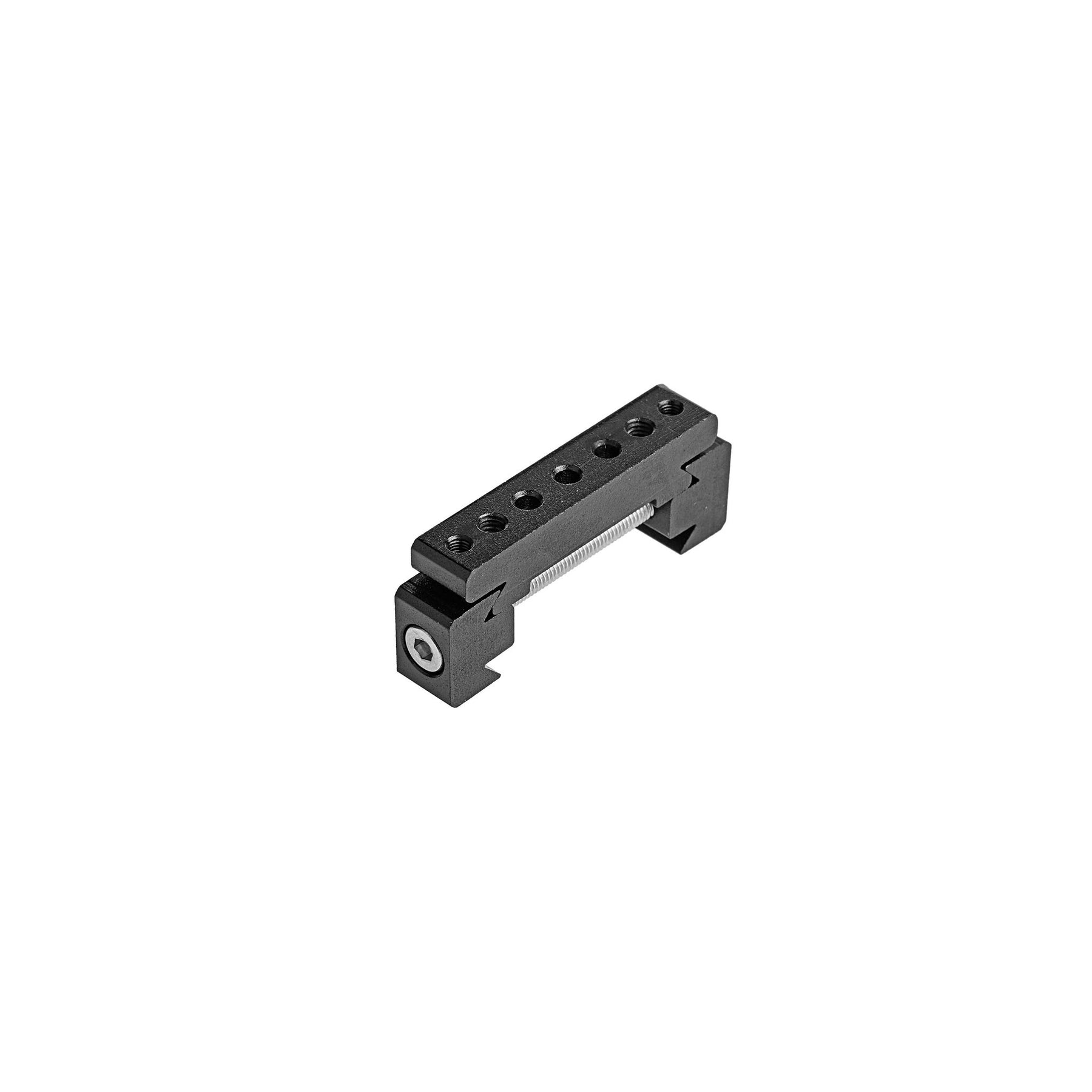

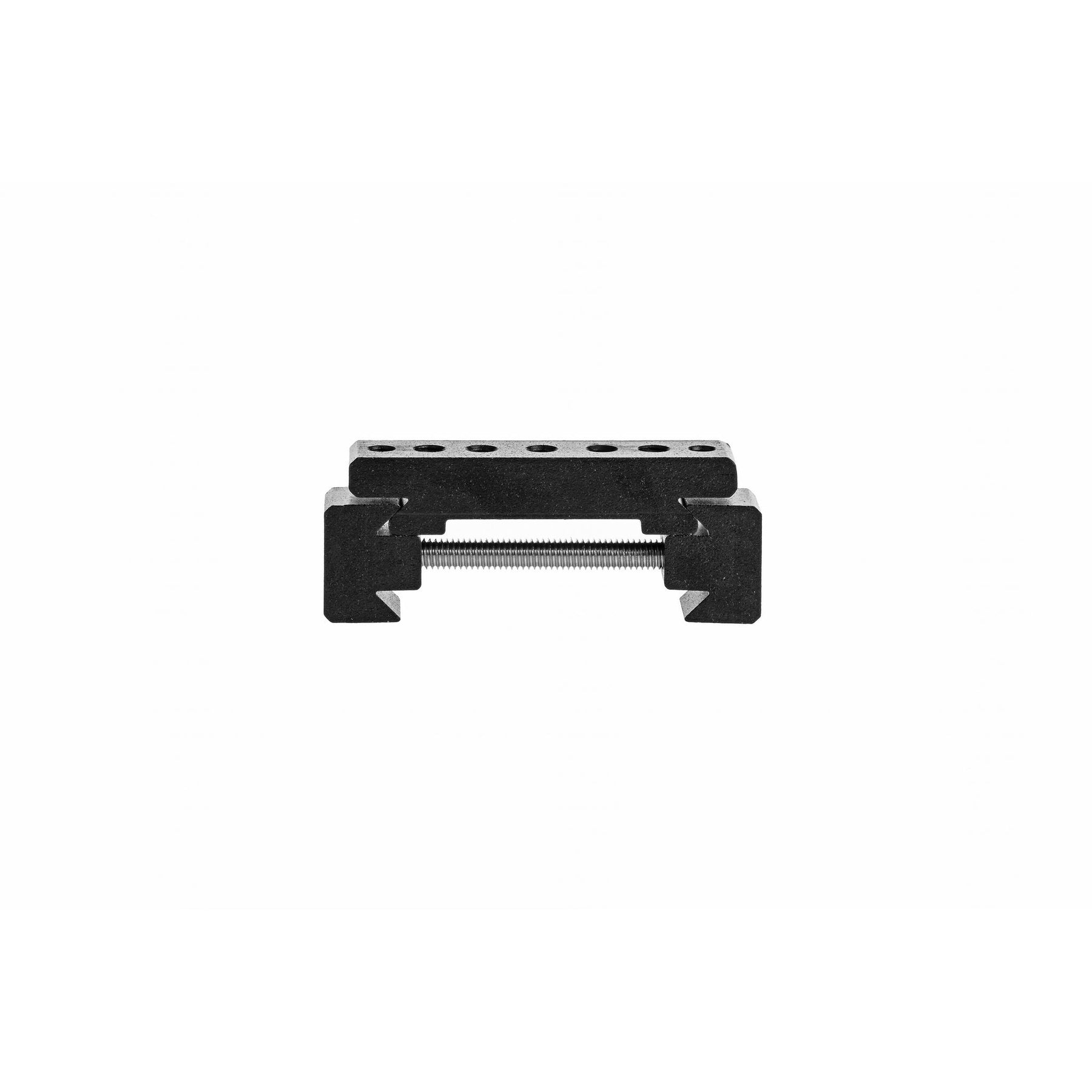

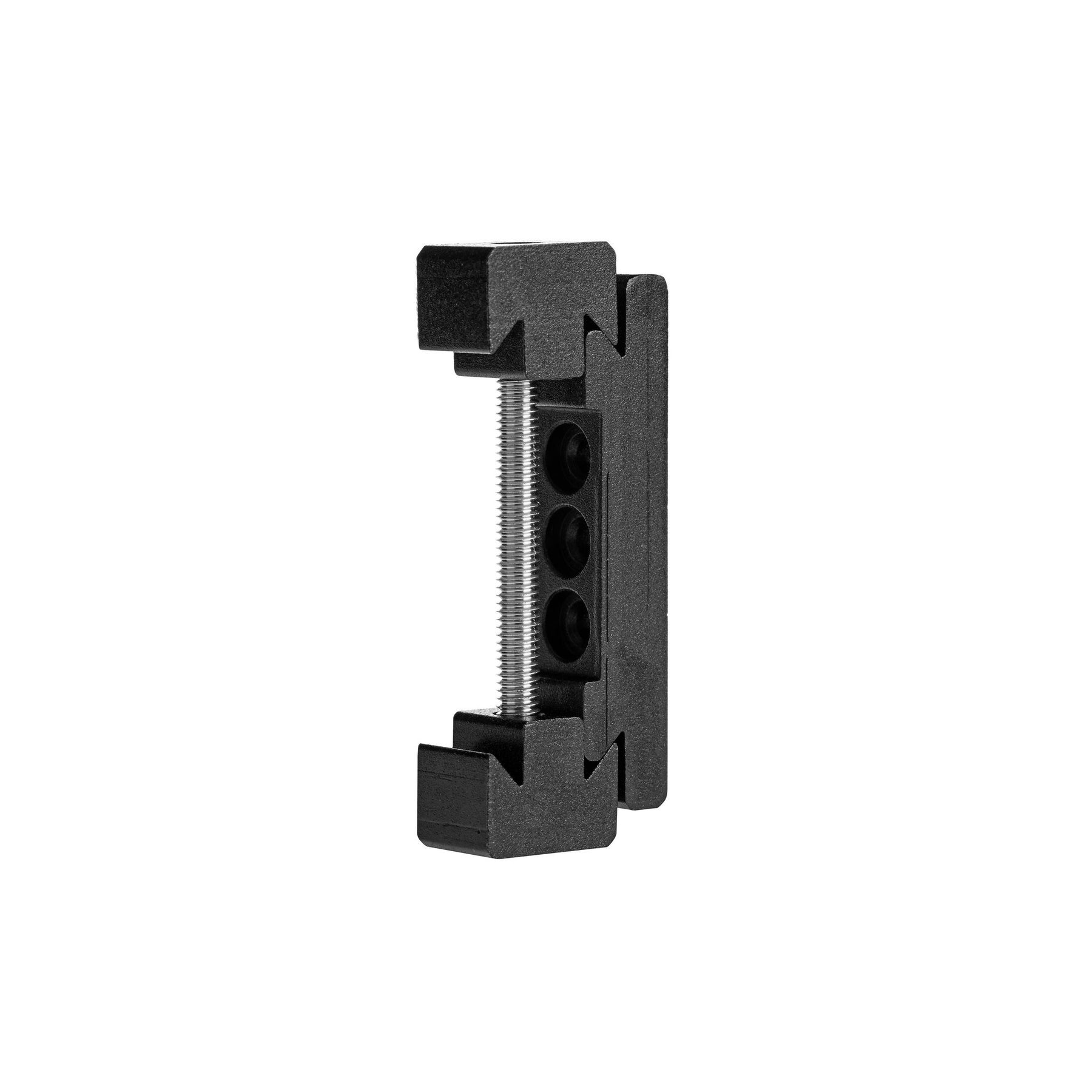

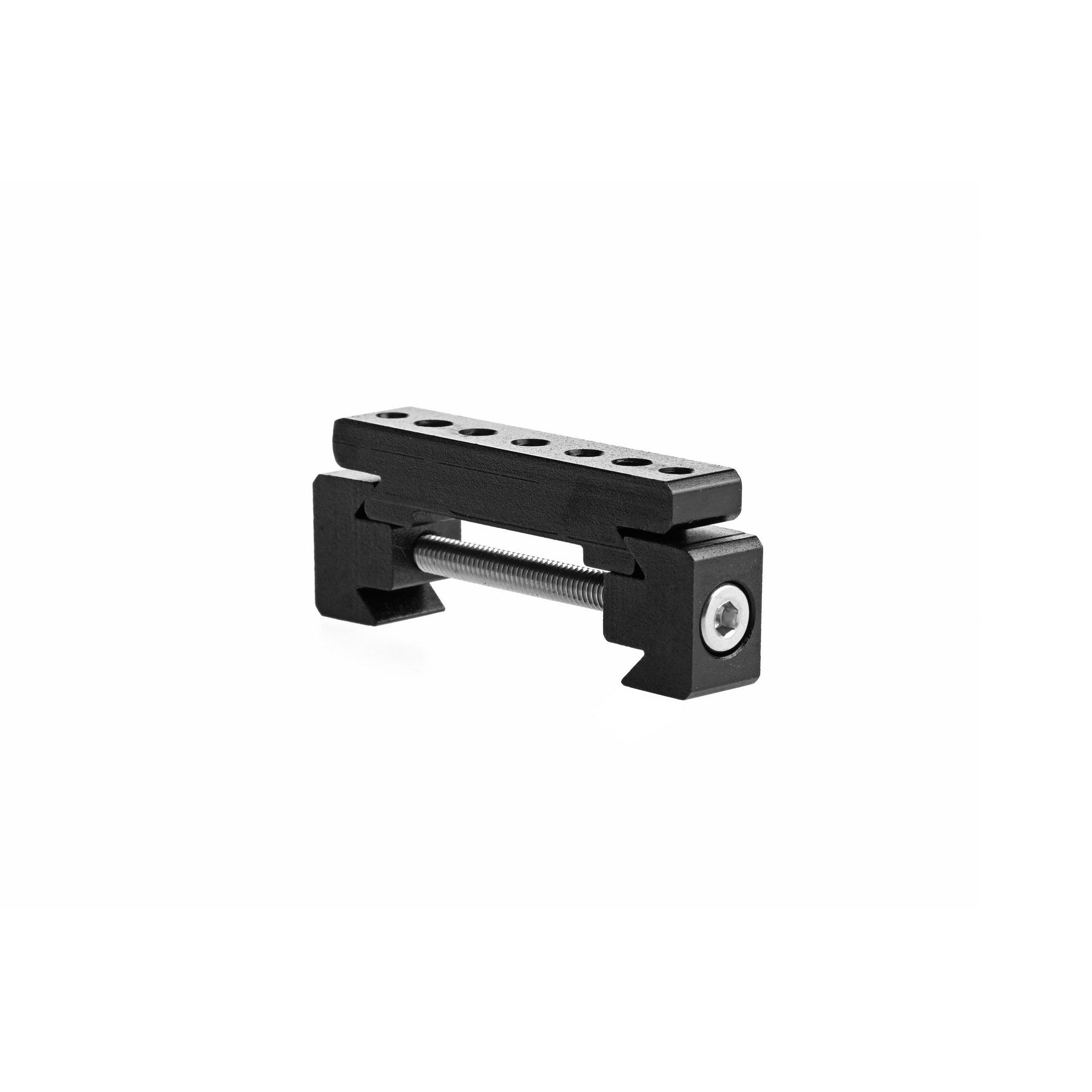

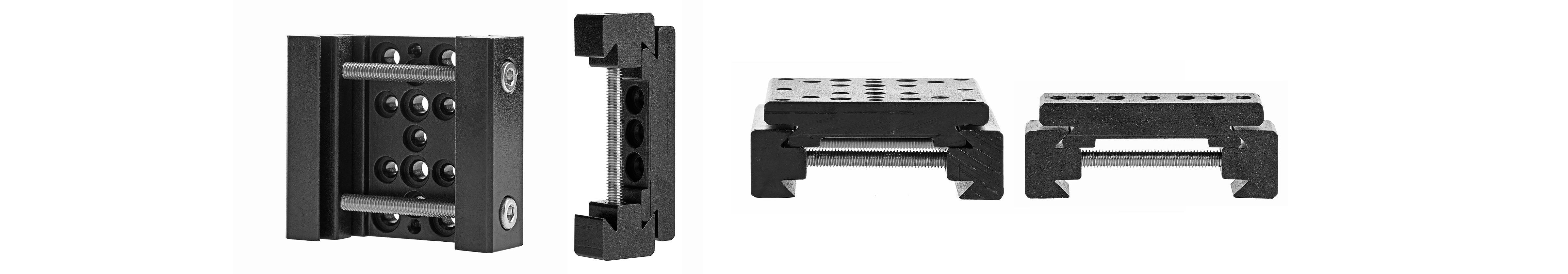

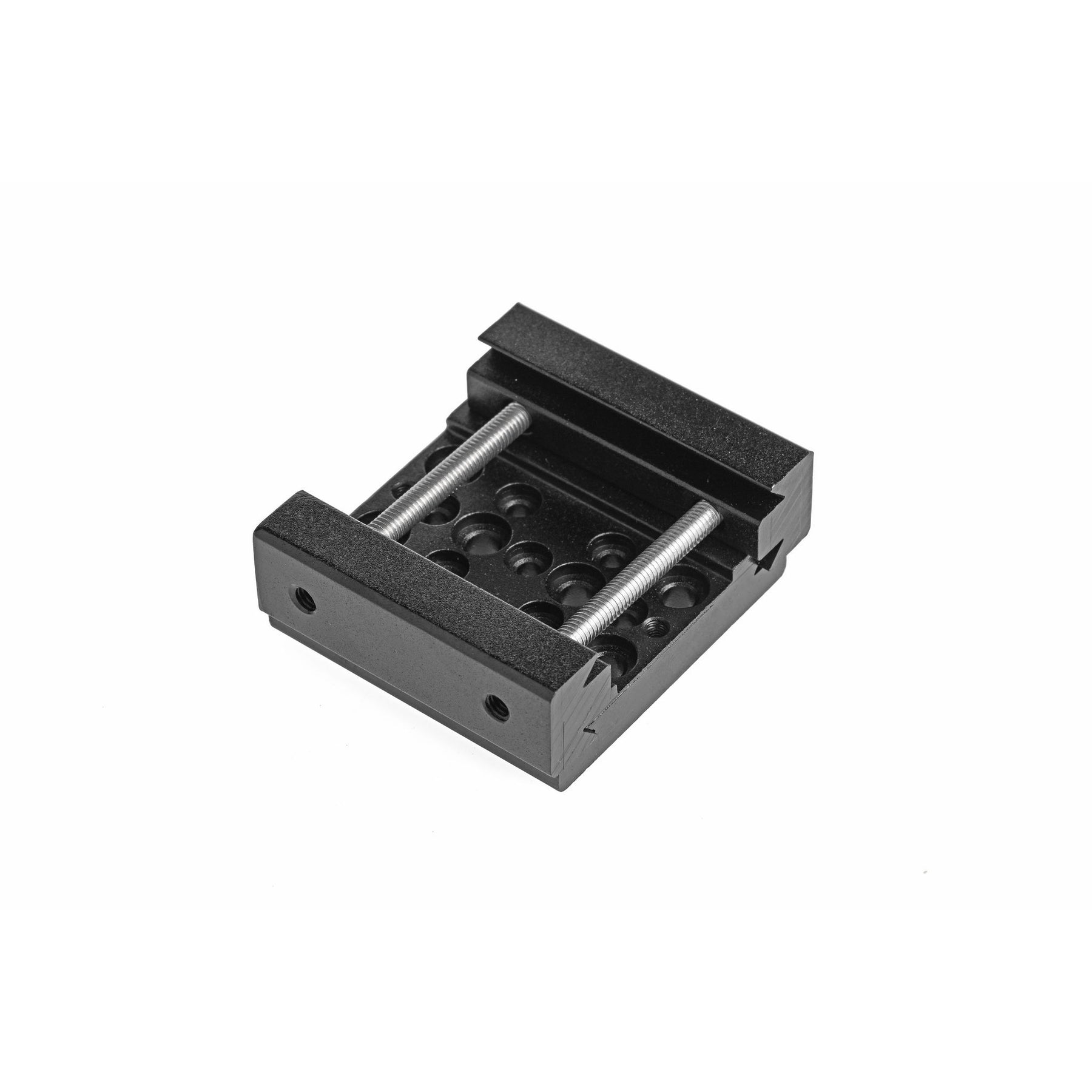

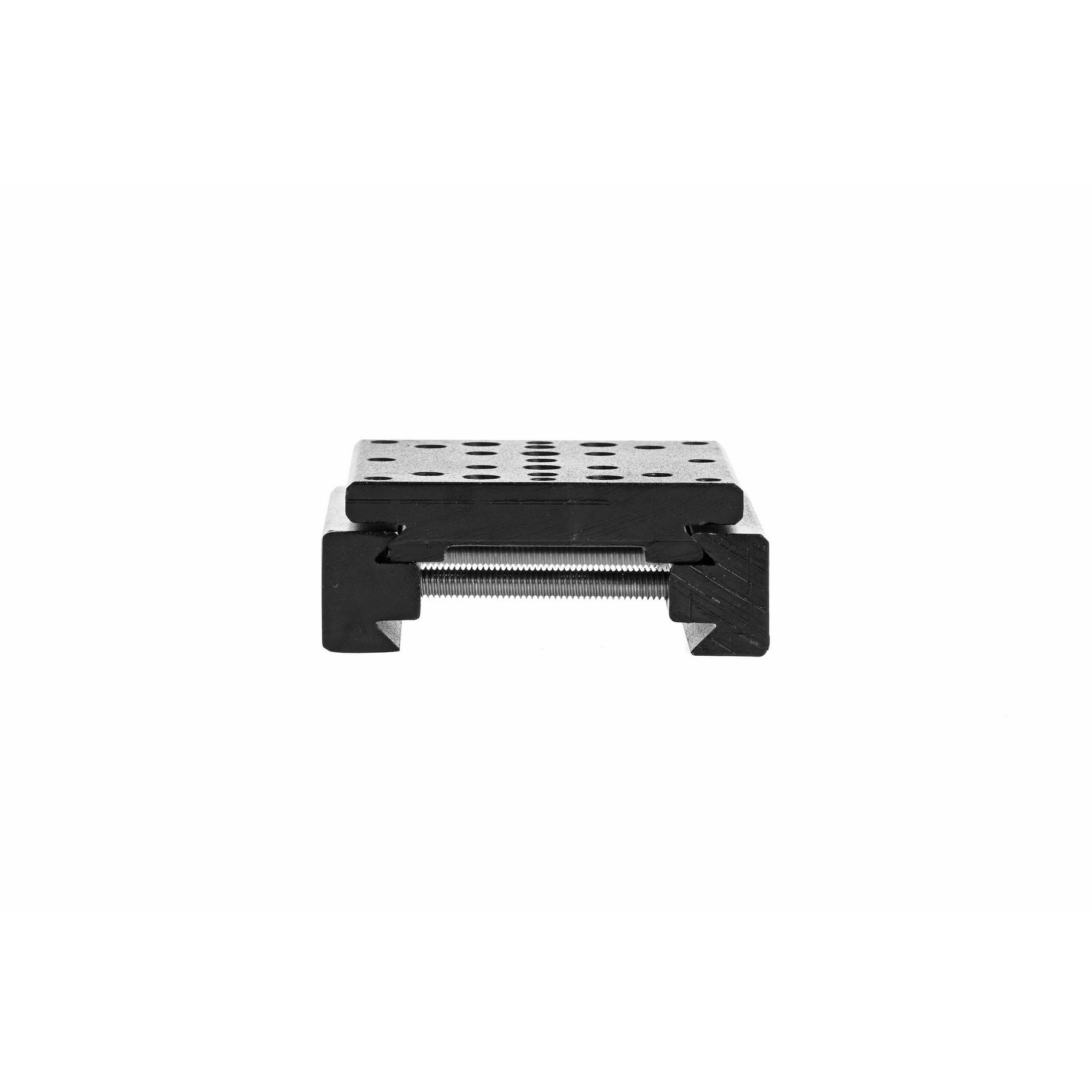

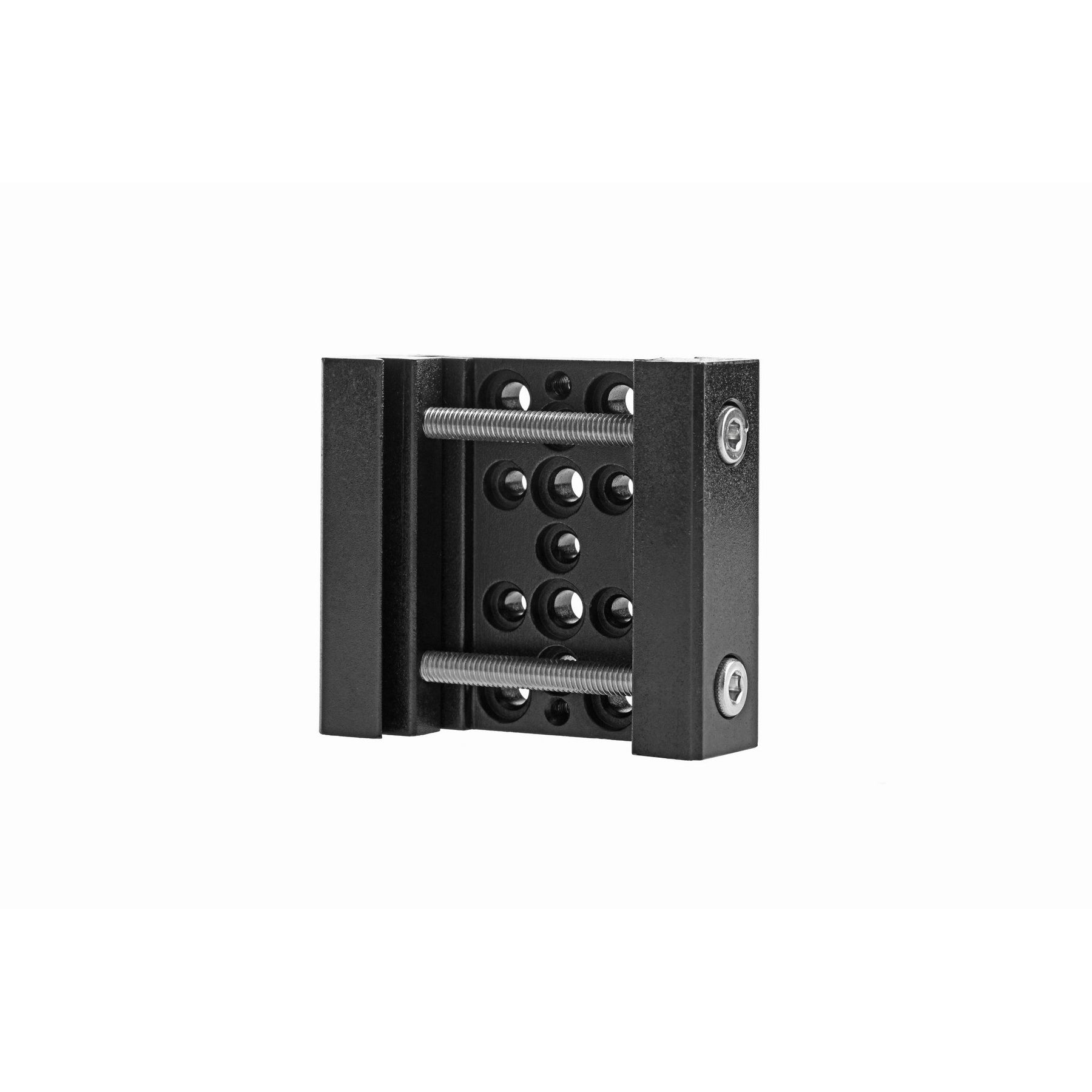

Two mounting plate versions are available — wide (46 mm) and narrow (10 mm) — each secured laterally using M4 screws along the Arca-Swiss rail. The base includes both threaded holes and countersunk through-holes, allowing for forward or reverse installation depending on application requirements.

Subsea Enclosure Builder - Promo Section (Basic)

Need Help Building Your Complete System?

Use our Subsea Enclosure Builder to design your complete underwater system with perfect compatibility, real-time pricing, and one-click ordering.

Launch Builder Tool →

Weight	Wide version: 82 g / Narrow version: 19 g
Material	Black Anodized Aluminum
Color	Black
Depth Rating	N/A
Dimensions	Wide version width: 46 mm / Narrow version width: 10 mm

[{"id":45386118725790,"title":"Wide 46mm","option1":"Wide 46mm","option2":null,"option3":null,"sku":"BS-SSC-ATEMP-ALU-WIA1","requires_shipping":true,"taxable":true,"featured_image":{"id":40477340598430,"product_id":8257605894302,"position":1,"created_at":"2025-06-12T14:08:18-04:00","updated_at":"2025-06-12T14:08:55-04:00","alt":null,"width":2048,"height":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AlumTubeMP01_Square_Web_131dd93a-85e8-4576-9a12-127e3ef904ab.jpg?v=1749751735","variant_ids":[45386118725790]},"available":true,"name":"Aluminum Tube Enclosure Mounting Plate - Wide 46mm","public_title":"Wide 46mm","options":["Wide 46mm"],"price":3395,"weight":82,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32250160021662,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AlumTubeMP01_Square_Web_131dd93a-85e8-4576-9a12-127e3ef904ab.jpg?v=1749751735"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45386118758558,"title":"Narrow 10mm","option1":"Narrow 10mm","option2":null,"option3":null,"sku":"BS-SSC-ATEMP-ALU-NRA1","requires_shipping":true,"taxable":true,"featured_image":{"id":40477360423070,"product_id":8257605894302,"position":2,"created_at":"2025-06-12T14:10:07-04:00","updated_at":"2025-06-12T14:13:00-04:00","alt":null,"width":2048,"height":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AlumTubeMP02_Square_Web.jpg?v=1749751980","variant_ids":[45386118758558]},"available":true,"name":"Aluminum Tube Enclosure Mounting Plate - Narrow 10mm","public_title":"Narrow 10mm","options":["Narrow 10mm"],"price":2695,"weight":19,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32250165624990,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AlumTubeMP02_Square_Web.jpg?v=1749751980"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Compatible With: Subsea Enclosure Aluminum Tube

Sold Separately

This mounting plate is designed specifically to support the Subsea Enclosure Aluminum Tube, enabling secure installation onto an Arca-Swiss rail system for ROVs, sensor pods, and other underwater platforms. Available in wide (46 mm) and narrow (10 mm) formats, it ensures a stable and corrosion-resistant base for subsea applications.

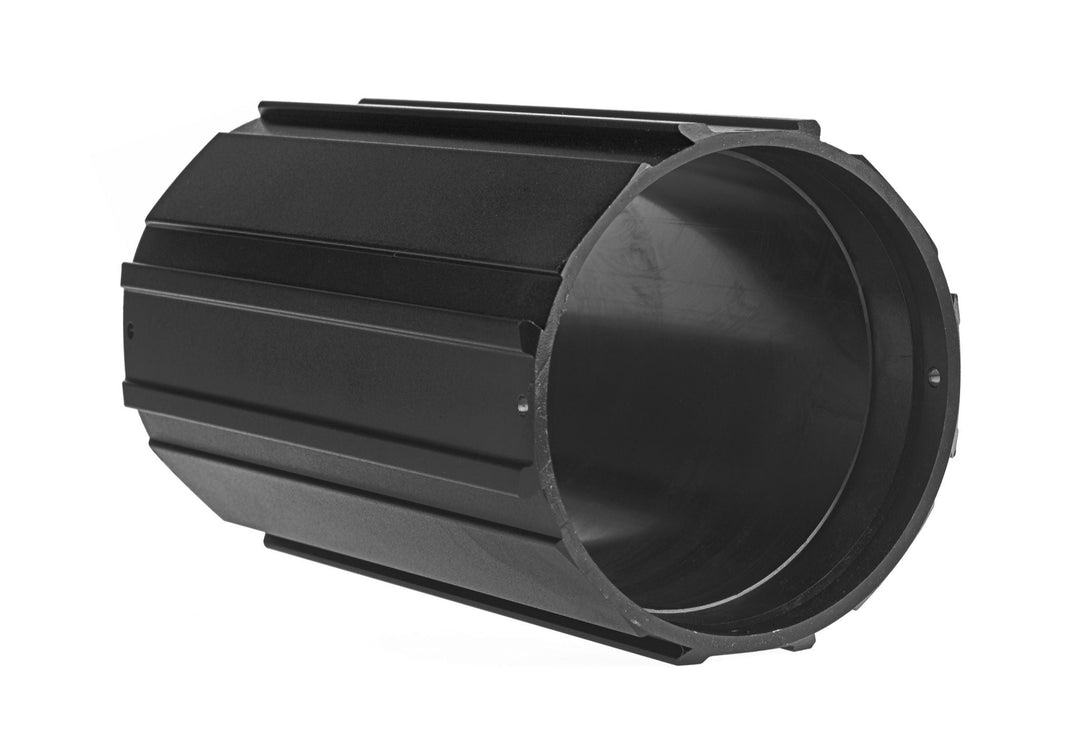

Subsea Enclosure Aluminum Tube

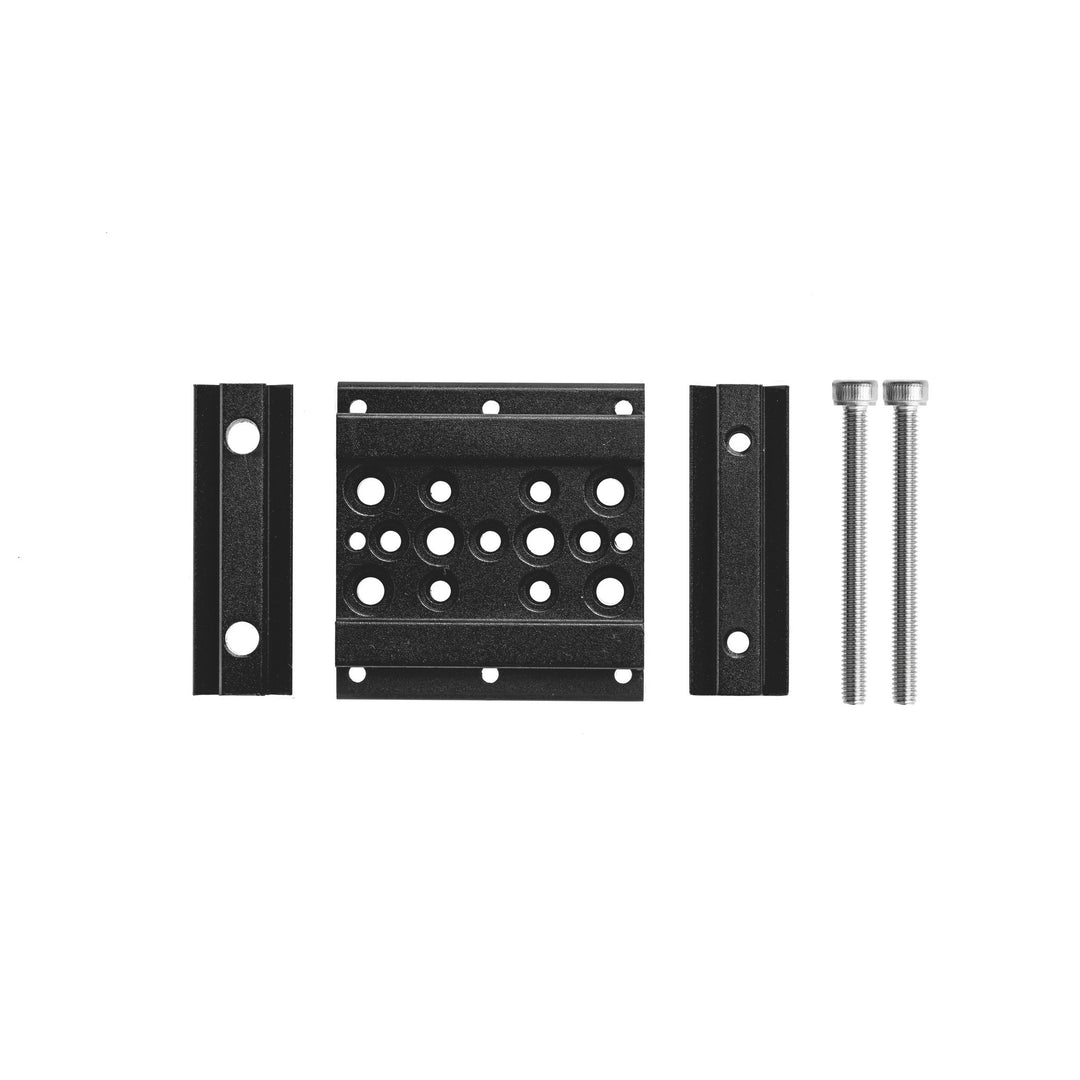

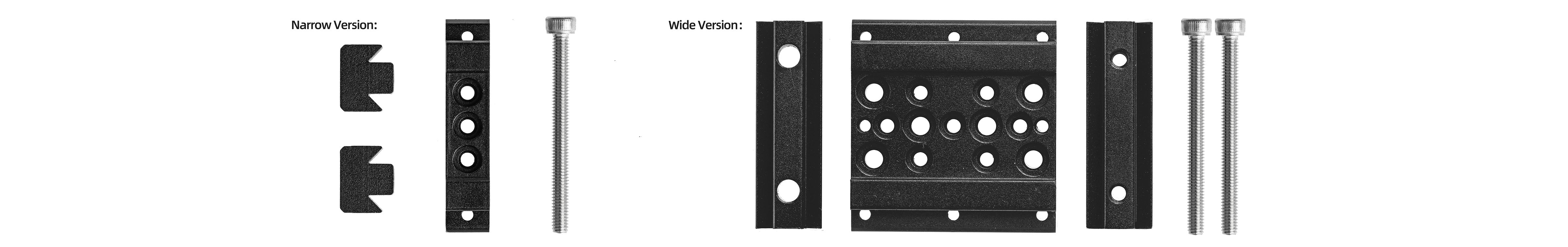

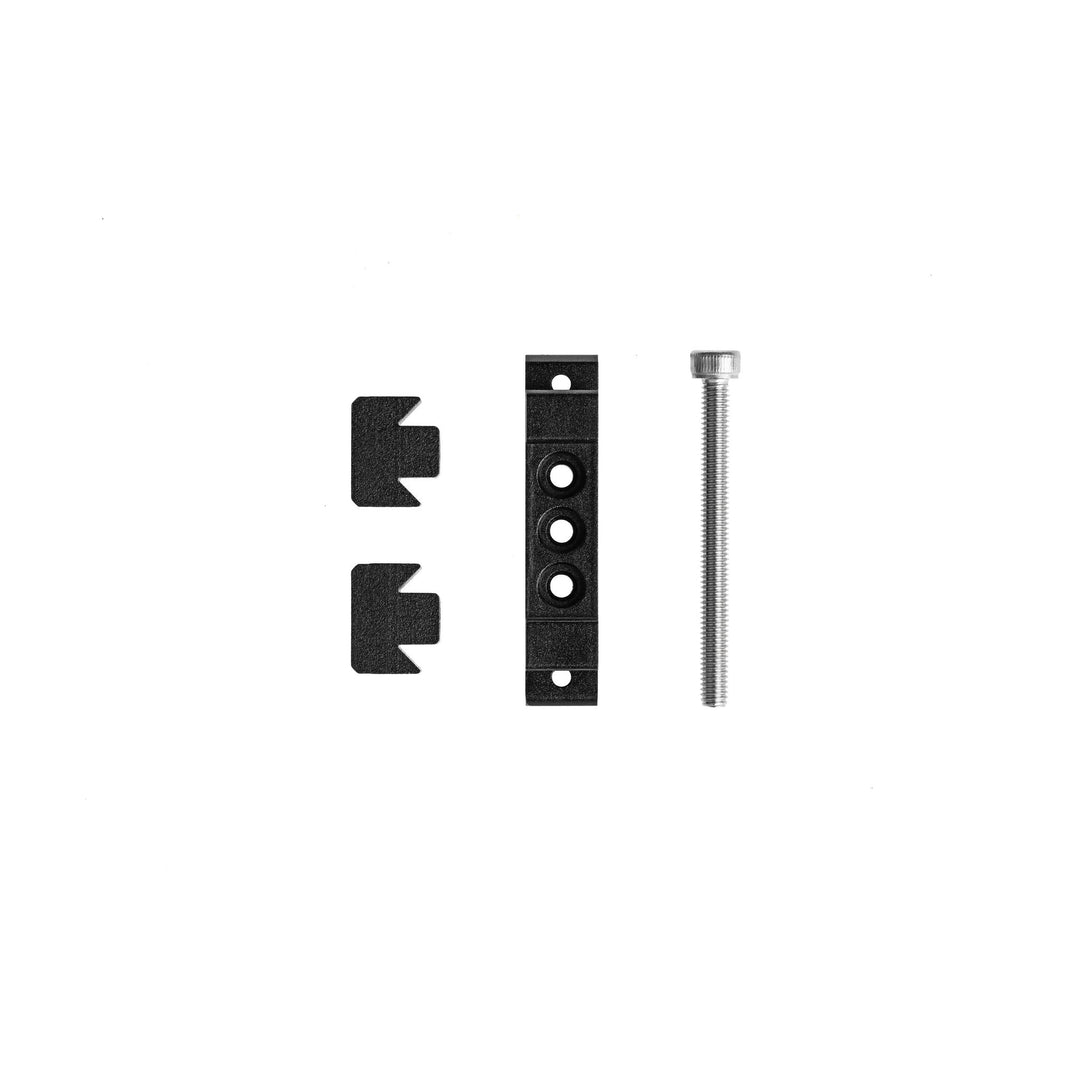

SHIPPING LIST

1 x Mounting Base
2 x Clamp Blocks
2 x Long Screw (Wide Version)
1 x Long Screw (Narrow Version)

TECHNICAL SPECIFICATIONS

Spec	Aluminum Tube Enclosure Mounting Plate
Material	Black anodized aluminum
Version	Wide / Narrow
Width (mm)	46 (wide) / 10 (narrow)
Weight	82 g (wide) / 19 g (narrow)

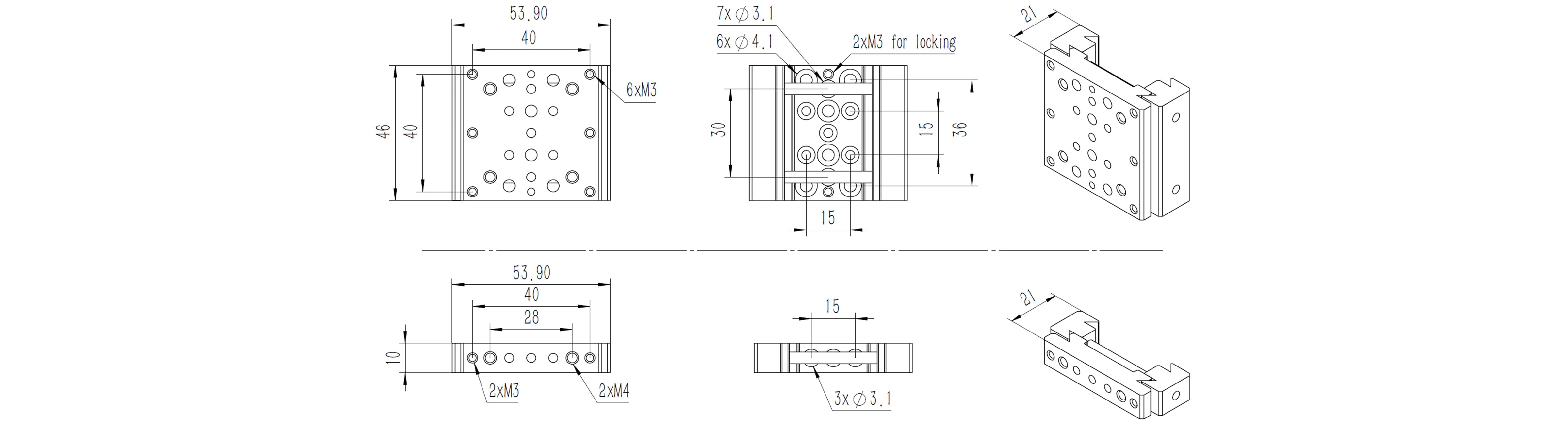

A dimension drawing is provided below for reference.

Can I install the enclosure plate in either orientation?
Yes — the mounting base includes both threaded holes and countersunk through-holes, allowing for either forward or reverse installation depending on your design requirements.

What type of screws are used for securing the plate?
The enclosure plate uses M4 screws to secure the clamp blocks to the Arca-Swiss rail. Ensure proper tightening to maintain stability.

Is the enclosure plate compatible with all Blu-Sub aluminum tubes?
Yes — both the wide and narrow versions of the enclosure plate are compatible across the entire Blu-Sub SubSea Aluminum Tube range.

Are the clamp blocks and screws included?
Yes — each enclosure plate includes the required clamp blocks and screws for installation. The narrow version includes one long screw; the wide version includes two.

Can I use this plate with third-party Arca-Swiss rails?
While the enclosure plate is designed for Blu-Sub systems, it may be compatible with standard Arca-Swiss rails. However, proper fit and function cannot be guaranteed outside Blu-Sub components.

What is the difference between forward and reverse installation?
Forward installation refers to screws passing through the plate and fastening onto the mounting base, while reverse installation refers to screws passing through the mounting base and fastening onto the plate.

What are the 2×M3 holes for?
These two holes are for securing the quick-release plate of the Arca-Swiss interface and may not be necessary in all applications.

Do all the mounting holes need to be fastened?
No — you can use mounting holes as needed, such as 4× M4 screws or 4× M3 screws, depending on your design and strength requirements.

Is threadlocker needed?
Threadlocker is recommended in high-vibration environments or when frequent disassembly is not expected, to ensure long-term fastening security.

3D Model Viewer

Note: The 3D model shown above is for reference purposes only. It may include components, accessories, or alternate sizes not included with the product. For simplicity, only a single representative size is typically displayed when multiple versions exist. Please refer to the product Shipping Guide for detailed information on included contents and size-specific differences.

Download 3D Model (STEP) - Narrow Mounting Plate

Download 3D Model (STEP) - Wide Mounting Plate
