Insulated PCB Board Shelf for Enclosure Tube
BS-ELE-PCBET-XXX-A2A1

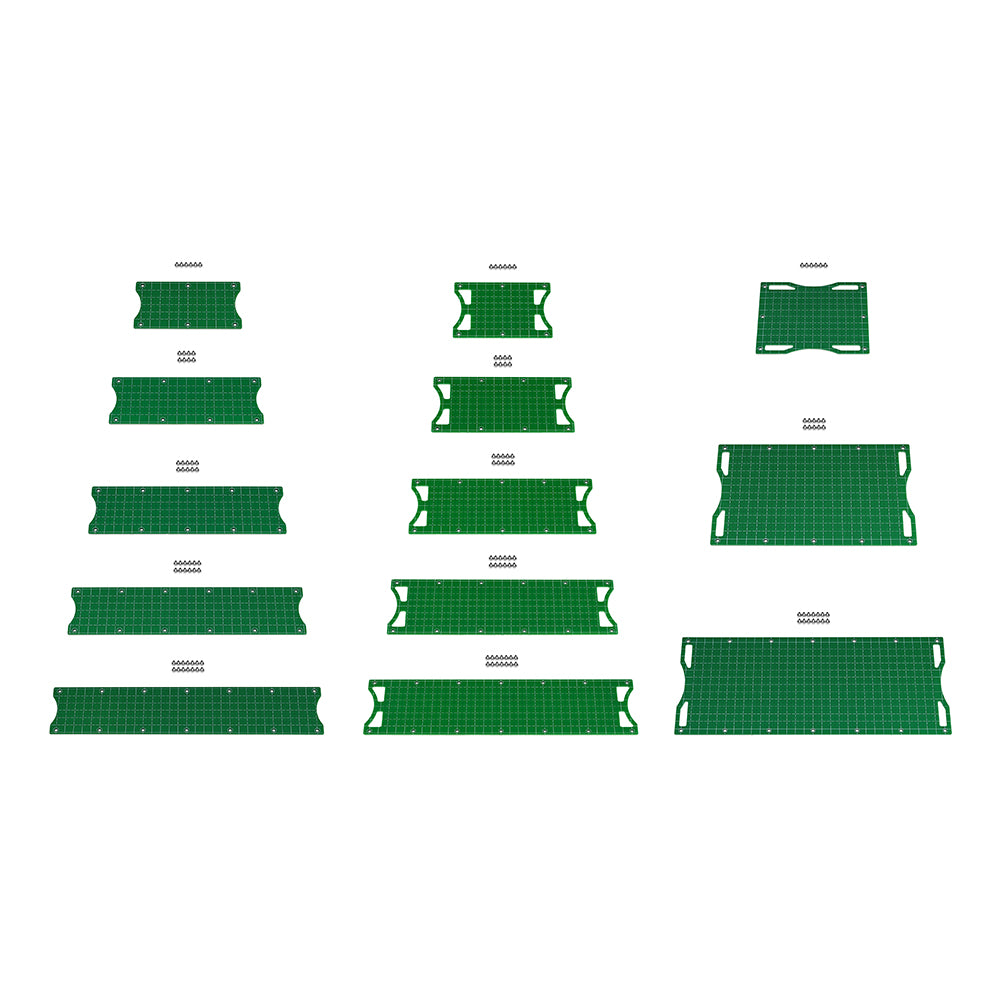

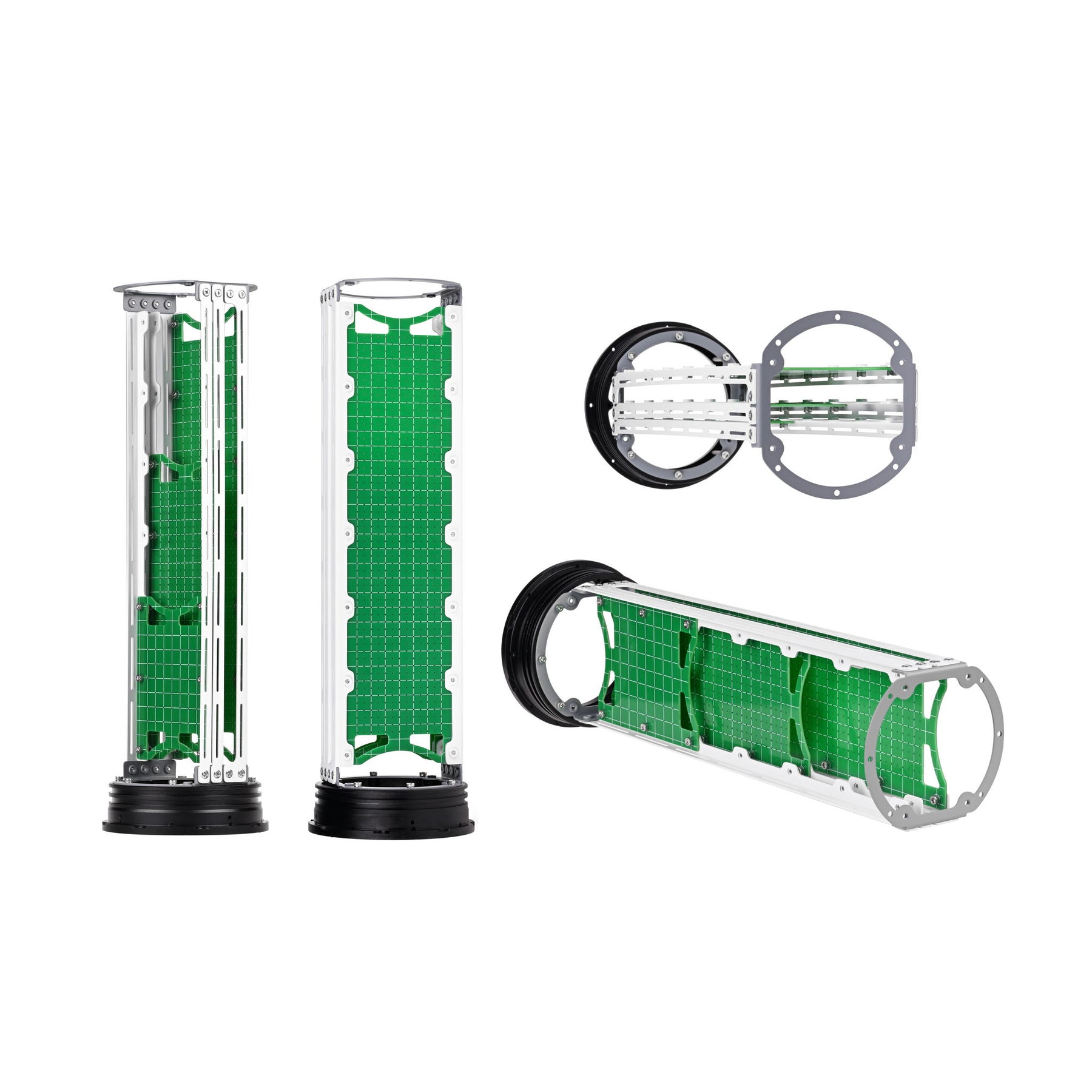

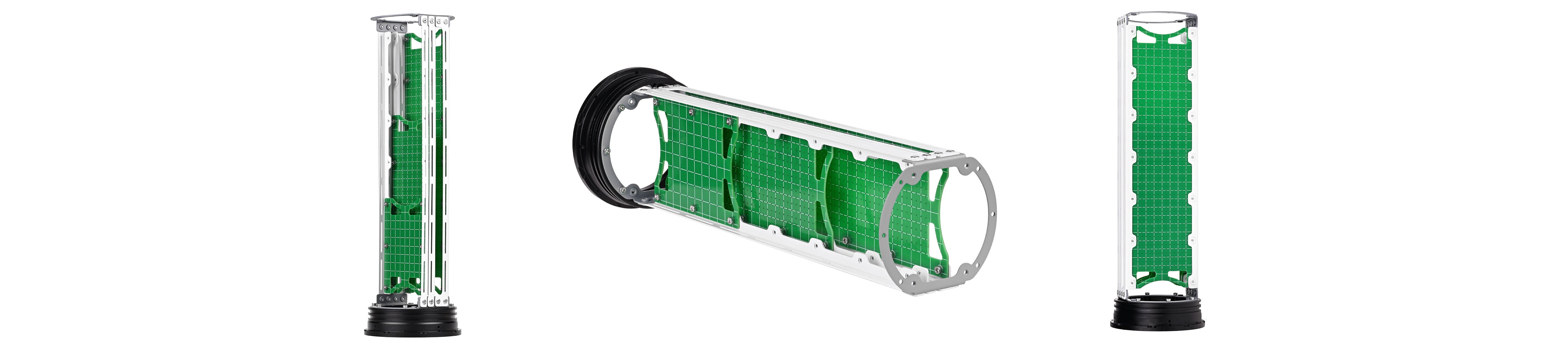

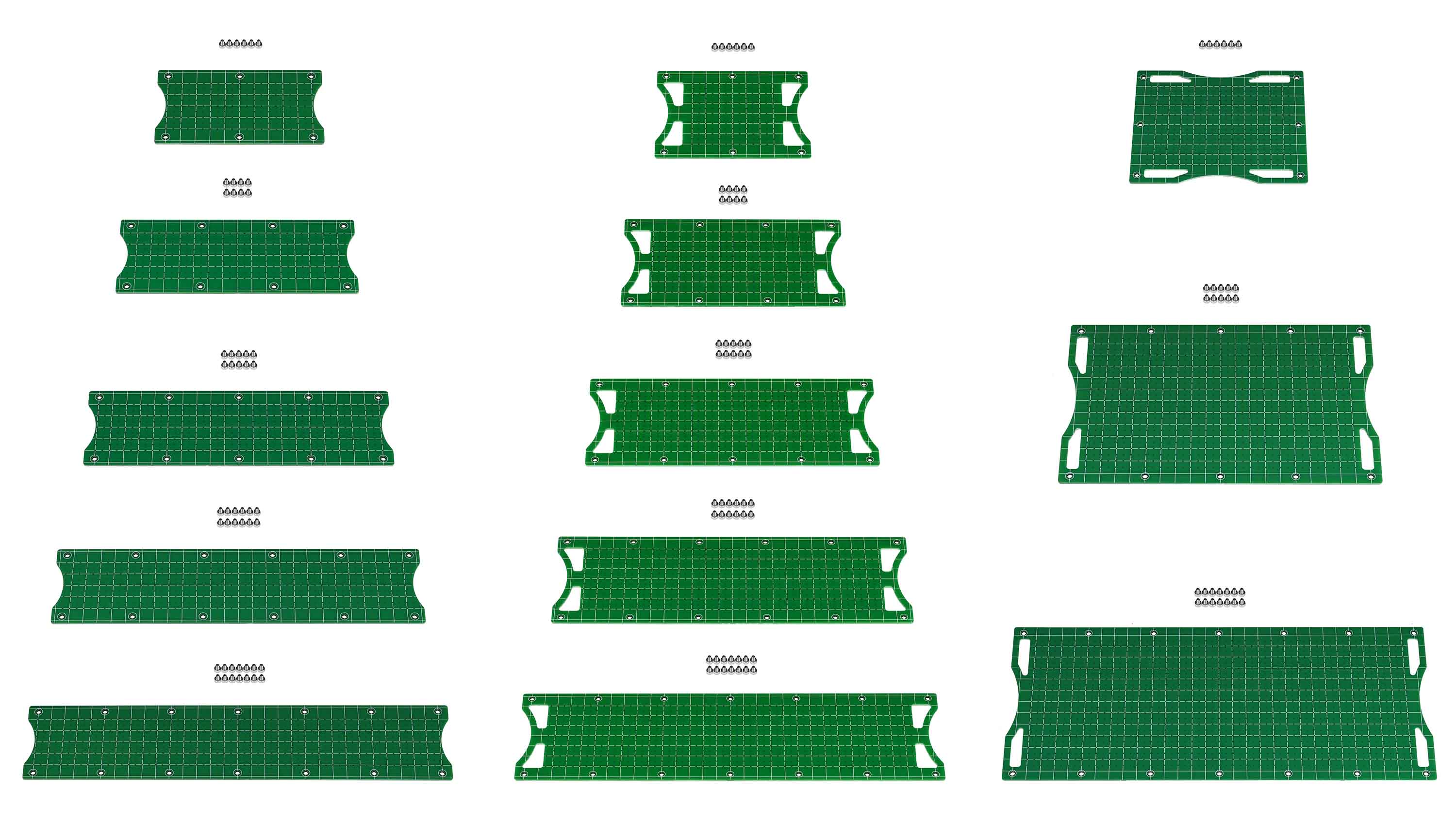

PCB Board Shelves are available in sizes compatible with all Blu-Sub Enclosure Tray Sets—covering 85 mm, 115 mm, and 165 mm internal diameters—and are designed to fit all standard tube lengths in both acrylic and aluminum enclosures.

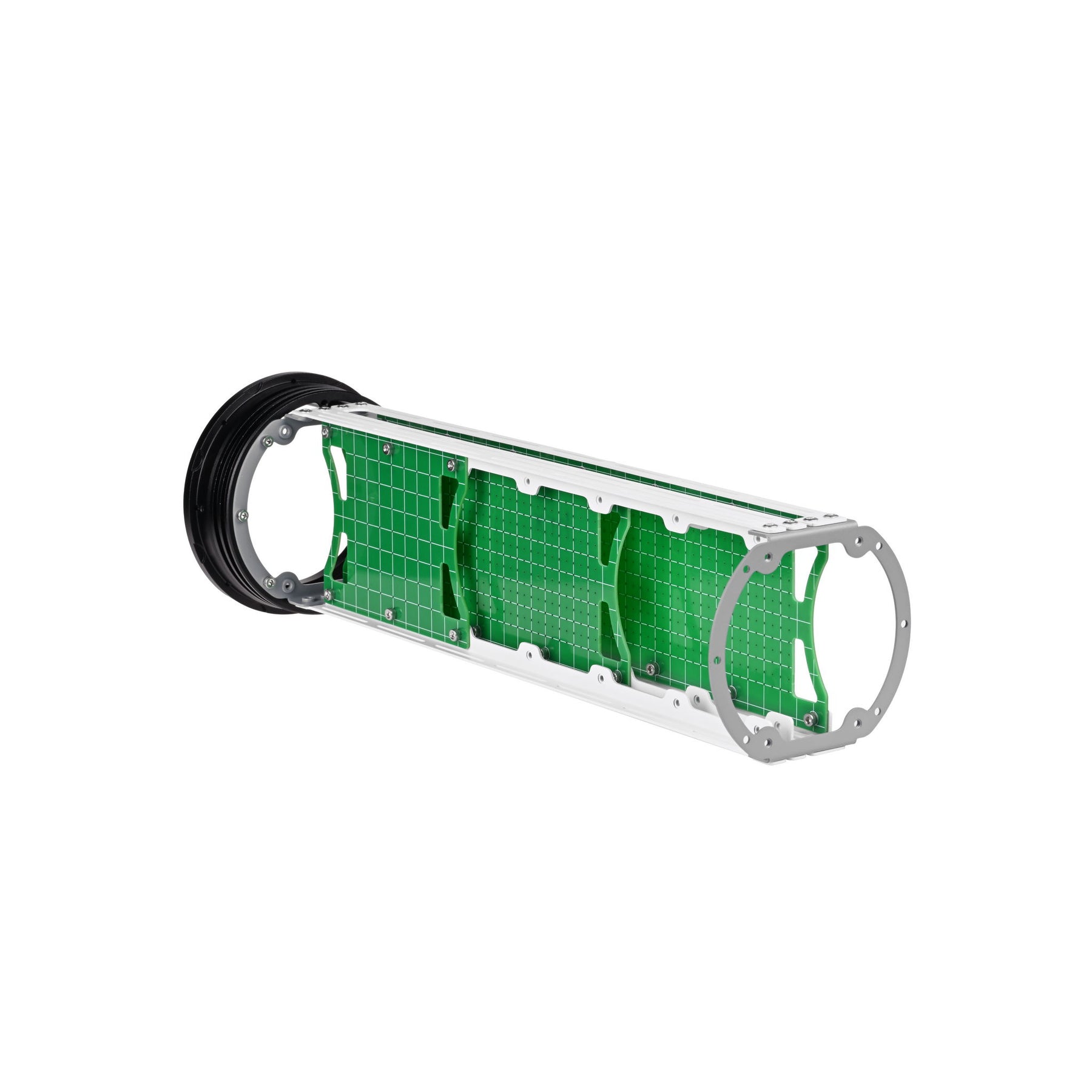

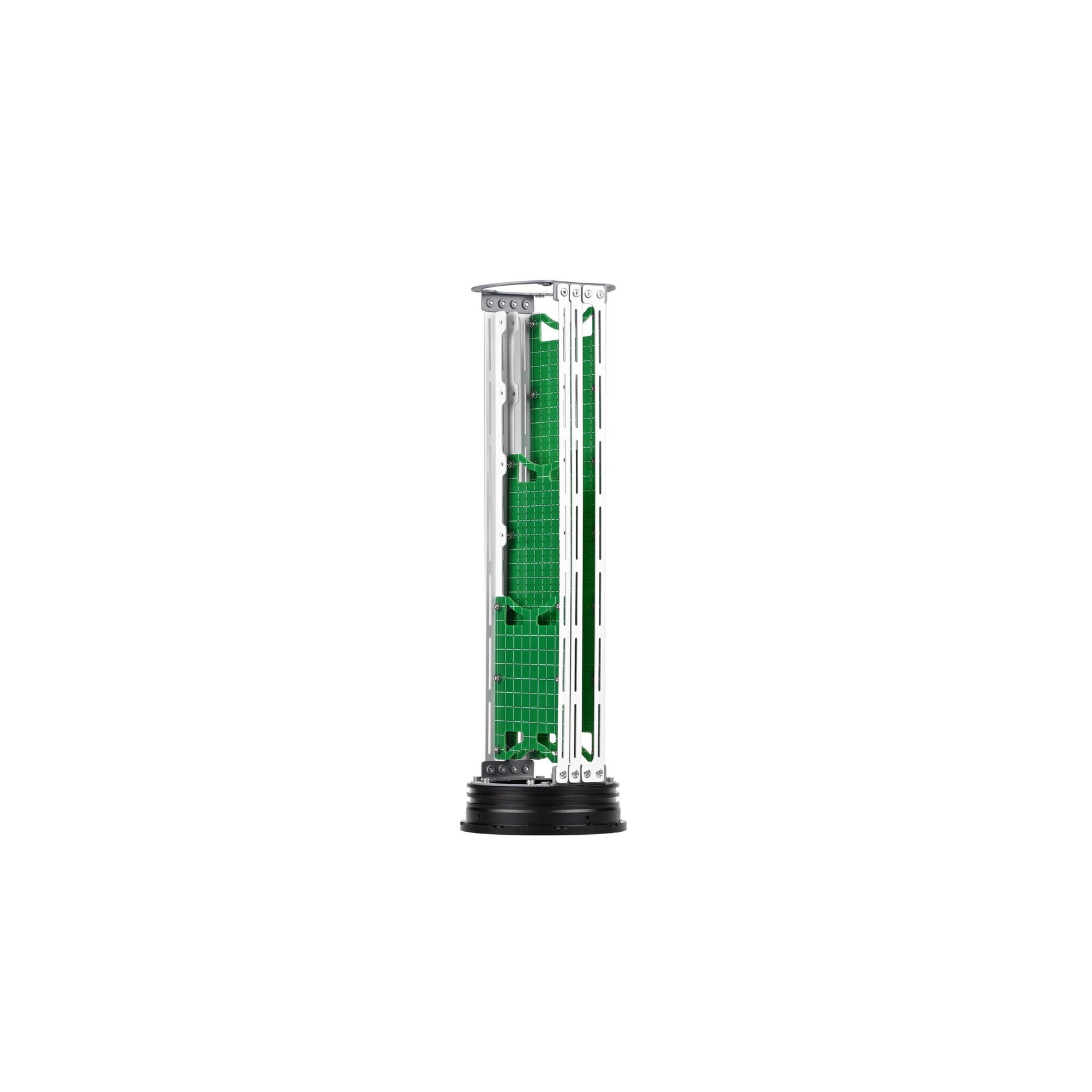

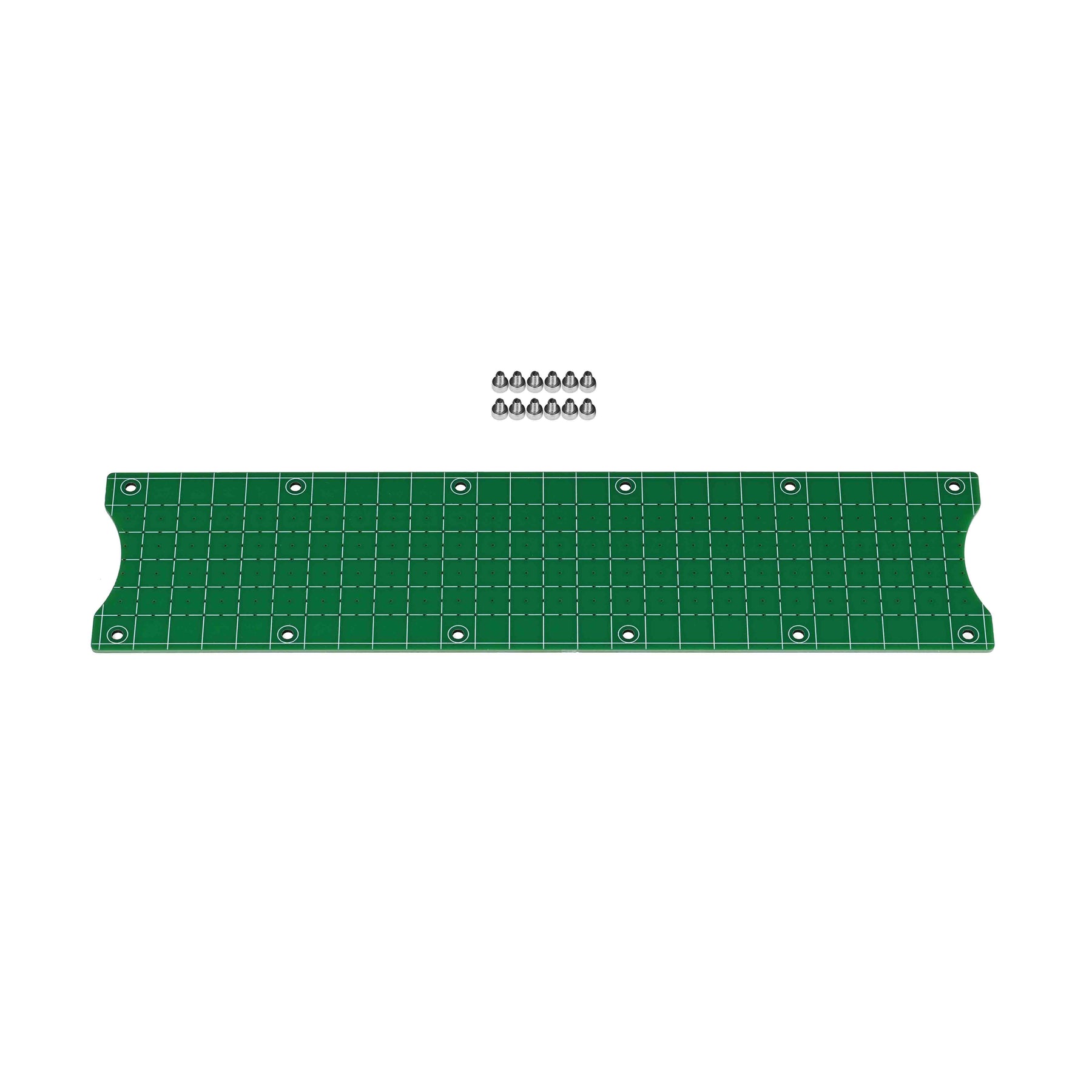

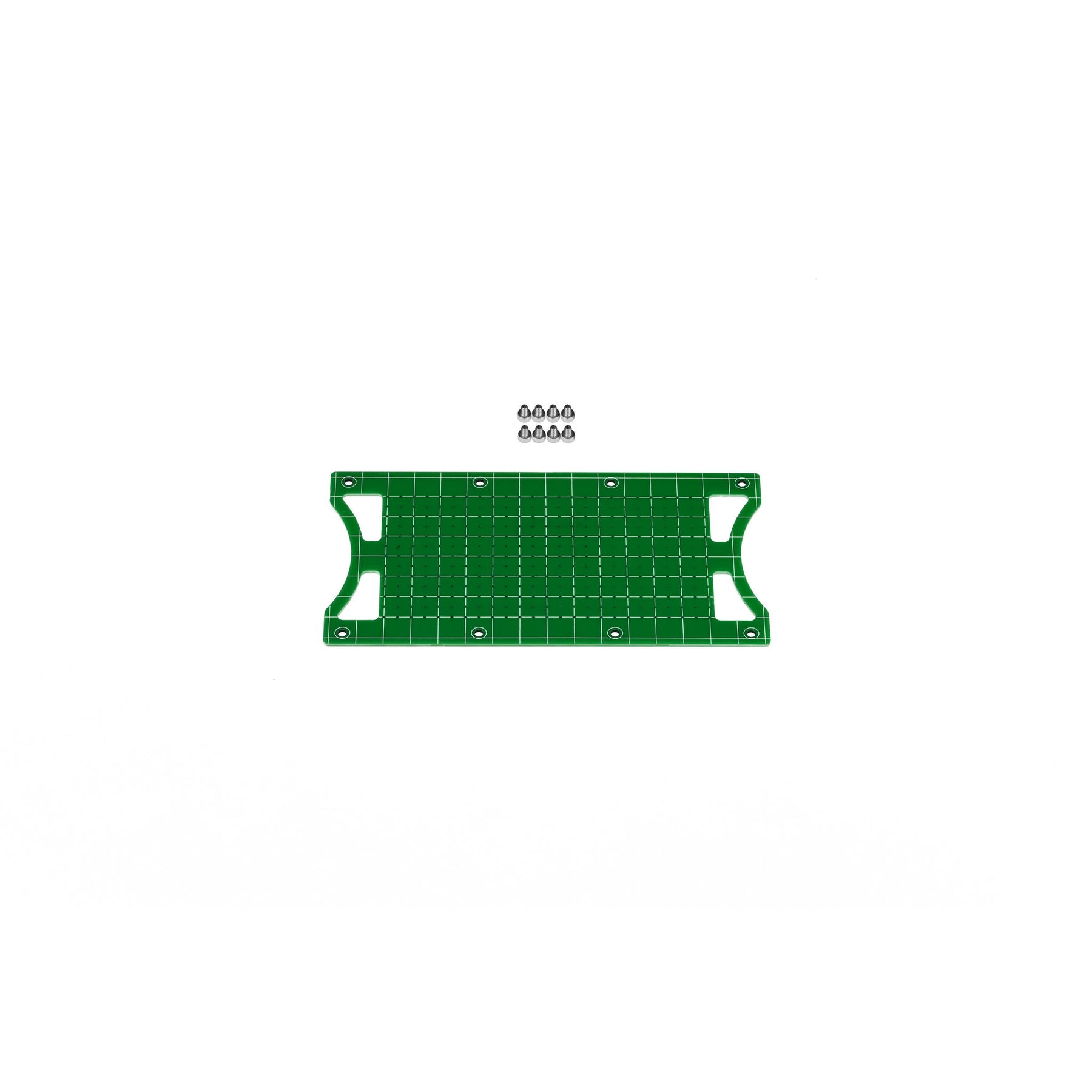

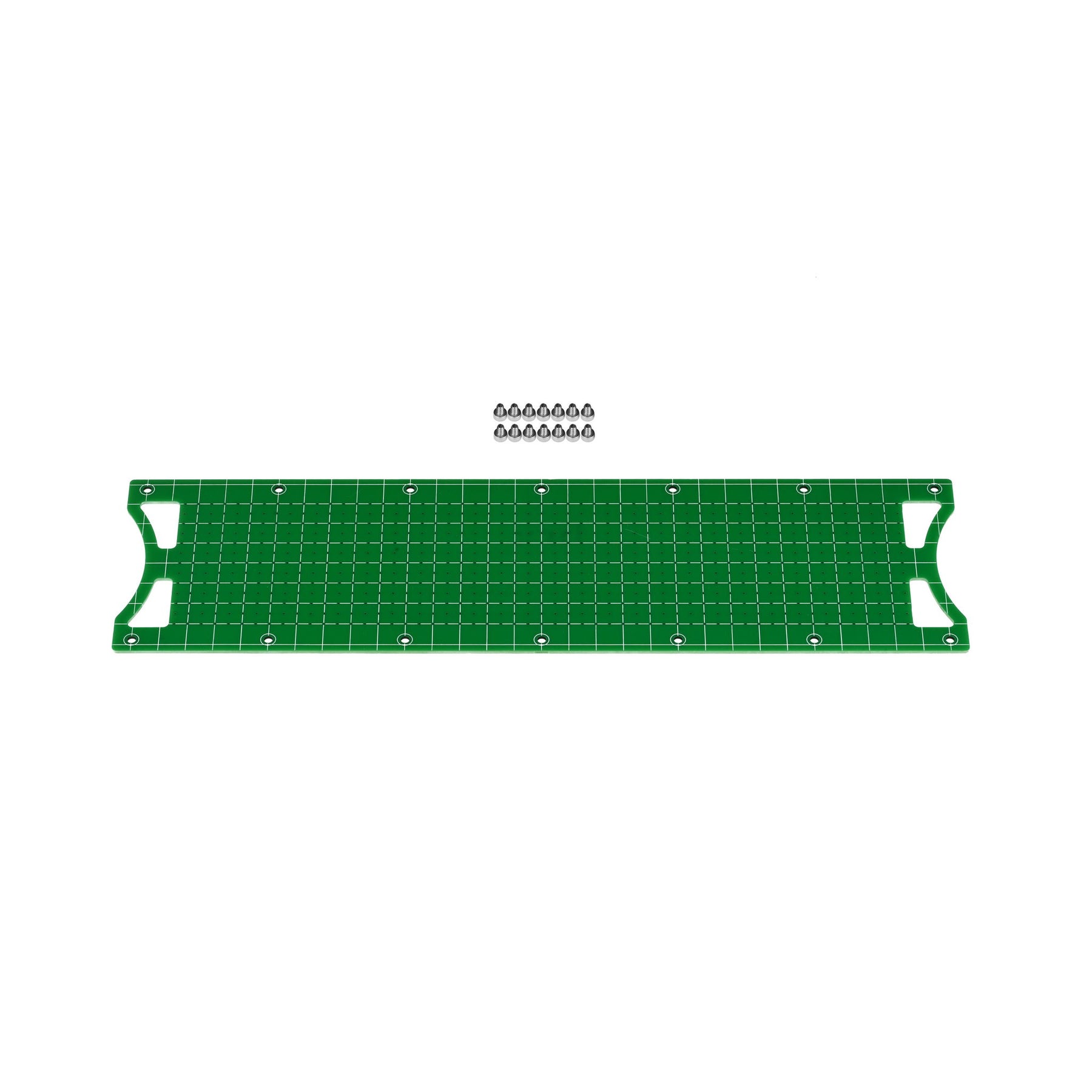

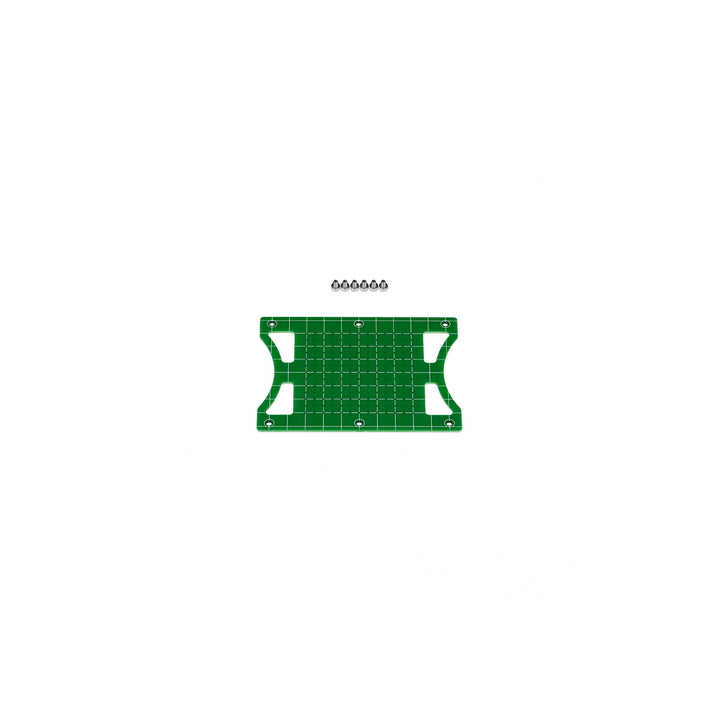

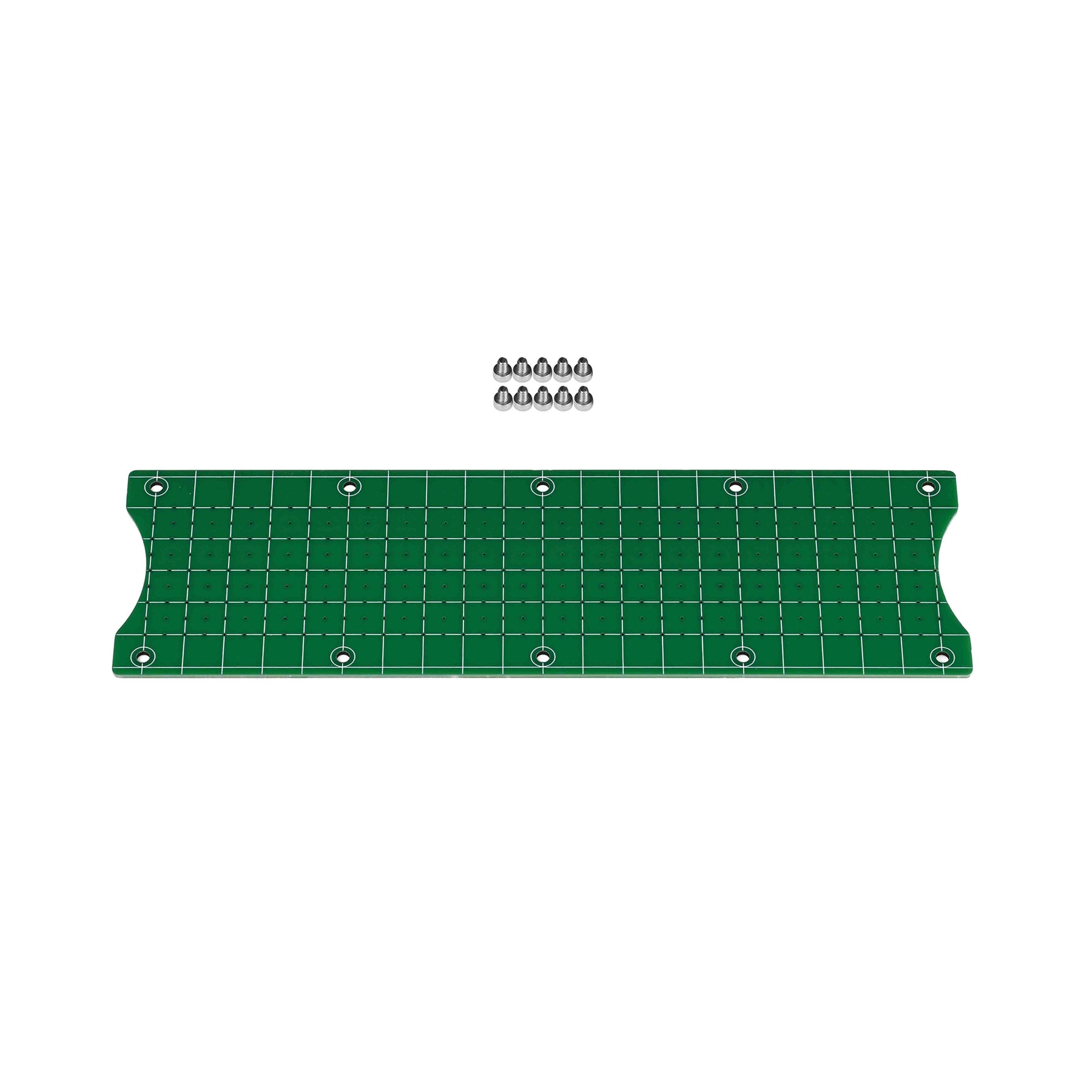

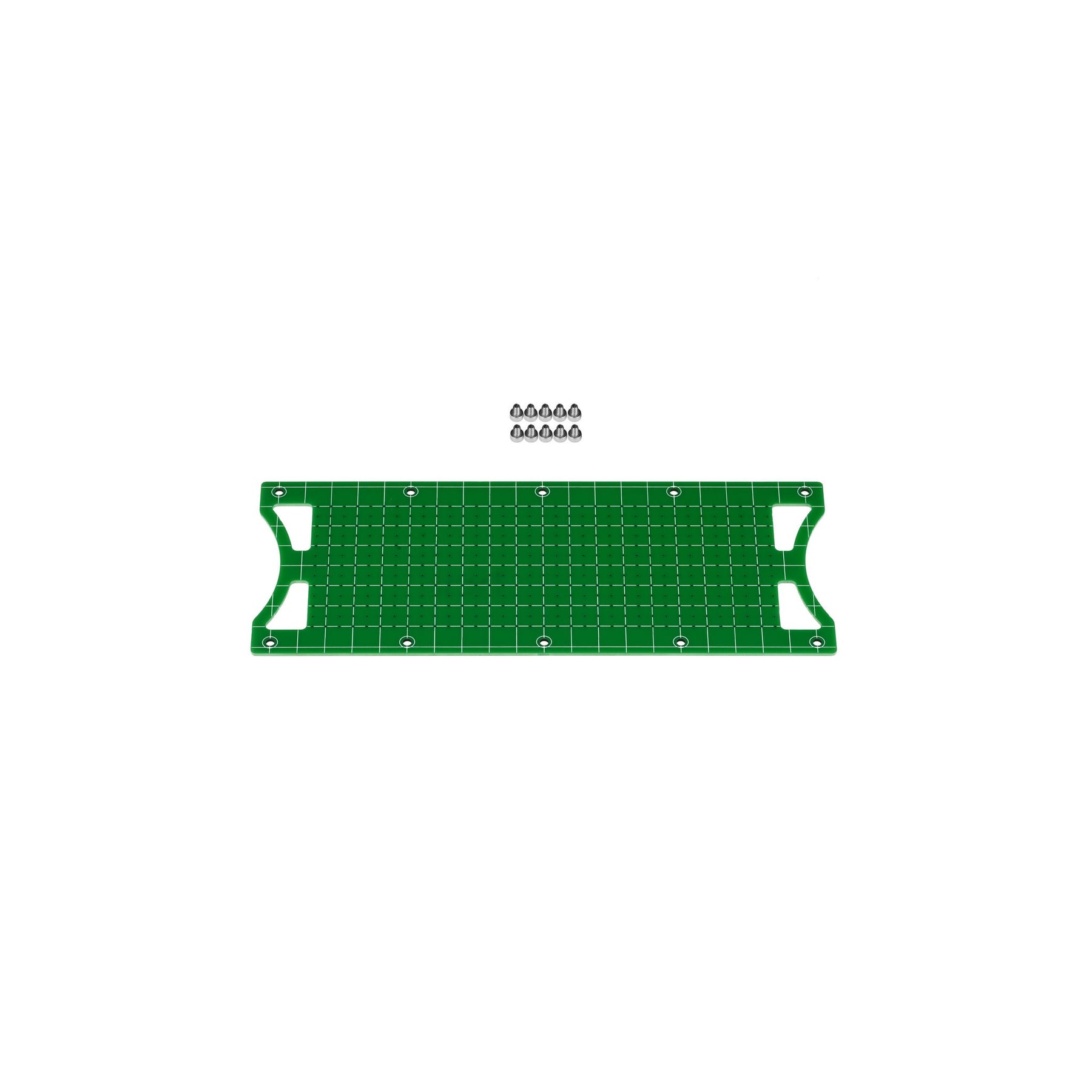

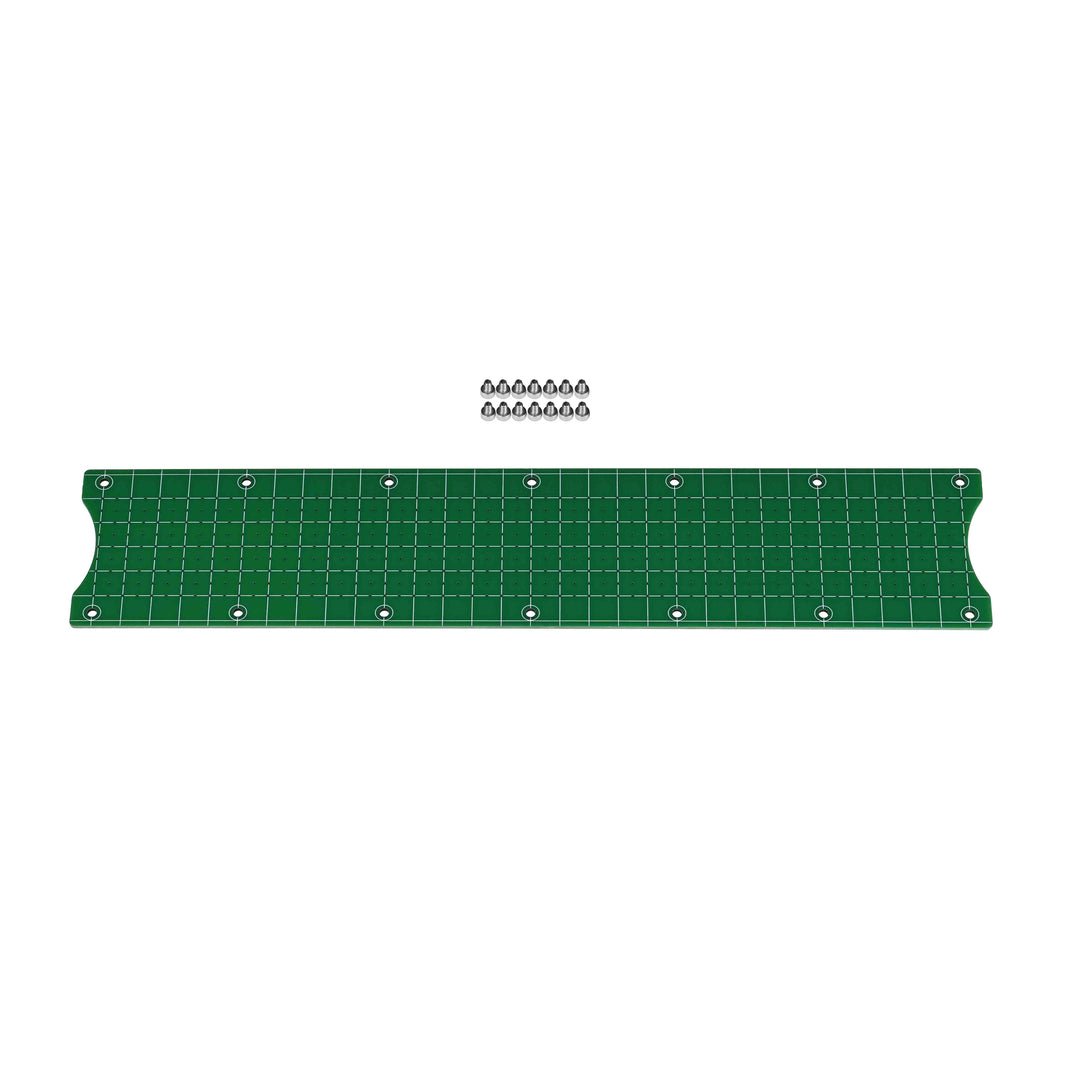

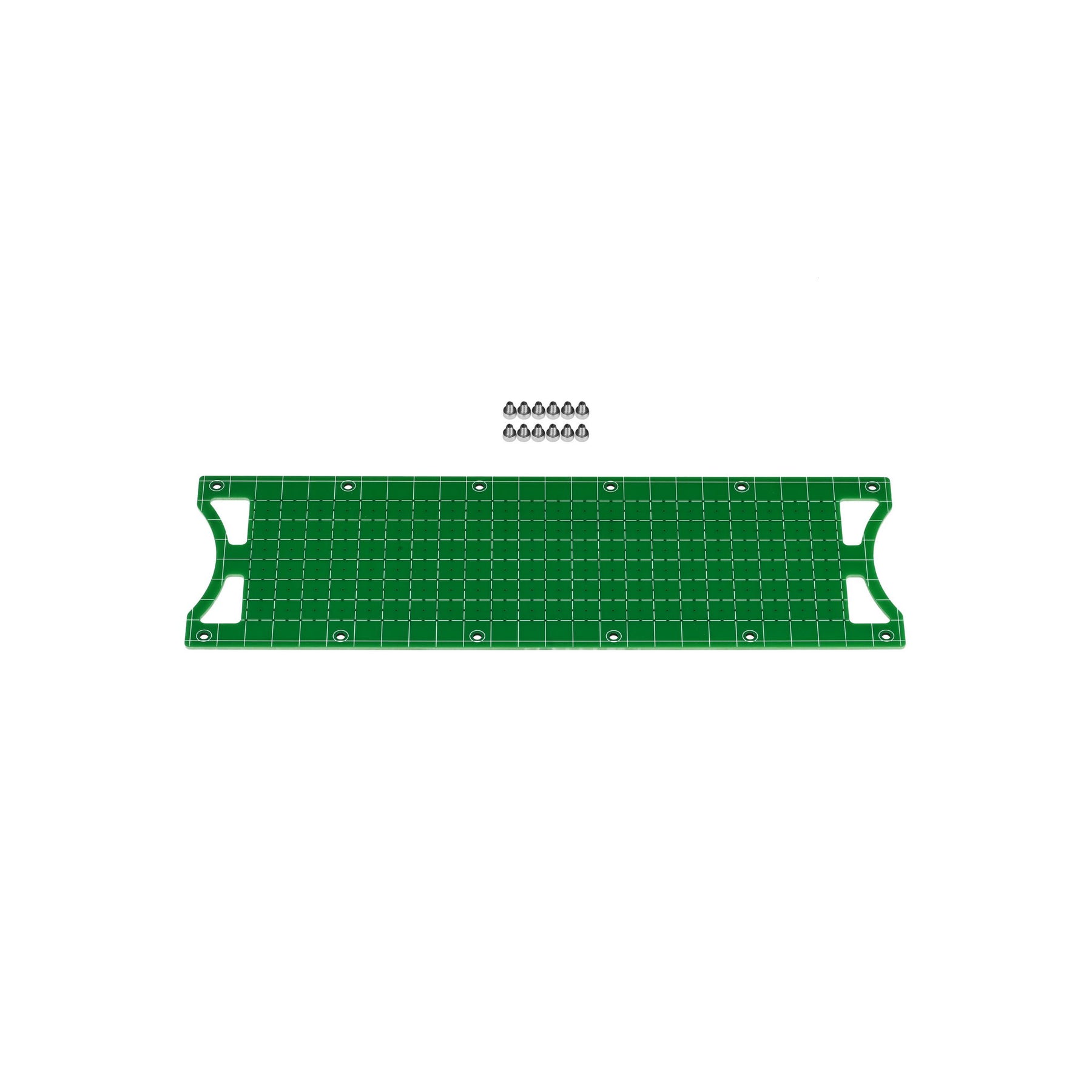

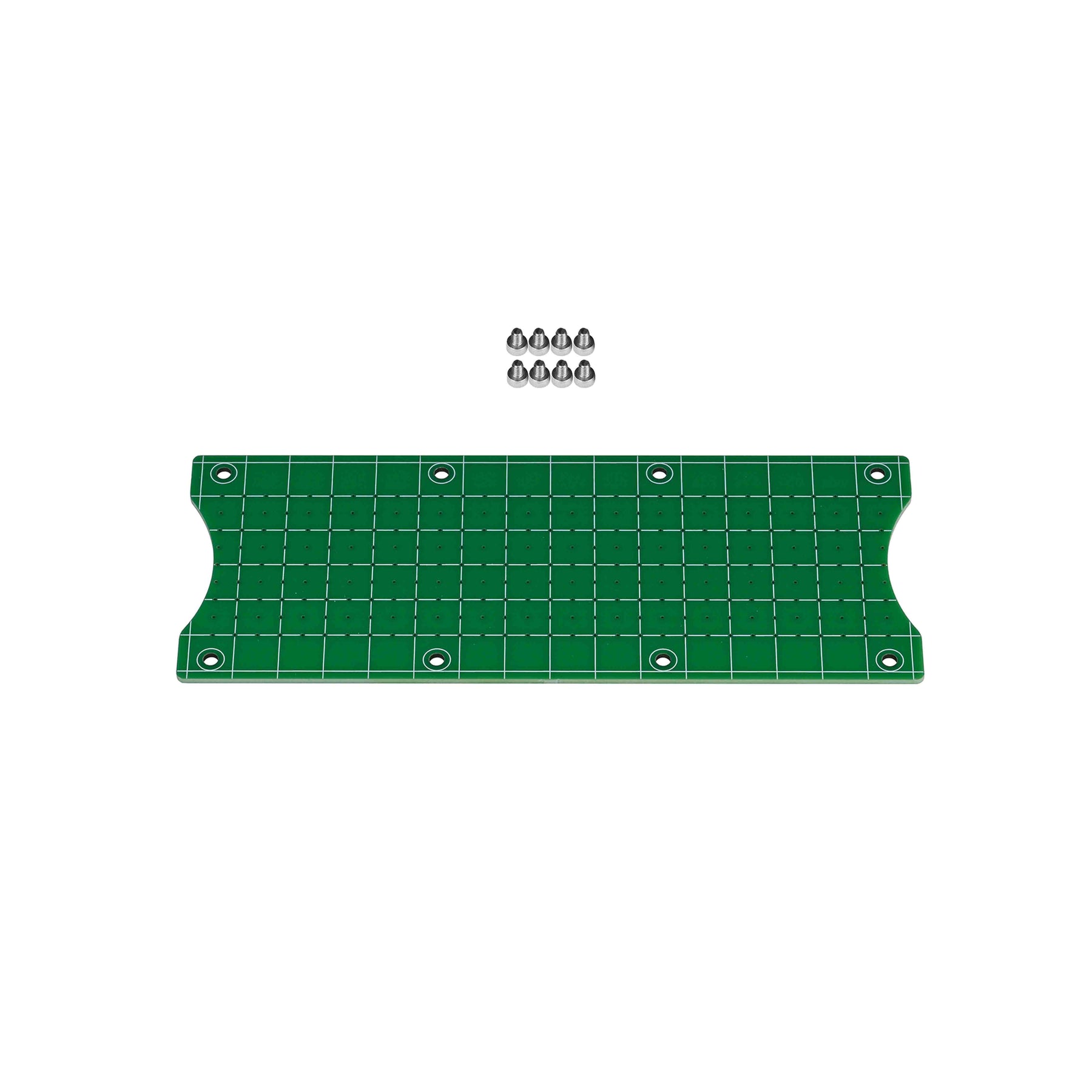

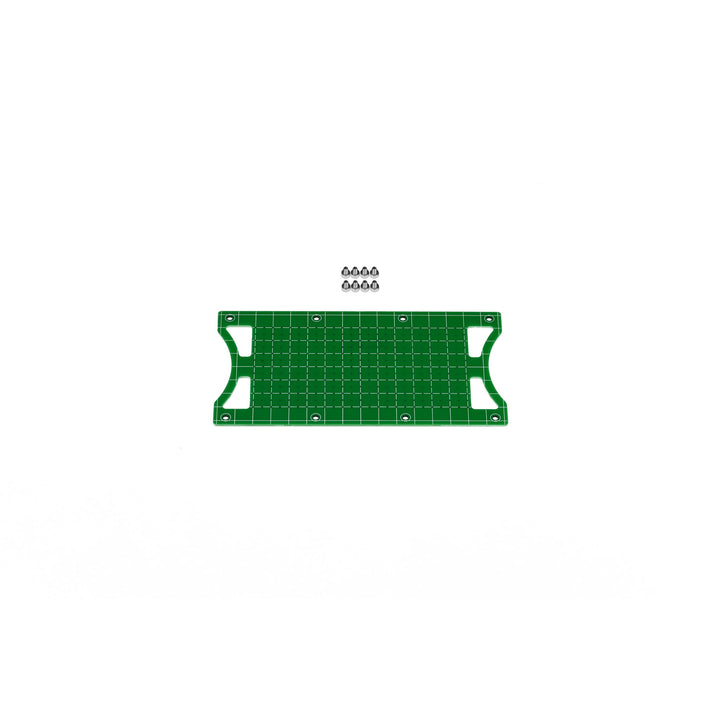

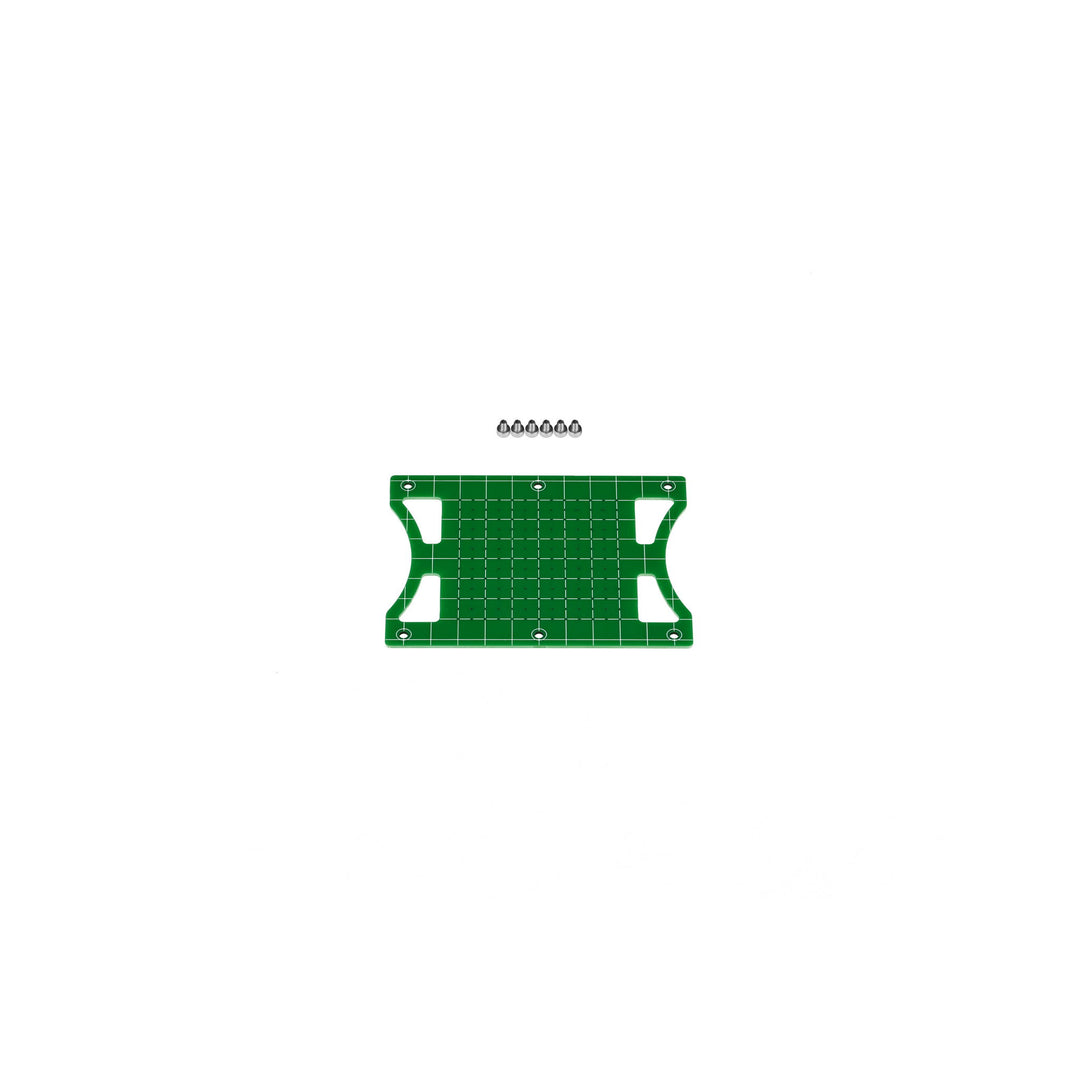

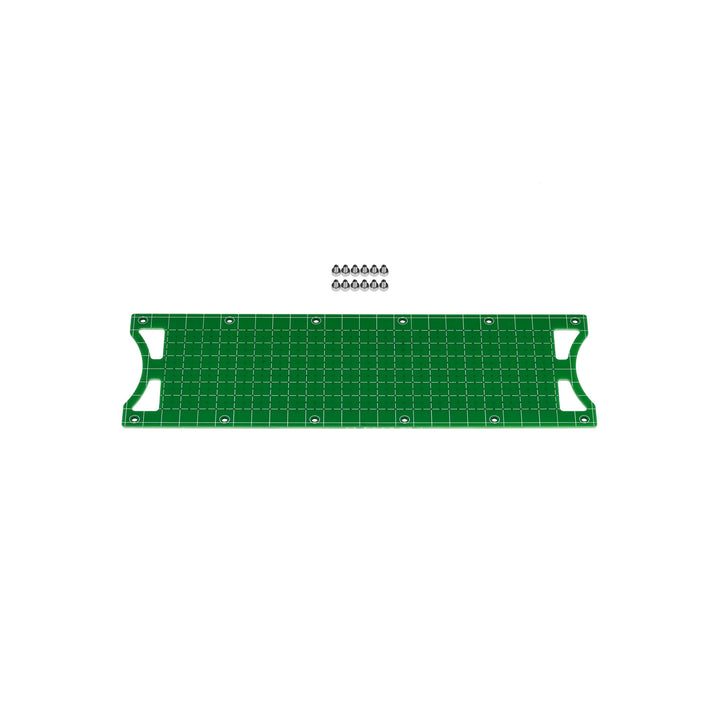

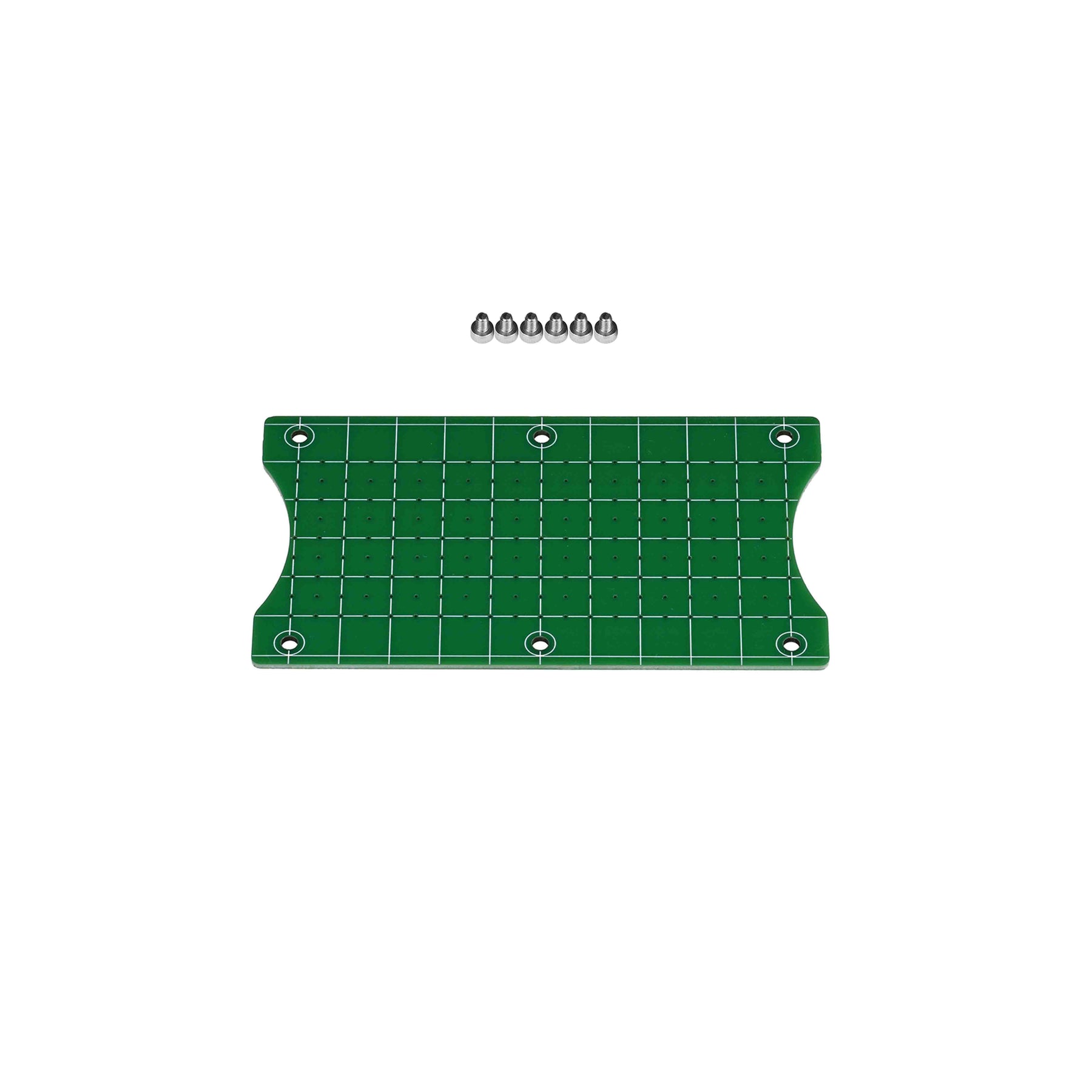

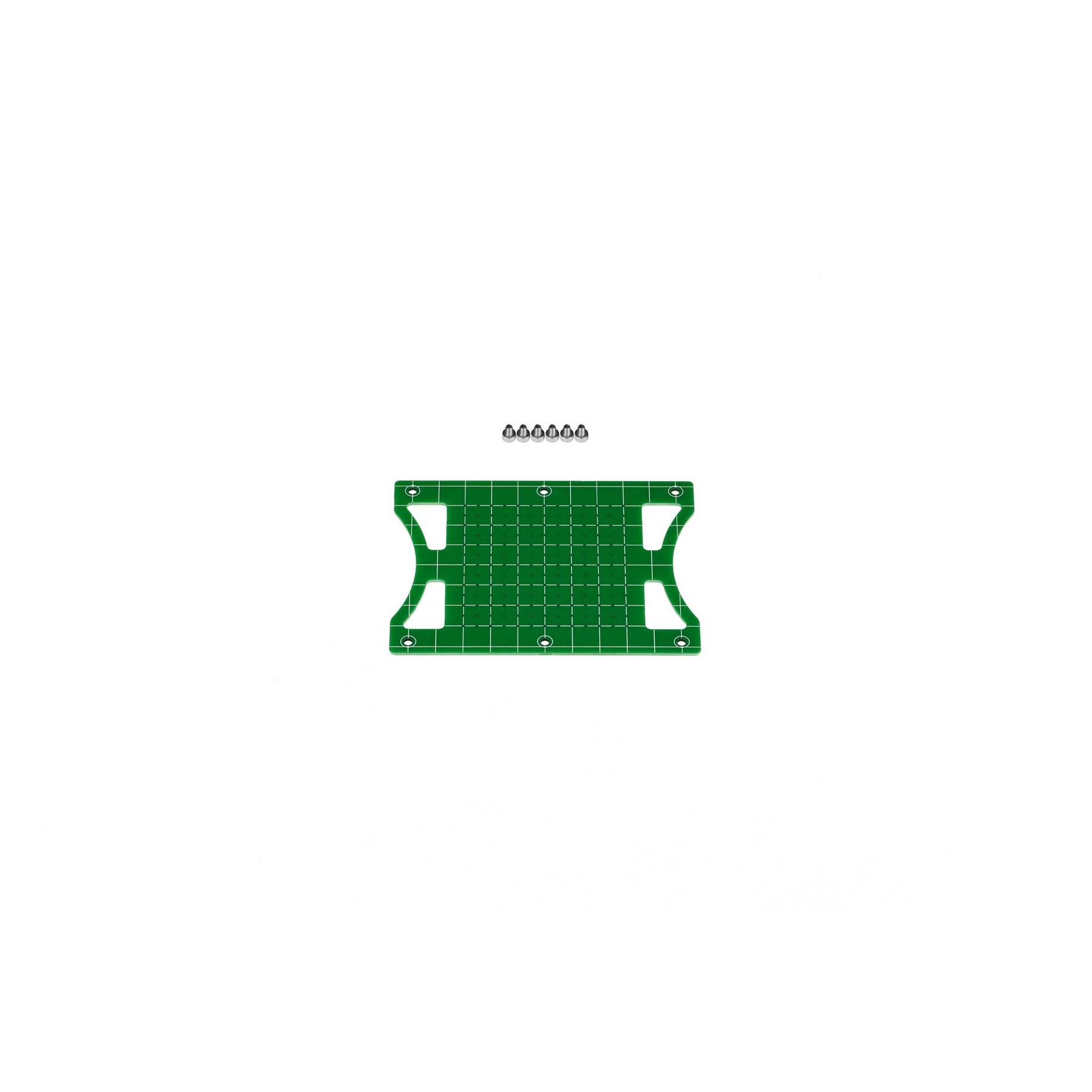

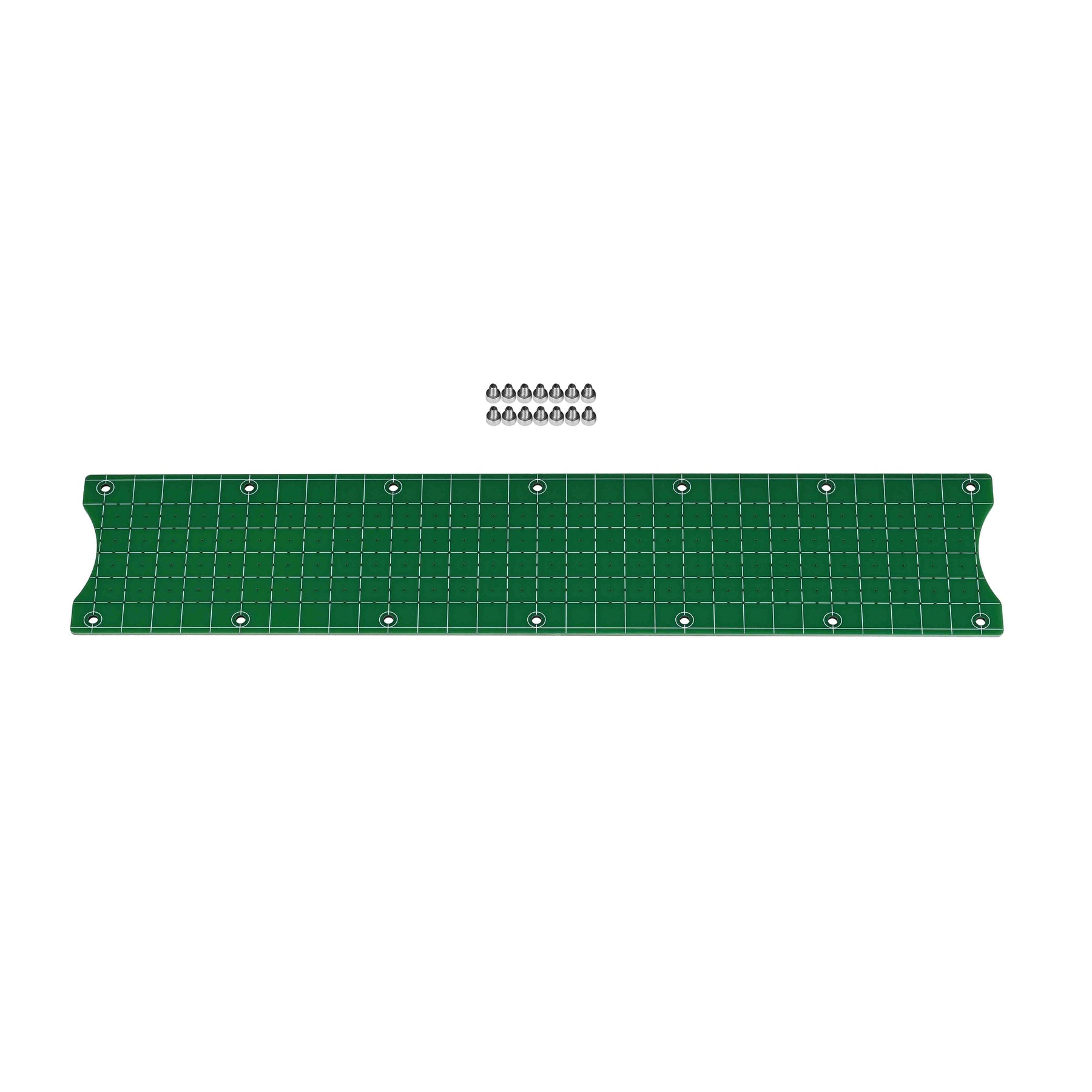

Each shelf is a green, double-sided PCB board made from electrically insulated material. Marked point holes are provided to simplify drilling for component mounting or cable pass-throughs. The shelf also serves as a reference layer for visualizing internal device placement and planning your layout.

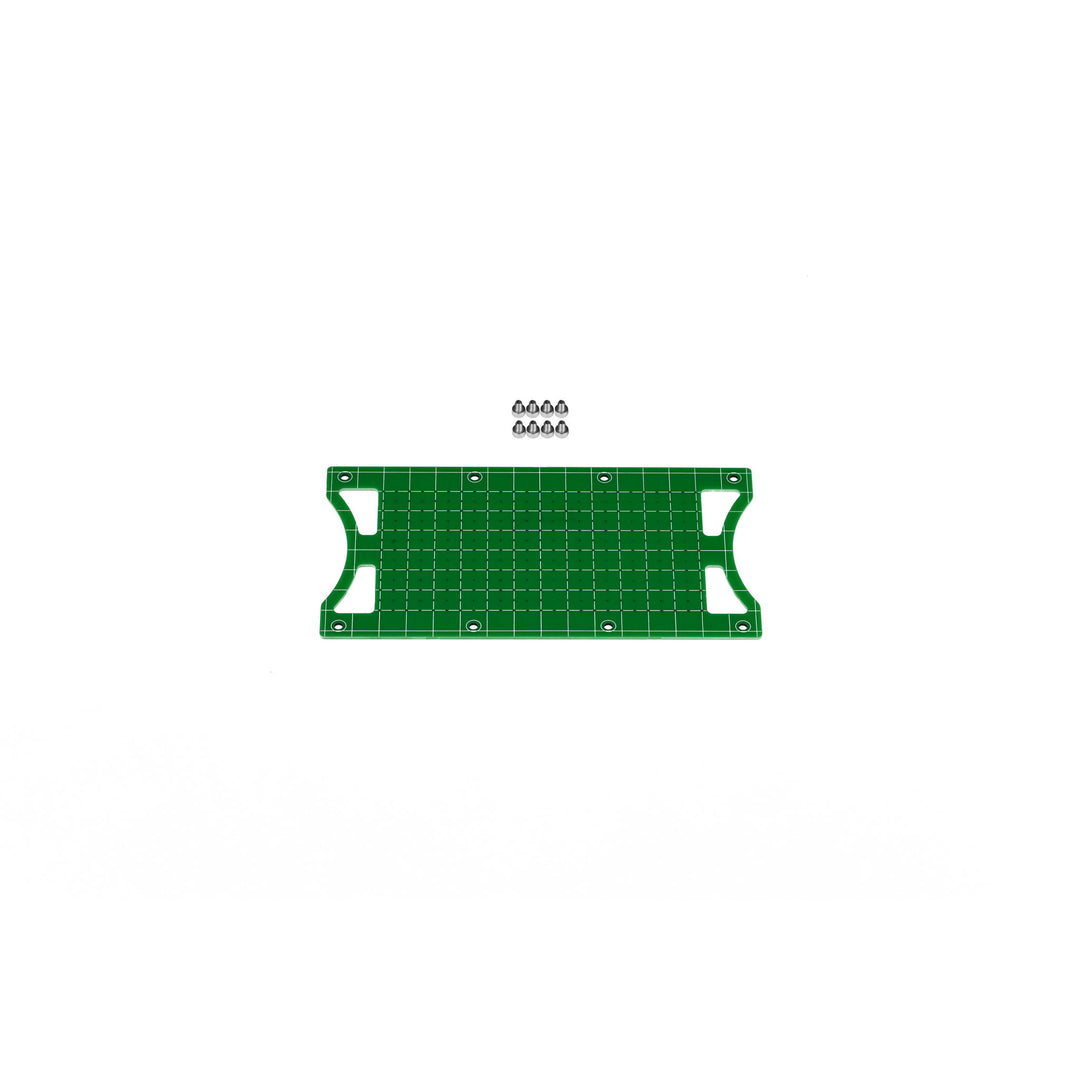

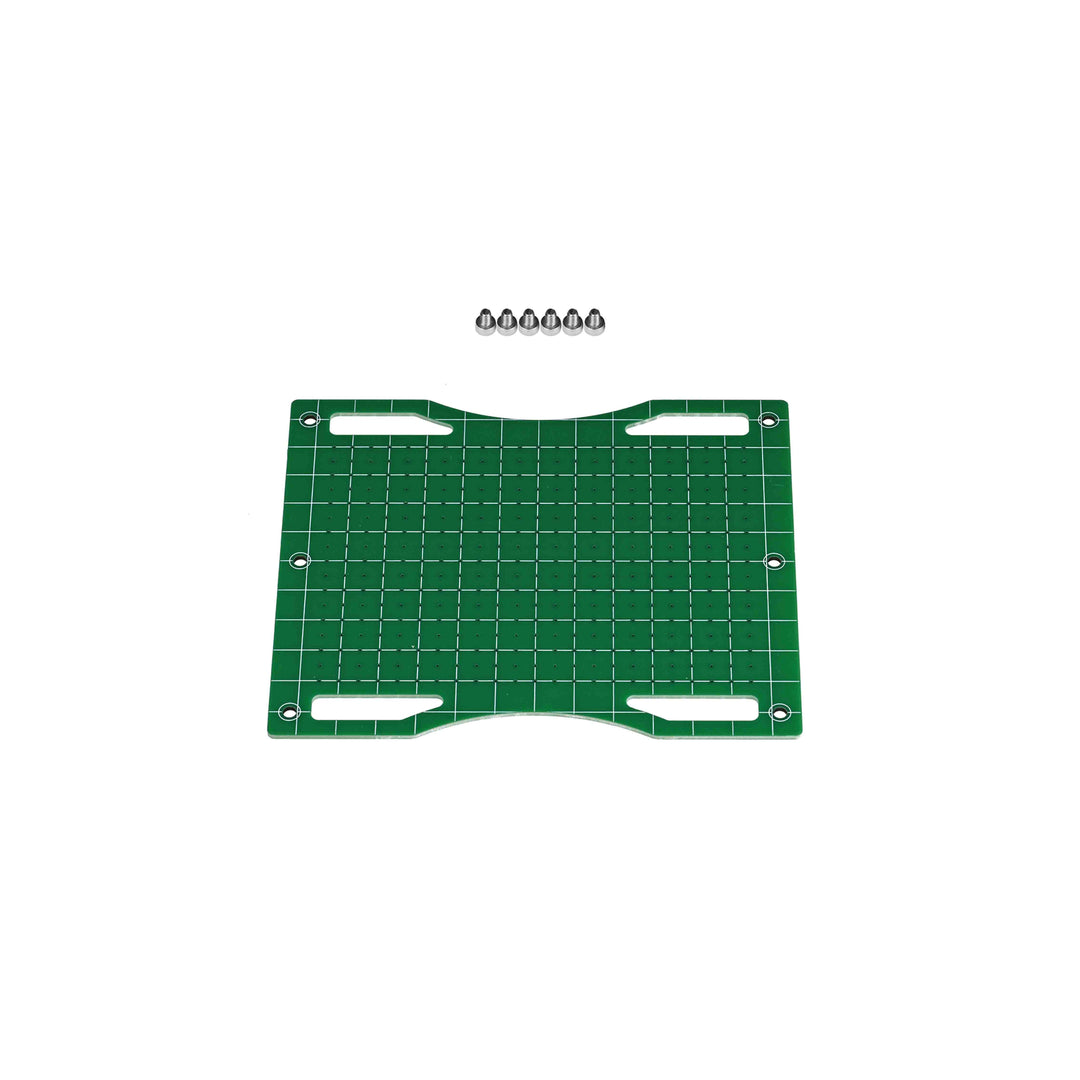

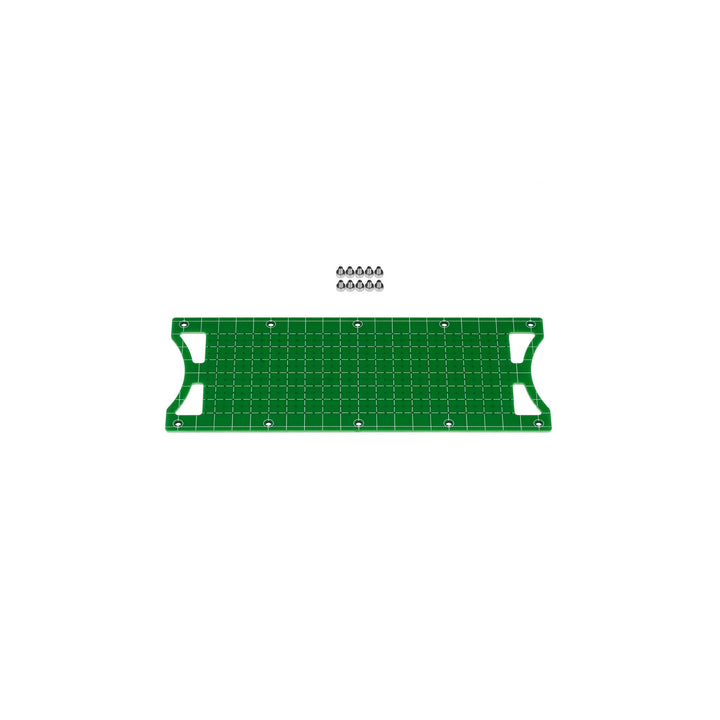

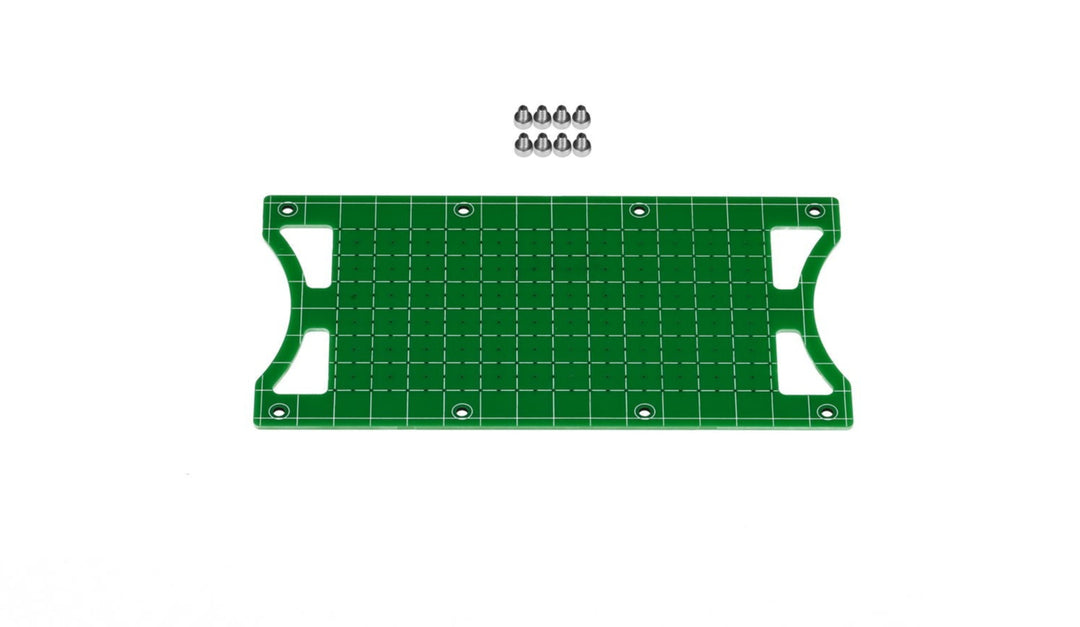

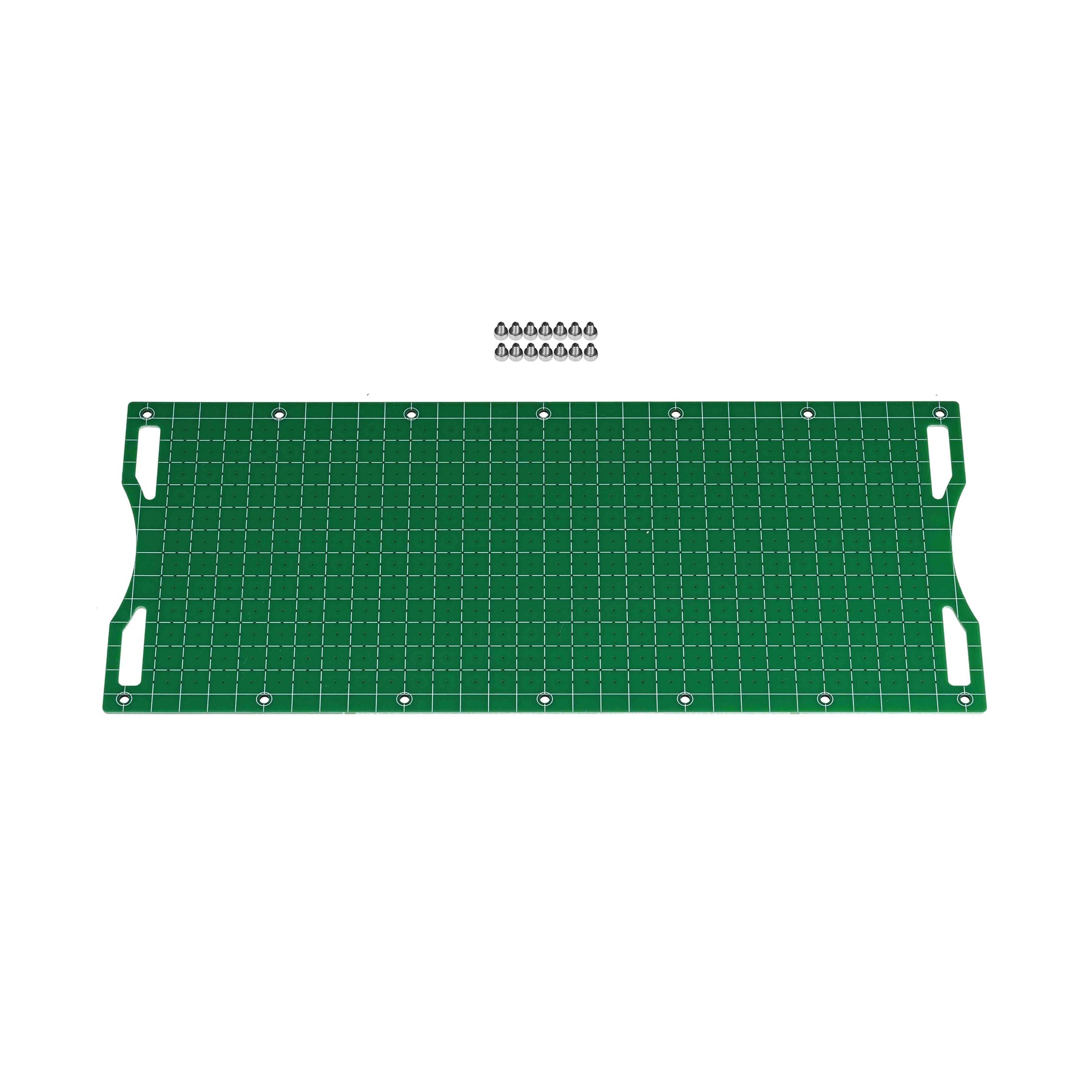

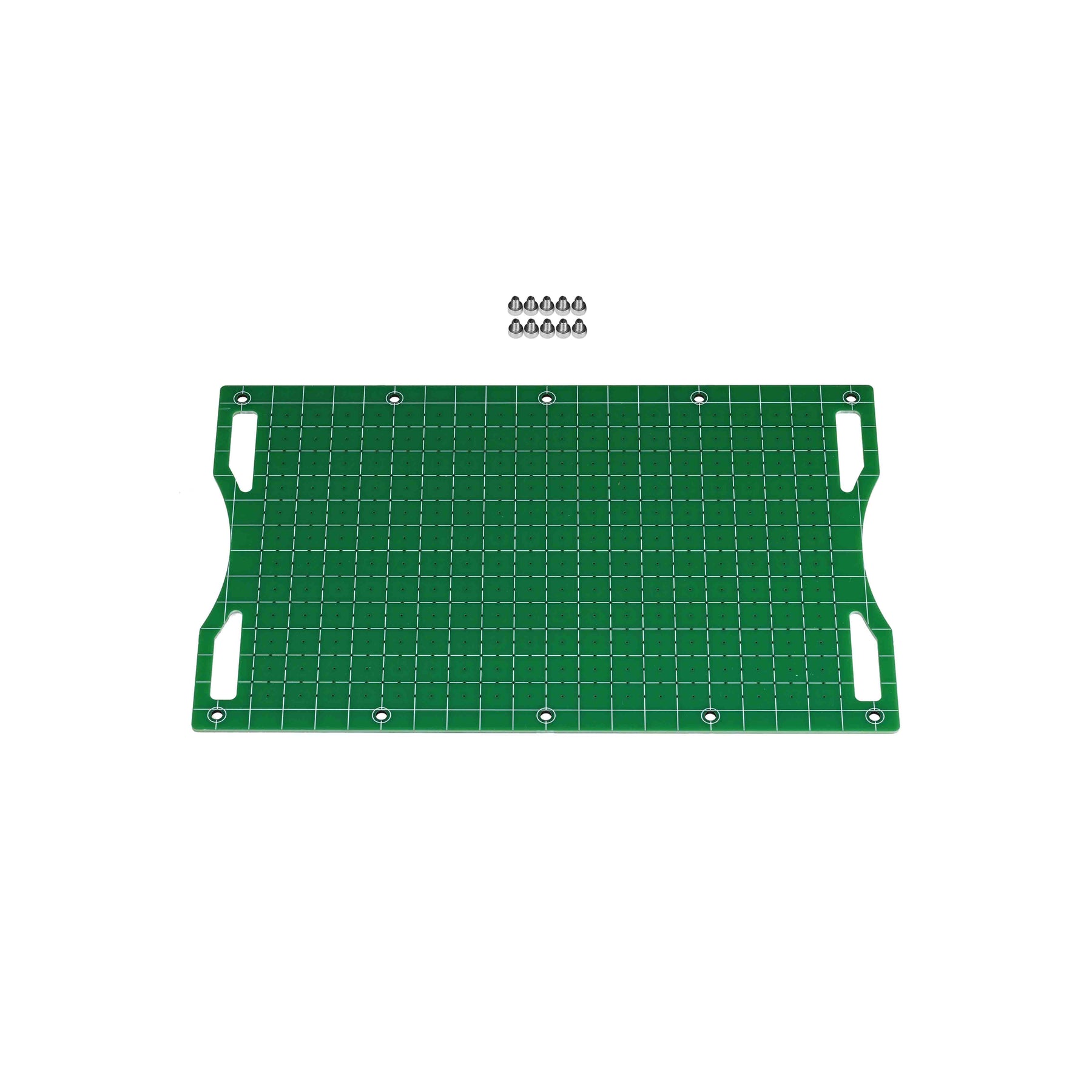

This offering is for the PCB board shelf only and includes one unit per order, along with screws for mounting to either the Double-Point and Single-Point Shelf Supports.

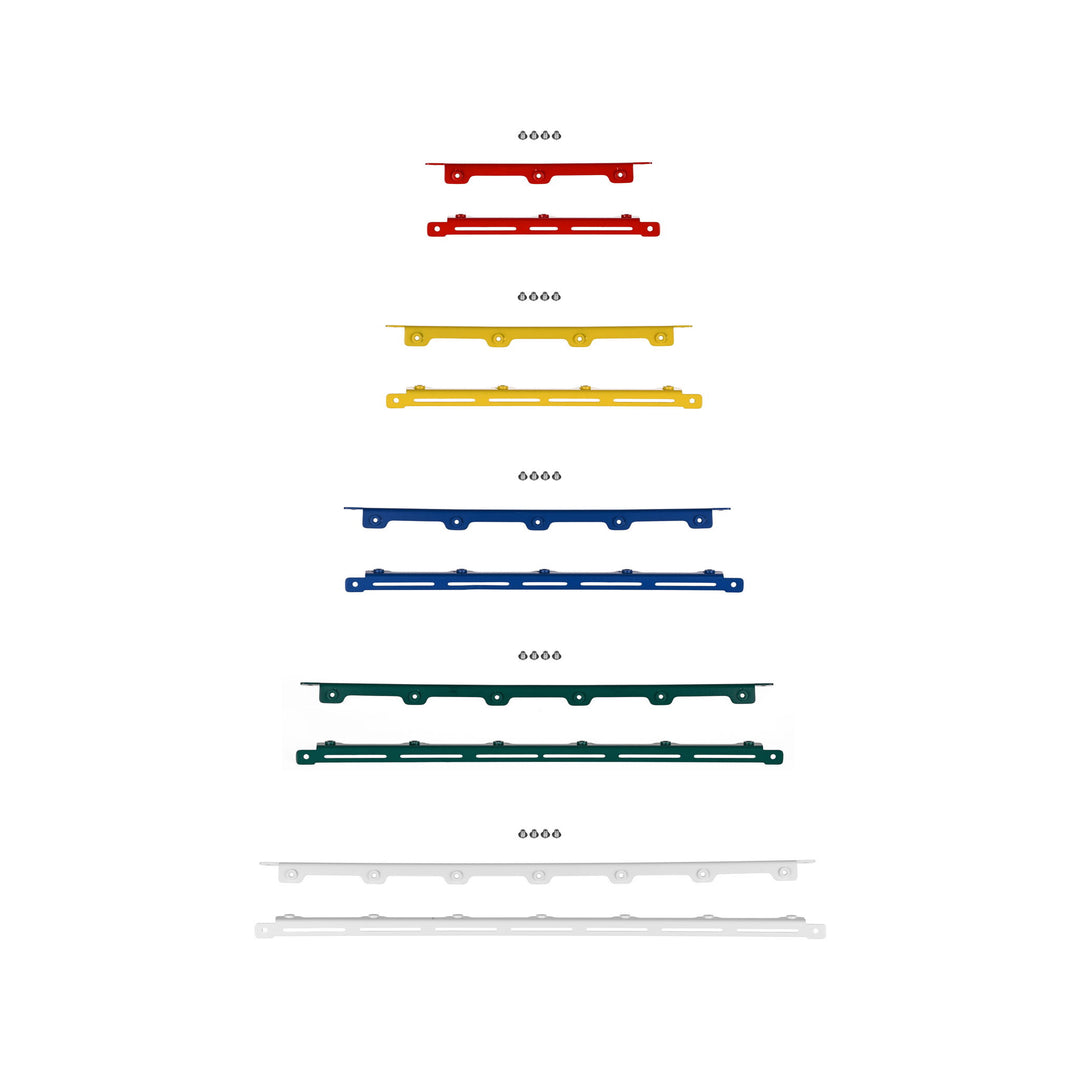

Single-Point Shelf Supports can be purchased separately here.
Shelf supports, base mounts, or any other tray components are not included.
Need Help Building Your Complete System?
Use our Subsea Enclosure Builder to design your complete underwater system with perfect compatibility, real-time pricing, and one-click ordering.
| Material | Green double-sided insulated PCB |
|---|---|
| Weight |
85mm (approx.): 200 mm – ≈16 g / 250 mm – ≈24 g / 300 mm – ≈32 g / 350 mm – ≈40 g / 400 mm – ≈47 g 115mm (approx.): 200 mm – ≈30 g / 250 mm – ≈44 g / 300 mm – ≈58 g / 350 mm – ≈73 g / 400 mm – ≈87 g 165mm (approx.): 200 mm – ≈62 g / 300 mm – ≈119 g / 400 mm – ≈179 g |
| Color | Green |
| Depth Rating | N/A |

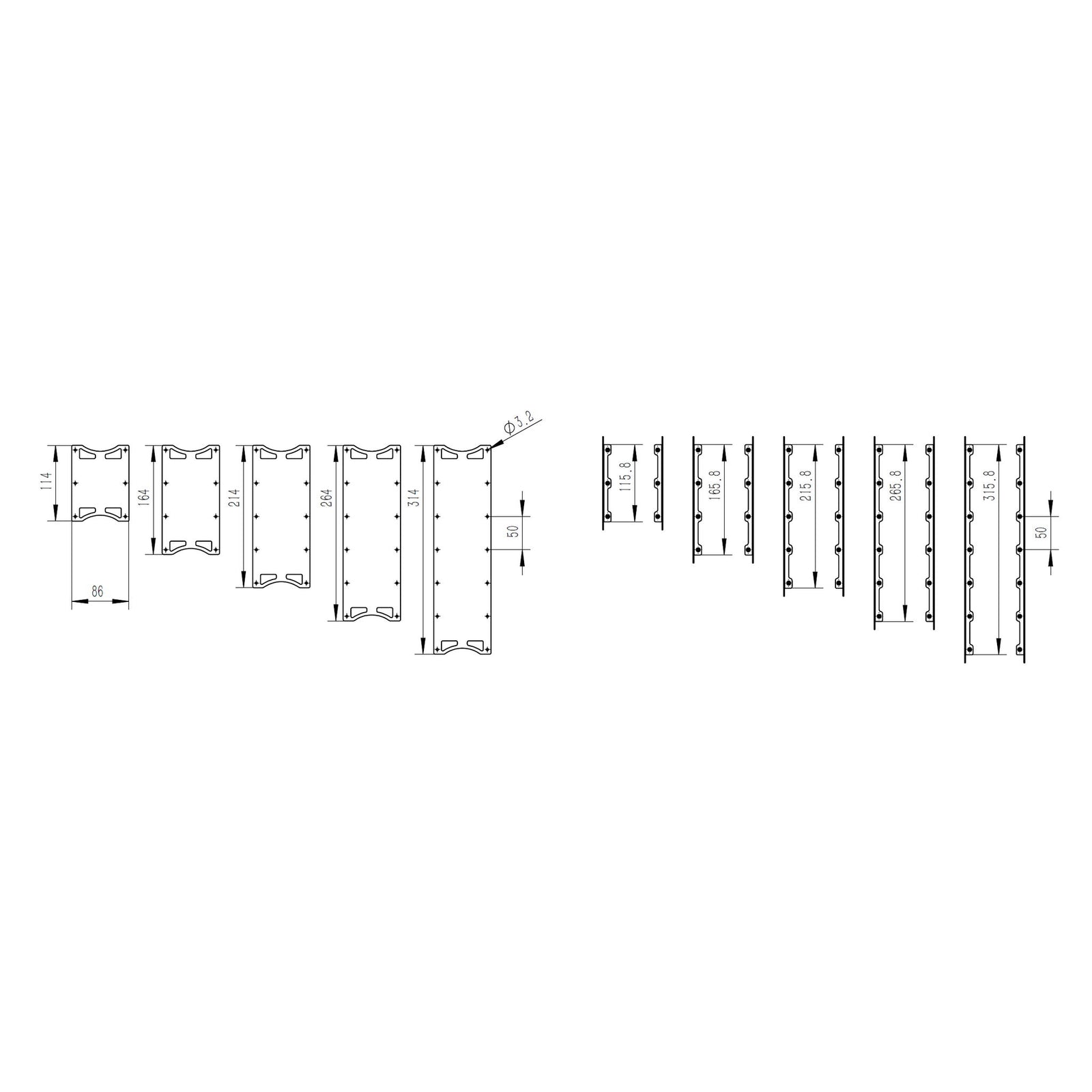

| Dimensions | Sized to match 85mm / 115mm / 165mm trays and standard tube lengths |
