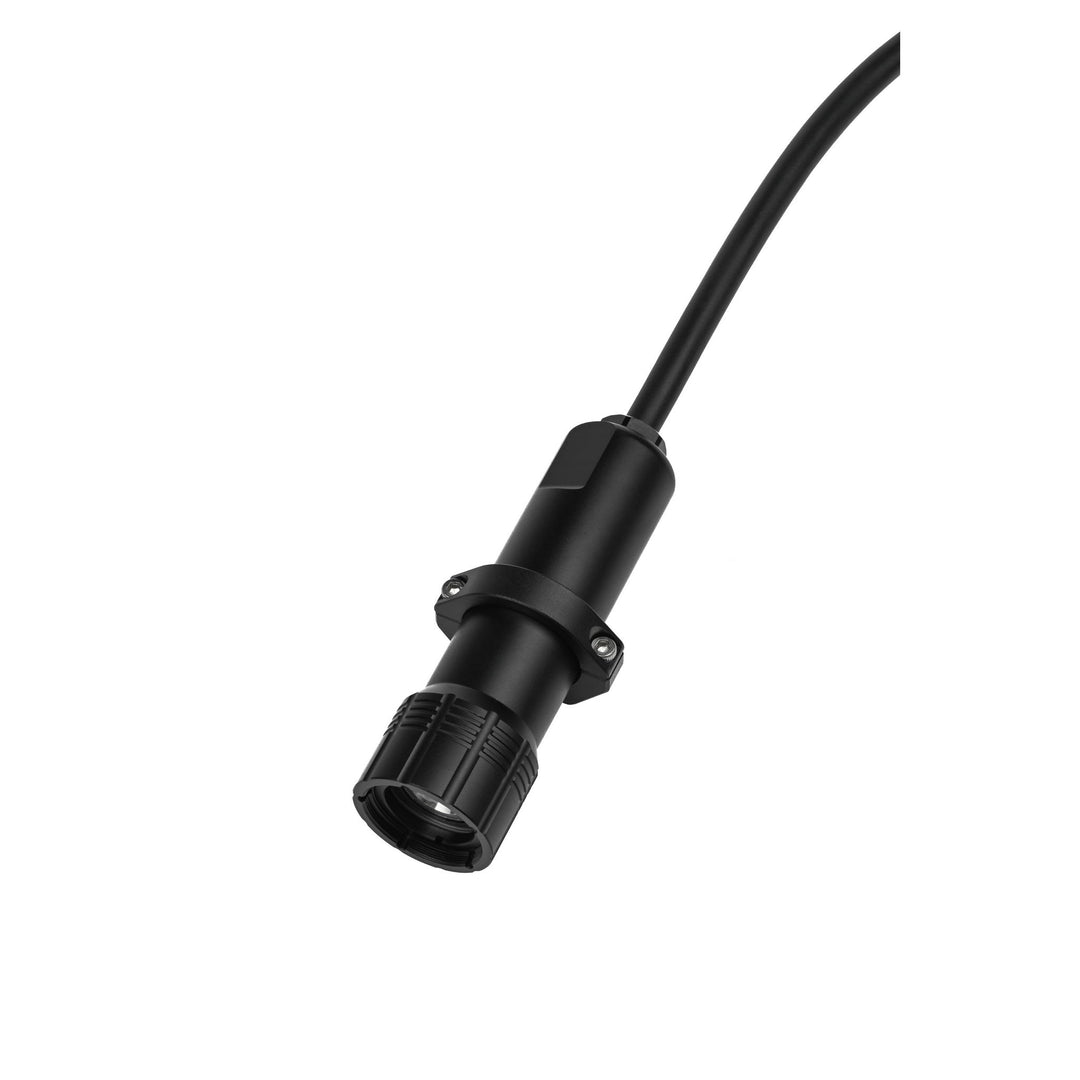

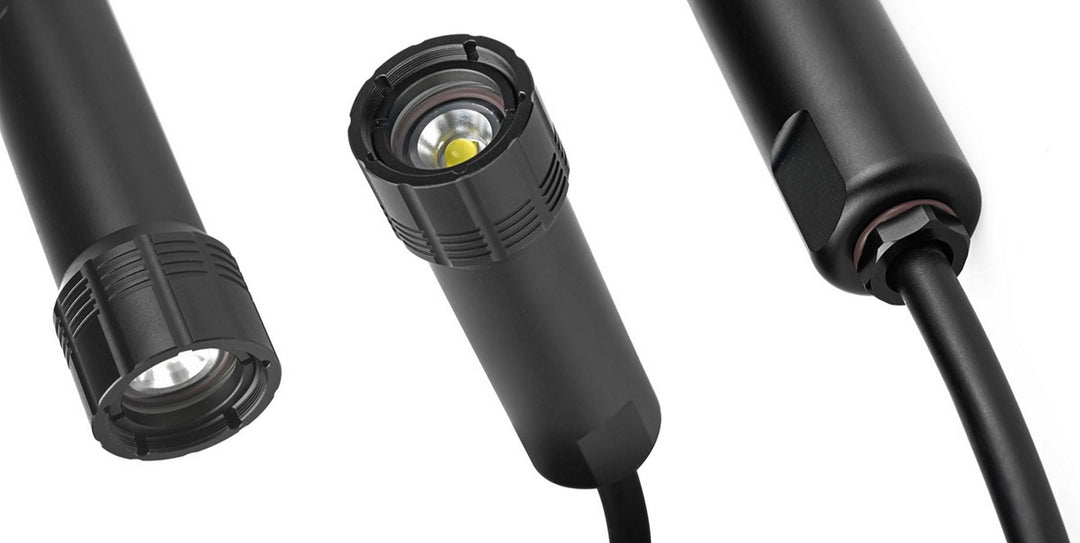

Compatible With: Subsea Dimmable LED with Cable, 1500 Lumens, 6000K
Sold Separately

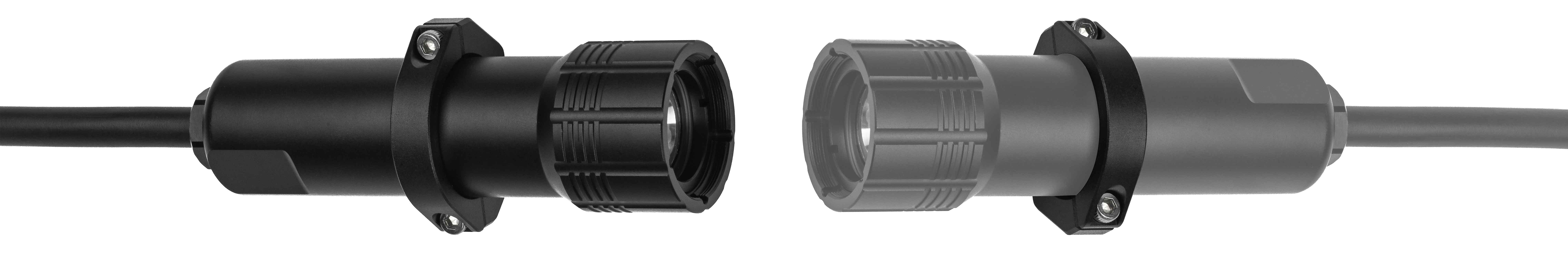

The Subsea Dimmable LED with Cable, 1500 Lumens, 6000K is fully compatible with the Blu-Sub Subsea Accessory Mounting Bracket. Its 25 mm cylindrical body fits securely within the split clamp design, offering a vibration-resistant and non-damaging hold ideal for ROVs and custom subsea rigs. Together, they provide a clean, modular lighting solution rated for depths up to 300 m.

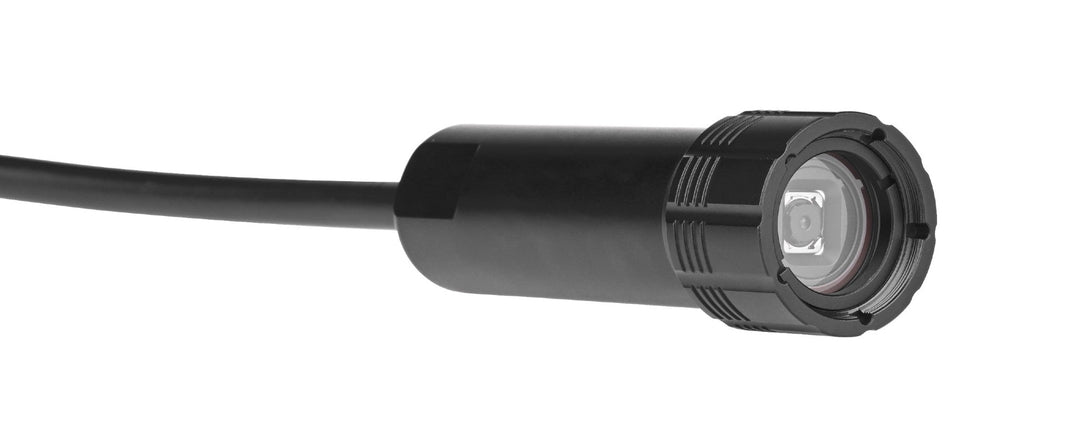

Compatible With: Blu-Vision Video Camera
Sold Separately
The Subsea Blu-Vision Video Camera is fully compatible with the Blu-Sub Subsea Accessory Mounting Bracket. Its 25 mm cylindrical housing fits securely within the split clamping system, providing a vibration-resistant hold for underwater imaging applications. This pairing is ideal for ROVs, observation systems, and custom subsea builds requiring a compact HD camera rated to 300 m.
SHIPPING LIST
TECHNICAL SPECIFICATIONS

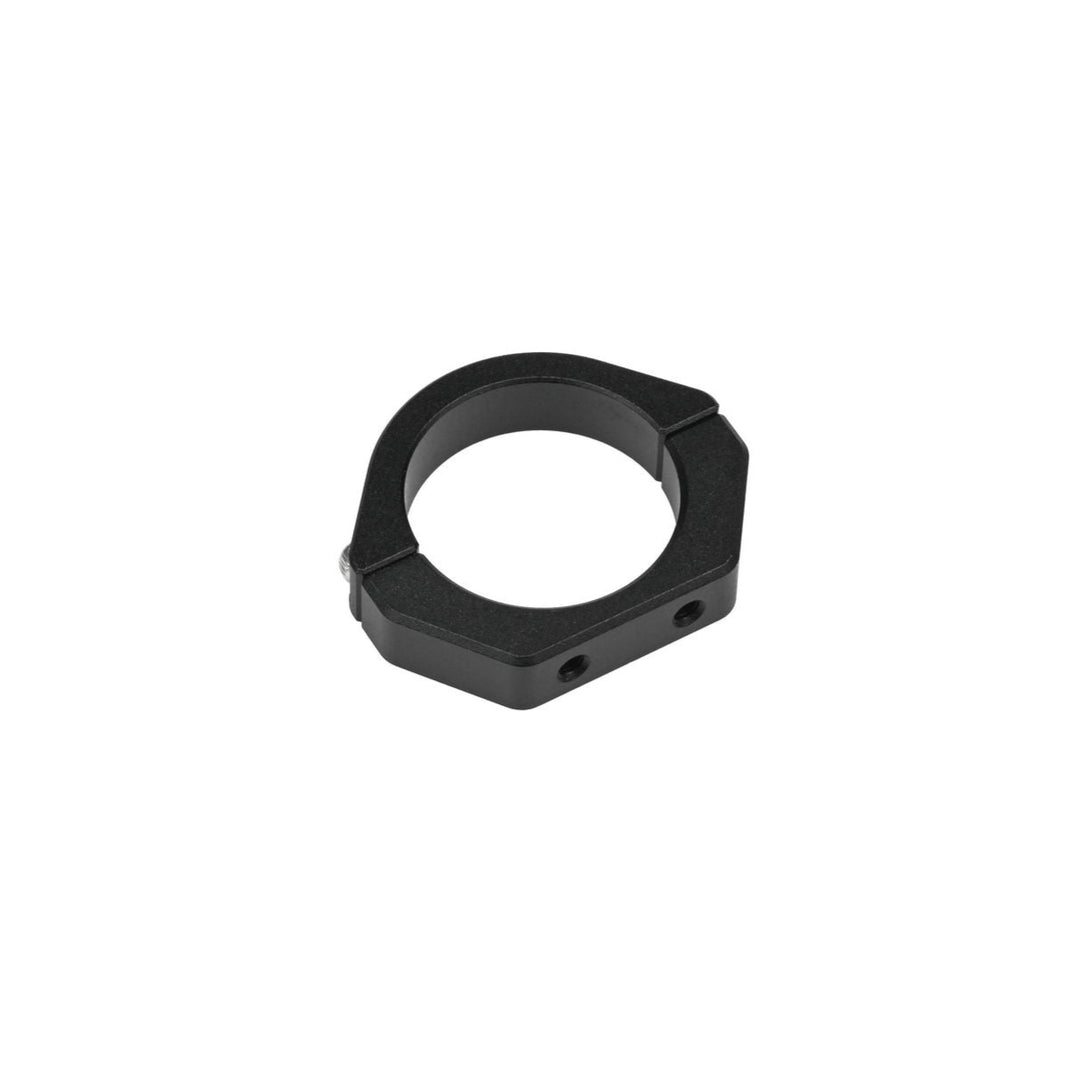

| Product | Diameter 25 Mounting Seat |
|---|---|
| Material | Black Anodized Aluminum |
| Weight | 10 g |
| Mounting Holes | 2 × M3 (12 mm spacing) |
| Design Features |

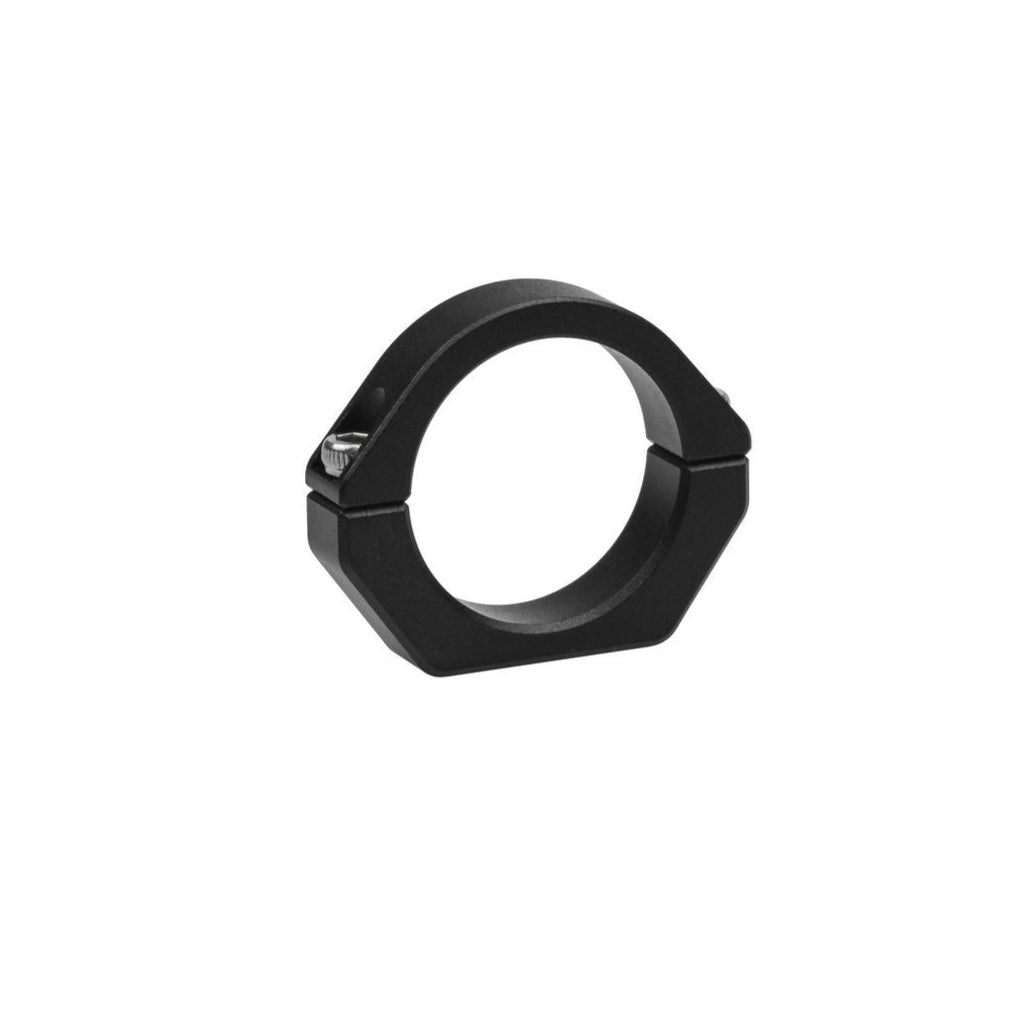

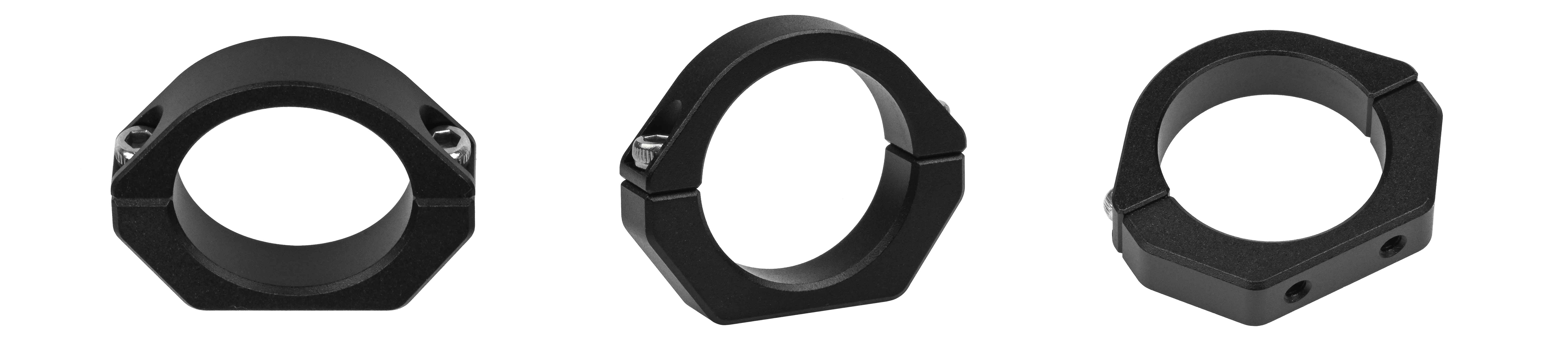

• Split clamping design for secure hold • Fits 25 mm cylindrical devices • Ideal for lights, lasers, cameras, and more |

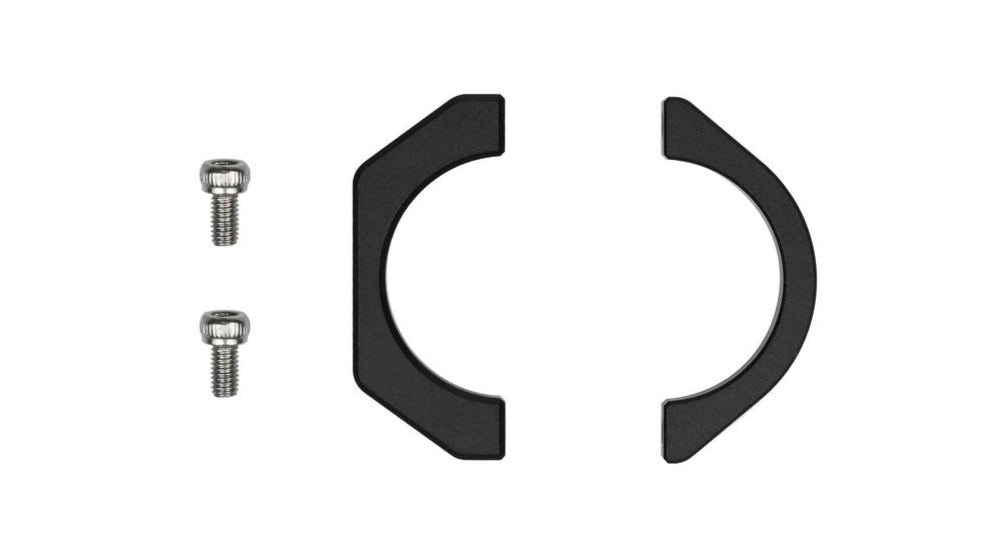

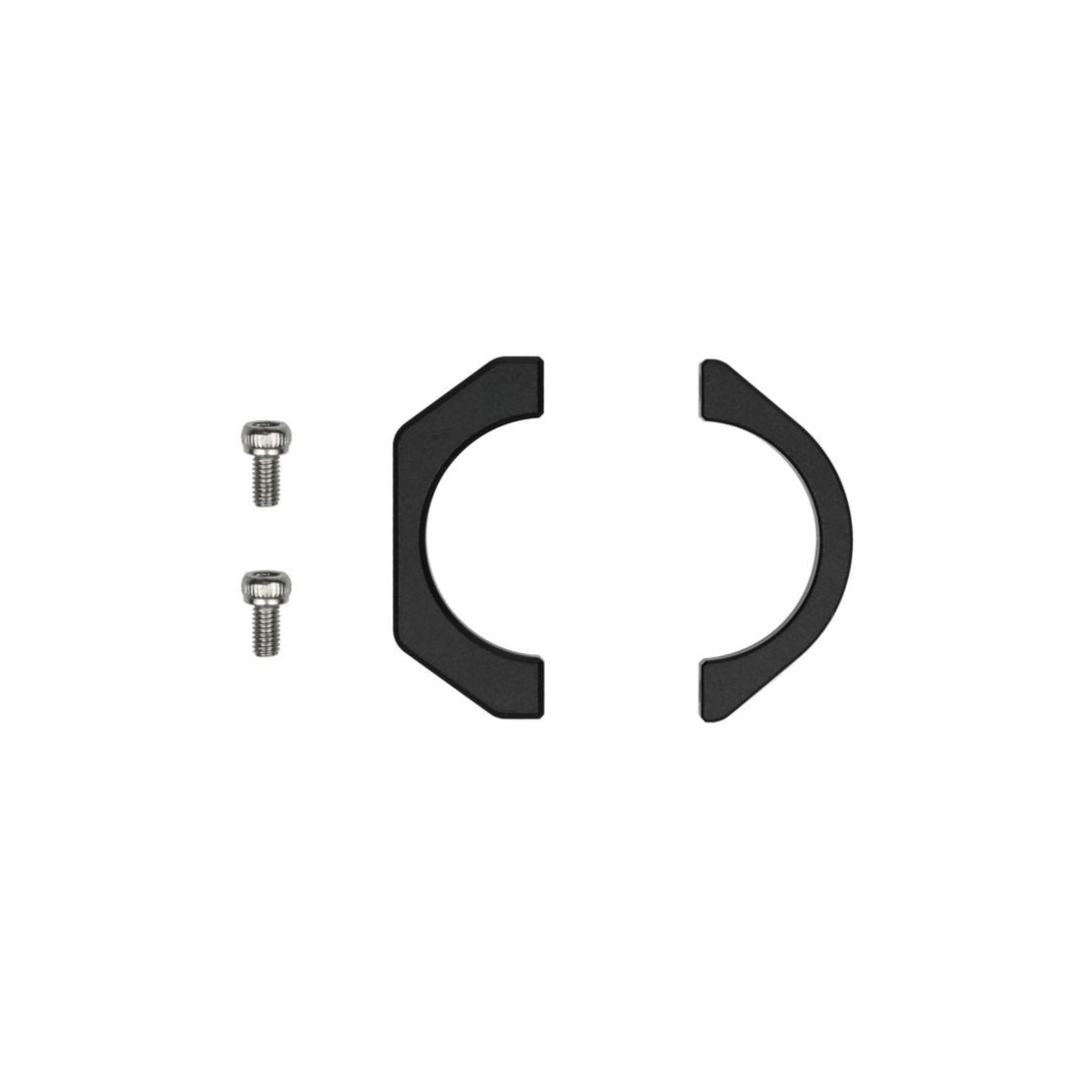

| Shipping List |
• 1 × Mounting Seat A • 1 × Mounting Seat B • 2 × Screws |
| Usage Notes | • Use thread glue for anti-vibration or long-term setups |

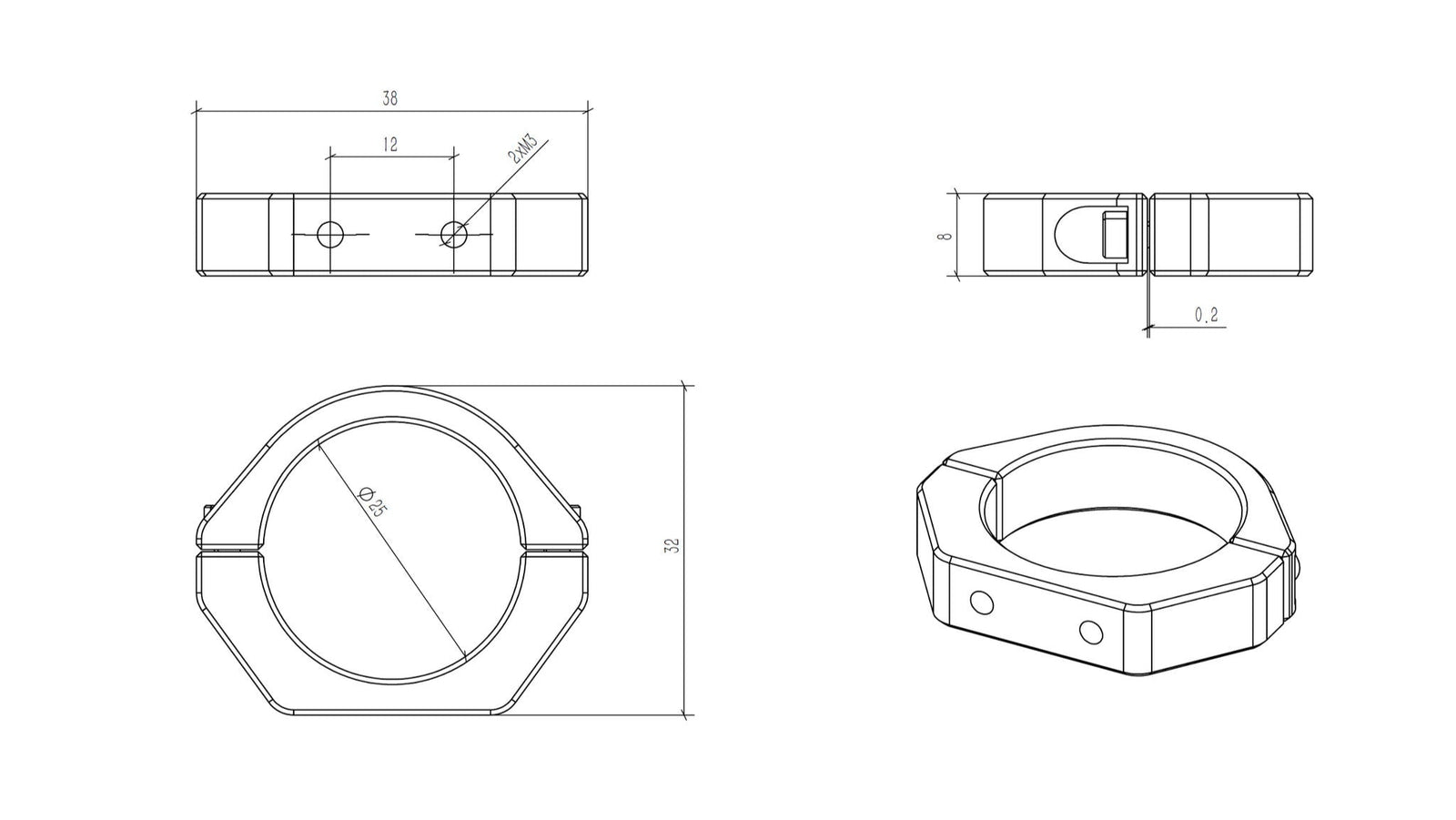

Dimension drawings are provided below for reference.
Dimension Drawing
Need to use thread glue?
In the case of infrequent disassembly and high vibration, thread glue is required.
3D Model Viewer
Note: The 3D model shown above is for reference purposes only. It may include components, accessories, or alternate sizes not included with the product. For simplicity, only a single representative size is typically displayed when multiple versions exist. Please refer to the product Shipping Guide for detailed information on included contents and size-specific differences.
