Name: Subsea Acrylic Tube Clamp Set
Brand: Blu-Sub
SKU: BS-SSC-TCLMP-ACR-A1A1
Price: 53.95 CAD
Availability: InStock

$53.95

10 Units Available for Quick Ship - Ships in 1-2 Business Days

Additional Units Made to Order - Ships in 2-4 Weeks

Shipping calculated at checkout.

Diameter

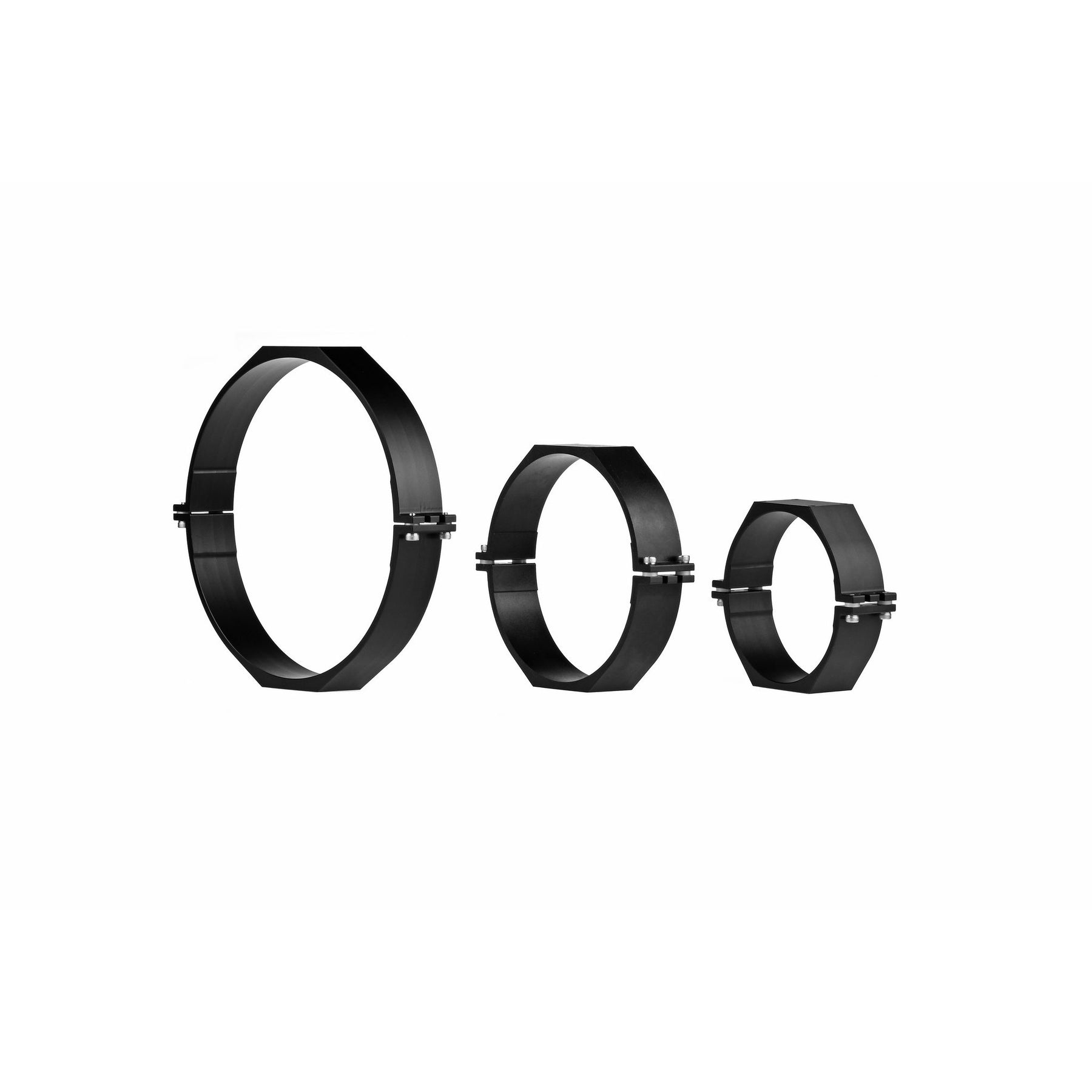

85mm Diameter

115mm Diameter

165mm Diameter

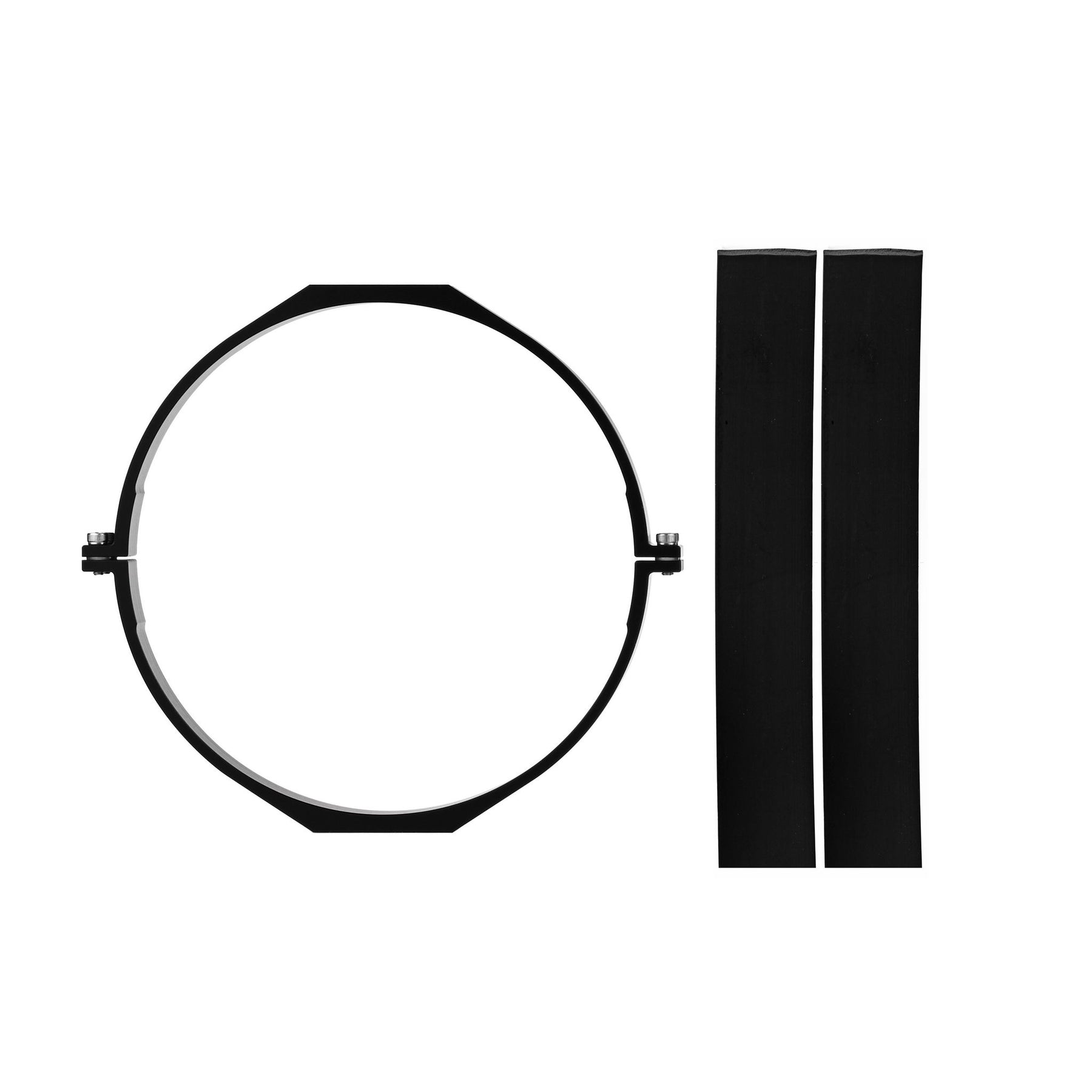

Blu-Sub Tube Clamps provide a secure mounting solution for attaching subsea enclosures to ROV frames or structural supports. Specifically designed for use with Blu-Sub Acrylic Tubes, these clamps are available in sizes matched to 85 mm, 115 mm, and 165 mm diameters.

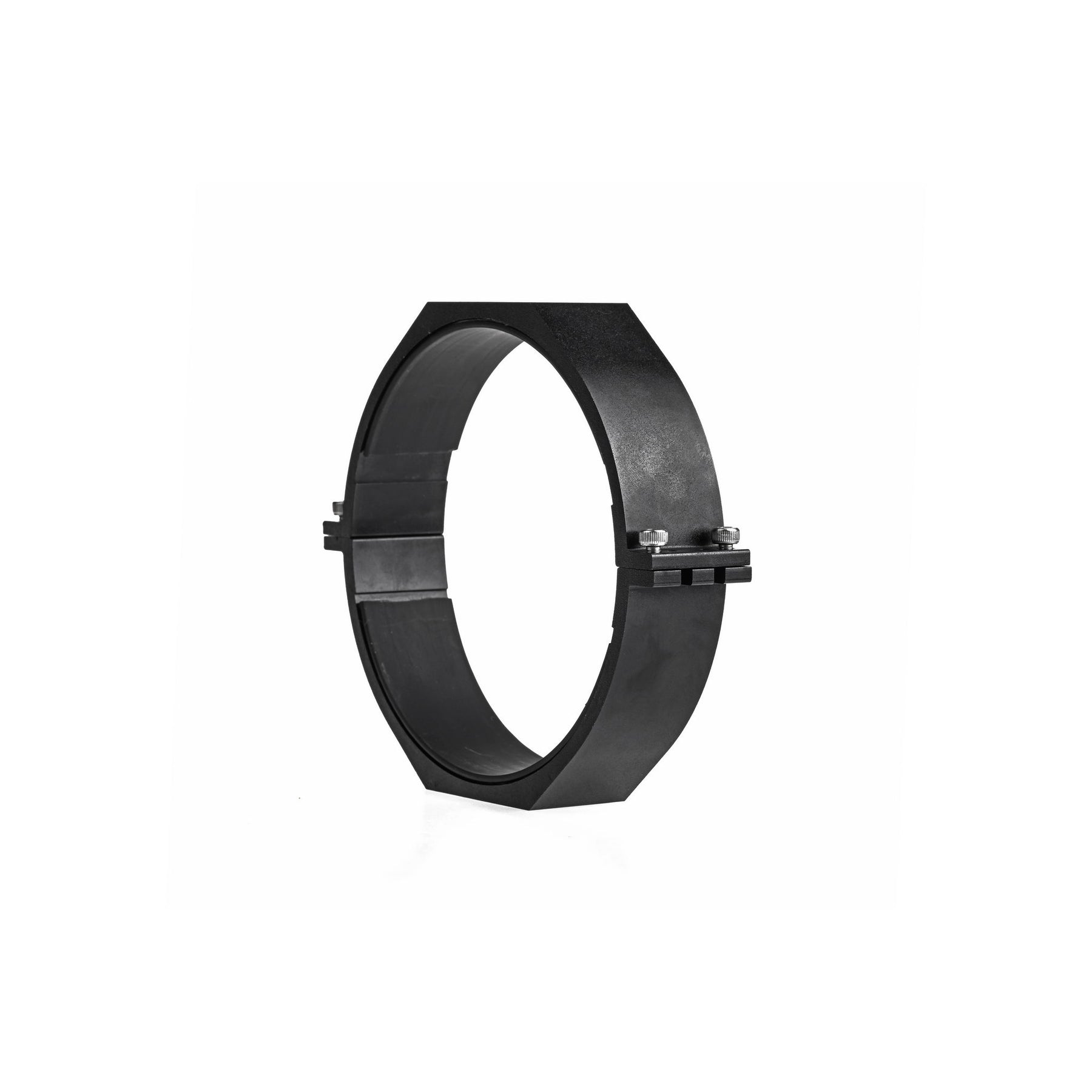

Each clamp features a split-ring design made from anodized aluminum for strength and corrosion resistance, with M5 mounting holes for easy integration. Mounting bases and hardware are sold separately to support flexible mounting configurations.

Subsea Enclosure Builder - Promo Section (Basic)

Need Help Building Your Complete System?

Use our Subsea Enclosure Builder to design your complete underwater system with perfect compatibility, real-time pricing, and one-click ordering.

Launch Builder Tool →

Material	Black Anodized Aluminum
Weight	85 mm: 170 g / 115 mm: 198 g / 165 mm: 295 g
Color	Black
Depth Rating	N/A
Dimensions	Refer to dimension drawings

[{"id":45386509287582,"title":"85mm Diameter","option1":"85mm Diameter","option2":null,"option3":null,"sku":"BS-SSC-TCLMP-ACR-A1A1","requires_shipping":true,"taxable":true,"featured_image":{"id":40824009293982,"product_id":8257784643742,"position":4,"created_at":"2025-07-07T15:22:36-04:00","updated_at":"2025-07-07T15:35:58-04:00","alt":null,"width":2048,"height":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AcrylTubeClmp11_Square_Web.jpg?v=1751916958","variant_ids":[45386509287582]},"available":true,"name":"Subsea Acrylic Tube Clamp Set - 85mm Diameter","public_title":"85mm Diameter","options":["85mm Diameter"],"price":5395,"weight":170,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32514037776542,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AcrylTubeClmp11_Square_Web.jpg?v=1751916958"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45386509320350,"title":"115mm Diameter","option1":"115mm Diameter","option2":null,"option3":null,"sku":"BS-SSC-TCLMP-ACR-A2A1","requires_shipping":true,"taxable":true,"featured_image":{"id":40824013488286,"product_id":8257784643742,"position":5,"created_at":"2025-07-07T15:22:54-04:00","updated_at":"2025-07-07T15:35:58-04:00","alt":null,"width":2048,"height":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AcrylTubeClmp12_Square_Web.jpg?v=1751916958","variant_ids":[45386509320350]},"available":true,"name":"Subsea Acrylic Tube Clamp Set - 115mm Diameter","public_title":"115mm Diameter","options":["115mm Diameter"],"price":7295,"weight":198,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32514039414942,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AcrylTubeClmp12_Square_Web.jpg?v=1751916958"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45386509353118,"title":"165mm Diameter","option1":"165mm Diameter","option2":null,"option3":null,"sku":"BS-SSC-TCLMP-ACR-A3A1","requires_shipping":true,"taxable":true,"featured_image":{"id":40824015290526,"product_id":8257784643742,"position":6,"created_at":"2025-07-07T15:23:10-04:00","updated_at":"2025-07-07T15:35:58-04:00","alt":null,"width":2048,"height":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AcrylTubeClmp13_Square_Web.jpg?v=1751916958","variant_ids":[45386509353118]},"available":true,"name":"Subsea Acrylic Tube Clamp Set - 165mm Diameter","public_title":"165mm Diameter","options":["165mm Diameter"],"price":11000,"weight":295,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32514040823966,"position":6,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/AcrylTubeClmp13_Square_Web.jpg?v=1751916958"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Compatible With: Subsea Enclosure Acrylic Tube

Sold Separately

These clamps are purpose-built for use with Blu-Sub Acrylic Tubes in 85 mm, 115 mm, and 165 mm outer diameters. The inner contour of each clamp matches the tube diameter precisely, ensuring a secure, vibration-resistant hold without damaging the enclosure.

Note: These clamps are not suitable for aluminum tubes. For securing aluminum enclosures, use a compatible mounting base such as the Arca-Swiss style mount.

Subsea Enclosure Acrylic Tube

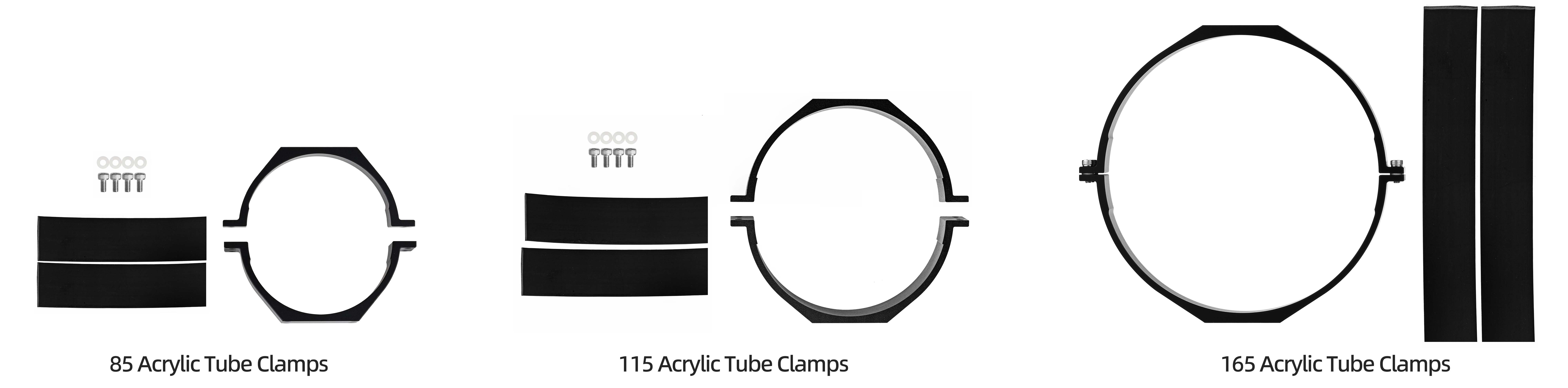

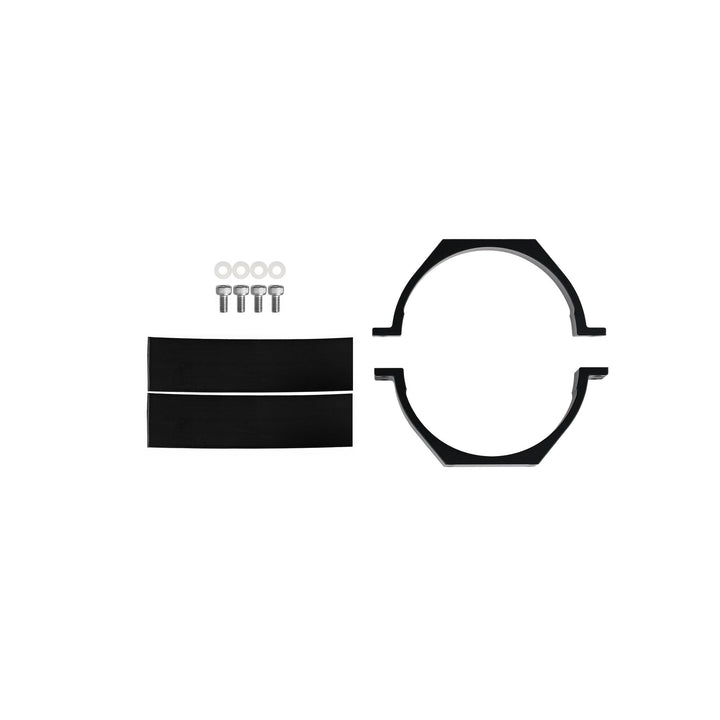

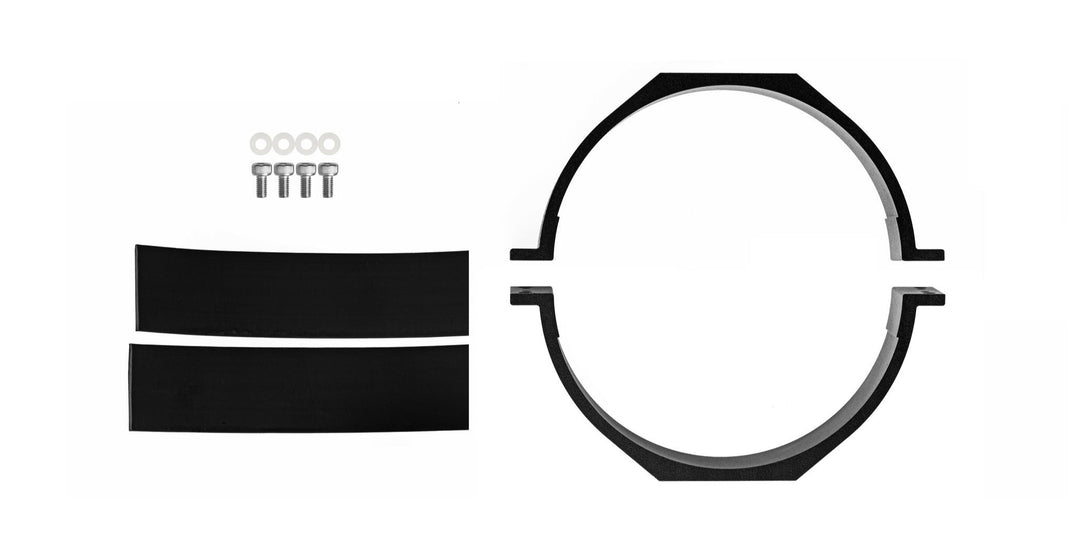

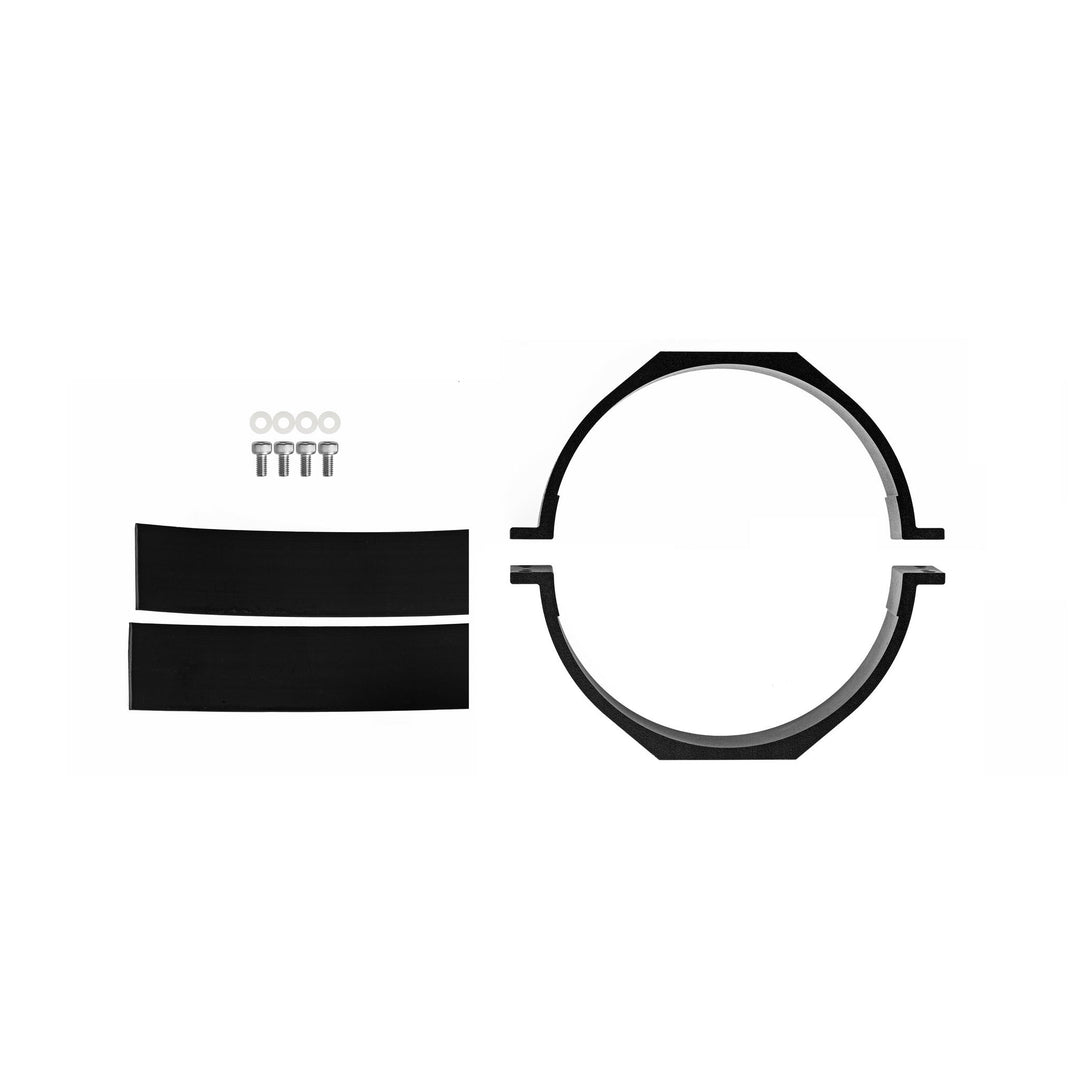

SHIPPING LIST

1 x Upper Portion of Semi-circular Clamp
1 x Lower Portion of Semi-circular Clamp
4 x Screw
1 x Anti-slip Adhesive Pad

TECHNICAL SPECIFICATIONS

Product	Acrylic Tube Clamps
Material	Black Anodized Aluminum
Compatible Tube Outer Diameters	85 mm, 115 mm, 165 mm
Weight	85 mm: 170 g; 115 mm: 198 g; 165 mm: 295 g

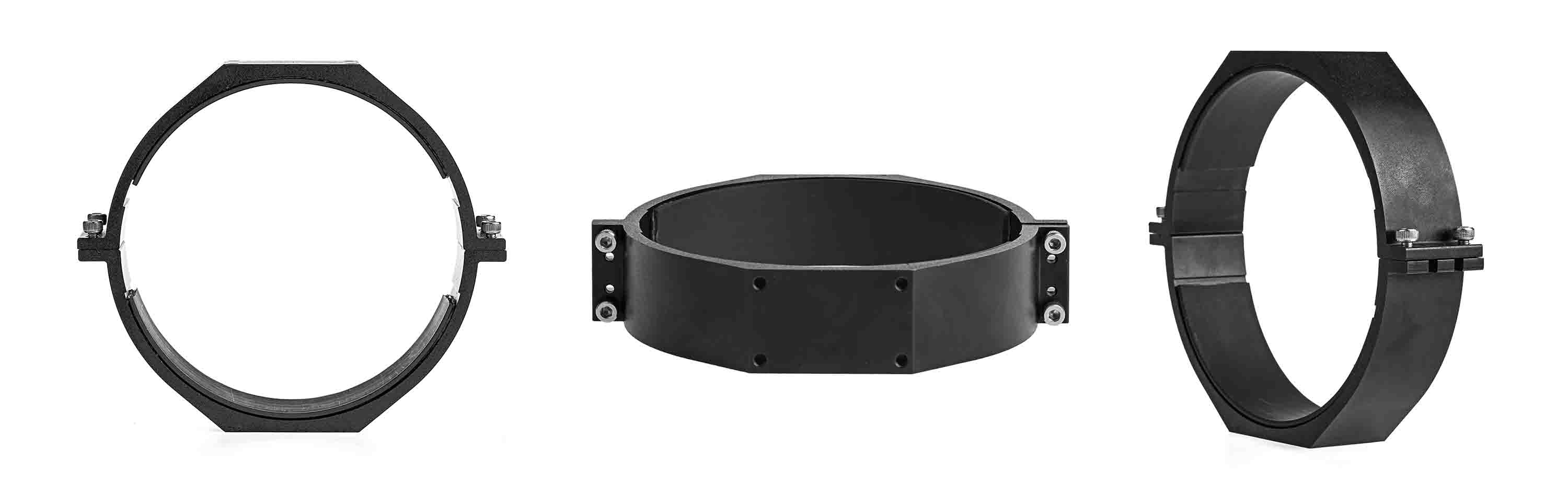

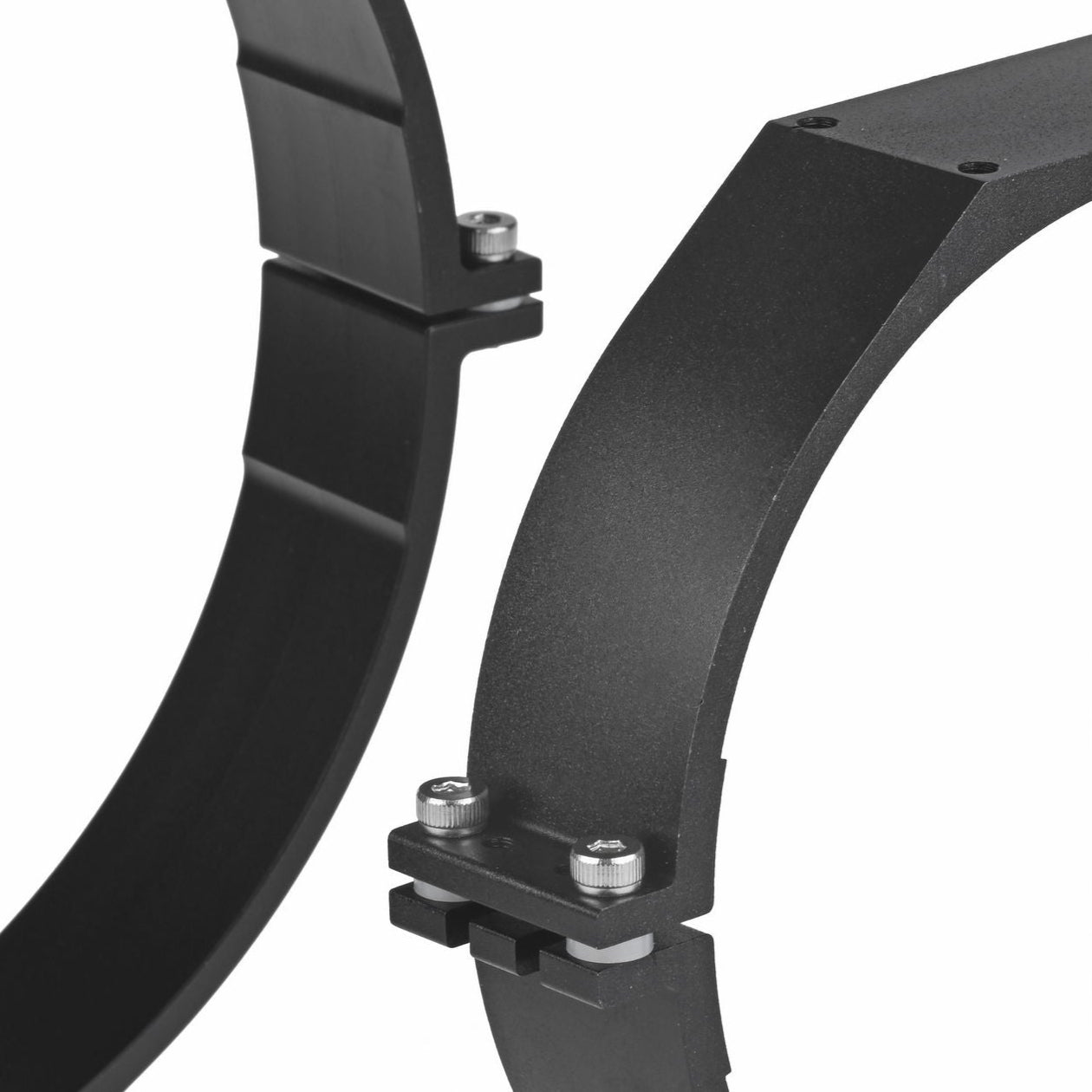

Design Features	• Two-part interlocking semi-circular clamp • Mounting holes on bottom and sides for secure attachment • Includes soft anti-slip adhesive pads for enhanced grip • Not suitable for aluminum tubes; use Arca-Swiss mounting base instead
Shipping List	• 1 × Upper Clamp Half • 1 × Lower Clamp Half • 4 × Screws • 1 × Anti-slip Adhesive Pad
Usage Notes	• Cut anti-slip pads to appropriate length before adhering • Clean surfaces thoroughly before applying pads • Ensure clamps are securely fastened to prevent slippage

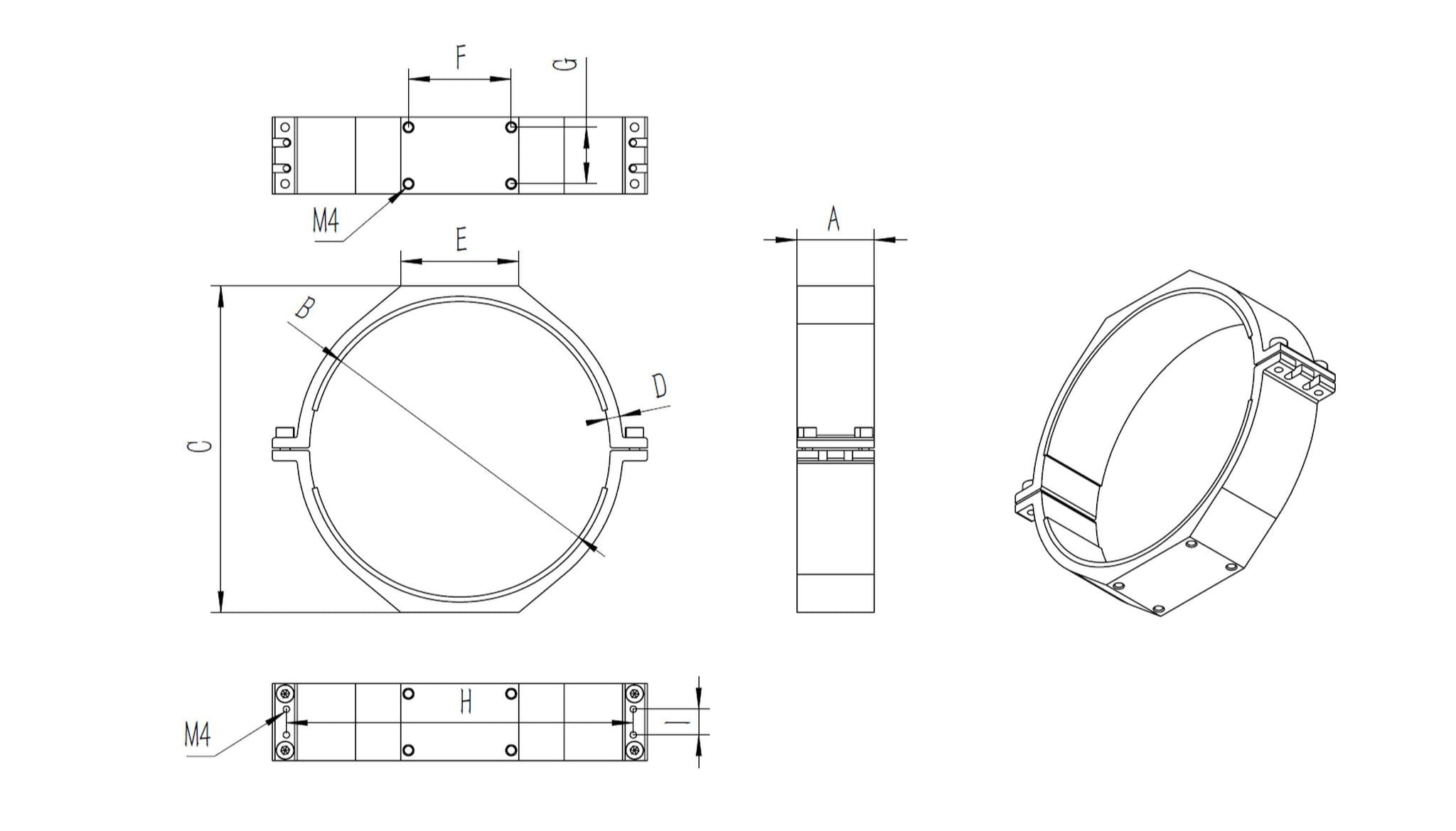

Item	Width A	Inner Diameter B	Height C	Thickness D	Base Width E	Bottom Hole Distance F	Bottom Hole Distance G	Side Hole Distance H	Side Hole Distance I
85 Clamps	30	85	97	5	46	40	22	105	10
115 Clamps	30	115	127	5	46	40	22	135	10
165 Clamps	30	165	181	5	46	40	22	185	10

Which mounting holes are available for installation?
There are mounting holes on both the side and the top and bottom.

Will the adhesive anti-slip pads come off?
Once clamped in place, they are not prone to coming off. However, if they come off after repeated disassembly and reassembly, it may be necessary to replace the anti-slip pads.

Are there any precautions to be taken when adhering?
When adhering the anti-slip pads to the clamp, make sure to cut them to the appropriate length and clean the surface to which they will be adhered.

Can it be used to secure aluminum tubes?
No, it is only suitable for cylindrical tubes. For securing aluminum tubes, please select the Arca-Swiss mounting base.

3D Model Viewer

Note: The 3D model shown above is for reference purposes only. It may include components, accessories, or alternate sizes not included with the product. For simplicity, only a single representative size is typically displayed when multiple versions exist. Please refer to the product Shipping Guide for detailed information on included contents and size-specific differences.

Download 3D Model (STEP) - 85mm Tube Clamp

Download 3D Model (STEP) - 115mm Tube Clamp

Download 3D Model (STEP) - 165mm Tube Clamp
