Name: Subsea Optical Dome End-Cap
Brand: Blu-Sub
SKU: BS-SSC-EDCAP-PCD-A2A2
Price: 58.95 CAD
Availability: InStock

$58.95

22 Units Available for Quick Ship - Ships in 1-2 Business Days

Additional Units Made to Order - Ships in 2-5 Weeks

HS 3926.90 (CN)

Shipping calculated at checkout.

Option

Optical Dome End-Cap 115mm with Retaining Ring

Optical Dome End-Cap 115mm

Retaining Ring for Dome End-Cap 115mm (Retaining Ring Only)

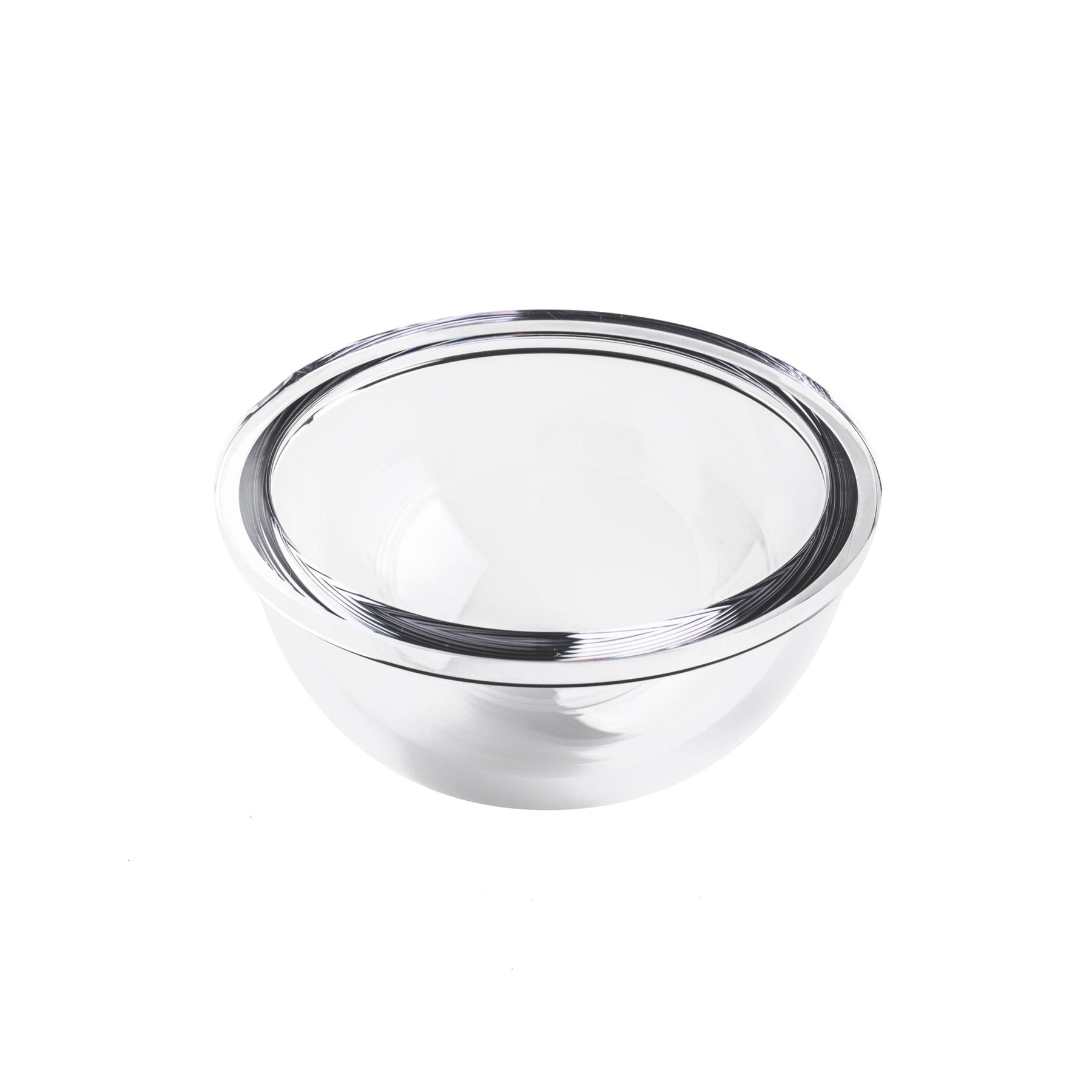

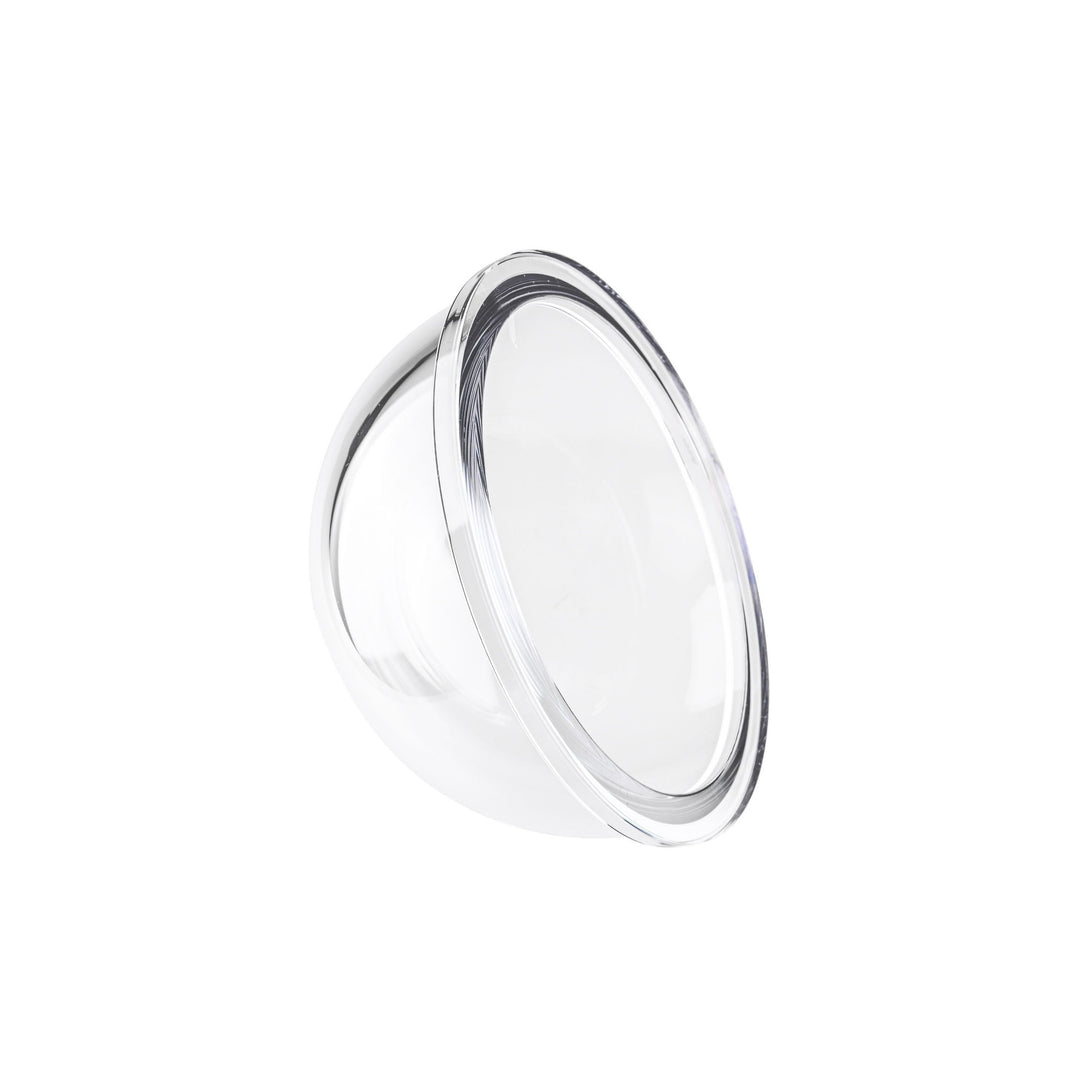

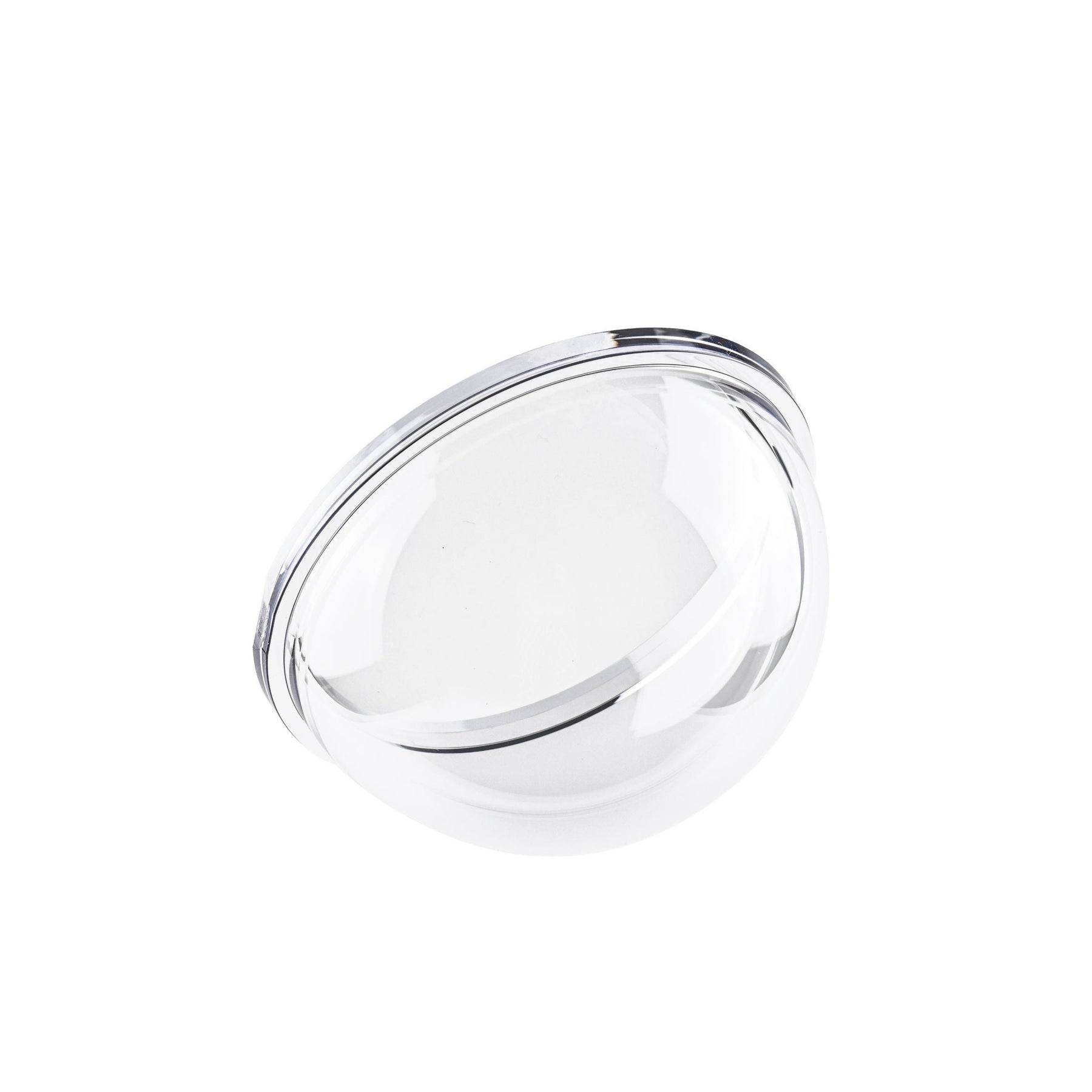

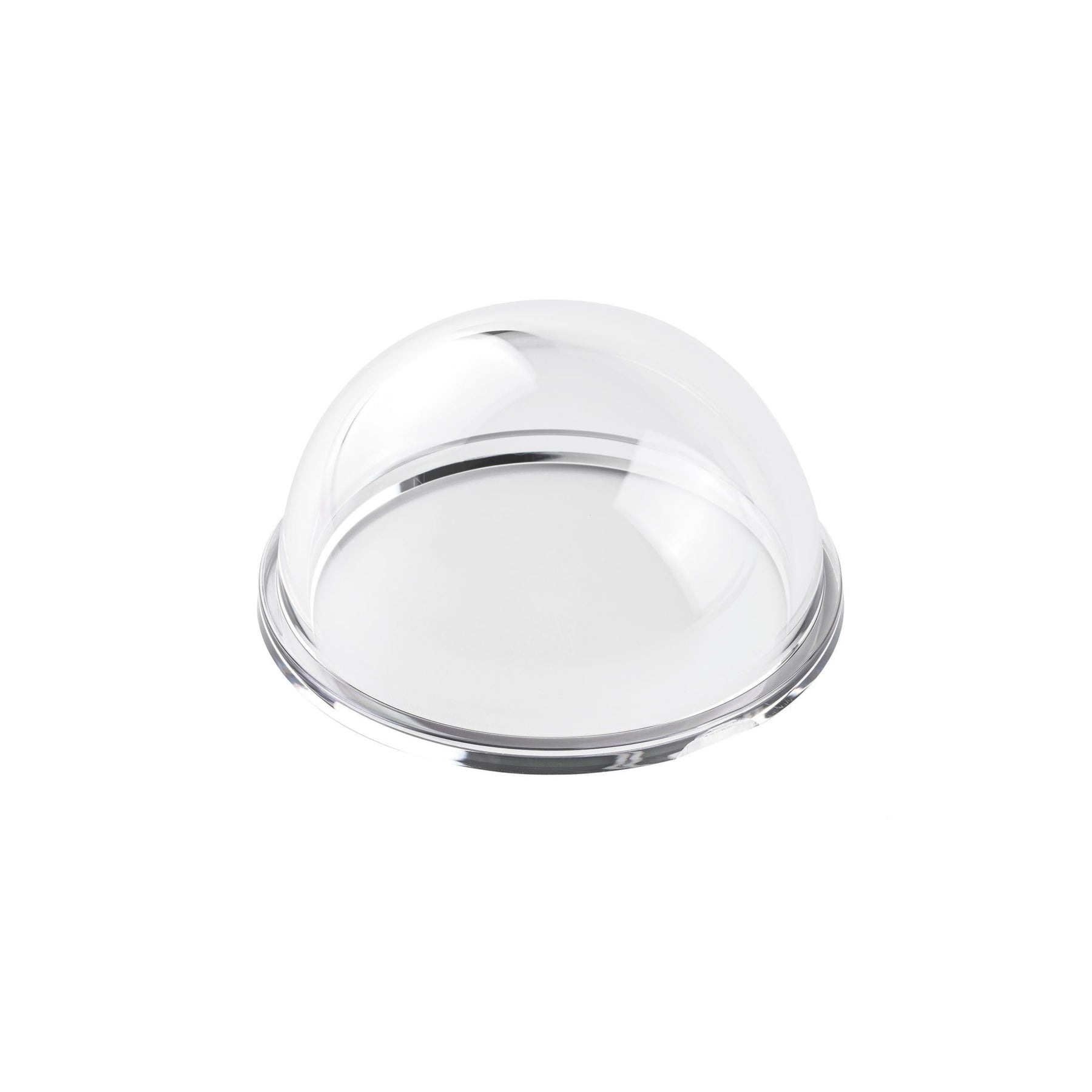

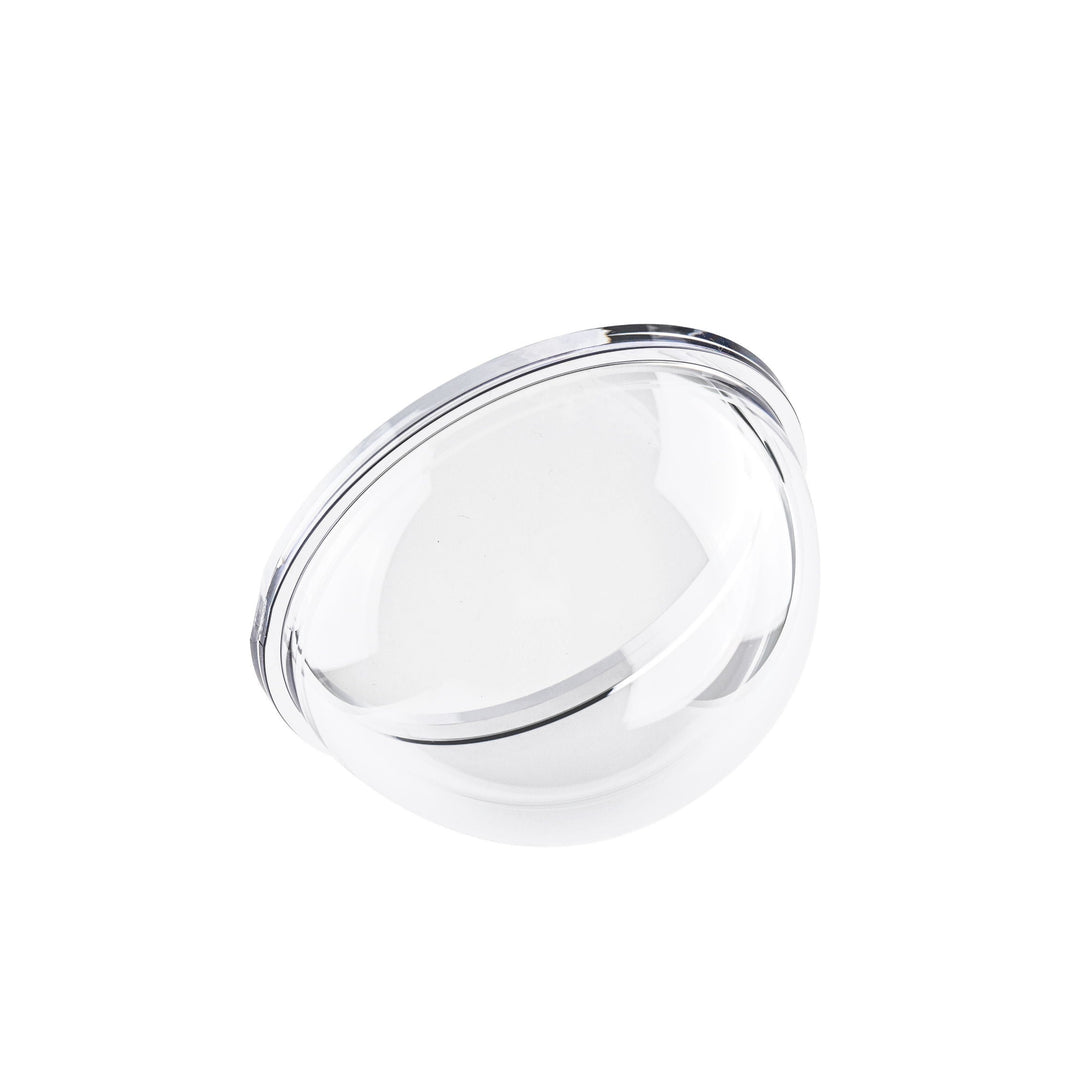

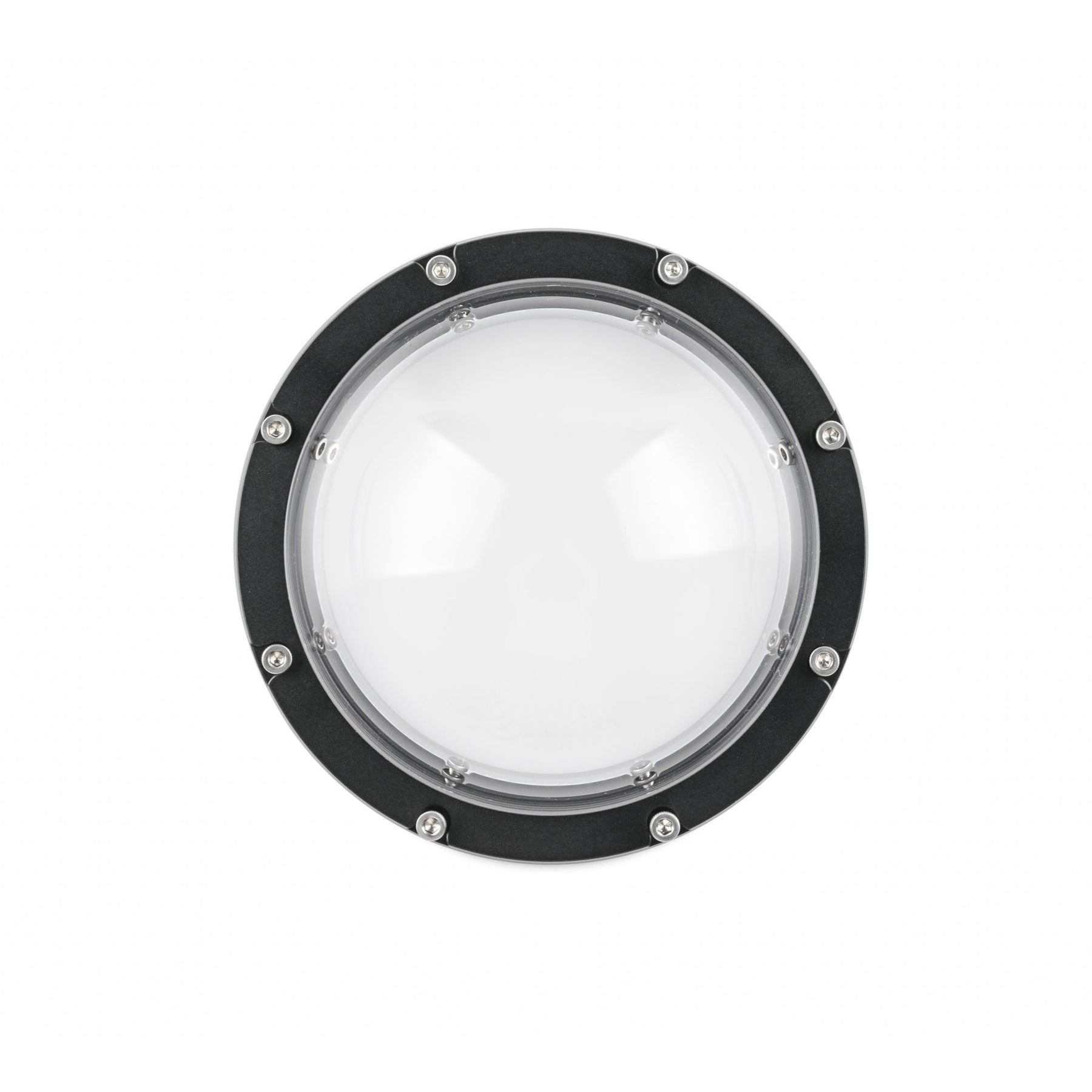

The Subsea Optical Dome End-Cap is a high-clarity pressure-resistant end-cap designed specifically for underwater vision systems. Made from optical-grade PC (polycarbonate), it offers superior optical transmission and structural integrity at depths up to 1,000 meters. Its domed shape minimizes image distortion and water resistance, making it ideal for wide-angle lenses, gimbal-mounted cameras, and subsea imaging applications.

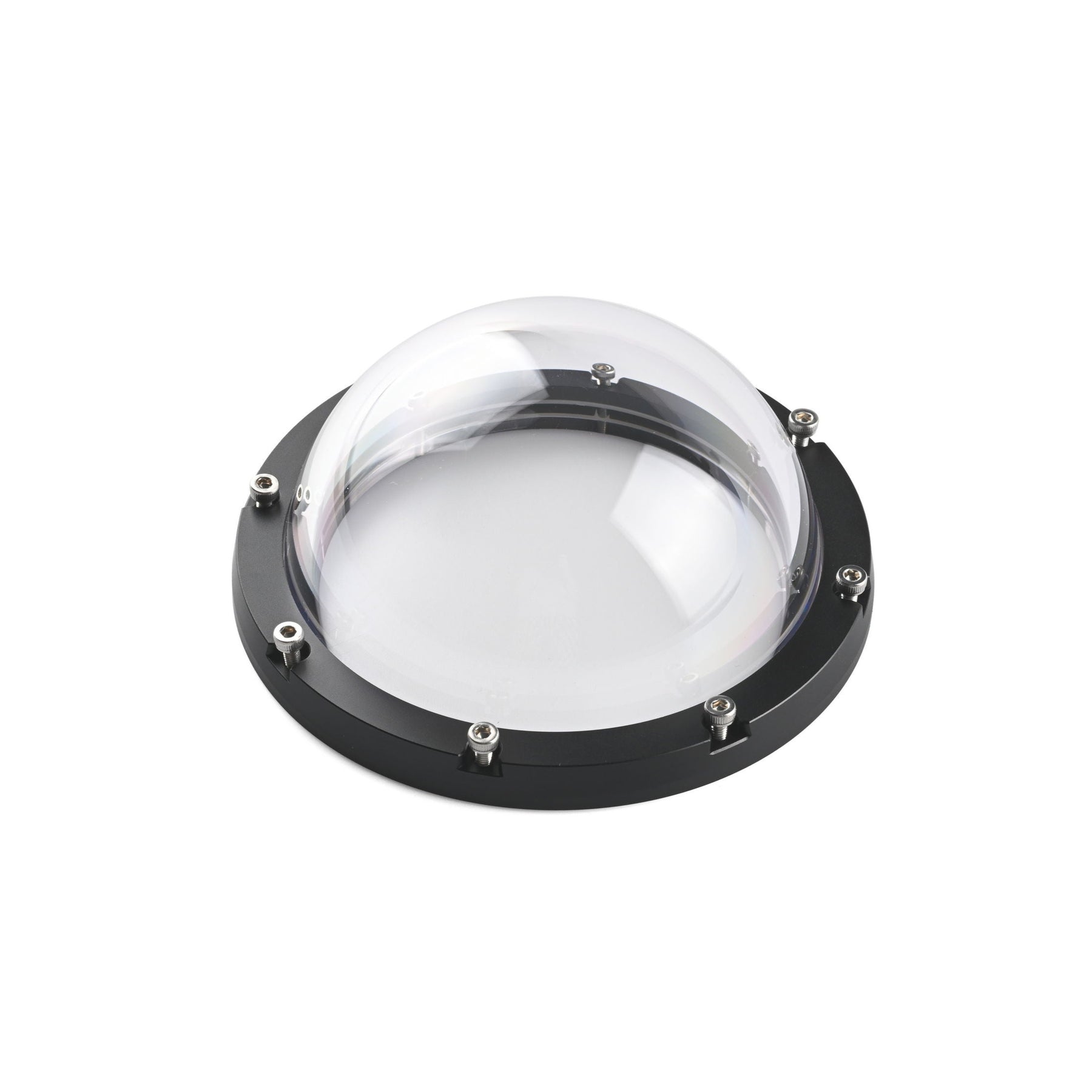

This dome is exclusively available in the 115 mm diameter size and is engineered to pair with the Subsea Aluminum Flange. The dome is secured to the flange using a black anodized aluminum Retaining Ring and eight mounting screws. The aluminum flange is sold separately. The complete flange and dome assembly is compatible with Blu-Sub’s 115 mm versions of the Subsea Enclosure Acrylic Tube and the Subsea Enclosure Aluminum Tube. This makes the system highly modular for various underwater enclosure configurations.

Three purchase options are offered: the dome alone, the dome with retaining ring, or the retaining ring by itself. The retaining ring is included with the dome only when the dome-with-retaining-ring option is selected.

Subsea Enclosure Builder - Promo Section (Basic)

Need Help Building Your Complete System?

Use our Subsea Enclosure Builder to design your complete underwater system with perfect compatibility, real-time pricing, and one-click ordering.

Launch Builder Tool →

Material	Clear PC (Dome), Black Anodized Aluminum (Retaining Ring)
Weight	Dome: 92 g / Dome+Ring: 160 g / Ring Only: 68 g
Color	Clear (Dome), Black (Retaining Ring)
Depth Rating	1,000 m / 3,280 ft
Dimensions	Refer to dimension drawing

[{"id":45386063642782,"title":"Optical Dome End-Cap 115mm with Retaining Ring","option1":"Optical Dome End-Cap 115mm with Retaining Ring","option2":null,"option3":null,"sku":"BS-SSC-EDCAP-PCD-A2A2","requires_shipping":true,"taxable":true,"featured_image":{"id":40995891937438,"product_id":8257573650590,"position":2,"created_at":"2025-07-21T12:16:04-04:00","updated_at":"2025-07-21T12:18:17-04:00","alt":null,"width":2586,"height":2586,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/Optical_Dome06_Square_Web_df927170-596c-436d-8812-1a65abd45176.jpg?v=1753114697","variant_ids":[45386063642782]},"available":true,"name":"Subsea Optical Dome End-Cap - Optical Dome End-Cap 115mm with Retaining Ring","public_title":"Optical Dome End-Cap 115mm with Retaining Ring","options":["Optical Dome End-Cap 115mm with Retaining Ring"],"price":5895,"weight":160,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32627902218398,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2586,"width":2586,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/Optical_Dome06_Square_Web_df927170-596c-436d-8812-1a65abd45176.jpg?v=1753114697"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45386063610014,"title":"Optical Dome End-Cap 115mm","option1":"Optical Dome End-Cap 115mm","option2":null,"option3":null,"sku":"BS-SSC-EDCAP-PCD-A2A1","requires_shipping":true,"taxable":true,"featured_image":{"id":40995892592798,"product_id":8257573650590,"position":3,"created_at":"2025-07-21T12:16:11-04:00","updated_at":"2025-07-21T12:18:33-04:00","alt":null,"width":2108,"height":2108,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/Optical_Dome01_Square_Web_3db5df9a-1fee-46a2-9435-a4bbde0db1d4.jpg?v=1753114713","variant_ids":[45386063610014]},"available":true,"name":"Subsea Optical Dome End-Cap - Optical Dome End-Cap 115mm","public_title":"Optical Dome End-Cap 115mm","options":["Optical Dome End-Cap 115mm"],"price":3895,"weight":92,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32627902447774,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2108,"width":2108,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/Optical_Dome01_Square_Web_3db5df9a-1fee-46a2-9435-a4bbde0db1d4.jpg?v=1753114713"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45386063675550,"title":"Retaining Ring for Dome End-Cap 115mm (Retaining Ring Only)","option1":"Retaining Ring for Dome End-Cap 115mm (Retaining Ring Only)","option2":null,"option3":null,"sku":"BS-SSC-EDCAP-RET-A2A1","requires_shipping":true,"taxable":true,"featured_image":{"id":40995884105886,"product_id":8257573650590,"position":4,"created_at":"2025-07-21T12:15:25-04:00","updated_at":"2025-07-21T12:16:31-04:00","alt":null,"width":4000,"height":4000,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/Dome_End_Cap_1.jpg?v=1753114591","variant_ids":[45386063675550]},"available":true,"name":"Subsea Optical Dome End-Cap - Retaining Ring for Dome End-Cap 115mm (Retaining Ring Only)","public_title":"Retaining Ring for Dome End-Cap 115mm (Retaining Ring Only)","options":["Retaining Ring for Dome End-Cap 115mm (Retaining Ring Only)"],"price":2895,"weight":68,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32627896680606,"position":4,"preview_image":{"aspect_ratio":1.0,"height":4000,"width":4000,"src":"\/\/blu-sub.com\/cdn\/shop\/files\/Dome_End_Cap_1.jpg?v=1753114591"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Description

The Subsea Optical Dome End-Cap is a precision-engineered optical dome made from high-clarity polycarbonate (PC), specifically developed for subsea imaging and sensing applications at depths up to 1,000 meters. Its optical-grade material and dome geometry are manufactured under cleanroom conditions to ensure superior clarity, dimensional stability, and pressure tolerance. The dome provides an ideal viewing window for wide-angle cameras or gimbals, helping to minimize optical distortion, eliminate the underwater magnification effect seen with flat acrylic end caps, and reduce drag in high-flow environments.

This product is available exclusively in the 115 mm diameter size and is designed to integrate seamlessly with the Subsea Aluminum Flange. A black anodized aluminum Retaining Ring secures the dome to the flange with eight evenly spaced mounting screws. The aluminum flange is sold separately, and the retaining ring is included with the dome only when the dome-with-retaining-ring option is selected. This mechanical interface ensures a reliable and reusable seal using a standard O-ring groove, while also protecting the dome during installation and removal.

Once assembled with the flange, the full system is compatible with Blu-Sub’s 115 mm versions of the Subsea Enclosure Acrylic Tube and the Subsea Enclosure Aluminum Tube, making it fully modular across different housing materials. The design allows for excellent camera visibility and environmental durability, supporting advanced underwater ROVs, observation systems, or sensor pods.

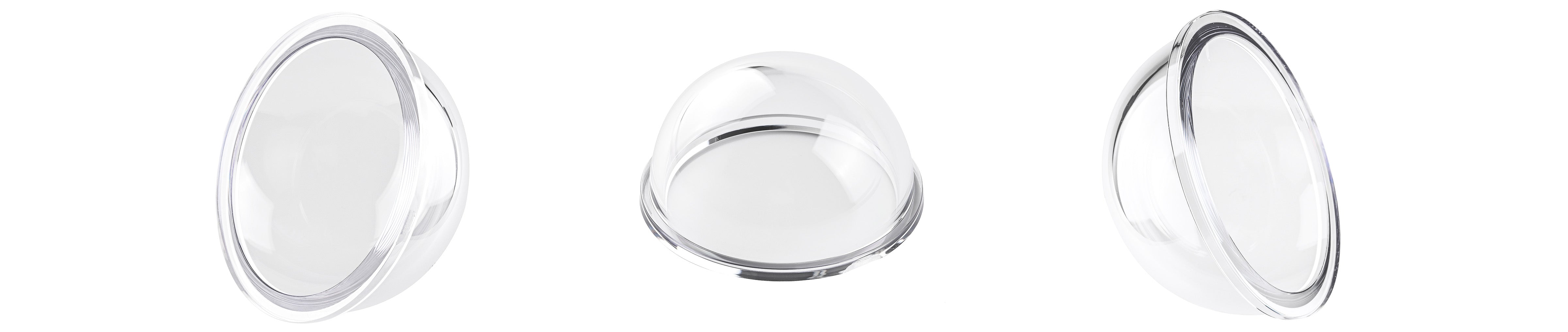

The dome is offered in three configurations:

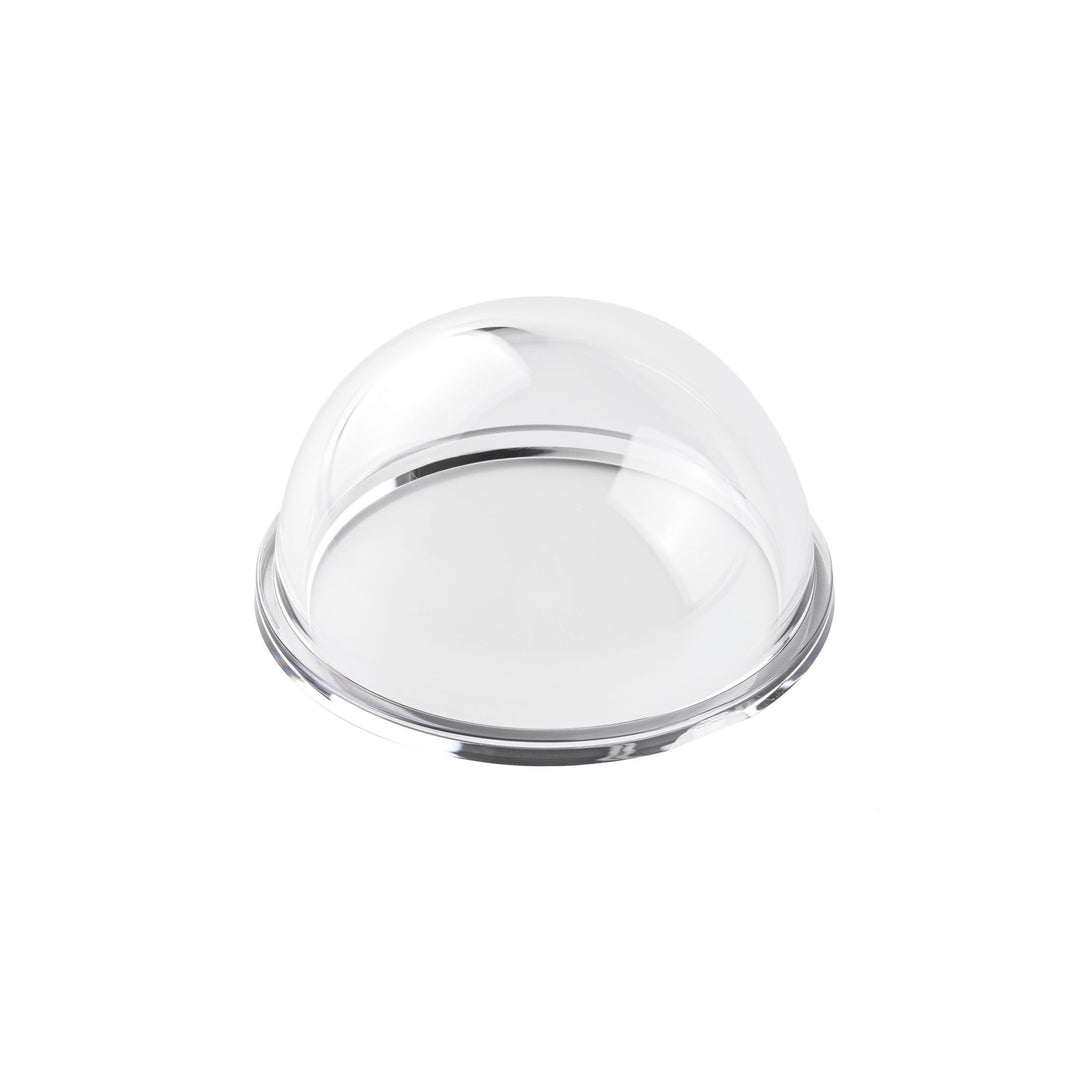

Optical Dome End-Cap 115 mm (dome only)

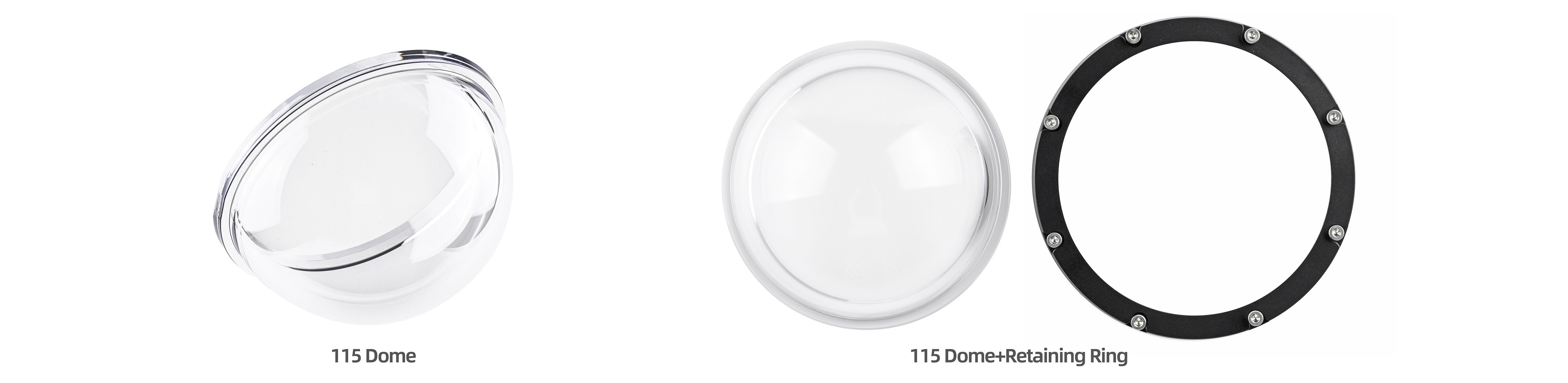

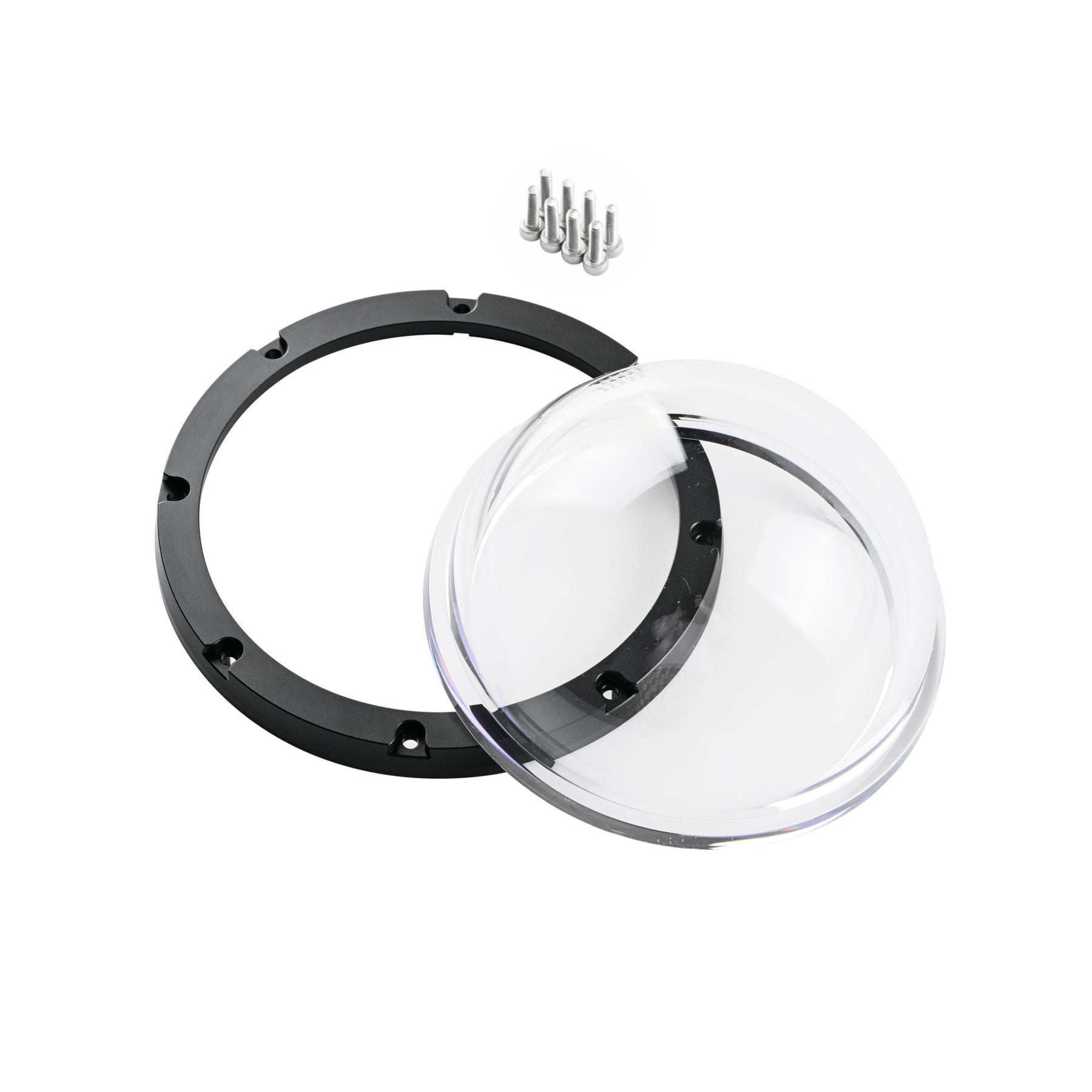

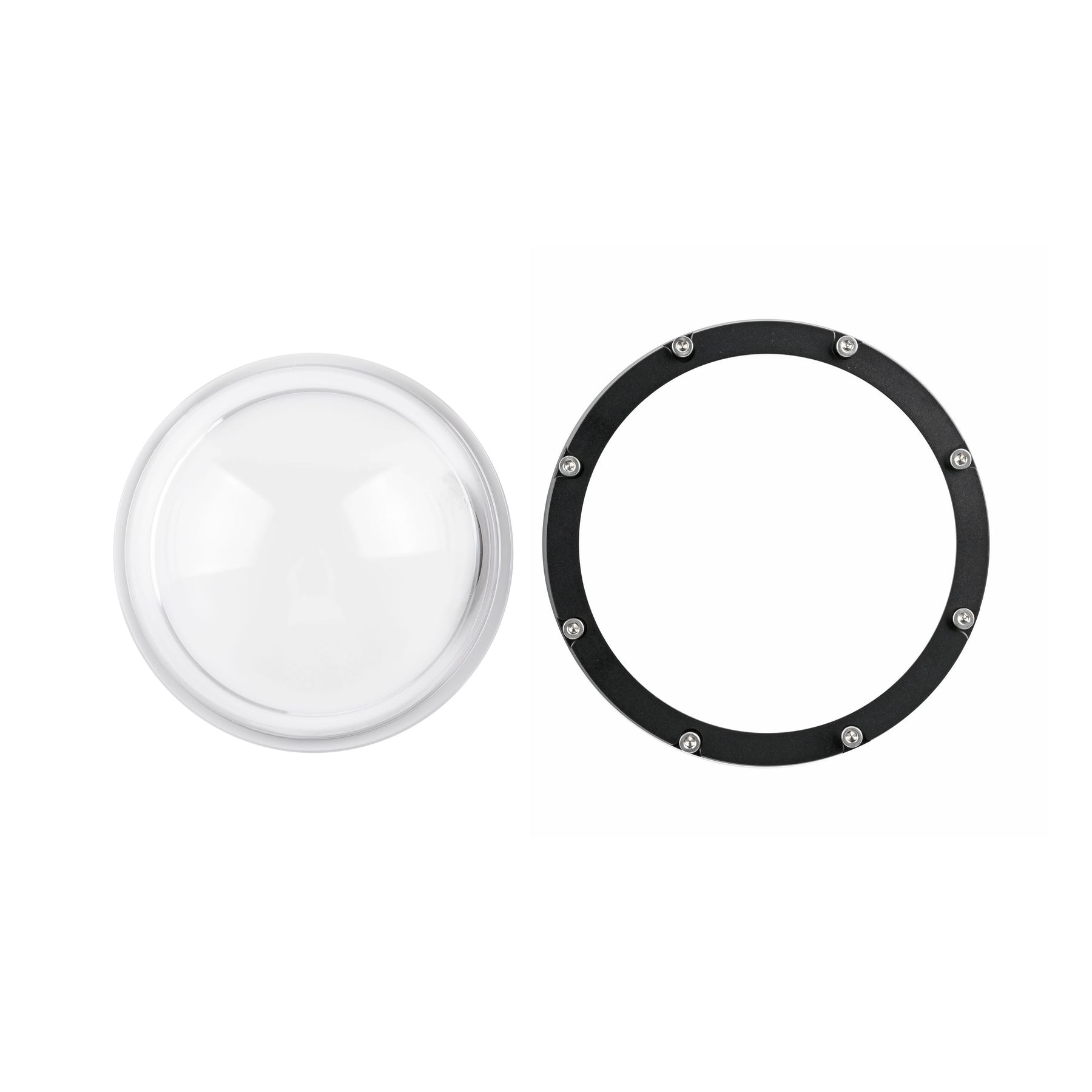

Optical Dome End-Cap 115 mm with Retaining Ring (dome + retaining ring + screws)

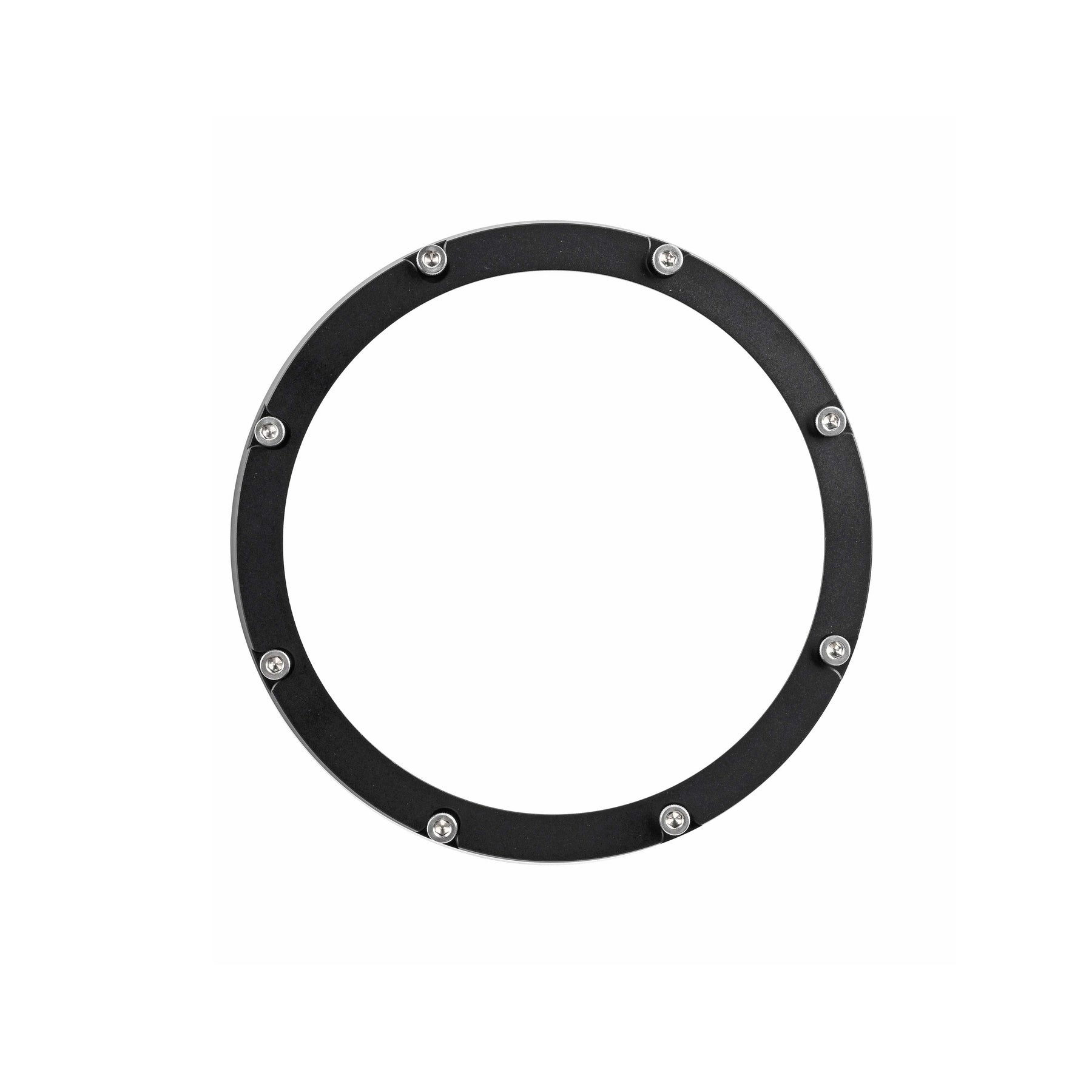

Retaining Ring for Dome End-Cap 115 mm (ring only for replacement or spare)

Each option enables flexible integration depending on whether a new build or replacement part is needed.

Compatible With: Subsea Aluminum Flange – 115 mm

Sold Separately

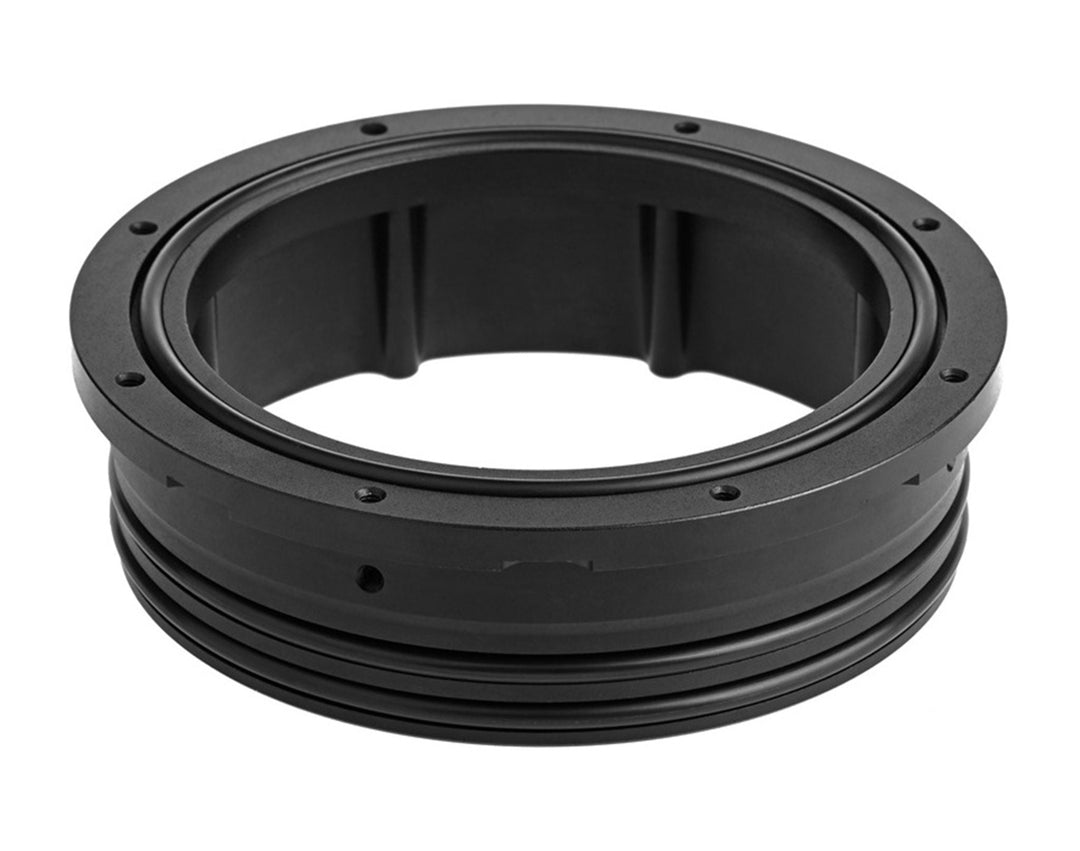

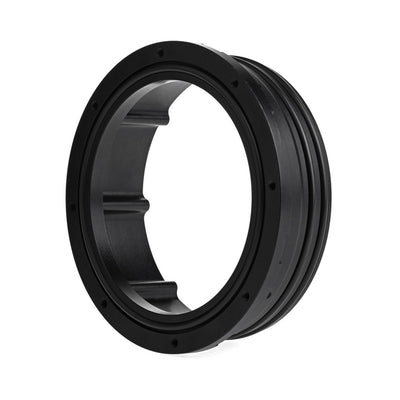

Subsea Aluminum Flange

The Subsea Optical Dome End-Cap mounts to the 115 mm Subsea Aluminum Flange using a black anodized aluminum Retaining Ring secured with eight mounting screws. The aluminum flange is sold separately. The retaining ring is included with the dome only when the dome-with-retaining-ring option is selected.

This flange provides the required mounting interface and facilitates compatibility with Blu-Sub’s 115 mm versions of the Subsea Enclosure Acrylic Tube and the Subsea Enclosure Aluminum Tube, allowing for flexible housing builds.

This dome is currently available only in the 115 mm diameter version.

Subsea Aluminum Flange

Compatible with Subsea Enclosure Aluminum Tube

Sold Separately

The 115 mm version of the Subsea Enclosure Aluminum Tube is fully compatible with the Subsea Optical Dome End-Cap – 115 mm when paired with the Subsea Aluminum Flange and the dome retaining ring.

The Subsea Aluminum Flange provides the mounting interface for the dome, which is secured with a retaining ring and eight mounting screws. The flange’s O-ring seals maintain watertight integrity at the dome and tube interfaces.

Made from black anodized aluminum, the Subsea Enclosure Aluminum Tube offers excellent corrosion resistance, high structural strength, and thermal conductivity. It is well-suited for deep-sea systems, heat-generating electronics, and harsh marine environments.

This enclosure is depth-rated to 1,000 m / 3,281 ft, making it ideal for ROVs, sensor pods, and extended underwater deployments where durability and sealing performance are critical.

Subsea Enclosure Aluminum Tube

Compatible with Subsea Enclosure Acrylic Tube

Sold Separately

The Subsea Enclosure Acrylic Tube is fully compatible with the Subsea Optical Dome End-Cap – 115 mm when paired with the Subsea Aluminum Flange and the dome retaining ring.

The Subsea Aluminum Flange provides the mounting interface for the dome, which is secured with a retaining ring and eight mounting screws. Its O-ring grooves and rigid structure ensure watertight performance under pressure when used with properly machined acrylic tube ends.

Only the 115 mm diameter version of the Subsea Enclosure Acrylic Tube is supported for this setup. Smaller or larger diameter tubes are not compatible with the flange or dome system.

Made from clear cast acrylic, the Subsea Enclosure Acrylic Tube offers excellent optical clarity, chemical resistance, and dimensional stability. It is ideal for visual payloads, sensor housings, and shallow to mid-depth underwater systems where monitoring internal components is critical.

This enclosure is depth-rated from 20 m to 250 m / 66 ft to 820 ft, depending on diameter and length. It is best suited for applications that do not require extreme pressure resistance but still demand reliable sealing and structural integrity.

Subsea Enclosure Acrylic Tube

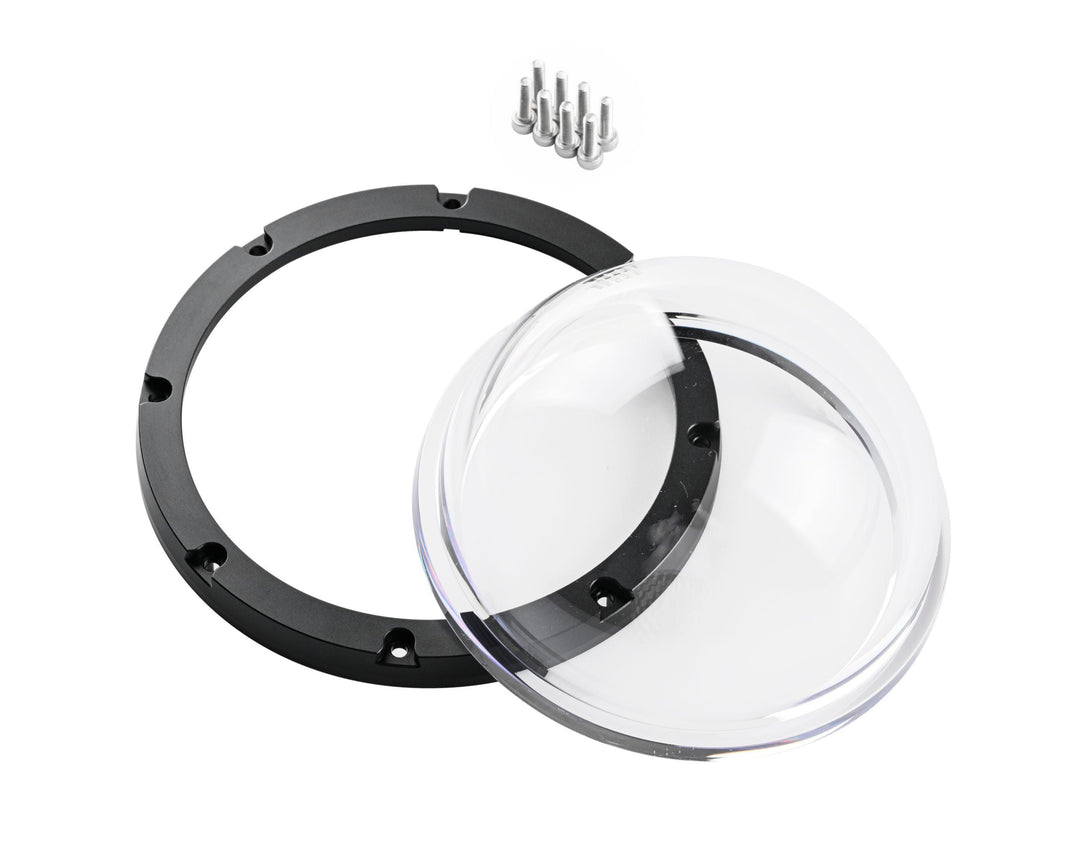

SHIPPING LIST

Dome End Cap – 115 mm (Dome Only)
1 x Dome

Dome End Cap – 115 mm with Retaining Ring
1 x Dome
1 x Retaining Ring
8 x Screw

Retaining Ring – 115 mm (Ring Only)
1 x Retaining Ring
8 x Screw

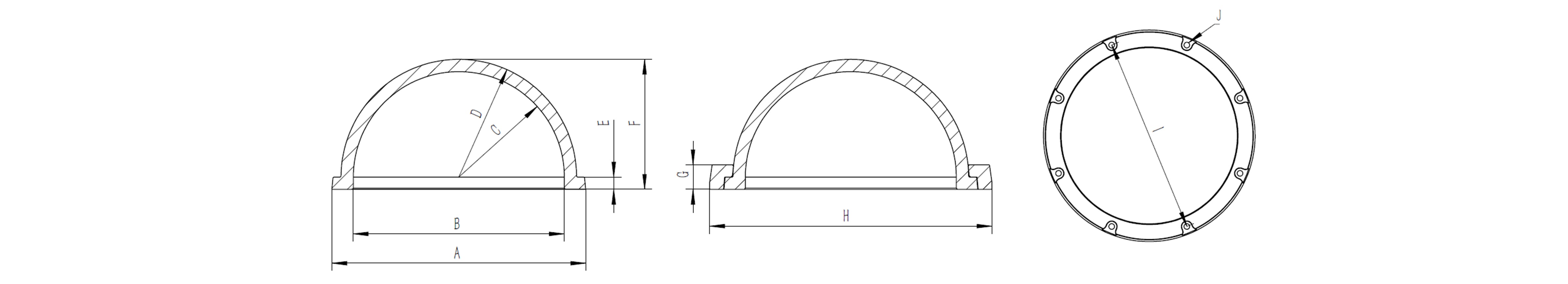

Technical Specifications

Outer Diameter (A)	103.4 mm
Inner Diameter (B)	86 mm
Inner Radius (C)	R43
Outer Radius (D)	R48
Flange Thickness (E)	5 mm
Overall Height (F)	53 mm
Retaining Ring Height (G)	10 mm
Retaining Ring Outer Diameter (H)	115 mm
Distance Between Retaining Ring Holes (I)	106.7 mm
Retaining Ring Screws (J)	8 × Ø3.1 mm

Optical Transmission Rate

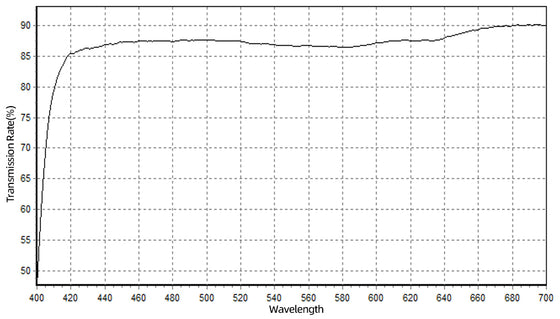

This chart below shows the transmission rate of the dome material across the visible light spectrum (400–700 nm). The material demonstrates excellent optical clarity, with an average transmission rate of 86.68% across the visible range.

Transmission increases sharply at the lower end of the spectrum and remains consistently above 85% throughout. This high level of light transmission makes the dome suitable for wide-angle imaging, optical sensors, and underwater vision systems.

What is the transmission rate?
Average (Tavg @400–700 nm): 86.68%

Why use a dome instead of a clear acrylic end cap?
- Allows wide-angle lenses to operate without obstruction
- Provides internal clearance for rotating gimbals
- Minimizes the magnifying refraction effect compared to flat acrylic caps
- Reduces hydrodynamic drag
- Offers improved pressure resistance
- High dimensional accuracy and optical performance achieved through precision optical molding

Can it still be used if the contact surface of the O-ring is accidentally scratched?
No. Any damage to the O-ring contact surface may compromise the seal and lead to leakage. The part should be replaced.

Which enclosure tubes and flange are compatible?
The dome is compatible with Blu-Sub’s 115 mm aluminum and acrylic enclosure tubes when fitted with the 115 mm Subsea Aluminum Flange and the dome retaining ring. The ring secures to the flange with eight mounting screws. The aluminum flange is sold separately.

Should grease be applied to the O-rings every time?
Yes. O-ring lubricant helps remove dust and particles, improves adhesion to the groove, and ensures easier and safer assembly.
