Name: Electronic Tray Set for Enclosure Tube
Brand: Blu-Sub
SKU: BS-ELE-ETRAY-XXX-A2A2
Price: 44.95 CAD
Availability: InStock

$81.95

4 Units Available for Quick Ship - Ships in 1-2 Business Days

Additional Units Made to Order - Ships in 2-4 Weeks

Shipping calculated at checkout.

Quantity

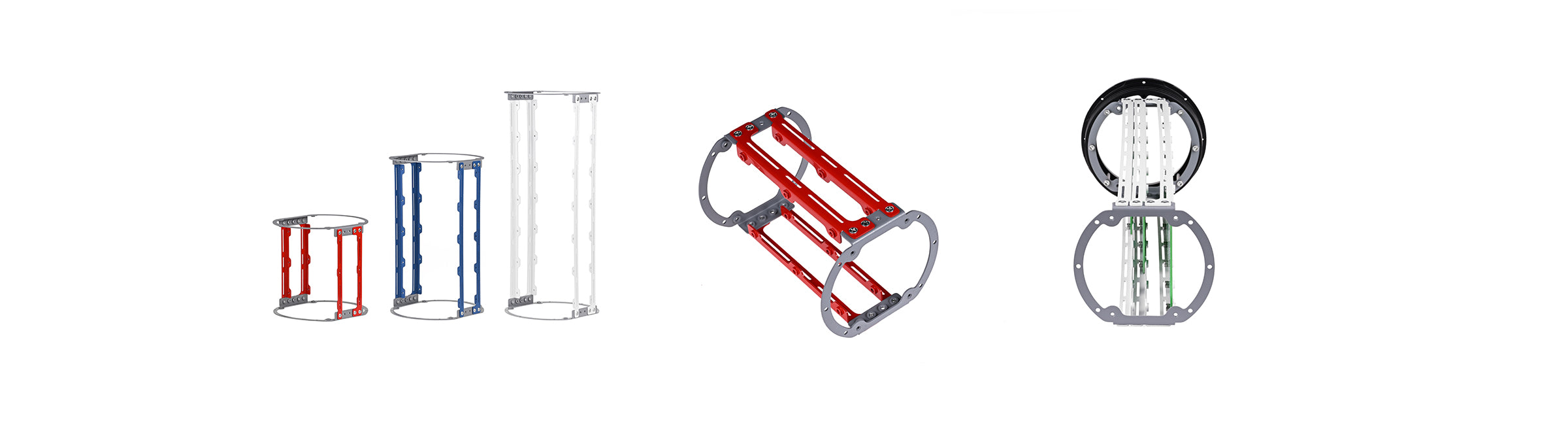

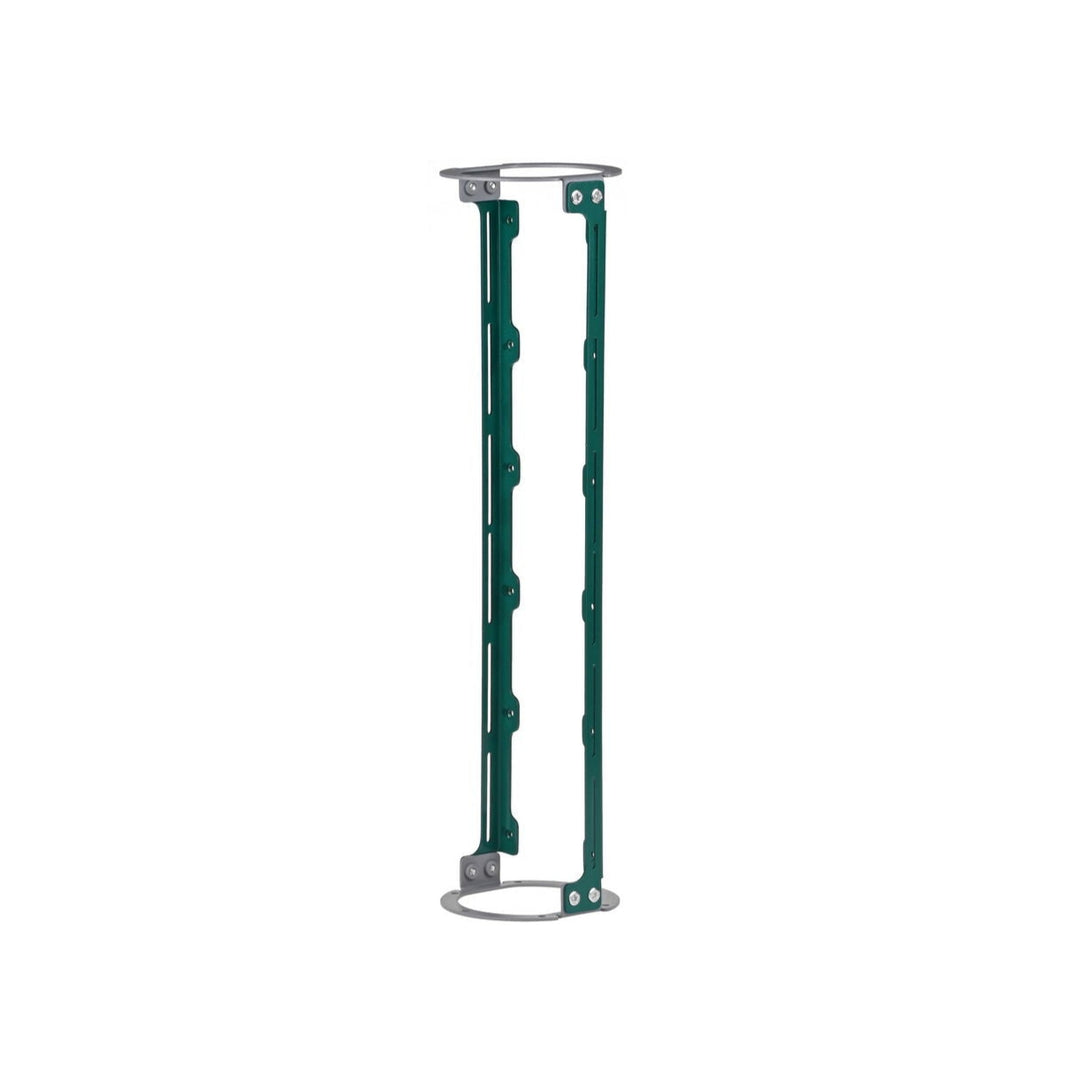

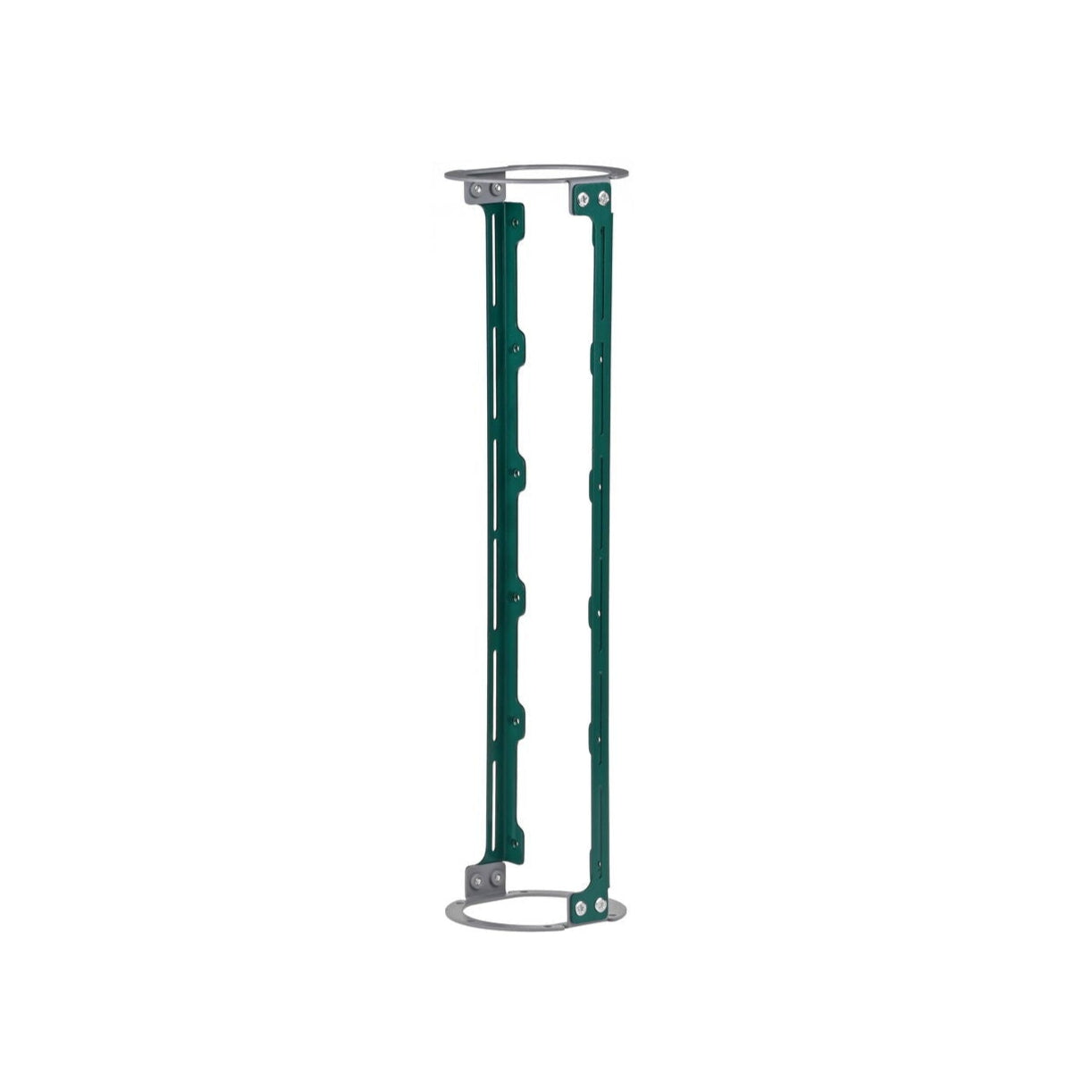

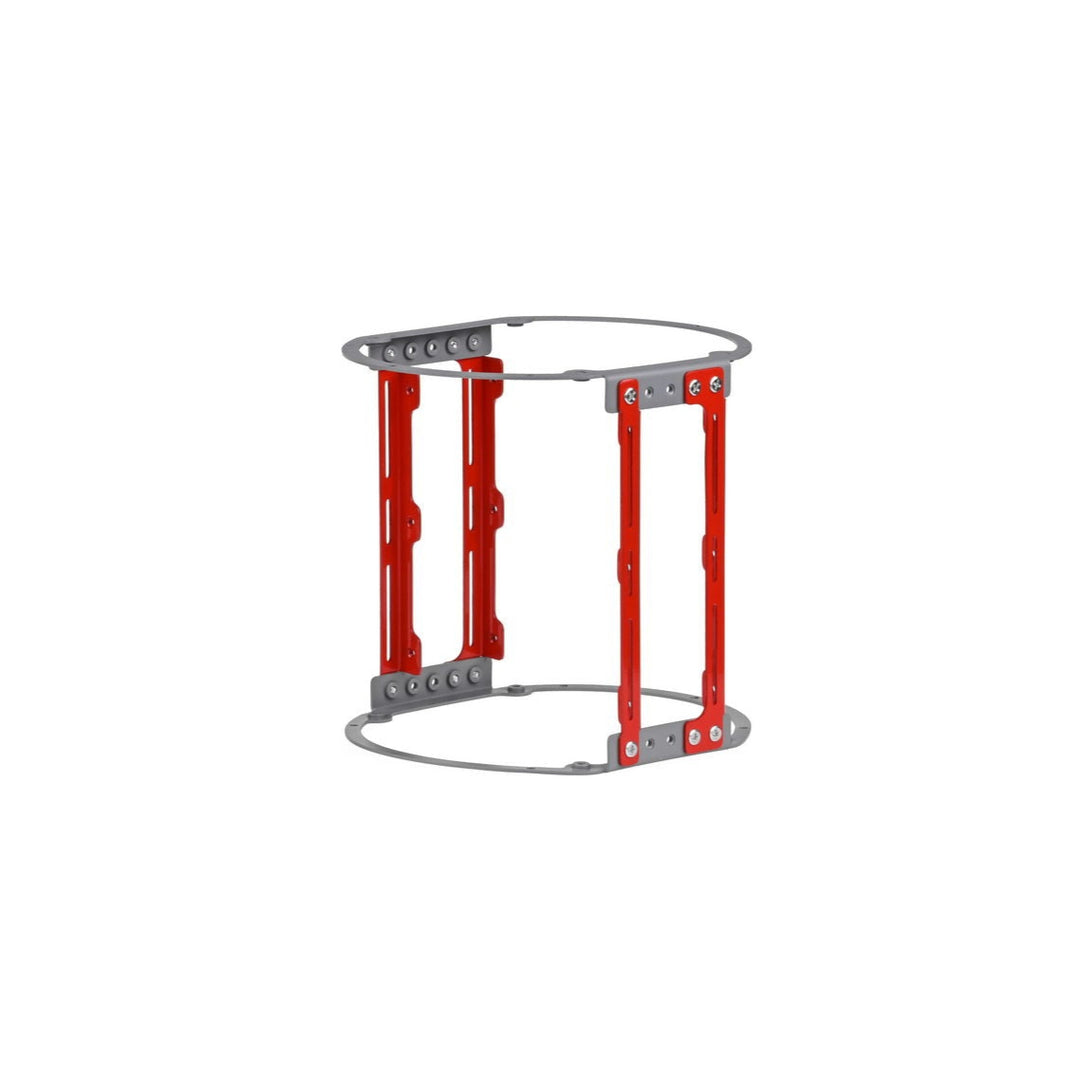

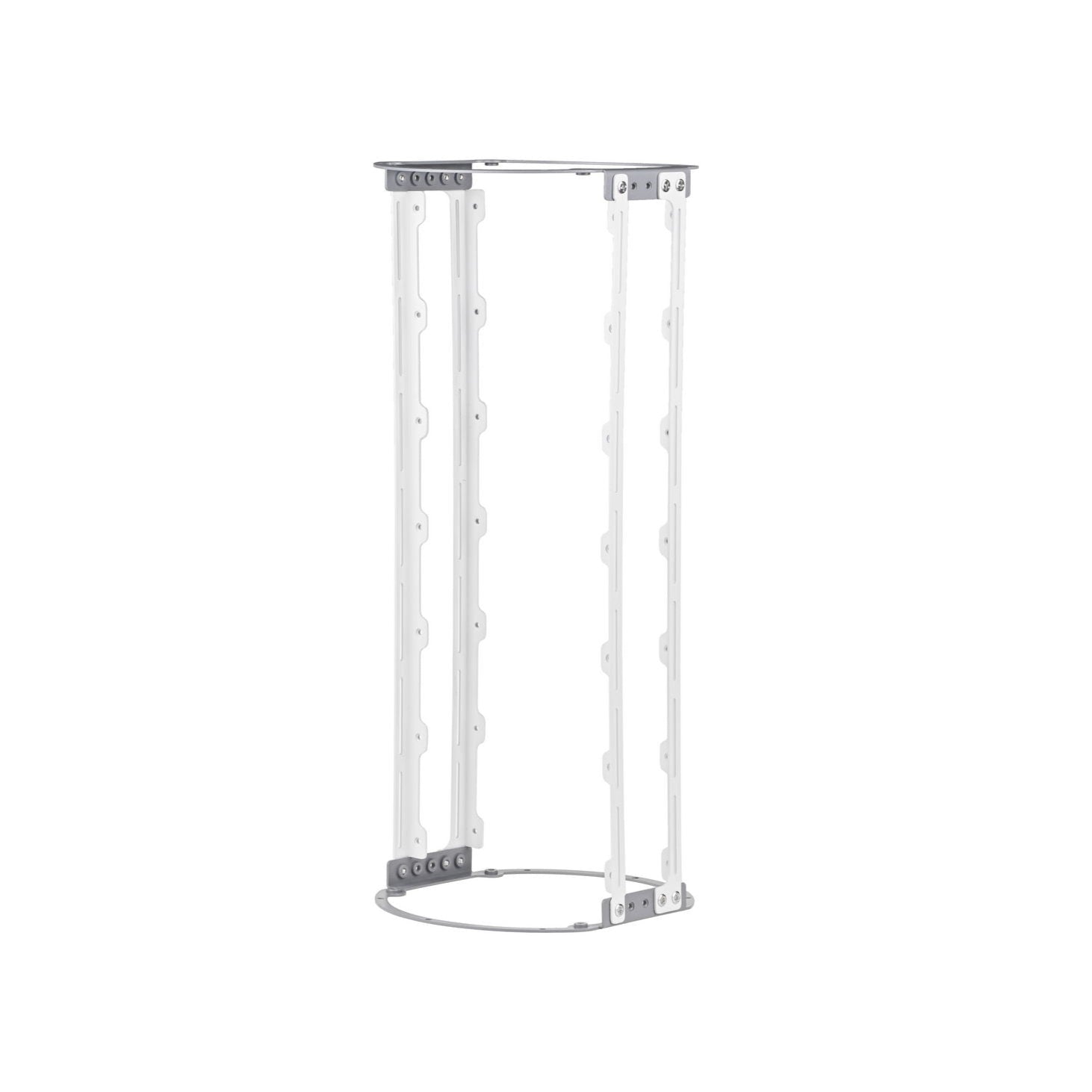

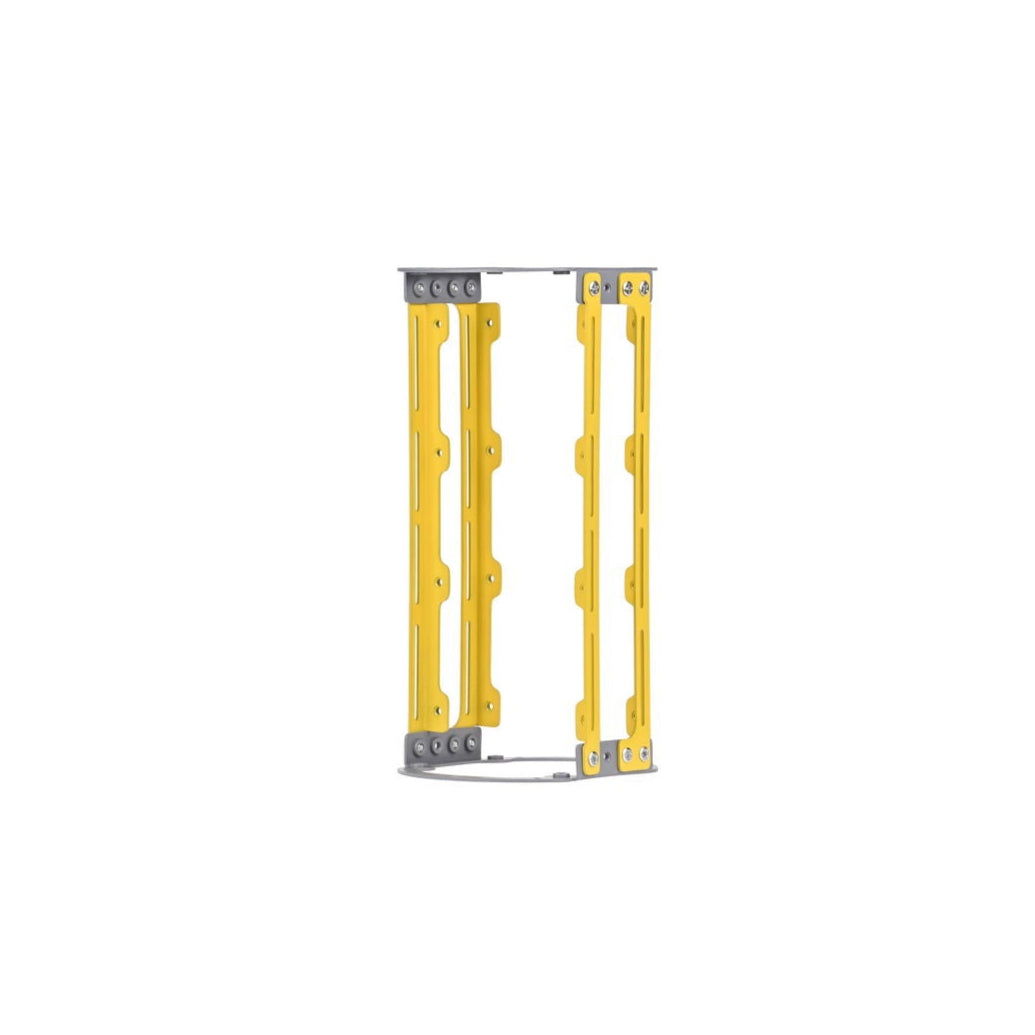

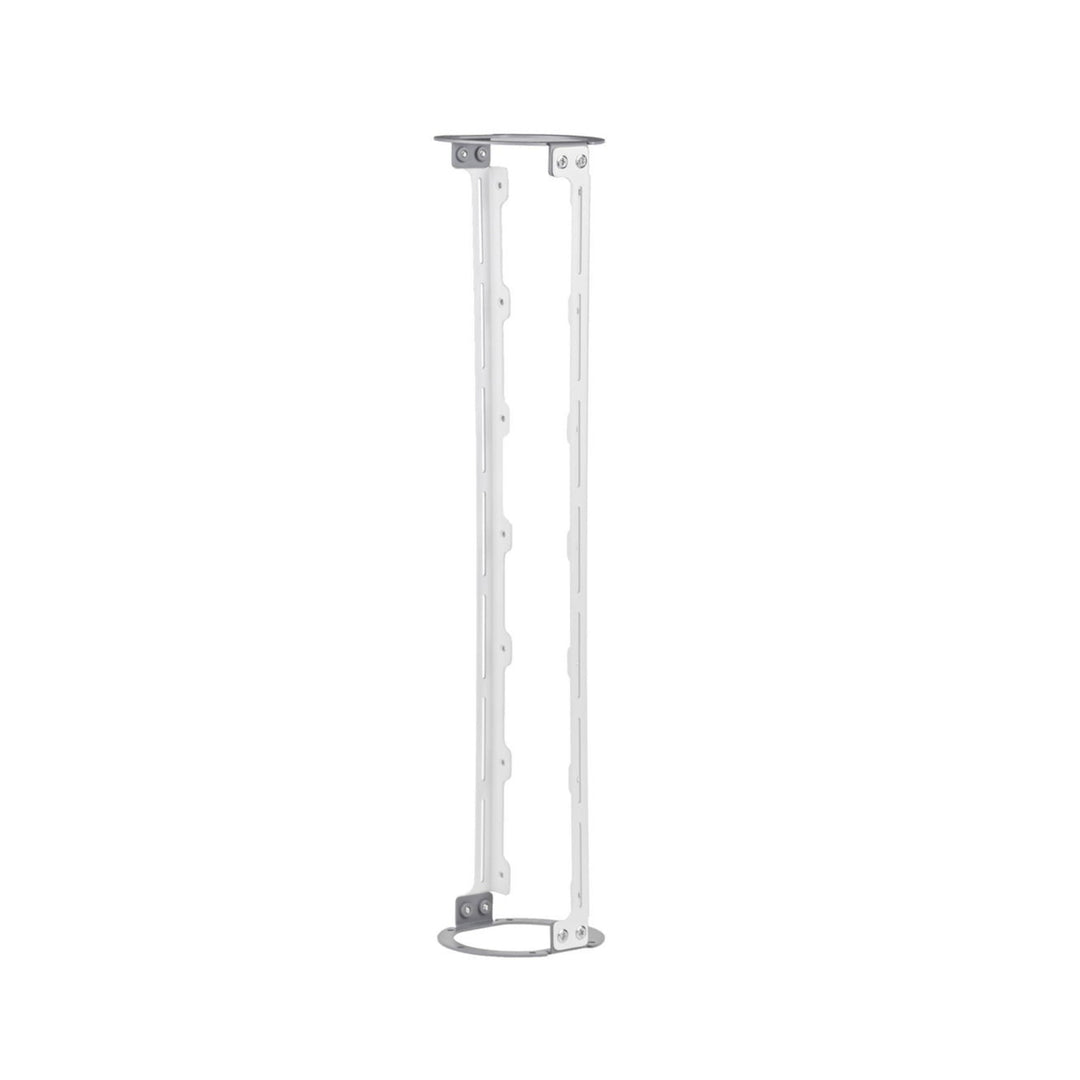

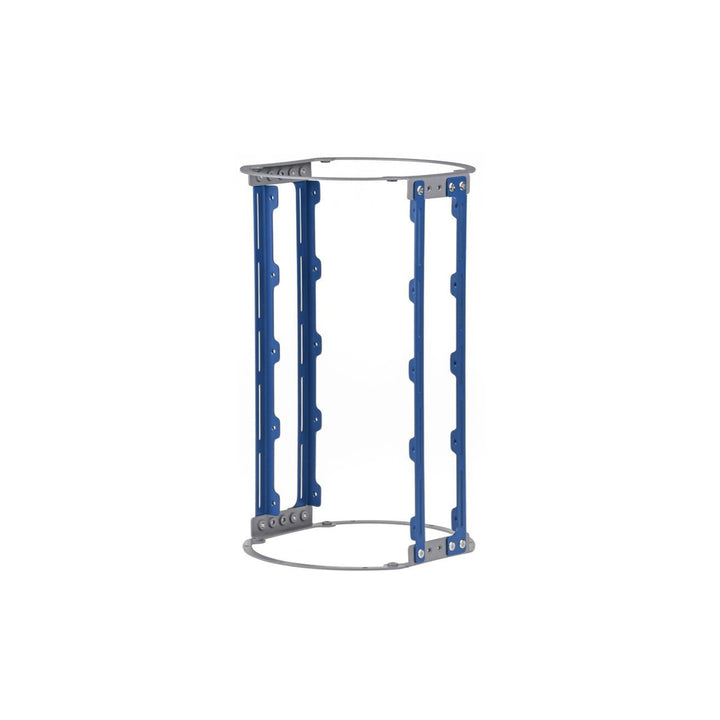

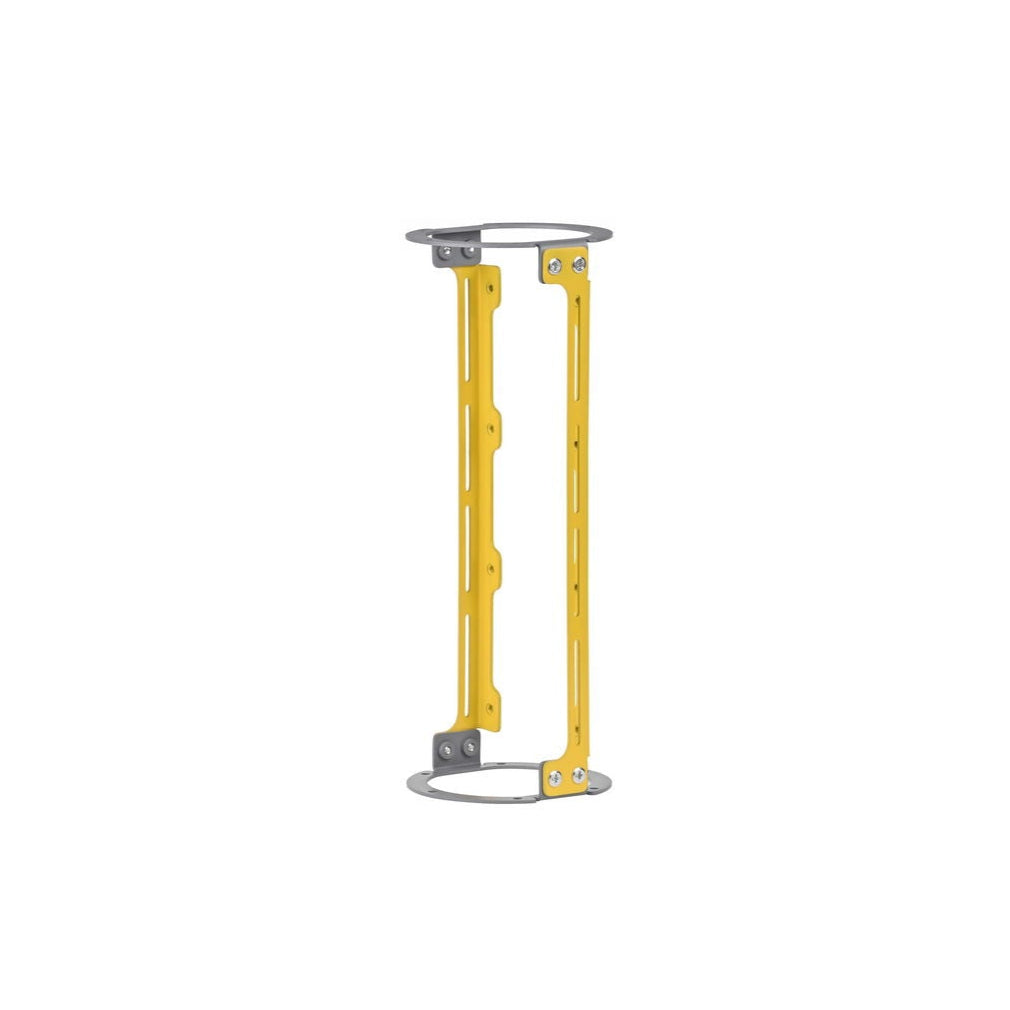

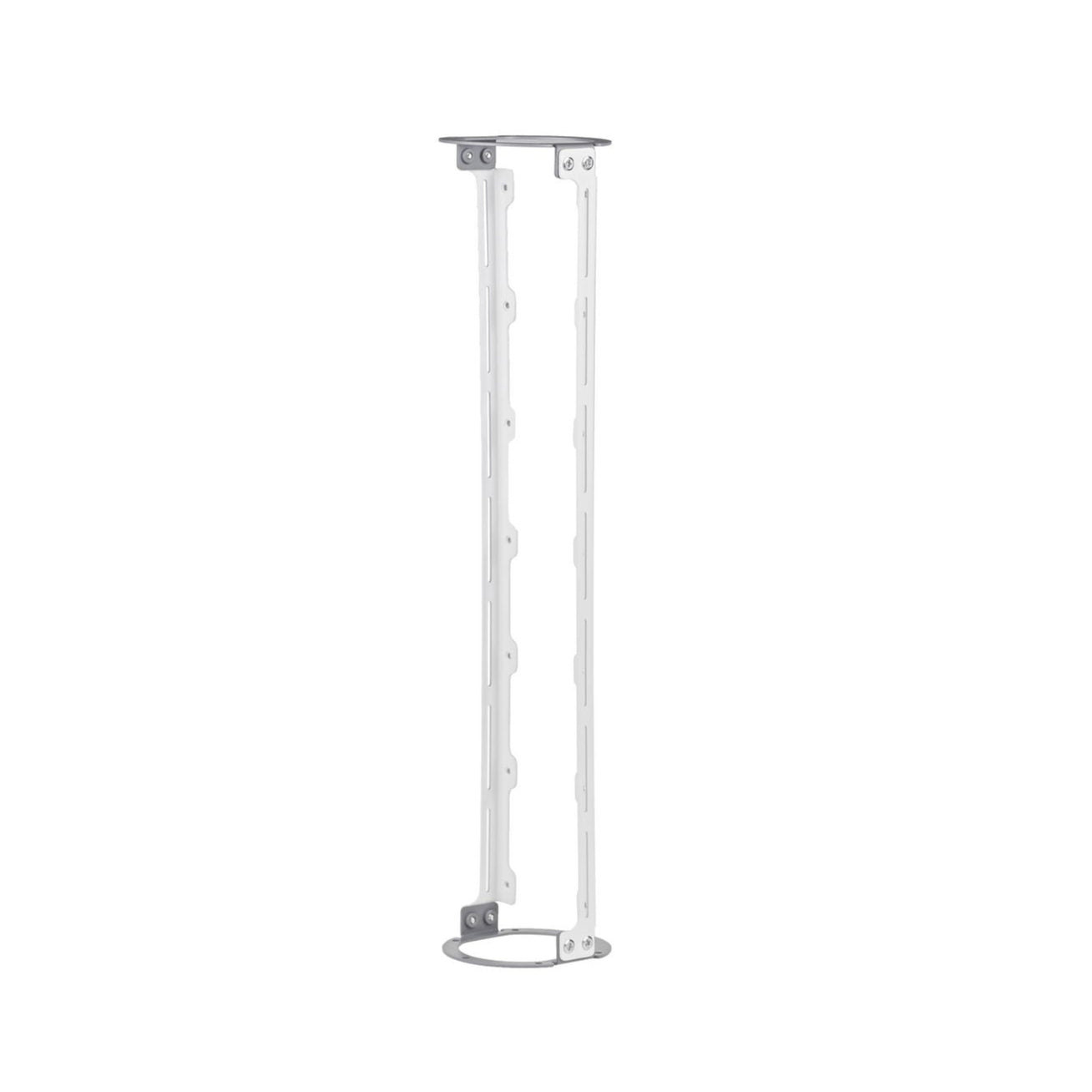

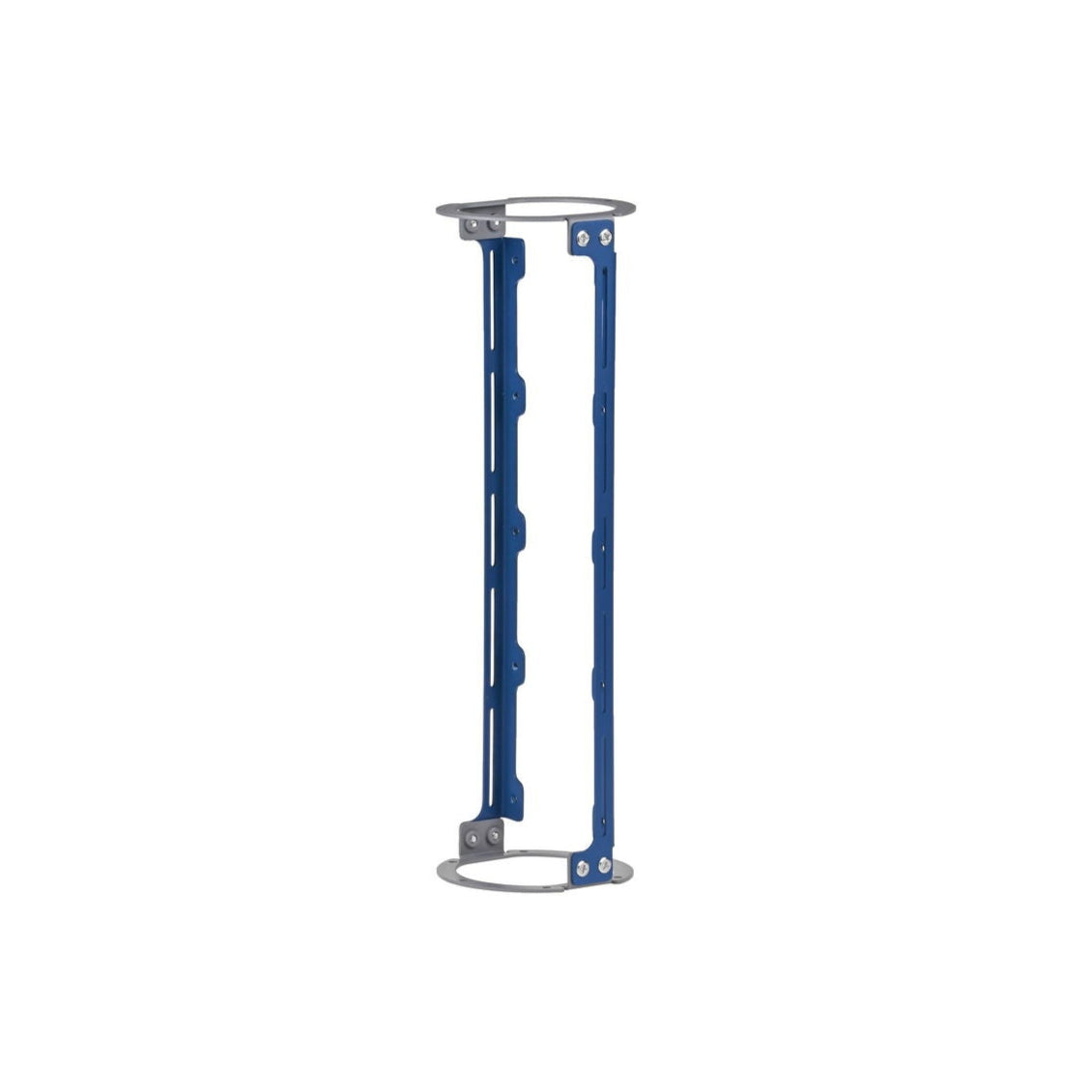

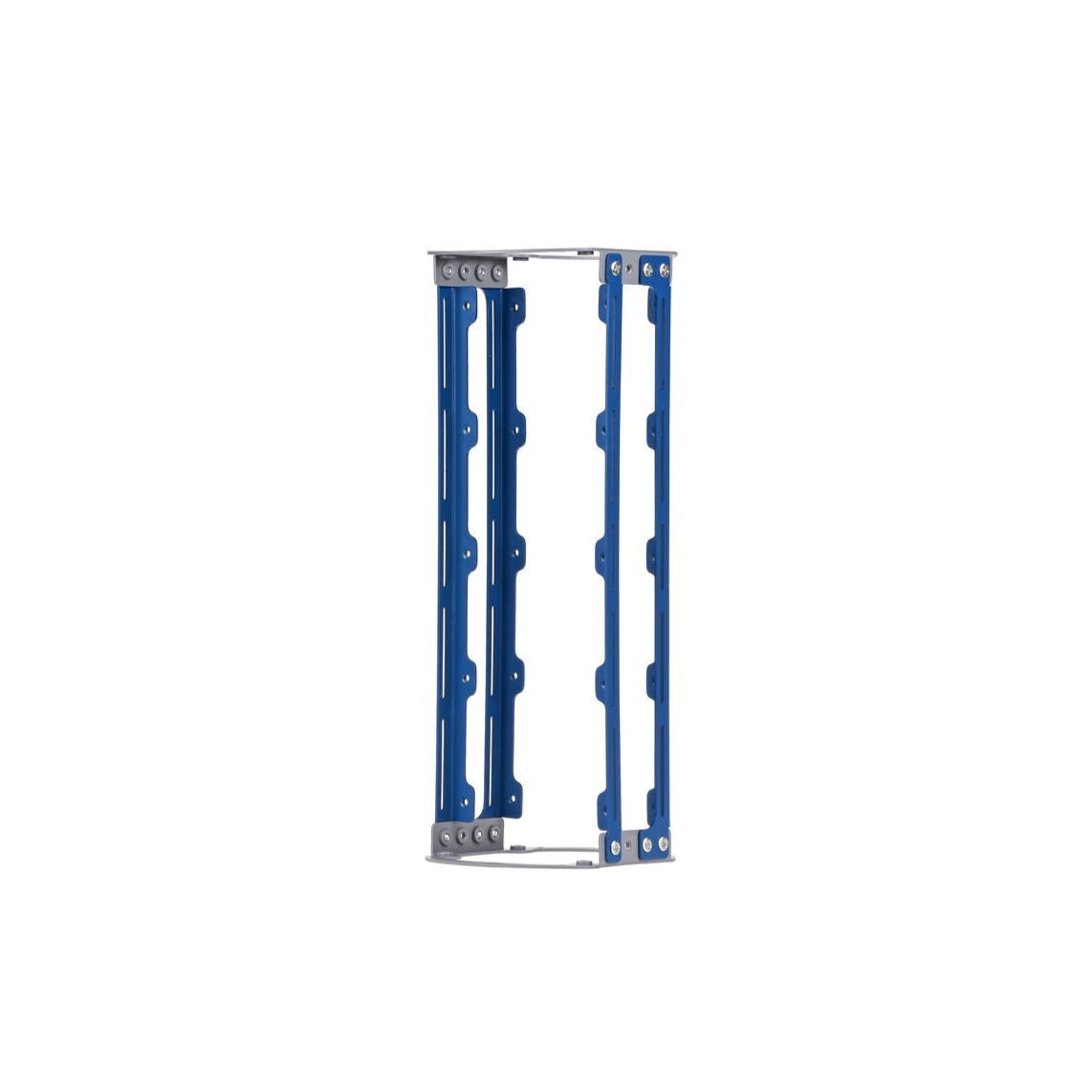

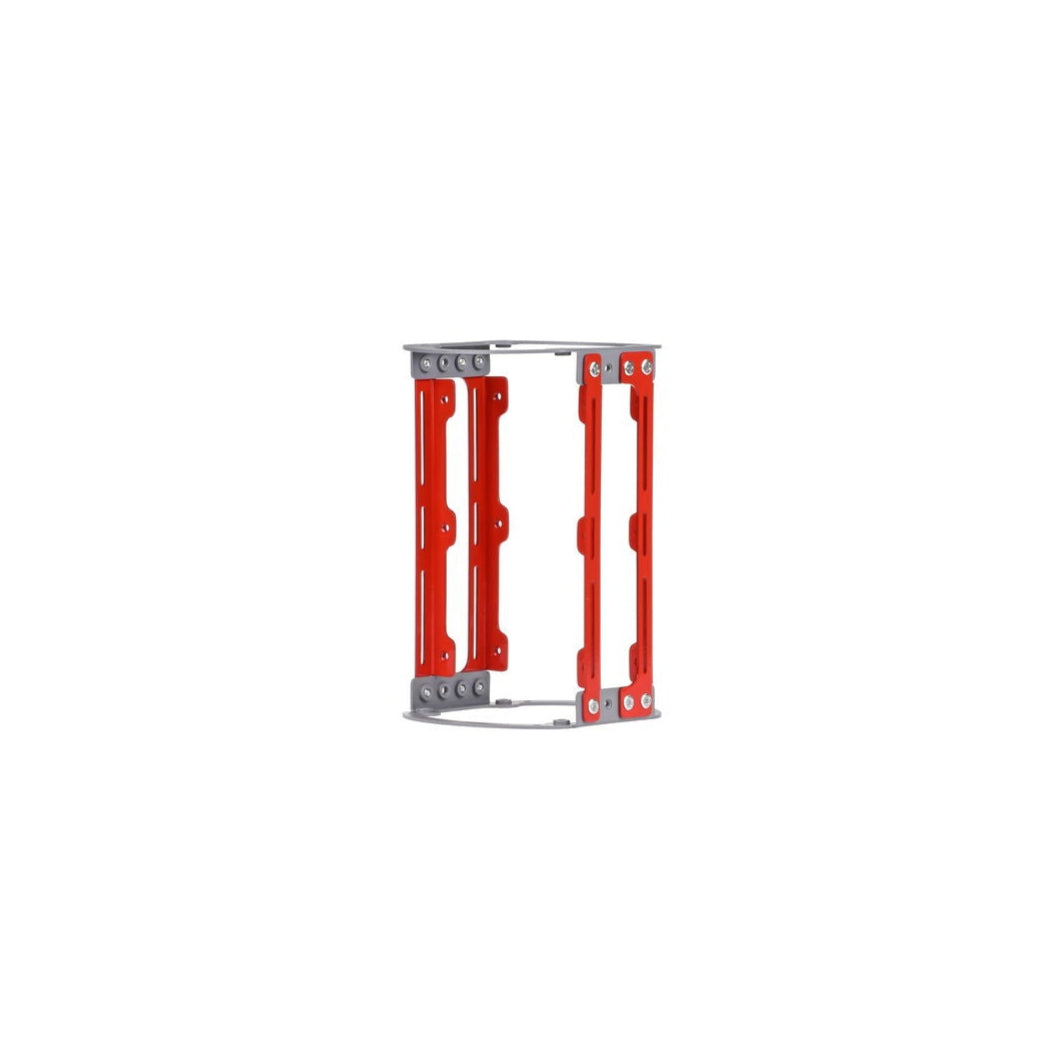

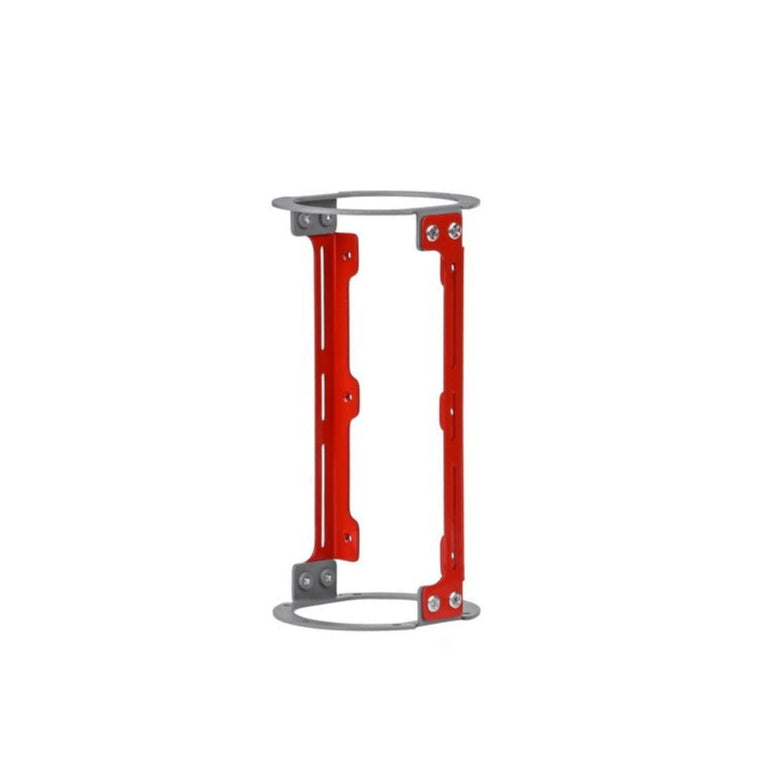

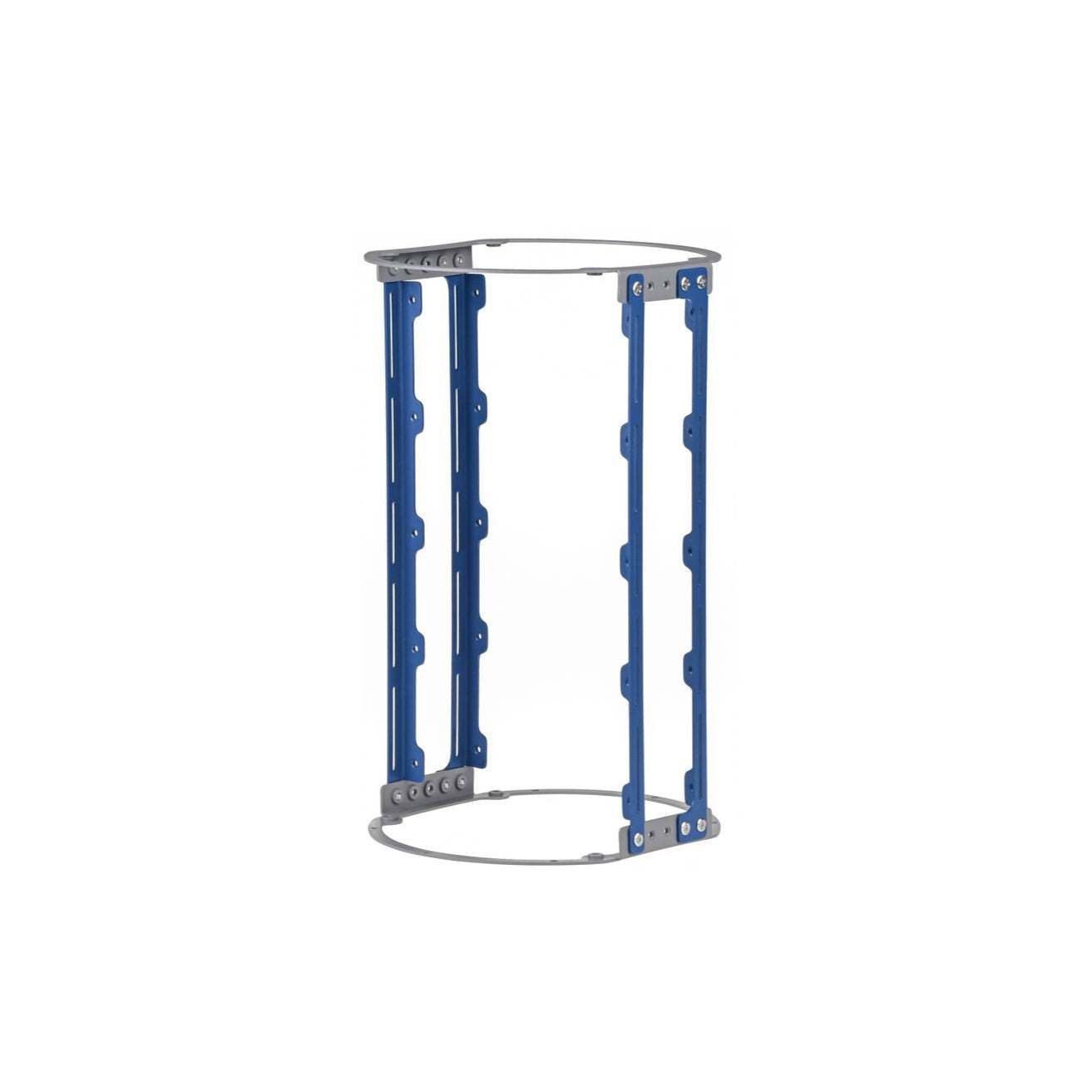

Electronic Tray Set for Enclosure Tube (available in 85 mm, 115 mm, and 165 mm sizes) provides a sturdy internal mounting solution for organizing components within underwater enclosures.

Each set includes:

A set of Enclosure Tray Shelf Supports (quantities and type vary by size; see shipping guide), featuring pre-tapped holes for flexible component or shelf mounting
Two base mounts with corresponding screws

Optional accessories (sold separately):

Insulated PCB Board Shelf for Enclosure Tube
Custom shelves, such as 3D-printed parts or alternative materials, can also be used based on project needs

Compatibility:

Fully compatible with both the Subsea Enclosure Acrylic Tube and the Subsea Enclosure Aluminum Tube.

Subsea Enclosure Builder - Promo Section (Basic)

Need Help Building Your Complete System?

Use our Subsea Enclosure Builder to design your complete underwater system with perfect compatibility, real-time pricing, and one-click ordering.

Launch Builder Tool →

Material	Cold-rolled plate (plastic-sprayed)
Weight	85mm: 82 g (200 L) / 96 g (250 L) / 110 g (300 L) / 124 g (350 L) / 140 g (400 L) 115mm: 152 g (200 L) / 180 g (250 L) / 208 g (300 L) / 238 g (350 L) / 270 g (400 L) 165mm: 175 g (200 L) / 232 g (300 L) / 294 g (400 L)

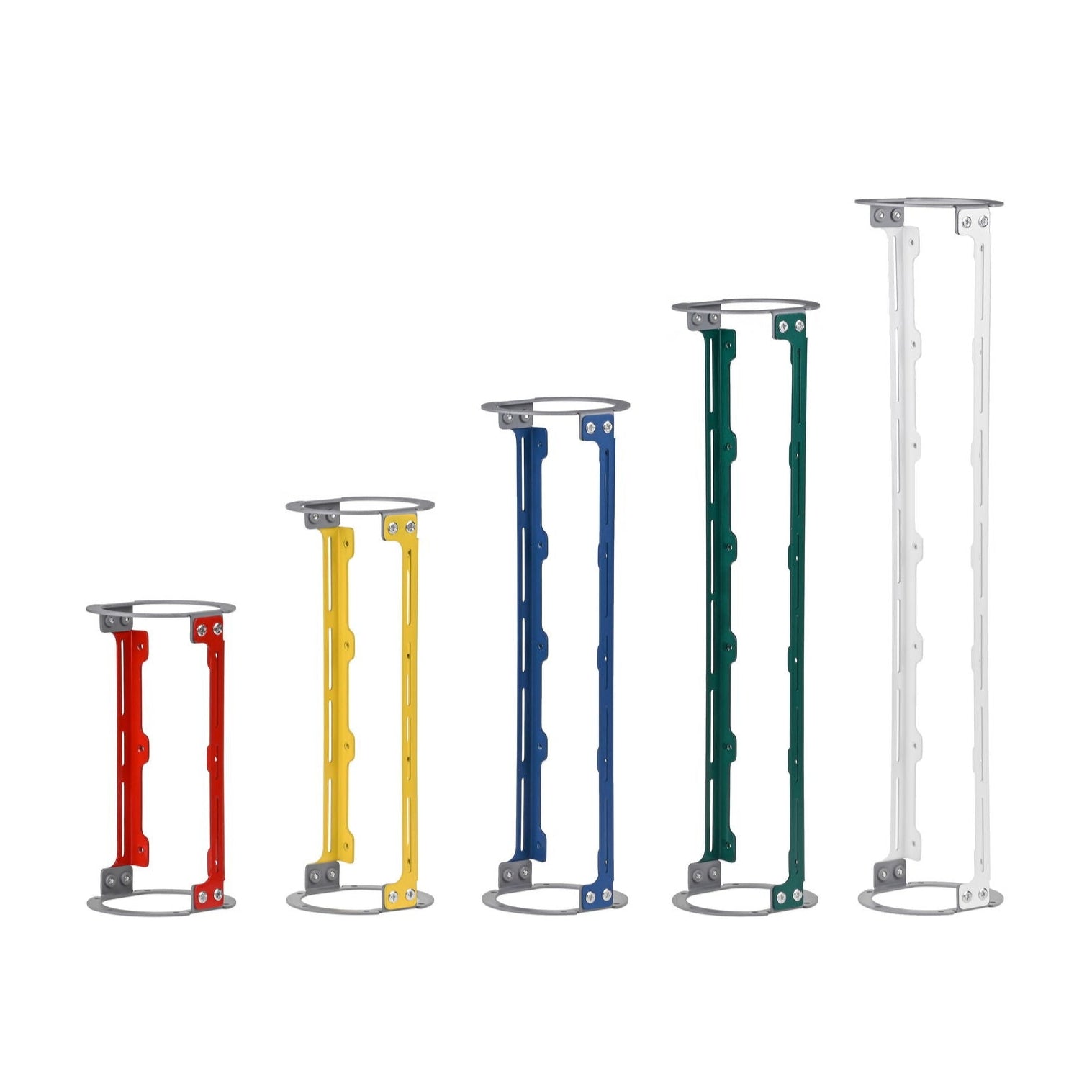

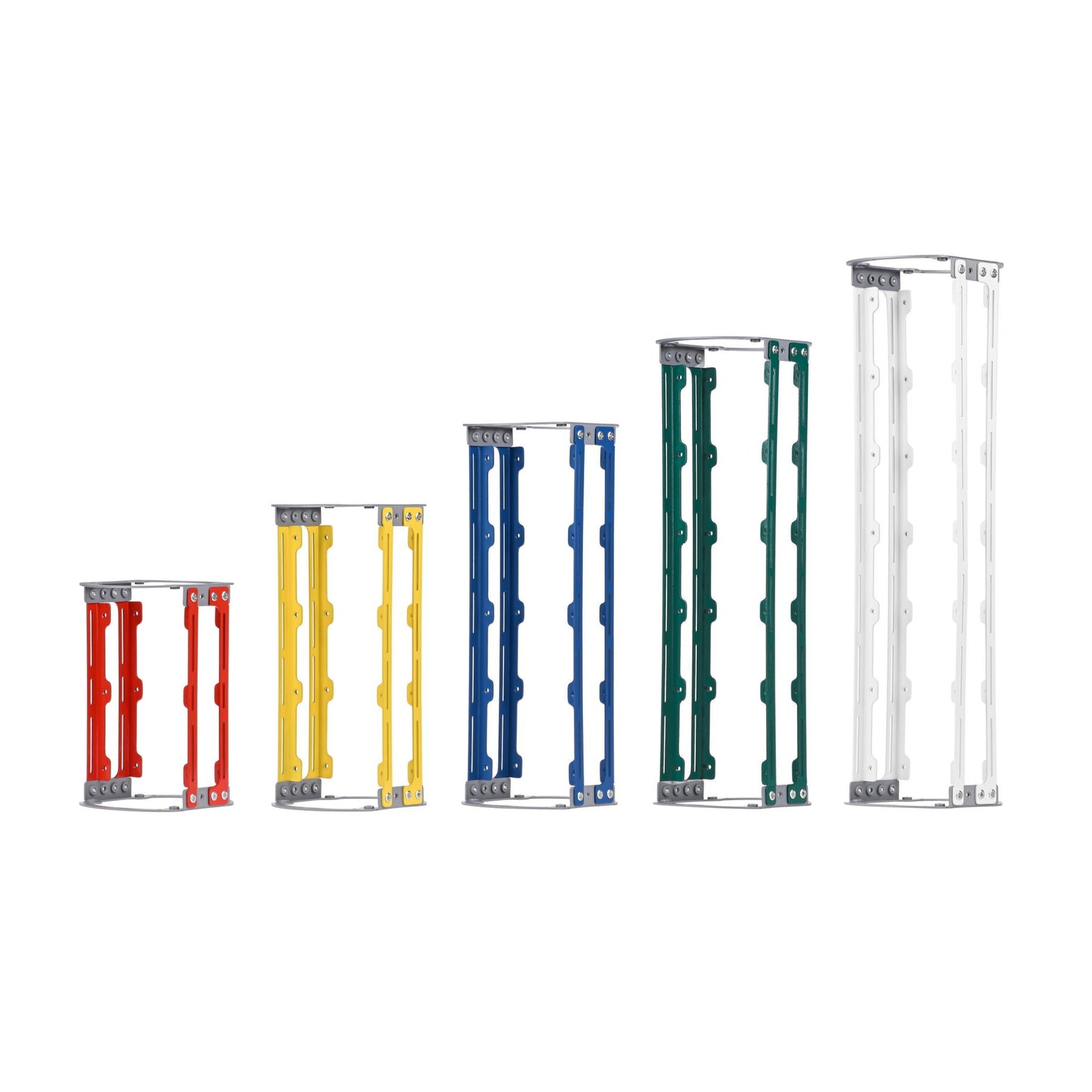

Color	85mm: Gray + Red, Yellow, Blue, Green, White 115mm: Gray + Red, Yellow, Blue, Green, White 165mm: Gray + Red, Blue, White
Depth Rating	N/A
Dimensions	Refer to dimension drawings

DESCRIPTION

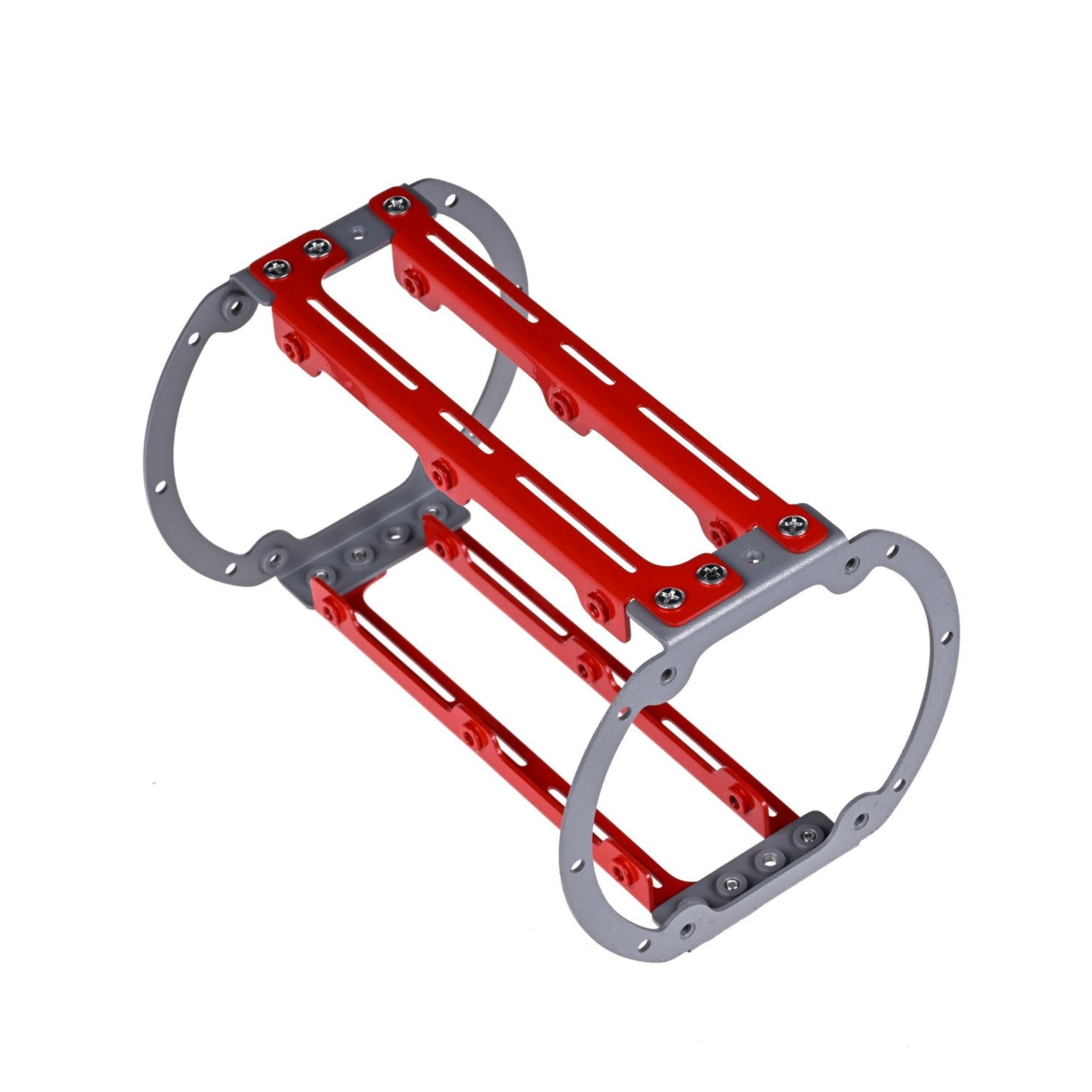

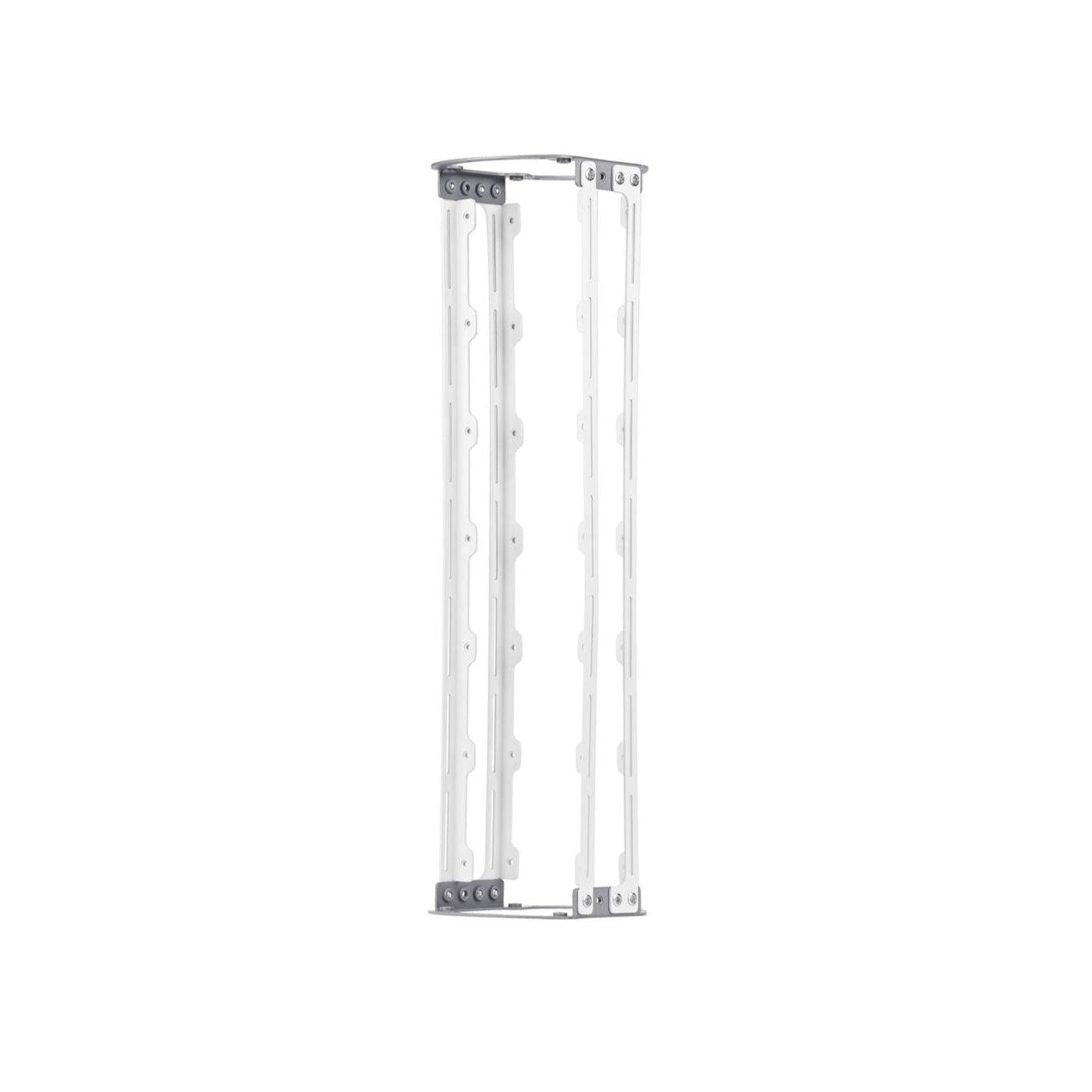

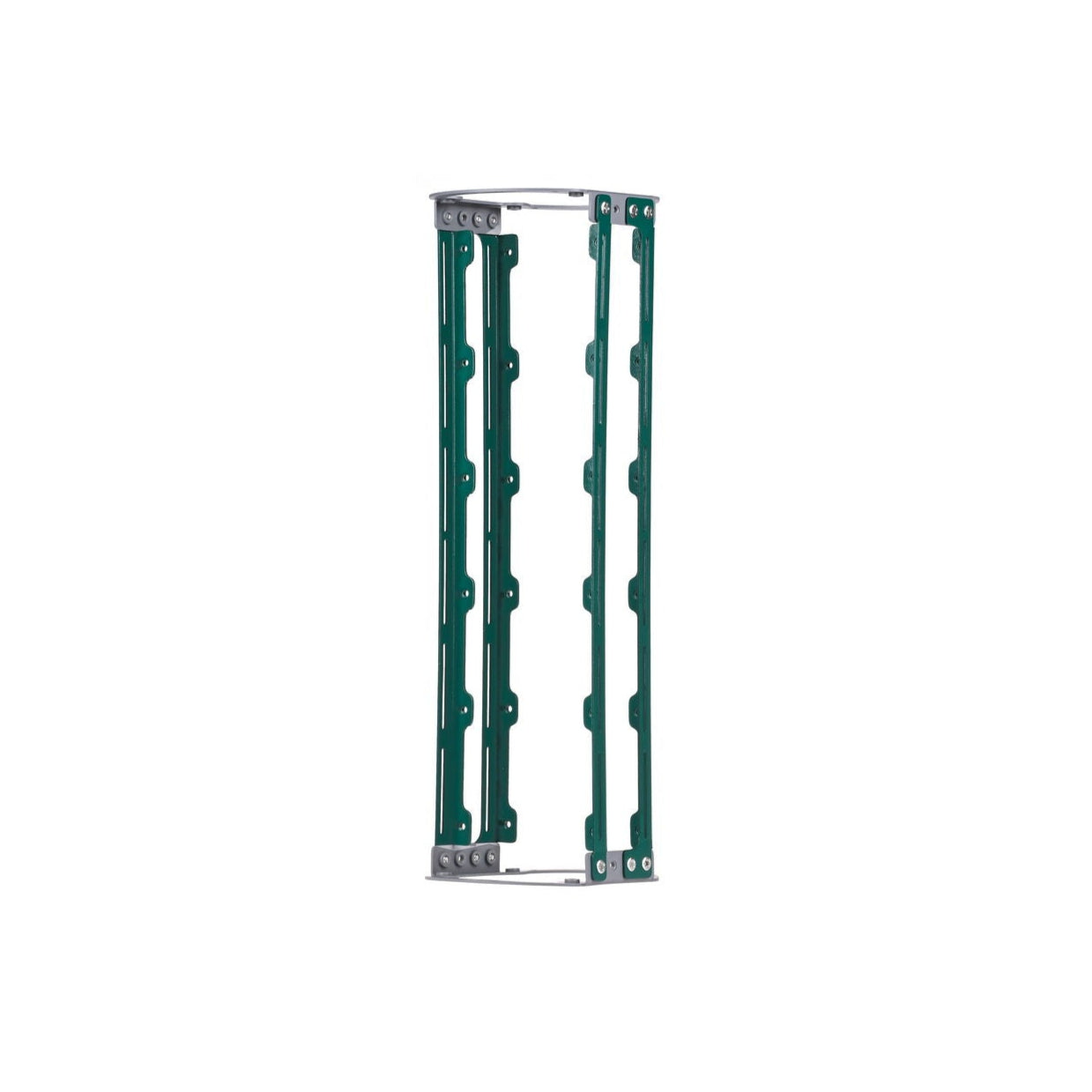

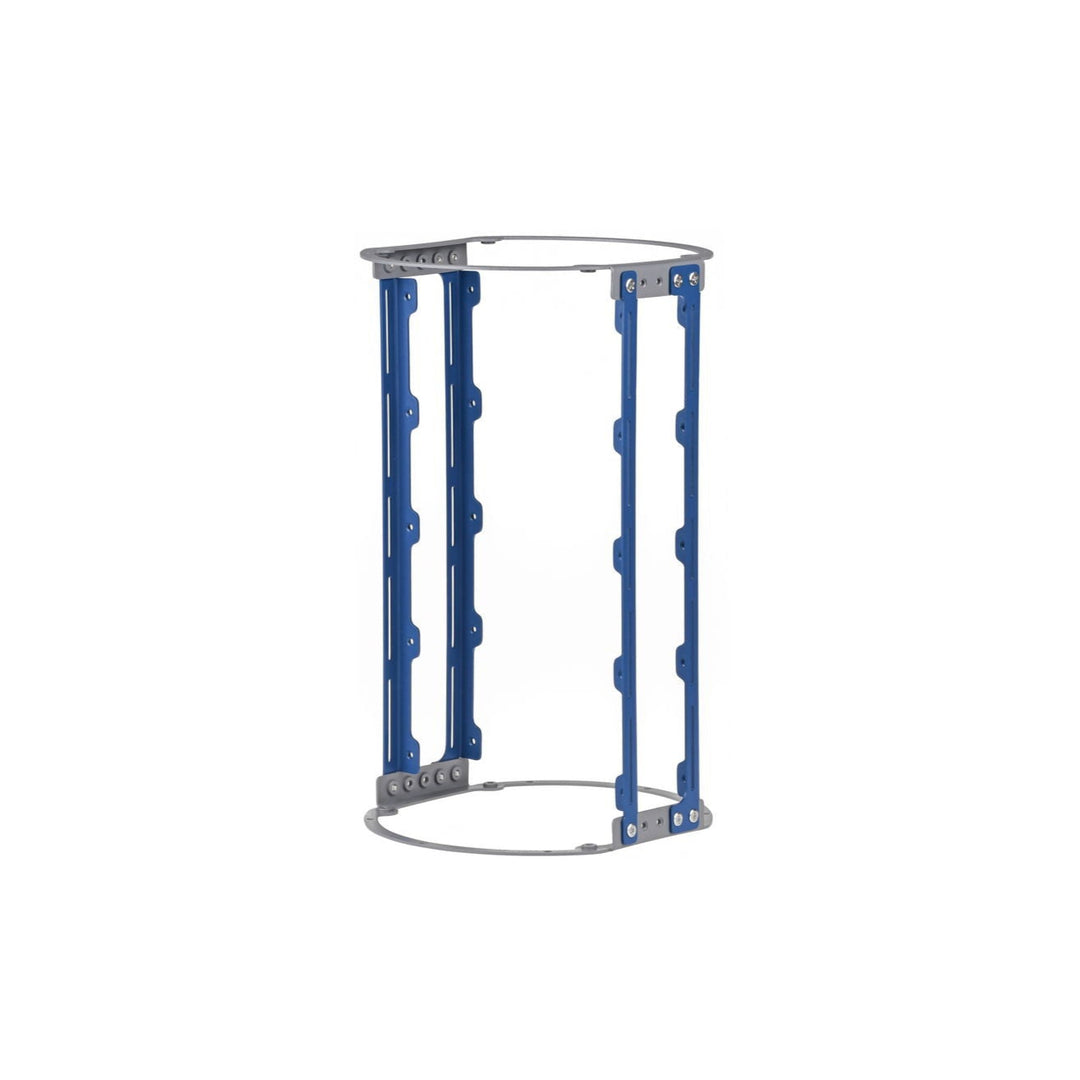

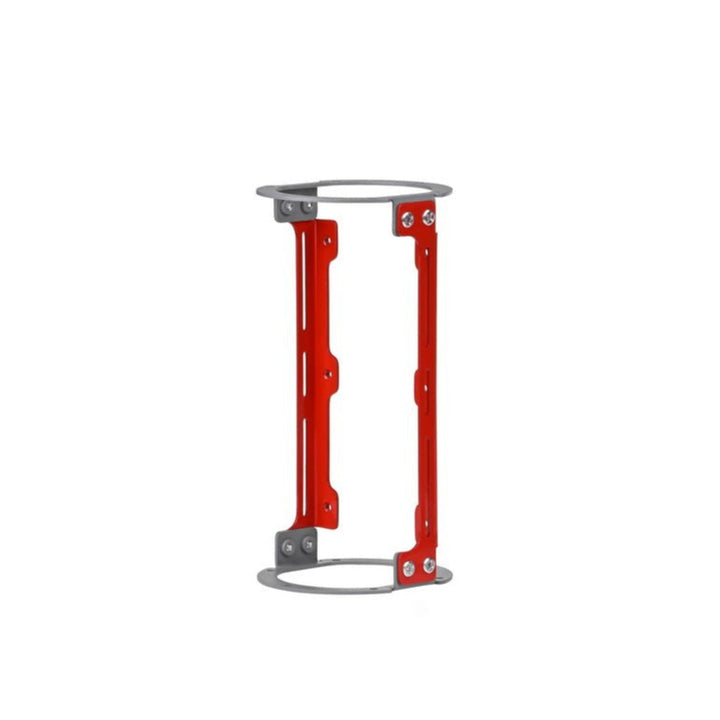

Each Electronic Tray Set for Enclosure Tube is purpose-built to streamline the internal arrangement of PCBs, batteries, and other electronics within underwater enclosures.
The tray base and side rails are made entirely from painted cold-rolled steel, providing a durable, corrosion-resistant structure with a gray finish or other color options depending on the set size. The assembled tray assembly is designed to fit securely inside Blu-Sub enclosures—compatible with both the Subsea Enclosure Aluminum Tube and the Subsea Enclosure Acrylic Tube.

Tray assembly length vs. tube length:
Because the enclosure tray base mount only needs to be fixed to one flange end, the tray assembly does not need to span the full length of the tube. Shorter tray assemblies can be used effectively, provided the tray diameter matches the enclosure diameter. For example, an 85 mm tray assembly is designed exclusively for 85 mm tubes and cannot be used in 115 mm or 165 mm enclosures. While the tray’s diameter must match the tube, its length may be equal to or shorter than the internal length of the enclosure, but must not exceed the usable space of the tube and flange support system.

Please note:
Minor deformation of sheet metal components during shipping is normal. These parts will return to their intended shape once properly installed inside the enclosure.

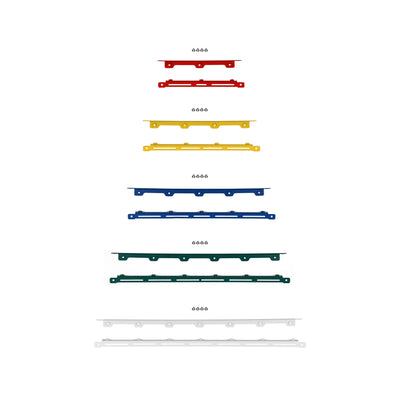

Each tray set includes a number of shelf supports, available in two types: single-point and double-point contact.
These terms refer to how many screws connect each end of the shelf support to the base mounts. The quantity and type of supports included vary by tray size (see the shipping guide for details). Shelf supports can be positioned and arranged differently depending on your specific mounting and layout needs. Insulated PCB Board Shelf for Enclosure Tube is not included.

Compatible With: PCB Board Shelf

Sold Separately

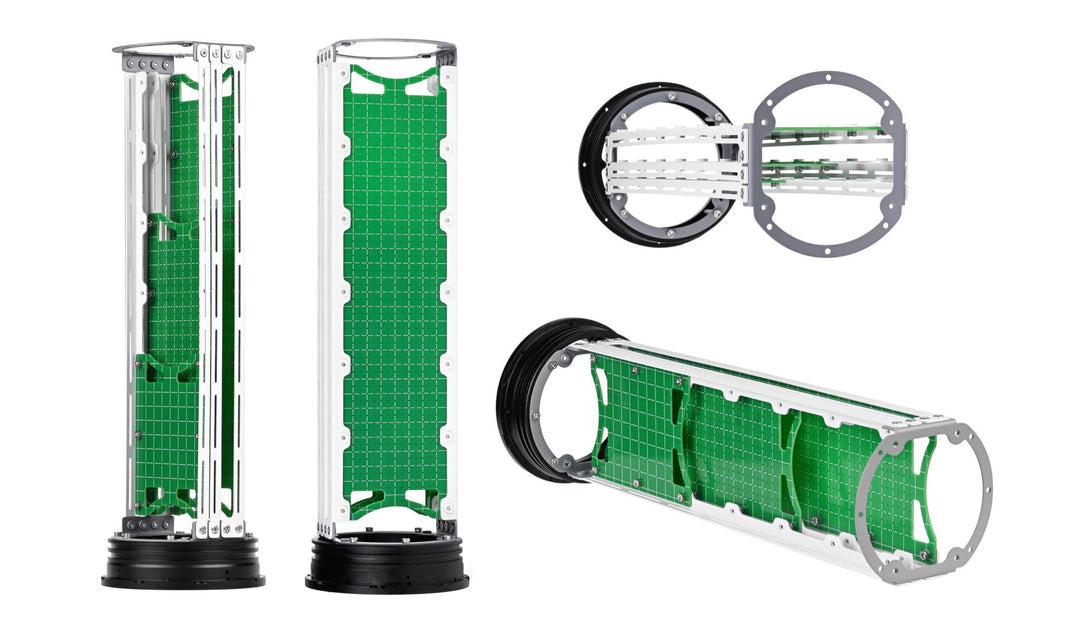

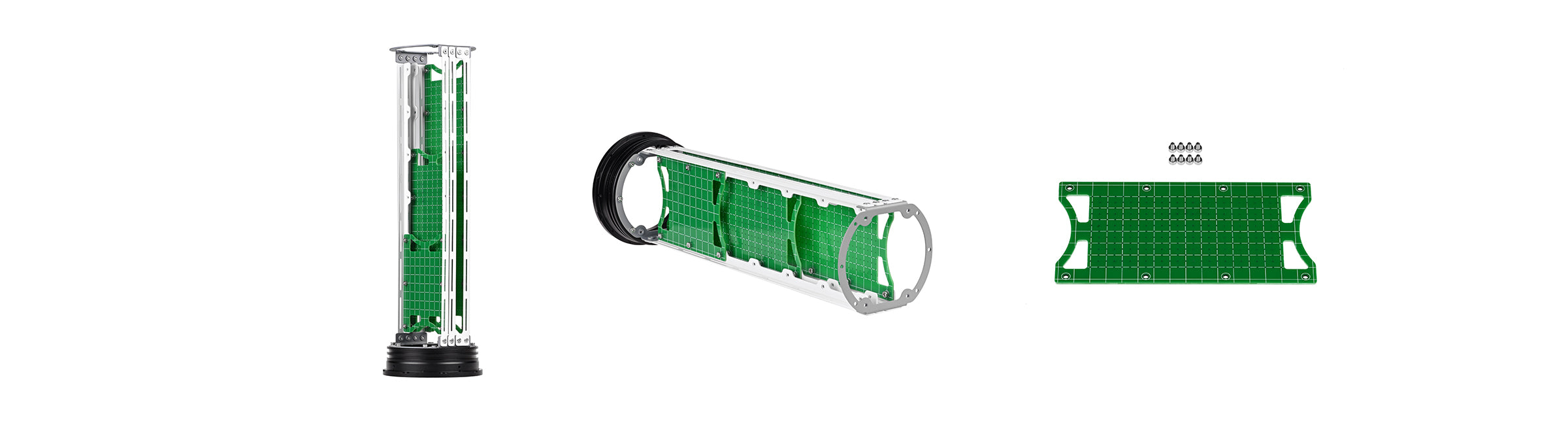

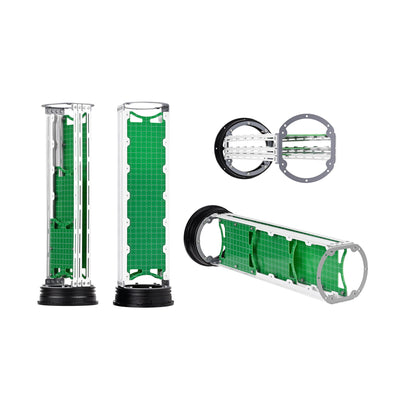

The PCB board shelf is made from insulated material with pre-arranged auxiliary wires and marked point holes to simplify drilling for component mounting or cable pass-throughs. It also serves as a reference layer for visualizing the placement of internal devices and layout planning.

PCB Board Shelf

Double-Point vs. Single-Point Shelf Supports

Sold Separately

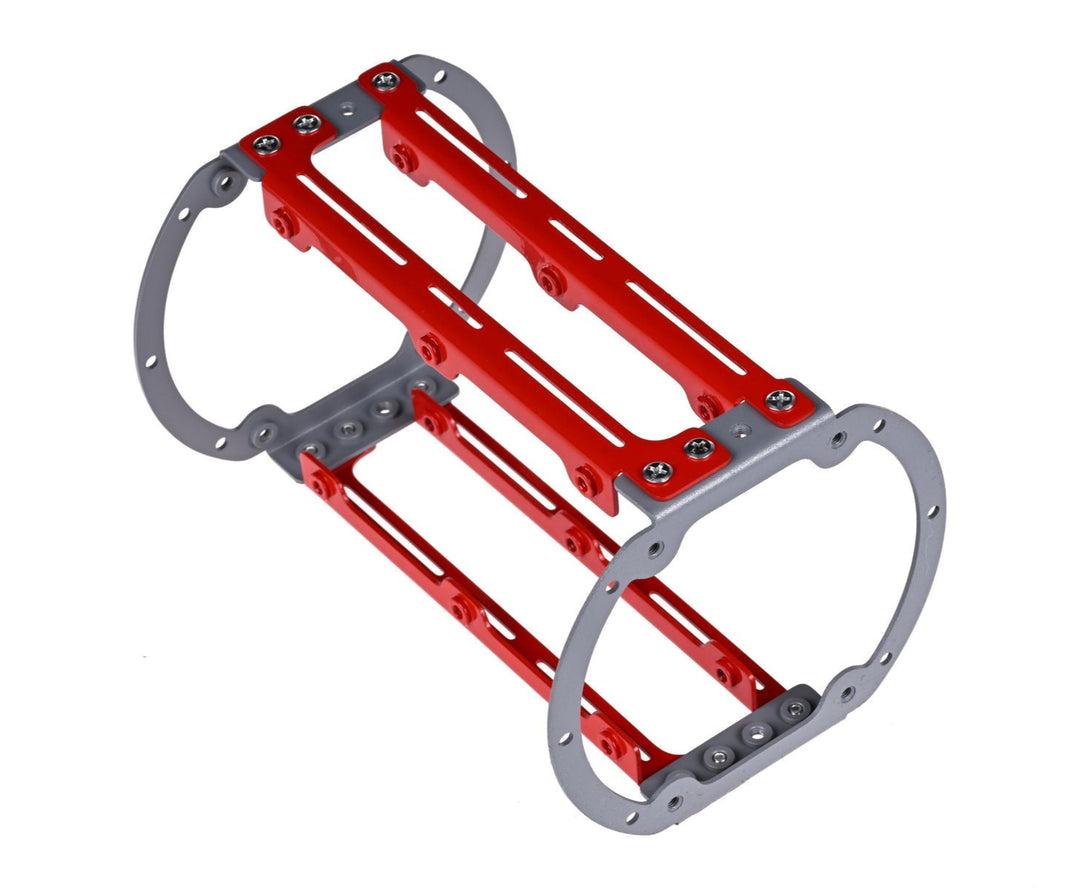

Double-point contact supports use two screw connections at each end—that is, two screws into each base mount. These supports are physically larger and more robust, offering increased rigidity and stability. They are ideal for supporting heavier components or centrally mounted elements where structural strength is essential.

Single-point contact supports use one screw at each end—one into each base mount—and feature a more compact, lightweight design. This configuration helps conserve space within the enclosure and allows for modular, flexible layouts, especially when working around bulkier components.

Both double-point and single-point shelf supports are fully compatible with Insulated PCB Board Shelf for Enclosure Tube, allowing you to tailor the internal setup of your enclosure based on load requirements and available space.

If needed, extra single-point shelf supports can be purchased separately using the button below.

Tray Shelf Supports (Single-Point)

Designed For: Blu-Sub Enclosure Tubes

Sold Separately

Subsea Enclosure Aluminum Tube
Rugged 115 mm pressure-rated housing for deep-sea use. The tray set is available in this size and fits securely inside the tube, offering a depth rating of 1,000 m / 3,281 ft and passive thermal conduction to help manage internal heat from electronics.

Subsea Enclosure Acrylic Tube
Lightweight, optically clear tube compatible with tray sets for organizing electronics in compact, vision-enabled subsea systems.

Supported Flange Interfaces

Sold Separately

Electronic Tray Set for Enclosure Tube

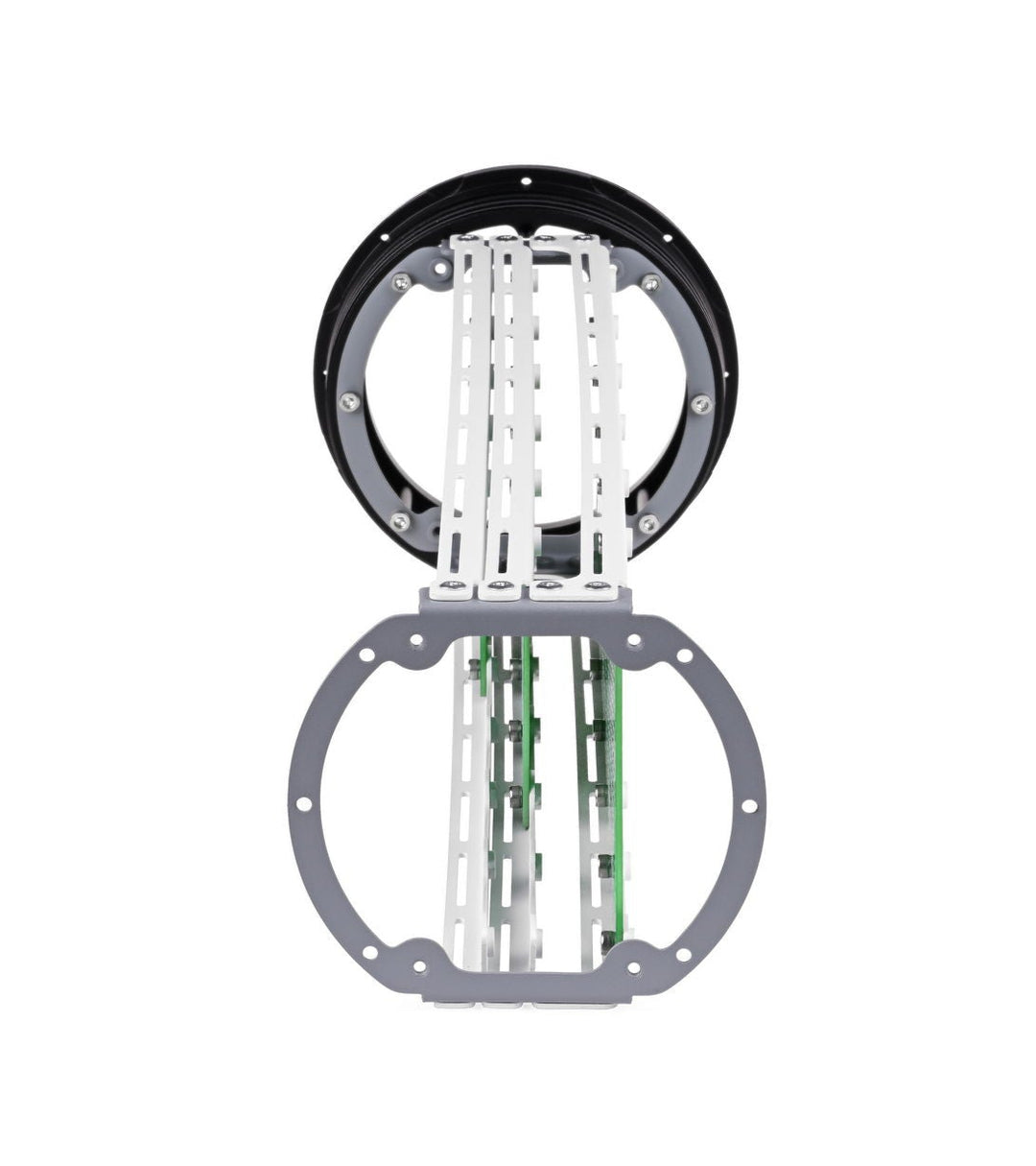

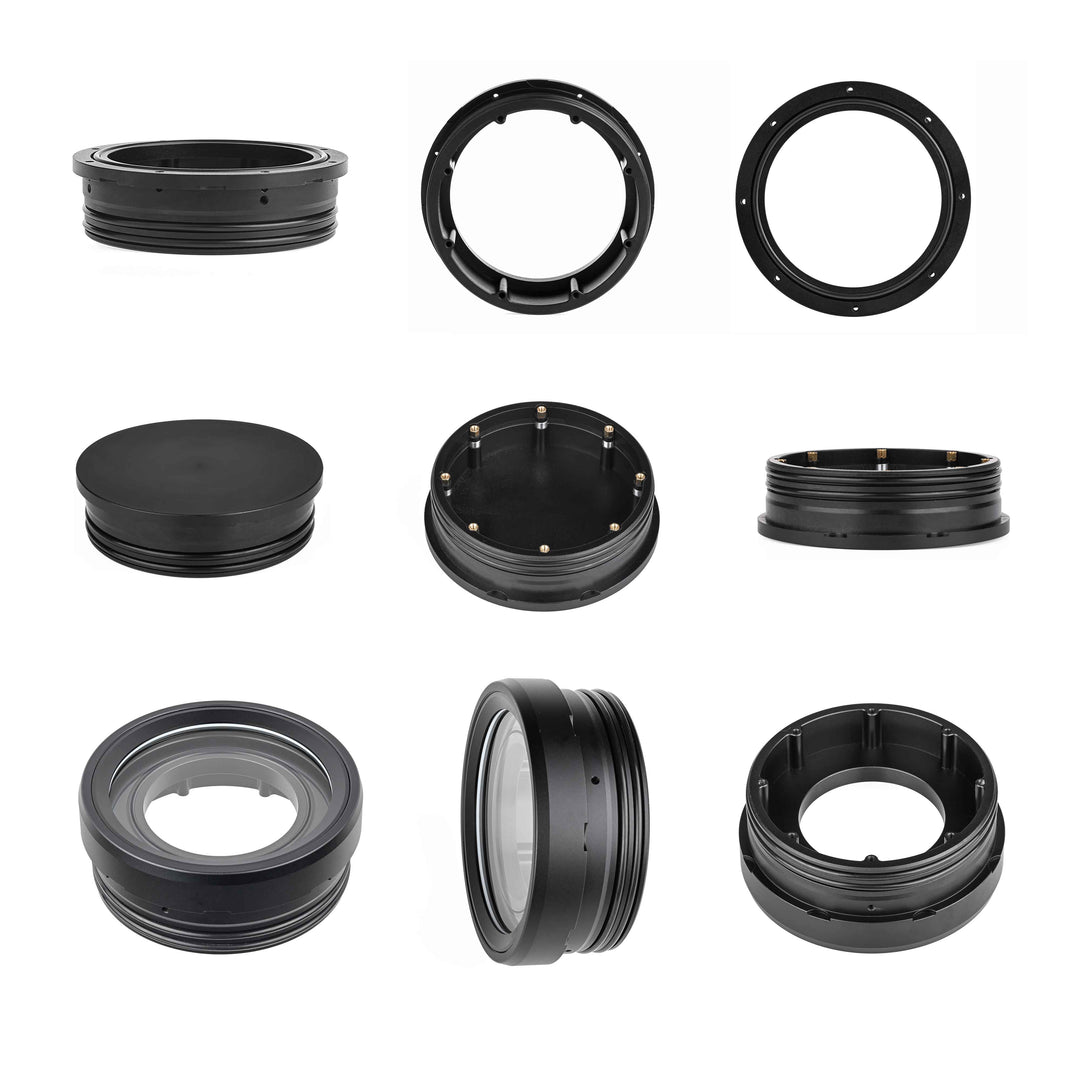

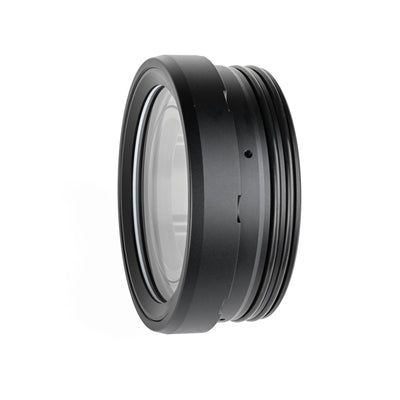

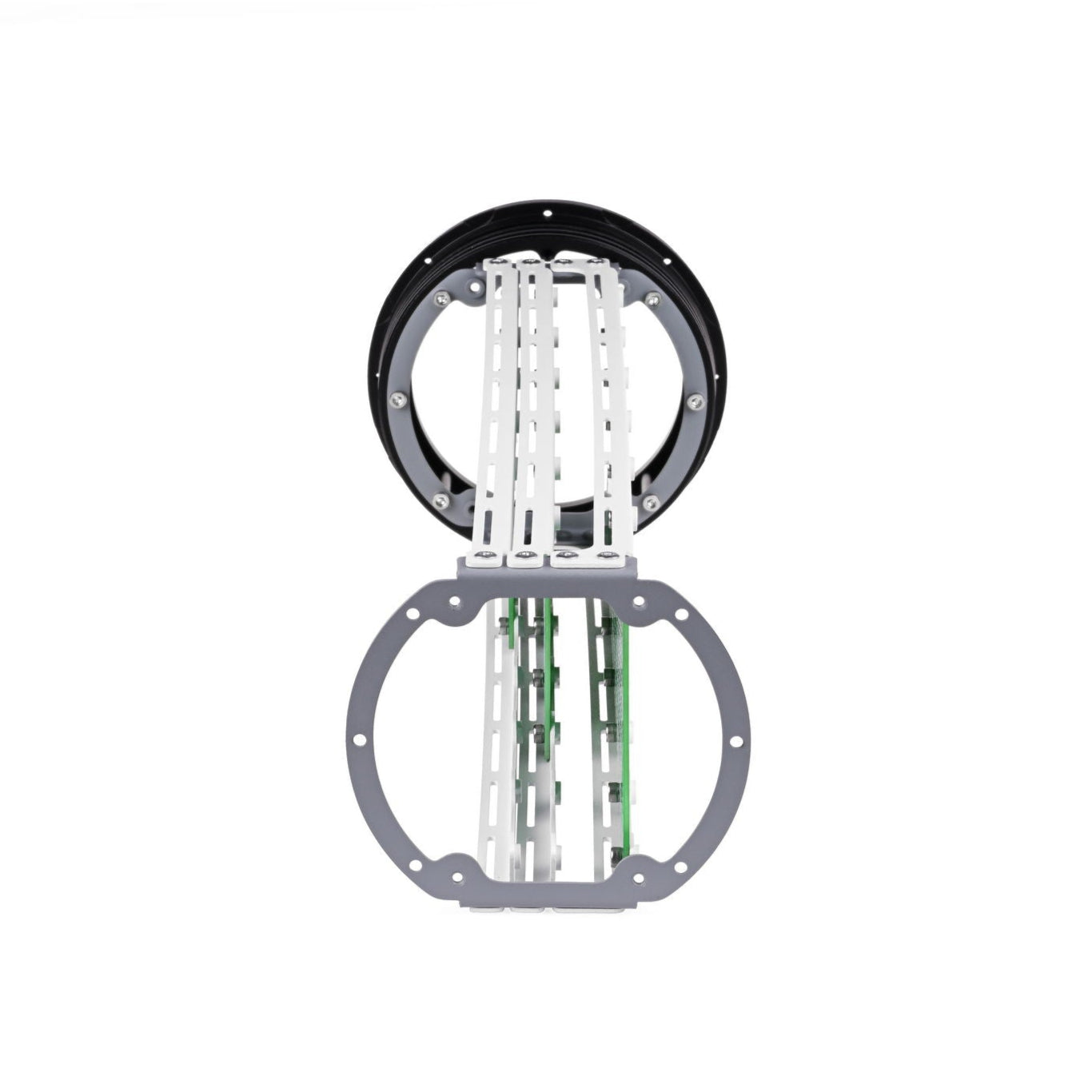

When used with the Subsea Aluminum Flange, Subsea Optical Glass Flange & End-Cap, or Subsea Polymer Flange & End-Cap, the base mount attaches directly to the flange using screws—ensuring stable and precise support for internal components. Compatible with both acrylic and aluminum tubes, the tray system enables efficient internal layout of subsea electronics. All Electronic Tray Set for Enclosure Tube installations only require mounting into the screw hole of the flange at one end of the tube.

SHIPPING LIST

85 Tray Set:
Base Mount × 2
Double-Point Shelf Supports × 1 pair
Fixing and Mounting Screws × 1 set

115 Tray Set:
Base Mount × 2
Double-Point Shelf Supports × 1 pair
Single-Point Shelf Supports x 1 pair
Fixing and Mounting Screws × 1 set

165 Tray Set:
Base Mount × 2
Double-Point Shelf Supports × 1 pair
Single-Point Shelf Supports x 1 pair
Fixing and Mounting Screws × 1 set

Optional Extras:
PCB Board Shelf – available separately in various lengths and widths.

TECHNICAL SPECIFICATIONS

Spec	Electronics Tray Set
Models Available	85 Tray Set, 115 Tray Set, 165 Tray Set
Material	Plastic paint sprayed cold-rolled steel (tray bases and shelf supports)
Screw Type	Flat-head PH1 Phillips screws (included)
Shelf Support Options	Double-point and single-point shelf supports (compatible with PCB board shelves)
Tube Compatibility	Designed for Blu-Sub aluminum and acrylic tube enclosures
PCB Board Shelf	Optional accessory with insulated surface, auxiliary wire paths, and layout reference holes

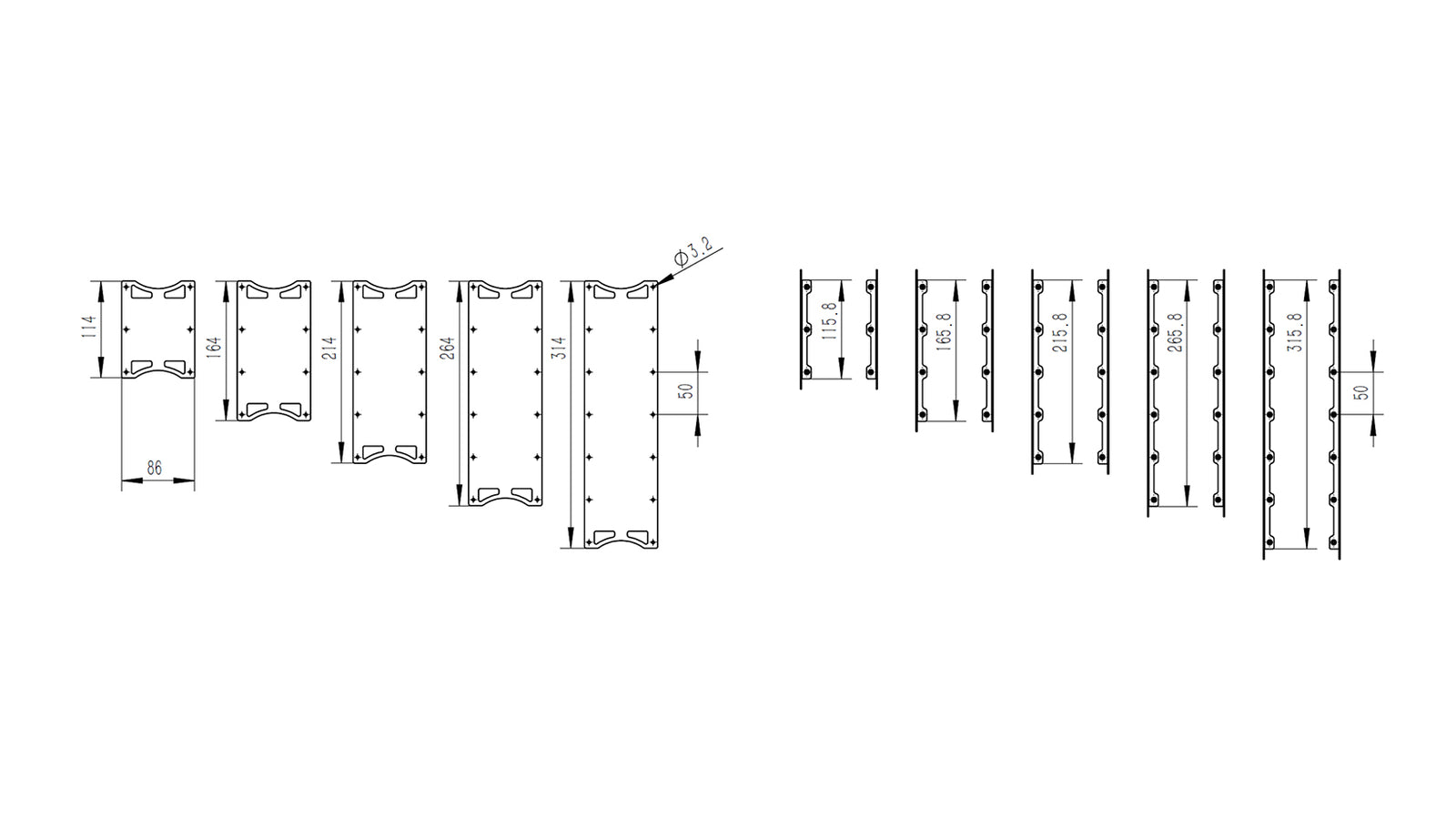

Dimension drawings are provided below for reference.

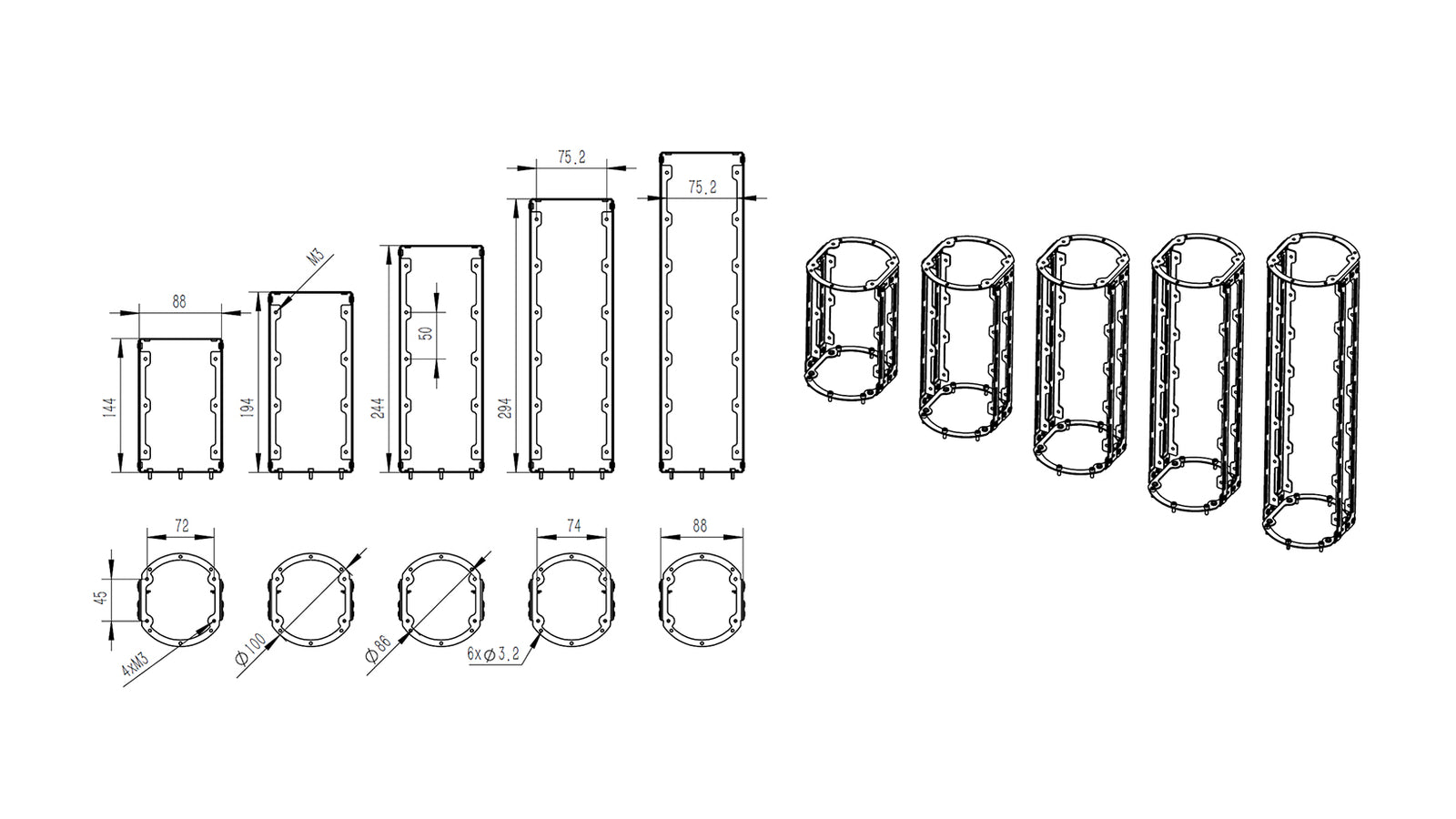

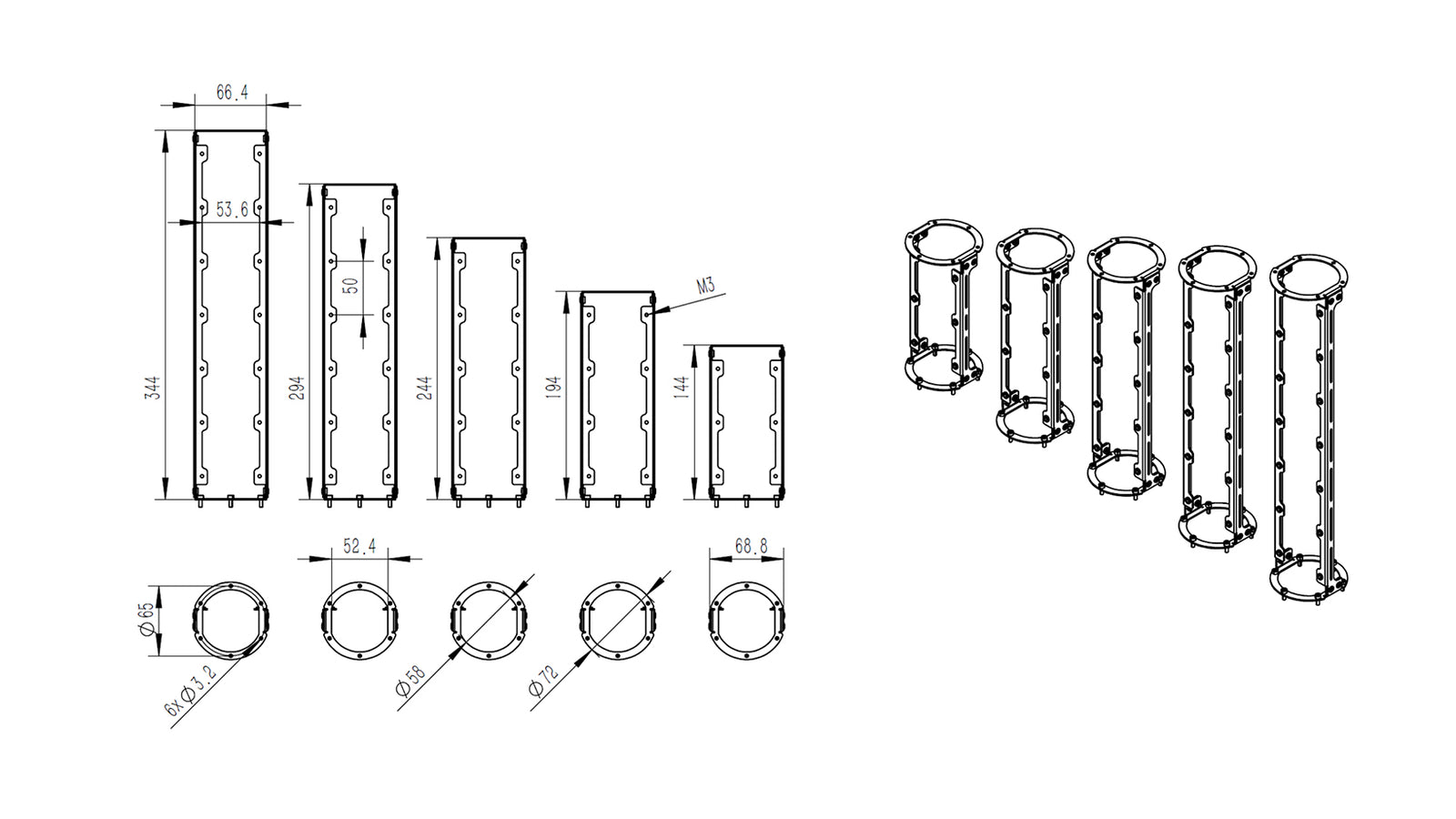

Dimension Drawing 85mm Diameter Versions

Dimension Drawing 115mm Diameter Versions

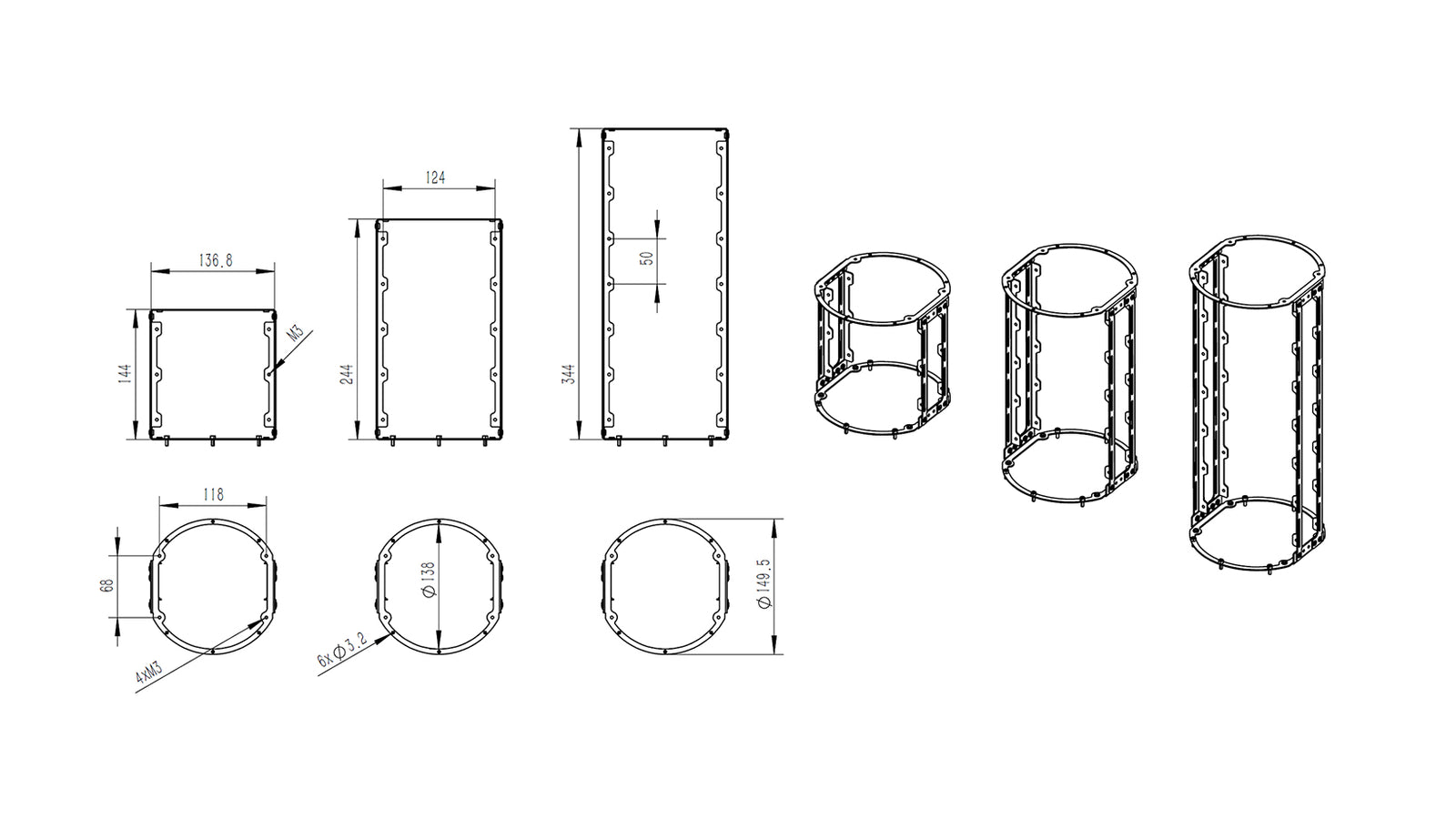

Dimension Drawing 165mm Diameter Versions

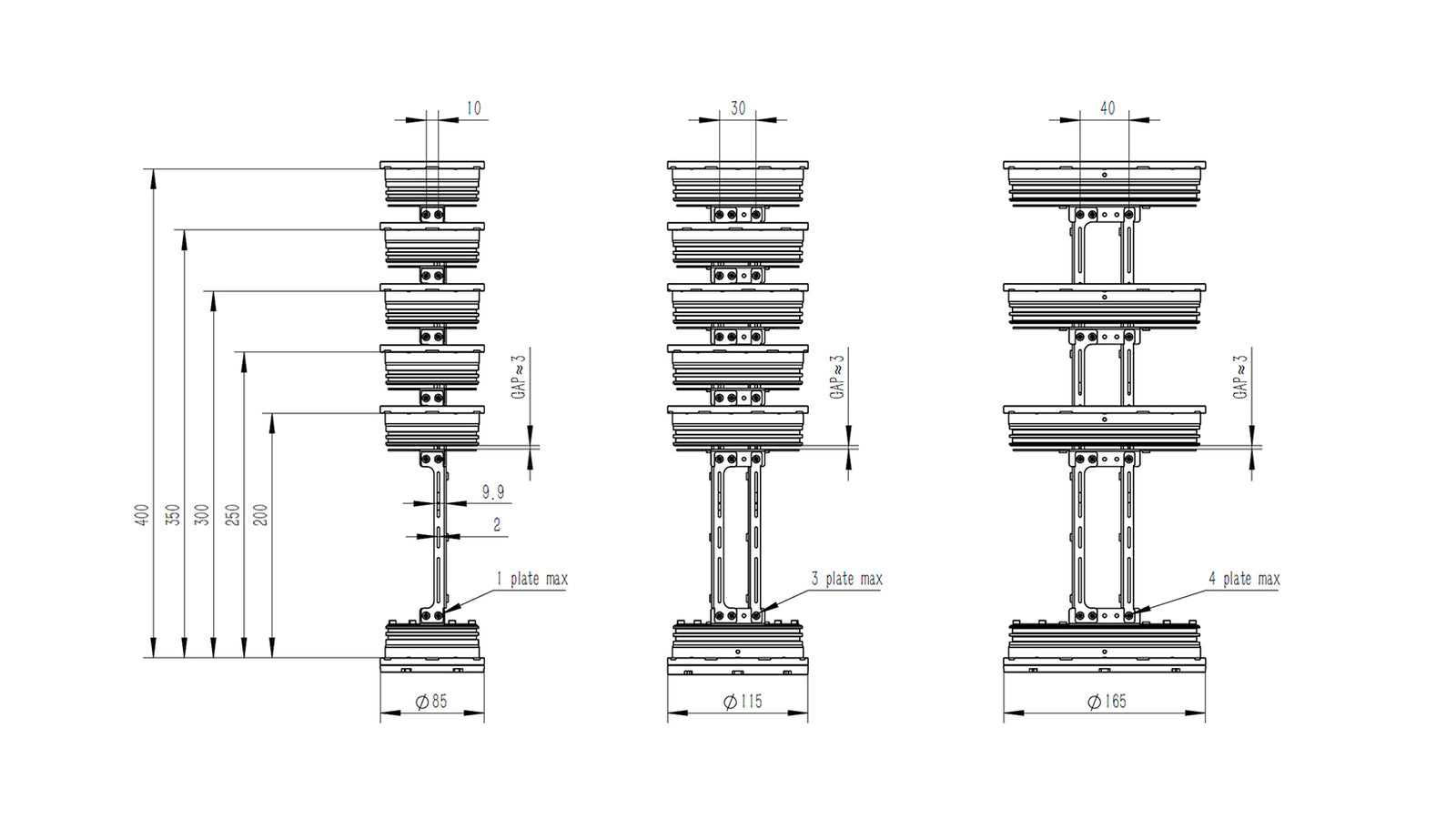

Dimension Drawing Applicable to ALL Diameters (85/115/165mm)

All Electronic Tray Set for Enclosure Tube installations only require mounting into the screw hole of the flange at one end of the tube.

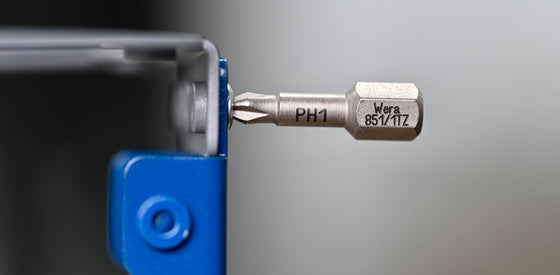

Use a PH1 Phillips screwdriver for flat head side screws to prevent stripping the head.

What versions of the tray assembly are available?

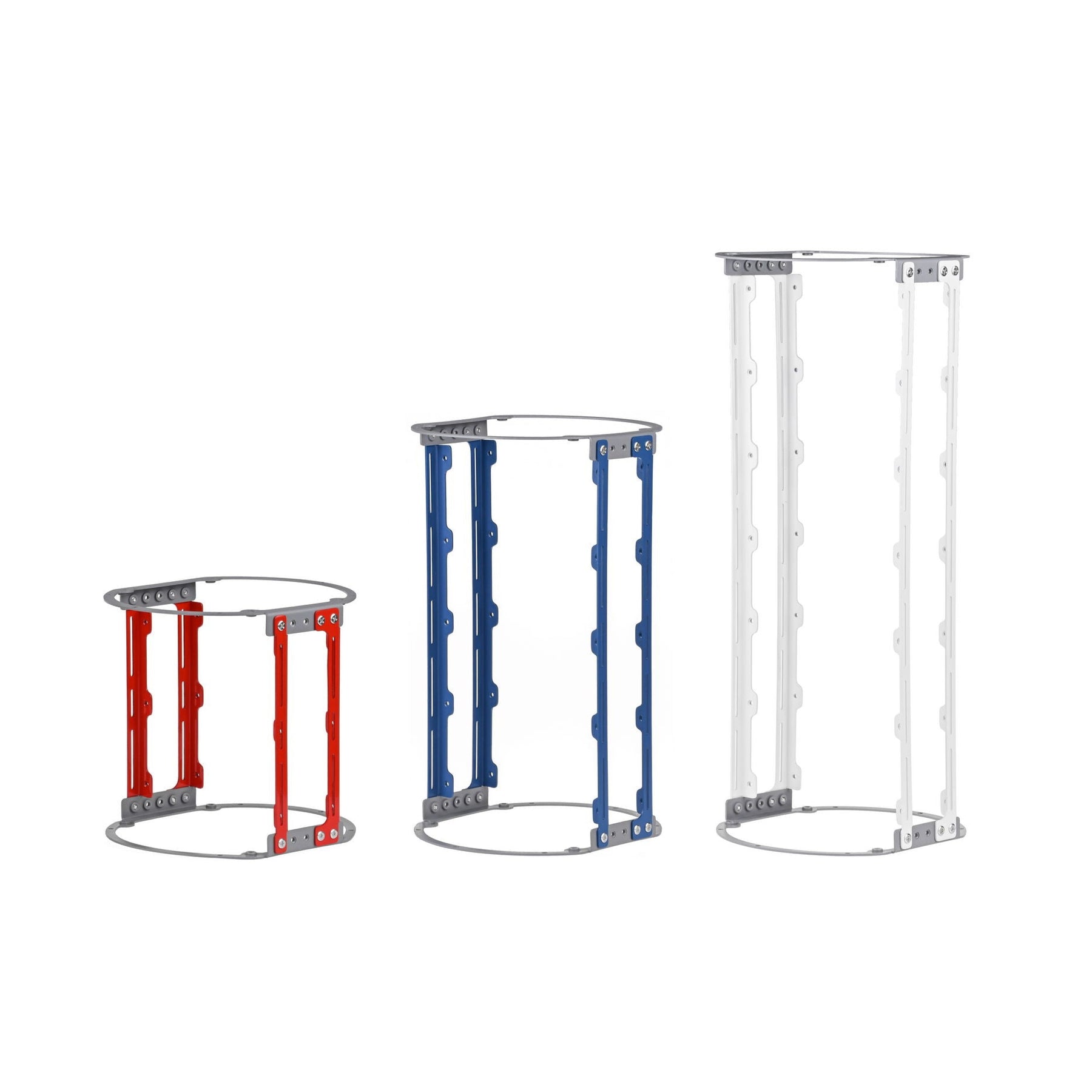

Three tray sizes are available: 85 mm, 115 mm, and 165 mm. Each size is designed to fit corresponding Blu-Sub aluminum or acrylic tube enclosures.

Does the tray assembly need to match the full length of the enclosure tube?
No. Because the tray base mount only needs to be fixed to one flange end, the tray assembly does not need to span the entire internal length of the tube. Shorter tray assemblies can be used effectively as long as the tray diameter matches the tube diameter. For example, an 85 mm tray assembly is designed exclusively for 85 mm tubes and cannot be used in 115 mm or 165 mm enclosures. While the diameter must match, the length may be equal to or shorter than the enclosure’s internal length, but must not exceed the usable space of the tube and flange support system.

What is the difference between double-point and single-point shelf supports?
Double-point shelf supports have two screw connections at each end (into each base mount), providing a more rigid and robust structure—ideal for heavier or centrally mounted components. Single-point supports use one screw at each end, offering a more compact design better suited for lighter components or tighter enclosures.

What do single-point and double-point mean?
This refers to the number of screw connections per end of each shelf support. Single-point supports use one screw per base mount, while double-point supports use two screws per base mount, increasing rigidity.

Is it necessary to use a double-point shelf support?
Yes, in most cases. Without a double-point shelf support, alternate methods such as copper posts or bracket kits must be used to prevent tray rotation inside parallelogram enclosures.

Is the tray assembly compatible with both acrylic and aluminum tubes?
Yes — the tray assembly is fully compatible with both Blu-Sub aluminum and acrylic enclosures and is designed to slot securely into either type.

Can I mount PCBs directly to the shelf supports?
Yes — PCB boards can be mounted directly to the shelf supports (double and single) using the pre-marked holes or by drilling additional mounting points as needed.

Can the cold-rolled steel tray components be affected by magnets?
Yes — cold-rolled steel is magnetic and may be attracted to magnets.

What are the four threaded holes on the base mount used for?
These mounting threads can be used to install accessories such as cameras or circuit boards. On 85 mm enclosures, internal space is limited, but these threads offer flexibility. The 115 mm and 165 mm models offer more usable top-mount space for wiring or device installation.

Will the tray assembly loosen over time due to vibration?
To prevent loosening from long-term vibration, it is recommended to apply thread adhesive to all screws during installation.

3D Model Viewer

Note: The 3D model shown above is for reference purposes only. It may include components, accessories, or alternate sizes not included with the product. For simplicity, only a single representative size is typically displayed when multiple versions exist. Please refer to the product Shipping Guide for detailed information on included contents and size-specific differences.

Download 3D Model (STEP) - 85mm Versions

Download 3D Model (STEP) - 115mm Versions

Download 3D Model (STEP) - 165mm Versions
