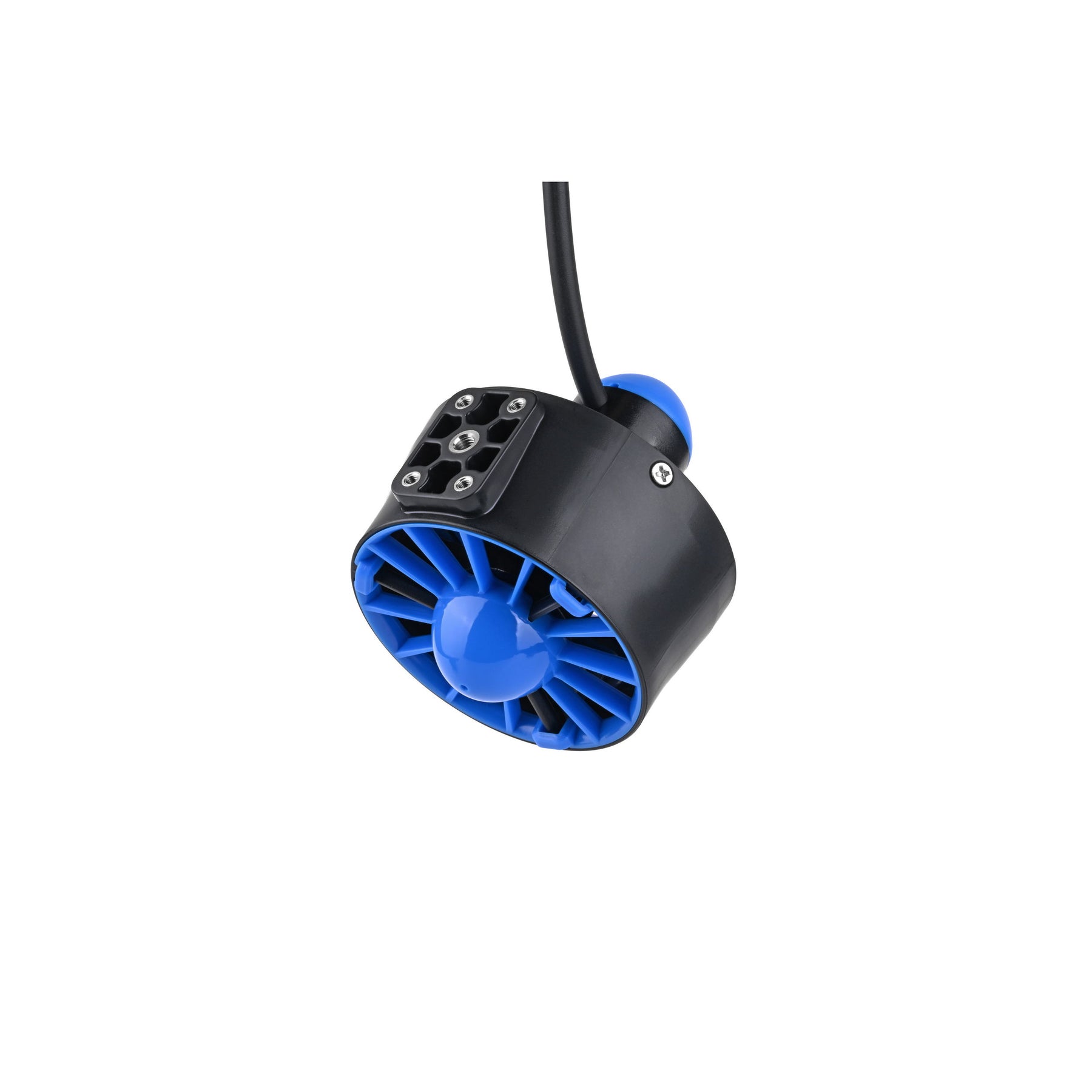

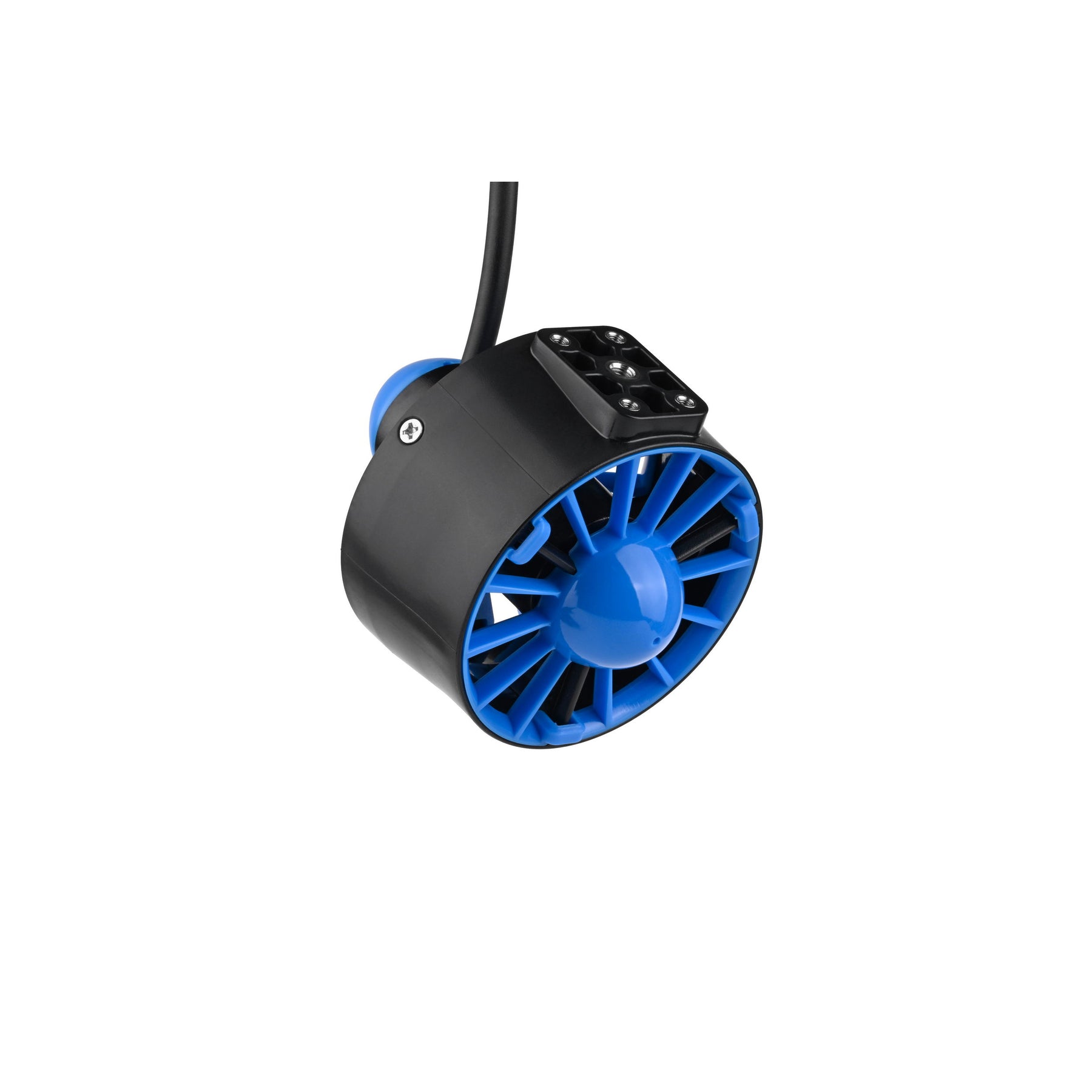

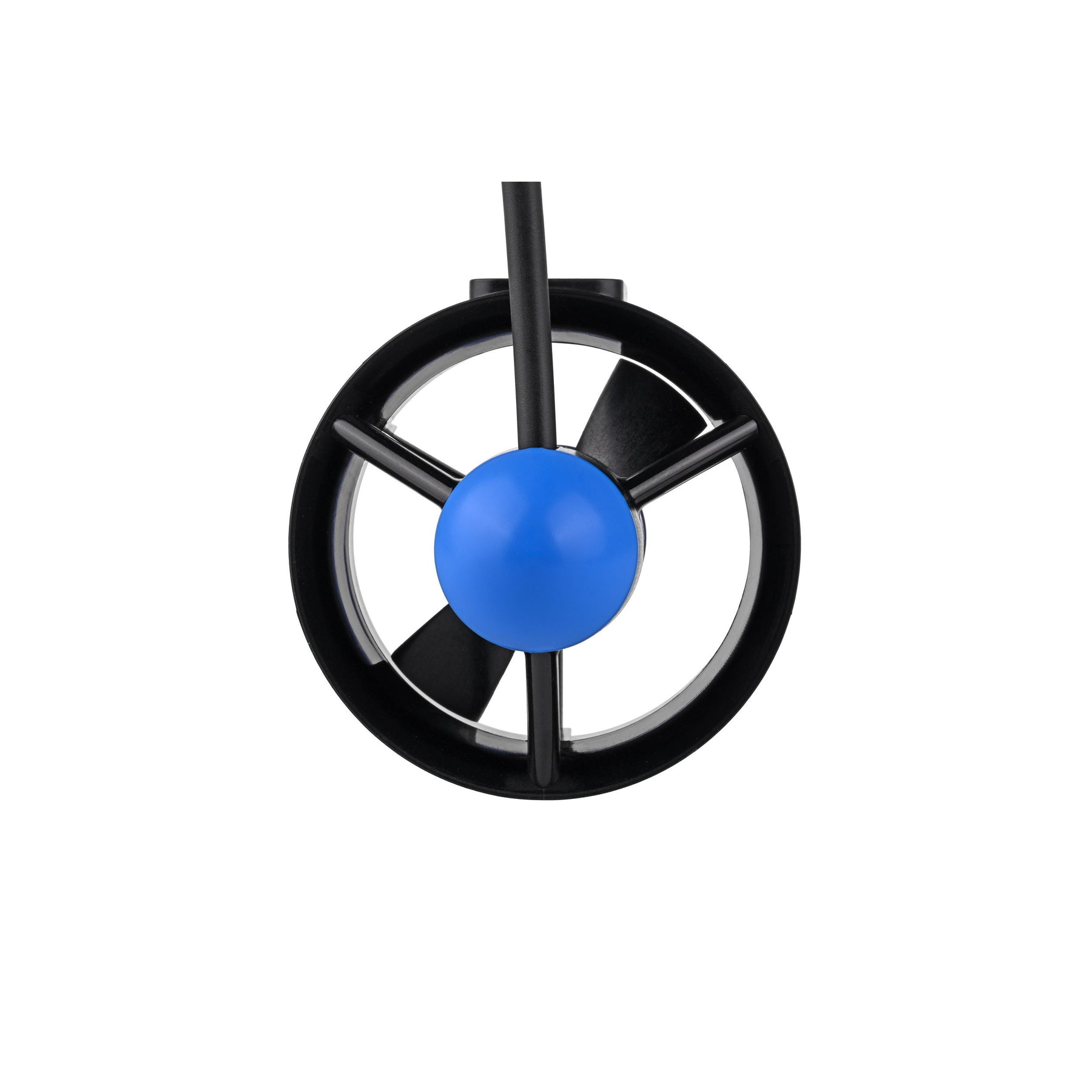

The optimized propeller and duct geometry have been validated through simulation, practical testing, and long-term underwater evaluation. Each unit undergoes full-power underwater testing during production and may retain minor water residue from final validation.
Durability testing has demonstrated >200 hours of continuous rotation under controlled freshwater indoor conditions. In the standard propeller configuration, the thruster operates across a voltage range of 10 – 25.2 VDC and is optimized for 24 V / 6S systems. At 24 V, it delivers approximately 3.7 kgf of forward thrust under standard test conditions, with maximum thrust approaching ~4 kgf near the upper end of the operating voltage range.
For higher-strength 24 V / 6S use, the optional Blu-Thrust Z60 HD Aluminum Propeller is a 6061 aluminum replacement for the standard plastic 2-blade propeller. It fits both Z60 and Z60E, retains the standard blade profile, and is expected to provide similar thrust and power under equivalent operating conditions. Abrasive sediment and hard debris can still damage the propeller or thruster.
For 12V-class / 3S systems, the same Z60 or Z60E thruster body can be used with the Blu-Thrust Z60/Z60E 12V 3-Blade Propeller Conversion Set (CCW+CW). This is not a separate 12V motor model; the Z60 and Z60E retain the same approximate 500KV motor platform. The 12V optimization is achieved through the dedicated 3-blade propeller geometry, which is tested for operation across a 9 – 12.6 VDC input range. The HD aluminum propeller is not a 12V / 3S conversion propeller and is only available as a 2-blade propeller for the standard 24V / 6S configuration.

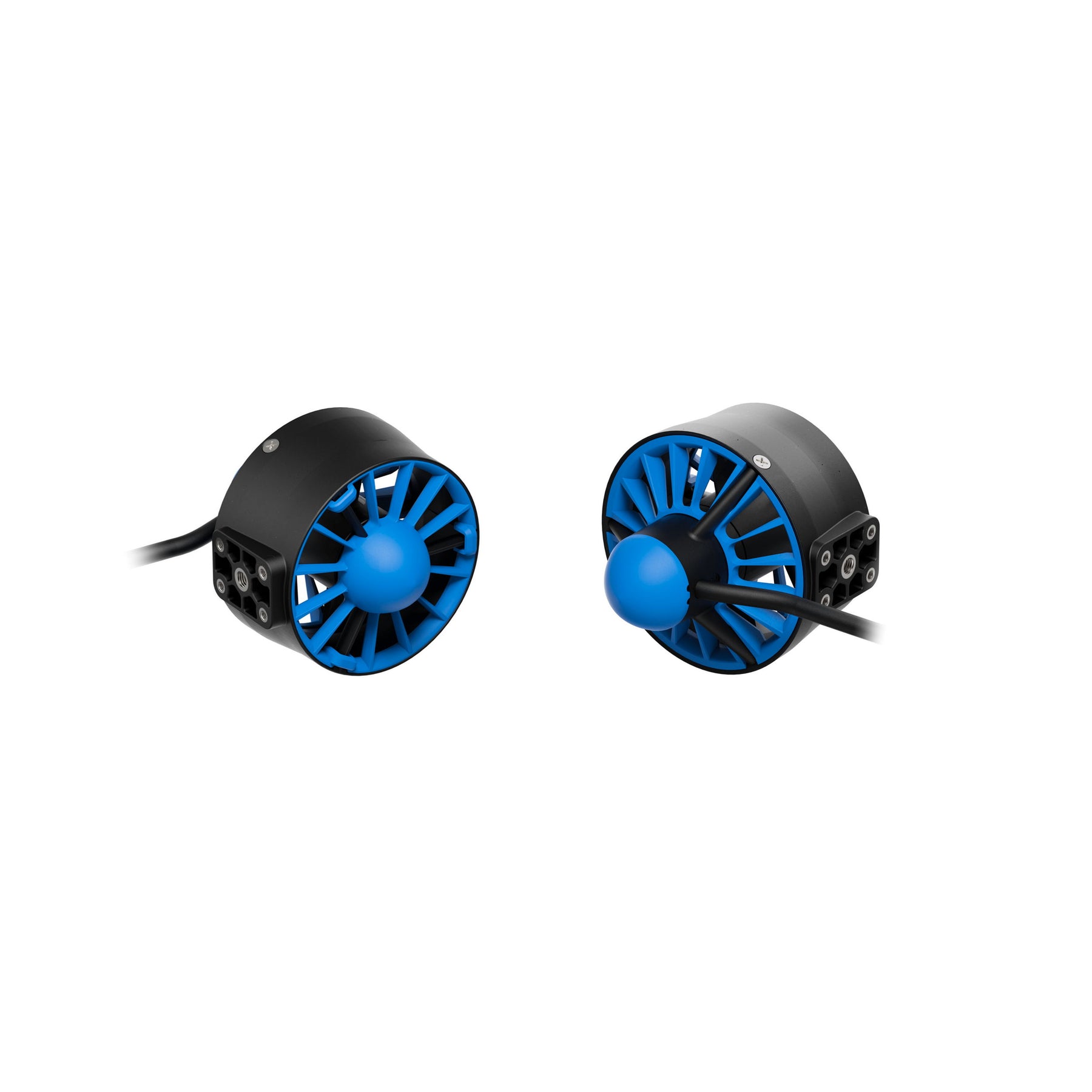

With the 12V 3-blade propeller installed, the thruster delivers up to 1.7 kgf of forward thrust and 1.3 kgf of reverse thrust at 3S full throttle without weed guards under standard test conditions. Guard effects depend on direction and propeller configuration. In the published standard 6S test, reverse thrust remains 3.7 kgf with or without guards, while reverse current rises from 11.1 A to 13.5 A. Forward thrust falls from 4.0 to 3.2 kgf. Use the configuration-specific figures rather than assuming every guard installation has the same effect.

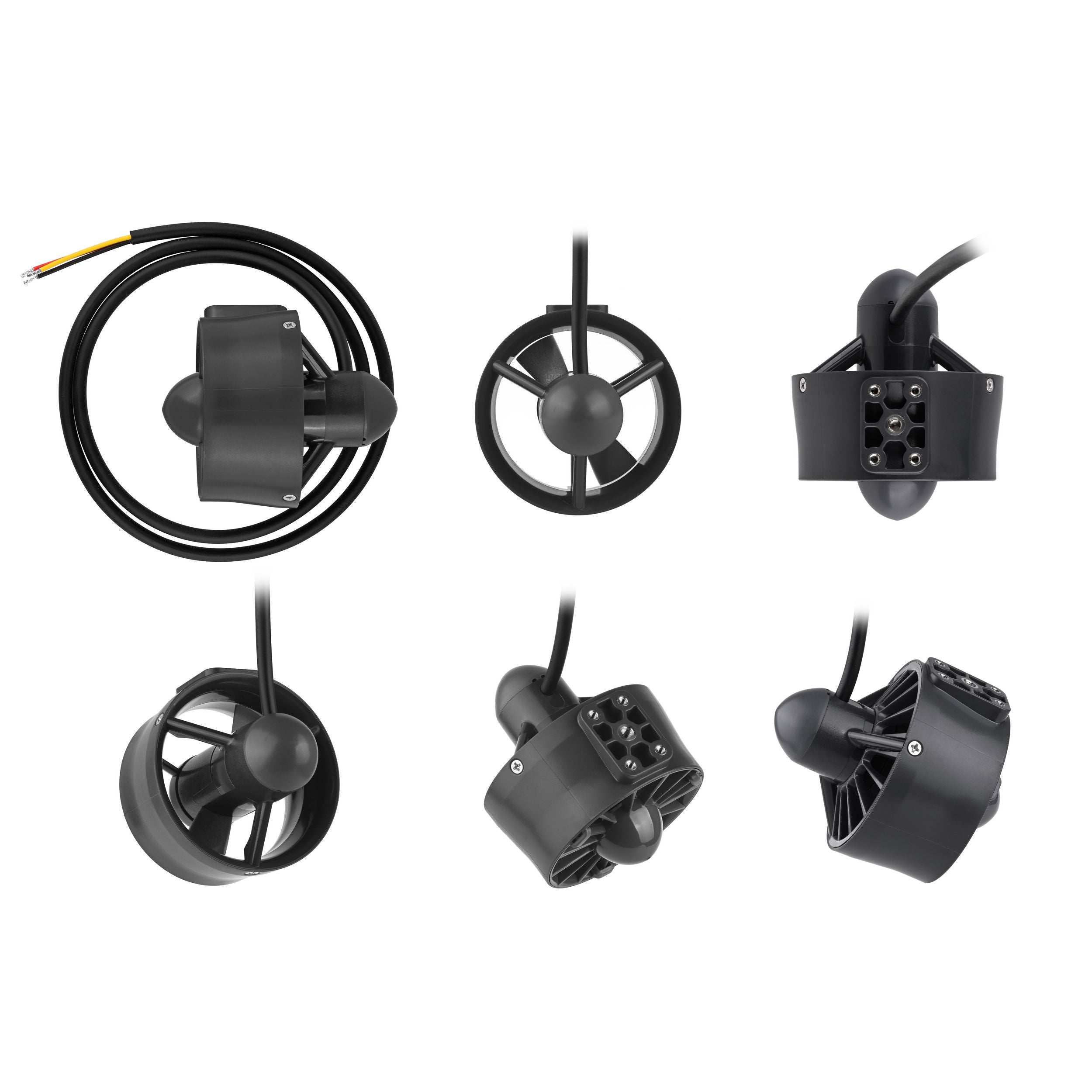

Wiring is provided via the included Deep-Sea 3-Core (20 AWG) Underwater Cable, approximately 900 mm in length. The cable is compatible with Blu-Sub M10 gland cable penetrators and the dedicated Mid-Depth M8 gland cable penetrator for watertight enclosure integration.

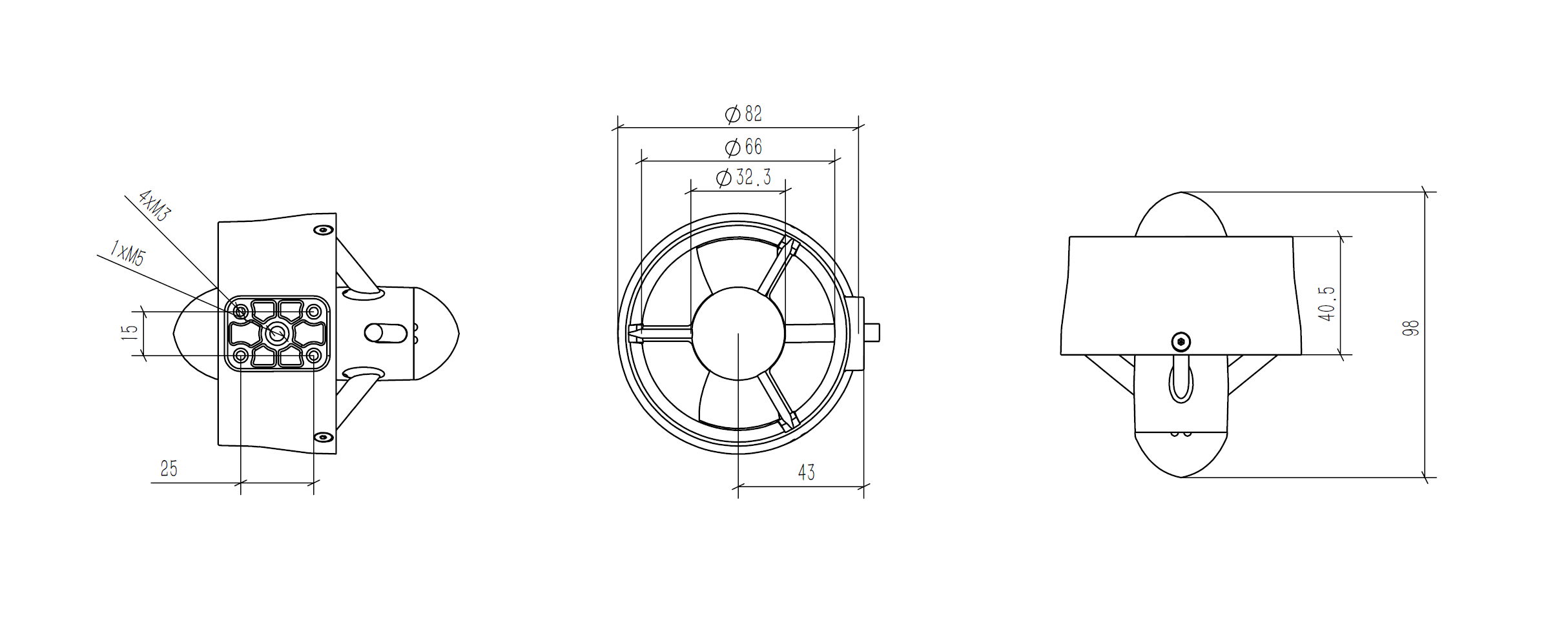

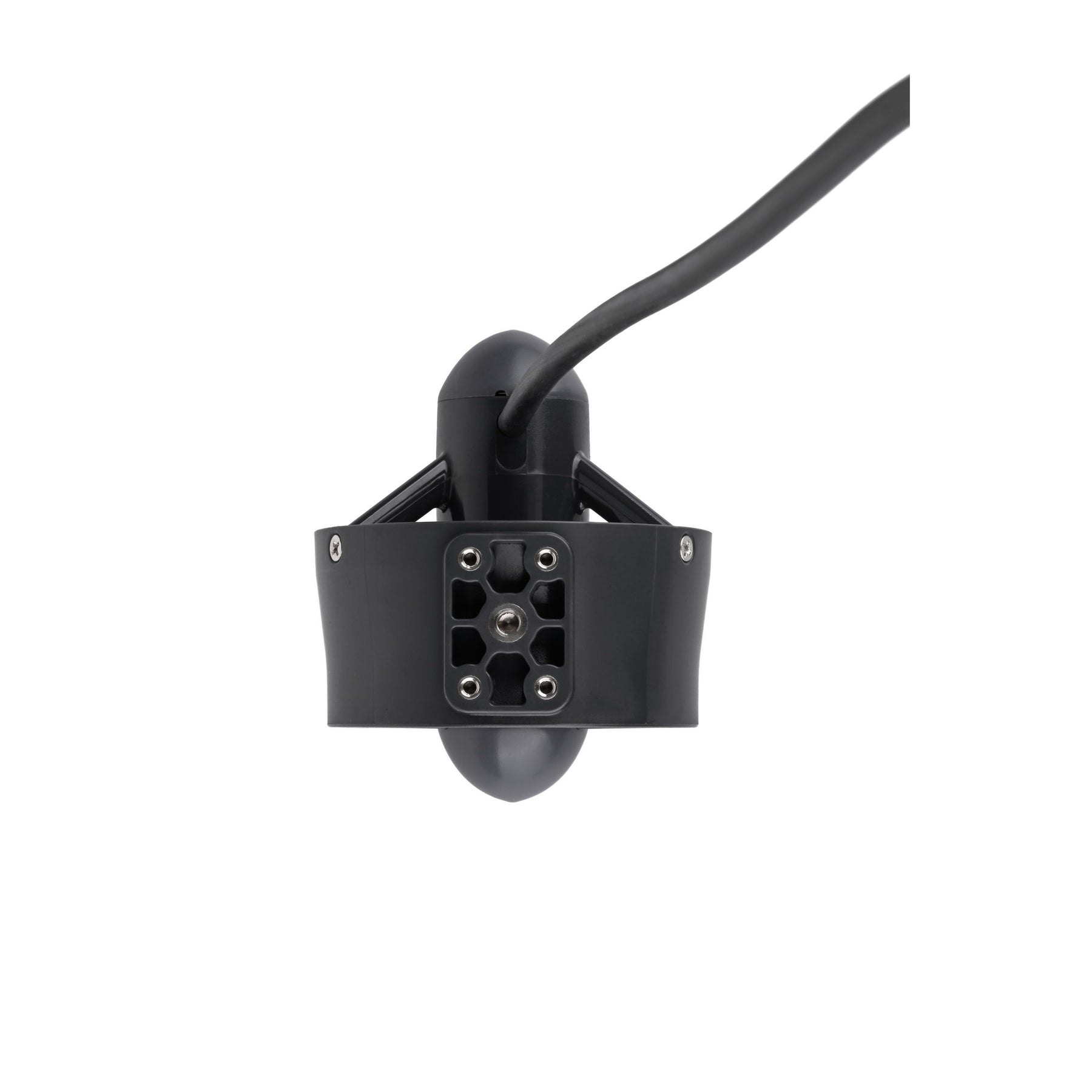

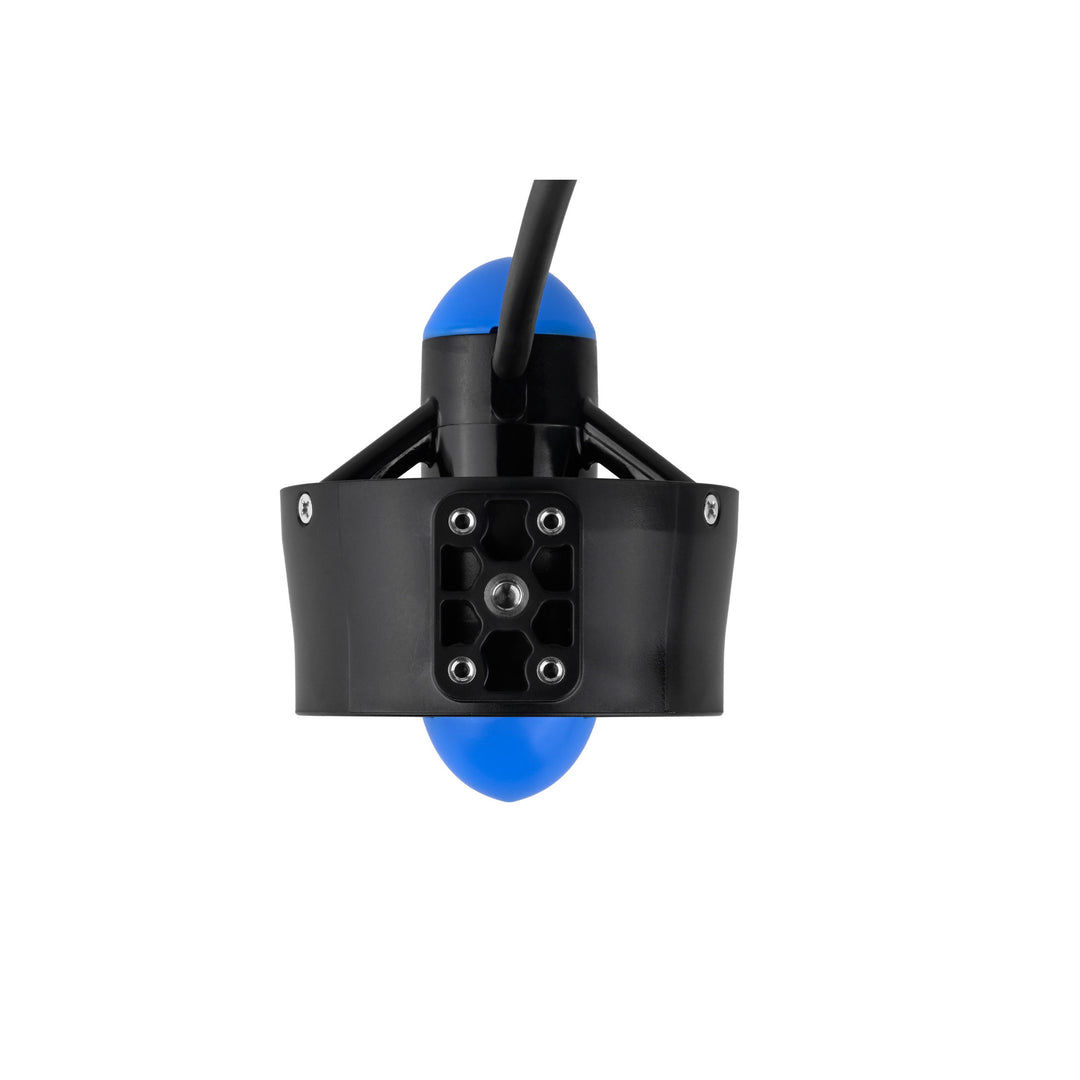

The unit mounts using 4 × M3 threaded inserts plus 1 × M5 central threaded insert with a mounting hole spacing of 15 × 25 mm. Suitable for both saltwater and freshwater environments, the thruster should be rinsed with clean water after saltwater use to help reduce corrosion risk.
Note: A compatible cable penetrator is required to waterproof and secure the cable connection to your enclosure. Select a penetrator model that matches your required depth rating and housing configuration.
| Item | Blu-Thrust Z60 Thruster (Z60 Standard & Z60E Built-In ESC Versions) |
| Material & Appearance |
Standard: PC Black + Blue Built-In ESC: PC Grey Standard Propellers: PC + Glass Fiber HD Aluminum Propeller: 6061 Aluminum, Natural Hard Anodized 12V 3-Blade Propeller Conversion Set: Nylon + Glass Fiber, Black Weed Guard: PC Insert Nuts: 316 Stainless Steel |
| Weight |
Thruster: approximately 245 g (configuration dependent) Standard Propeller Set: 16 g HD Aluminum Propeller: 17 g each 12V 3-Blade Propeller Conversion Set: 16 g Weed Guard (Front & Rear Set): 18 g |
| Maximum Rated Depth | 300 m / 984 ft |
| Mechanical Endurance (Test Reference) | >200 hours (controlled freshwater testing) |
| Maximum Power |
Standard 24V / 6S Propeller Configuration: Without Weed Guard: 290 W With Weed Guard: 340 W HD Aluminum Propeller Configuration: Same as Standard 24V / 6S Propeller Configuration 12V / 3S 3-Blade Propeller Conversion Configuration: Without Weed Guard: 110 W With Weed Guard: 110 W |
| 6S Full Throttle Current (No Weed Guard) |
Standard 24V / 6S Propeller Configuration: Forward: 11.5 A Reverse: 11.1 A HD Aluminum Propeller Configuration: Same as Standard 24V / 6S Propeller Configuration |
| 6S Full Throttle Current (With Weed Guard) |
Standard 24V / 6S Propeller Configuration: Forward: 11.1 A Reverse: 13.5 A HD Aluminum Propeller Configuration: Same as Standard 24V / 6S Propeller Configuration |
| 6S Full Throttle Thrust (No Weed Guard) |
Standard 24V / 6S Propeller Configuration: Forward: 4 kgf Reverse: 3.7 kgf HD Aluminum Propeller Configuration: Same as Standard 24V / 6S Propeller Configuration |
| 6S Full Throttle Thrust (With Weed Guard) |
Standard 24V / 6S Propeller Configuration: Forward: 3.2 kgf Reverse: 3.7 kgf HD Aluminum Propeller Configuration: Same as Standard 24V / 6S Propeller Configuration |
| Power Supply Voltage Range |
Standard 24V / 6S Propeller Configuration: 10 – 25.2 VDC HD Aluminum Propeller Configuration: Same as Standard 24V / 6S Propeller Configuration 12V / 3S 3-Blade Propeller Conversion Configuration: 9 – 12.6 VDC |
| Rated Temperature |
Air: –25 °C to 60 °C Water: –10 °C to 40 °C |

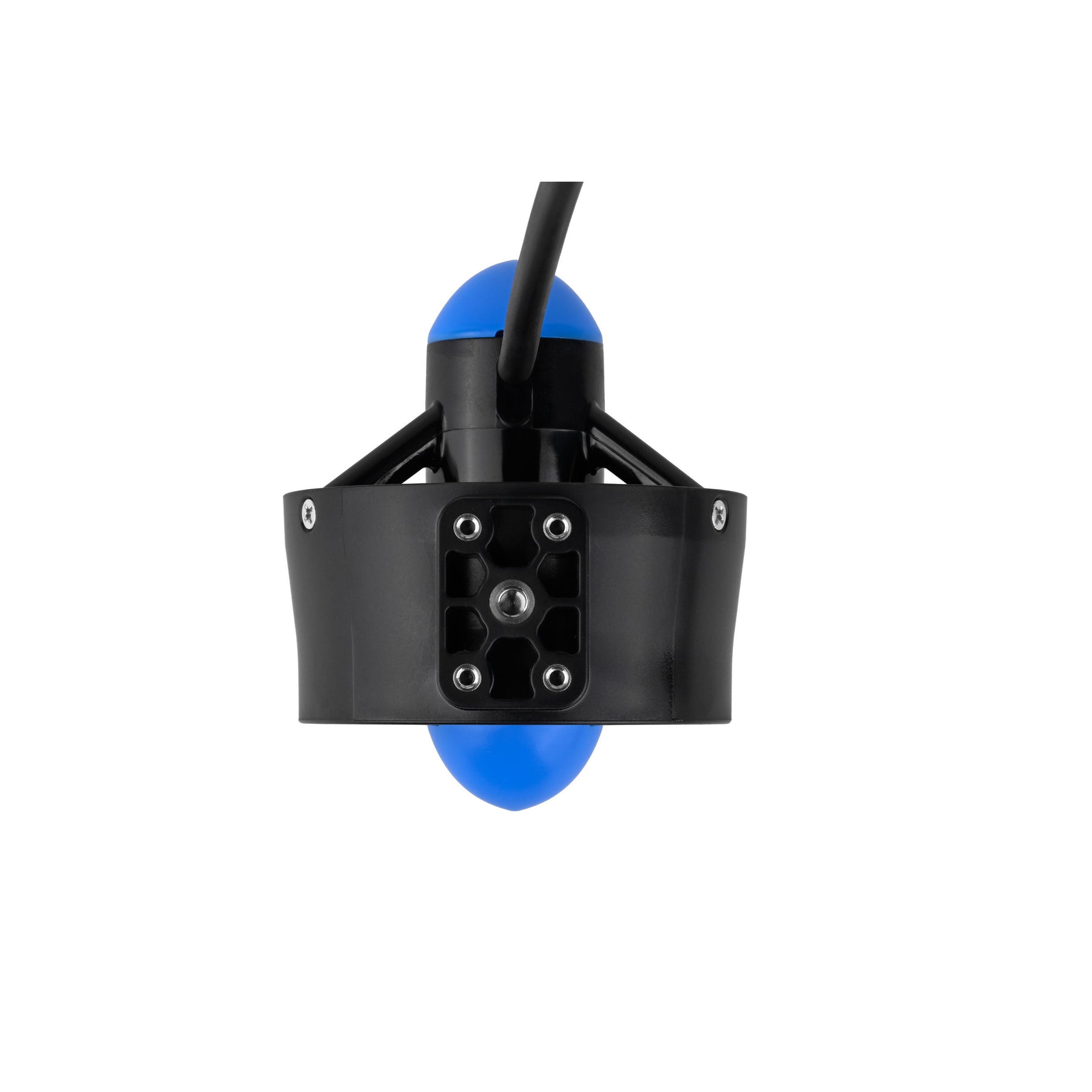

| Mounting Details |
Insert Nut Material: 316 Stainless Steel Mounting Hole Thread: 4 × M3 + 1 × M5 Mounting Hole Spacing: 15 × 25 mm |
| Cable |
Length: ≈ 900 mm Spec: 3 × 20 AWG Standard Version (Z60): Three motor phase wires (red / yellow / black) for external ESC Built-In ESC Version (Z60E): Red = Power +; black = Power − / signal ground; yellow = PWM signal. Confirm the model before connection. |
| Sealing Method | Resin full-encapsulated isolation |
| Motor |
Type: Outrunner Brushless Motor KV Value (approx.): 500 Built-In ESC Version (Z60E): Built-in Trapezoidal ESC HD Aluminum Propeller Note: Same motor, KV rating, blade profile, and 24V / 6S performance characteristics as the standard 2-blade propeller configuration. The HD aluminum propeller is not a 12V / 3S conversion propeller. 12V Configuration Note: Same motor and KV rating; 12V optimization is achieved using the dedicated 3-blade propeller conversion set. |
| PWM Control — Z60E Built-In ESC Only | 1100 µs maximum reverse; 1500 µs initialize / stop / neutral; 1900 µs maximum forward. Logic voltage: 3.3–5 V; maximum update rate: 400 Hz. Neutral deadband: 1500 ± 25 µs (1475–1525 µs; no rotation). See the Operation Guide for initialization and wiring precautions. |
Performance note: Parameters such as mechanical life and thrust are influenced by operating environment, duty cycle, and usage conditions, and may vary in real-world applications.
HD aluminum propeller notes: The Blu-Thrust Z60 HD Aluminum Propeller is a 2-blade replacement propeller for the standard 24V / 6S Z60 and Z60E configuration only. It is made from 6061 aluminum with a natural hard anodized finish and weighs 17 g each. Natural hard anodizing may exhibit slight color variation, though color consistency can generally be maintained within each production batch. The thin blade edges may show slight curling or deformation, which is not normally considered a quality defect and does not affect normal operation. Aluminum propellers are susceptible to corrosion and should be rinsed thoroughly with fresh water after every use.
Full throttle thrust parameters at different voltages — standard 24V / 6S propeller configuration:
| Voltage (V) | Forward Thrust (kgf) | FWD Thrust Current (A) | Reverse Thrust (kgf) | REV Thrust Current (A) |
| 24 | 3.7 | 11.2 | 3.5 | 10.4 |
| 22 | 3.1 | 9.4 | 3.2 | 9.2 |
| 20 | 2.6 | 8.2 | 2.7 | 7.9 |
| 18 | 2.2 | 6.9 | 2.3 | 6.9 |
| 16 | 1.8 | 5.7 | 1.9 | 5.8 |
| 14 | 1.5 | 4.7 | 1.5 | 4.8 |
| 12 | 1.0 | 3.7 | 1.0 | 3.7 |
| 10 | 0.8 | 2.8 | 0.8 | 2.9 |
Operating-voltage note: Only test points within the applicable operating range are shown. The standard 2-blade configuration is limited to 10–25.2 VDC; the 12V 3-blade conversion is limited to 9–12.6 VDC.
Propeller performance note: The Blu-Thrust Z60 HD Aluminum Propeller uses the same blade profile as the standard 24V / 6S plastic propeller, so the standard 24V / 6S thrust and current data also applies to the HD aluminum propeller configuration.
Full throttle thrust parameters — 12V / 3S 3-blade propeller conversion configuration:
| Configuration | Forward | Reverse |
| 3S Full Throttle Current (No Weed Guard) | 8.8 A | 7.9 A |
| 3S Full Throttle Current (With Weed Guard) | 8.7 A | 8.1 A |
| 3S Full Throttle Thrust (No Weed Guard) | 1.7 kgf | 1.3 kgf |
| 3S Full Throttle Thrust (With Weed Guard) | 1.3 kgf | 0.9 kgf |
Configuration note: The Blu-Thrust Z60 HD Aluminum Propeller is not used for the 12V / 3S 3-blade propeller conversion configuration.
Data Curve:
Thrust parameters are measured test data obtained from a dedicated underwater thruster test bench. Variations may occur across different test environments due to multiple factors. Guard effects depend on direction and propeller configuration. In the published standard 6S test, reverse thrust remains 3.7 kgf with or without guards, while reverse current rises from 11.1 A to 13.5 A. Forward thrust falls from 4.0 to 3.2 kgf. Use the configuration-specific figures rather than assuming every guard installation has the same effect. The Blu-Thrust Z60 HD Aluminum Propeller uses the same blade profile as the standard 24V / 6S plastic propeller, so the standard 24V / 6S thrust and power data also applies to the HD aluminum propeller configuration.
Performance Consistency:

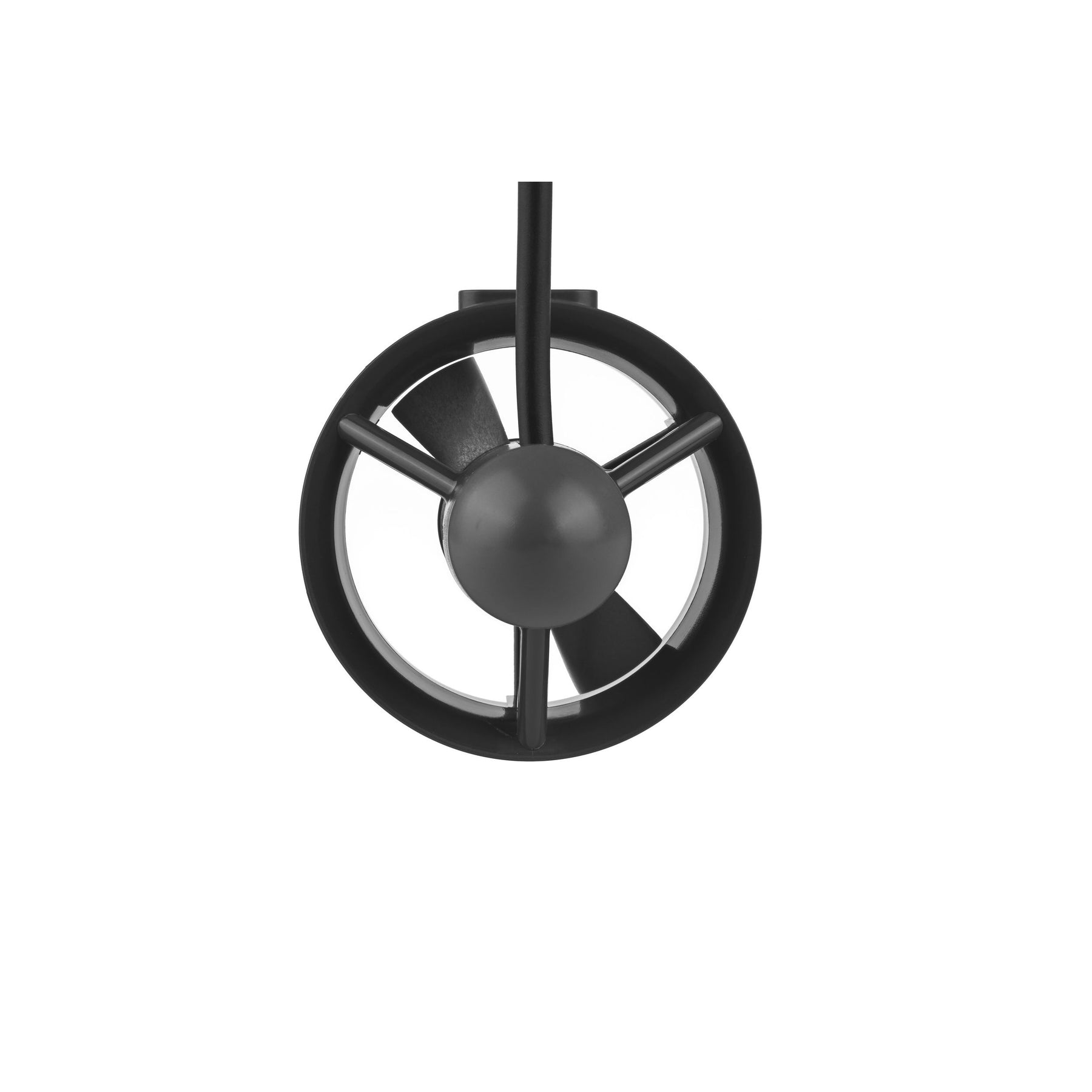

The Blu-Thrust Z60 (no built-in ESC) and Blu-Thrust Z60E (built-in trapezoidal ESC) share identical external dimensions and core performance parameters when using the same propeller configuration. Differences relate to wiring architecture, housing color identification, and ESC integration. For the standard (non-ESC) version, measured current draw and response characteristics depend on the selected external ESC and tuning parameters. The Blu-Thrust Z60 HD Aluminum Propeller is a direct 2-blade replacement for the standard 24V / 6S plastic propeller and maintains the same thrust and power characteristics because the blade profile remains identical. It does not change the motor, KV rating, cable, mounting pattern, depth rating, or 24V / 6S performance data. The Blu-Thrust Z60/Z60E 12V 3-Blade Propeller Conversion Set (CCW+CW) does not change the motor, KV rating, cable, mounting pattern, or depth rating; it changes the propeller geometry to optimize the same Z60/Z60E thruster platform for 12V / 3S operation. The HD aluminum propeller is not used for the 12V / 3S configuration.
Operational Lifecycle Considerations:
Laboratory freshwater testing demonstrates >200 hours of continuous operation under controlled indoor conditions. Actual service life varies depending on duty cycle, load conditions, water quality, operating depth, propeller configuration, debris exposure, and maintenance practices. Routine inspection, cleaning, and operation within specified limits are recommended to support consistent performance over time. The Blu-Thrust Z60 HD Aluminum Propeller provides enhanced structural strength compared with the standard plastic propeller, but it is not indestructible. Impacts with foreign objects can cause permanent damage, and abrasive sandy or silty conditions may still accelerate wear on the propeller or thruster unit. Aluminum is susceptible to corrosion and should be rinsed thoroughly with fresh water after every use.
24V Thrust Curve:
Standard 24V / 6S propeller configuration for Blu-Thrust Z60 and Z60E. This data also applies to the Blu-Thrust Z60 HD Aluminum Propeller, which uses the same blade profile as the standard 24V / 6S plastic propeller.
24V Power Curve:
Standard 24V / 6S propeller configuration for Blu-Thrust Z60 and Z60E. This data also applies to the Blu-Thrust Z60 HD Aluminum Propeller, which uses the same blade profile as the standard 24V / 6S plastic propeller.
12V Thrust Curve:
12V / 3S 3-blade propeller conversion configuration for Blu-Thrust Z60 and Z60E. The Blu-Thrust Z60 HD Aluminum Propeller is not used for the 12V / 3S configuration.
12V Power Curve:
12V / 3S 3-blade propeller conversion configuration for Blu-Thrust Z60 and Z60E. The Blu-Thrust Z60 HD Aluminum Propeller is not used for the 12V / 3S configuration.
Wiring Definition (Blu-Thrust Z60 — Non-ESC Models):
Wiring Definition (Blu-Thrust Z60E — Built-In ESC Models):
Wiring Warning:
The standard Z60 and built-in ESC Z60E models use different wiring methods. Please confirm the model, housing color, and wiring definition carefully before connection. Incorrect wiring, reverse polarity, overvoltage, or incorrect ESC configuration may permanently damage the thruster.
For Z60E PWM settings, power-up initialization and electrical precautions, open the Operation Guide below.
Rotation Direction, Thrust Direction, and Forward/Reverse Propeller Direction Description:

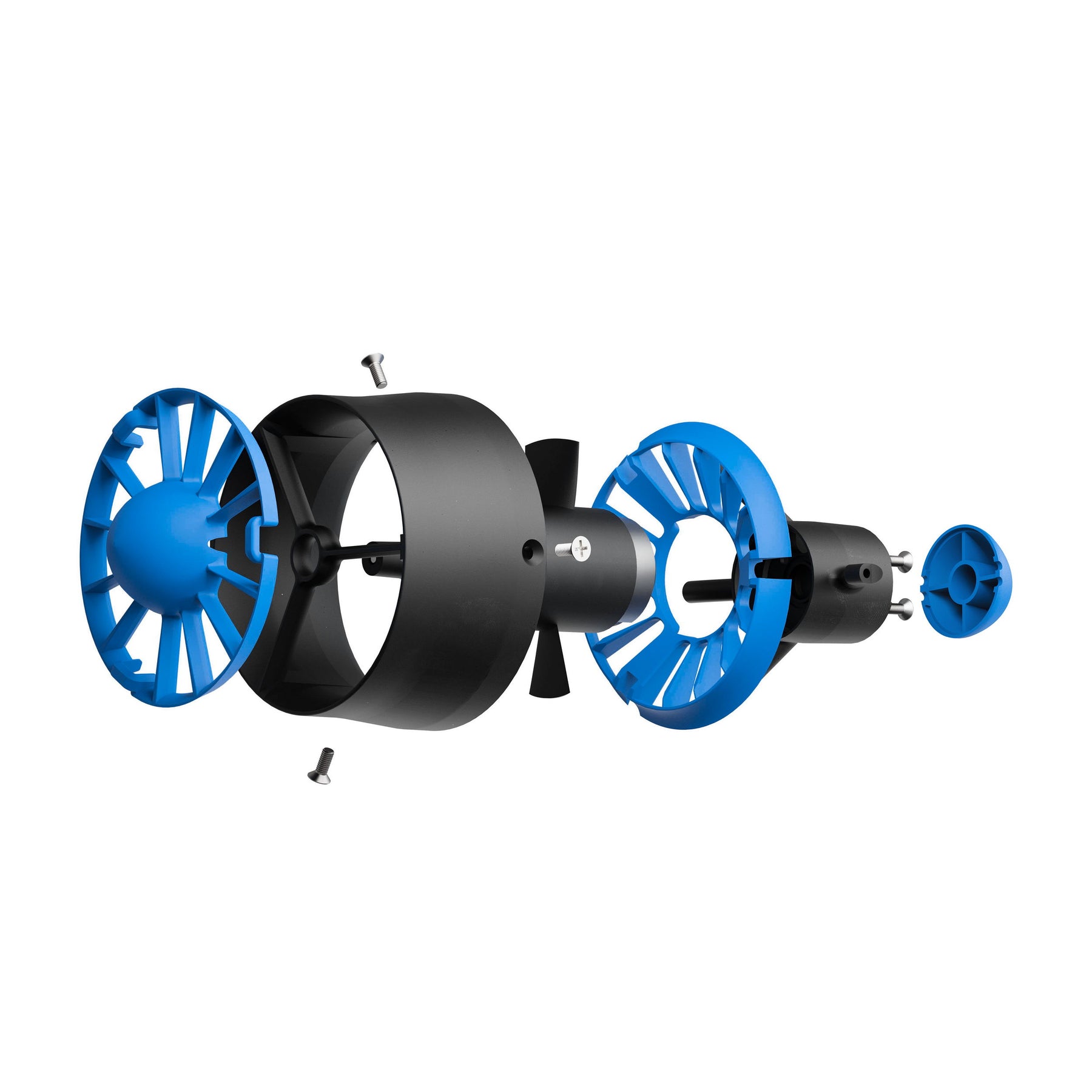

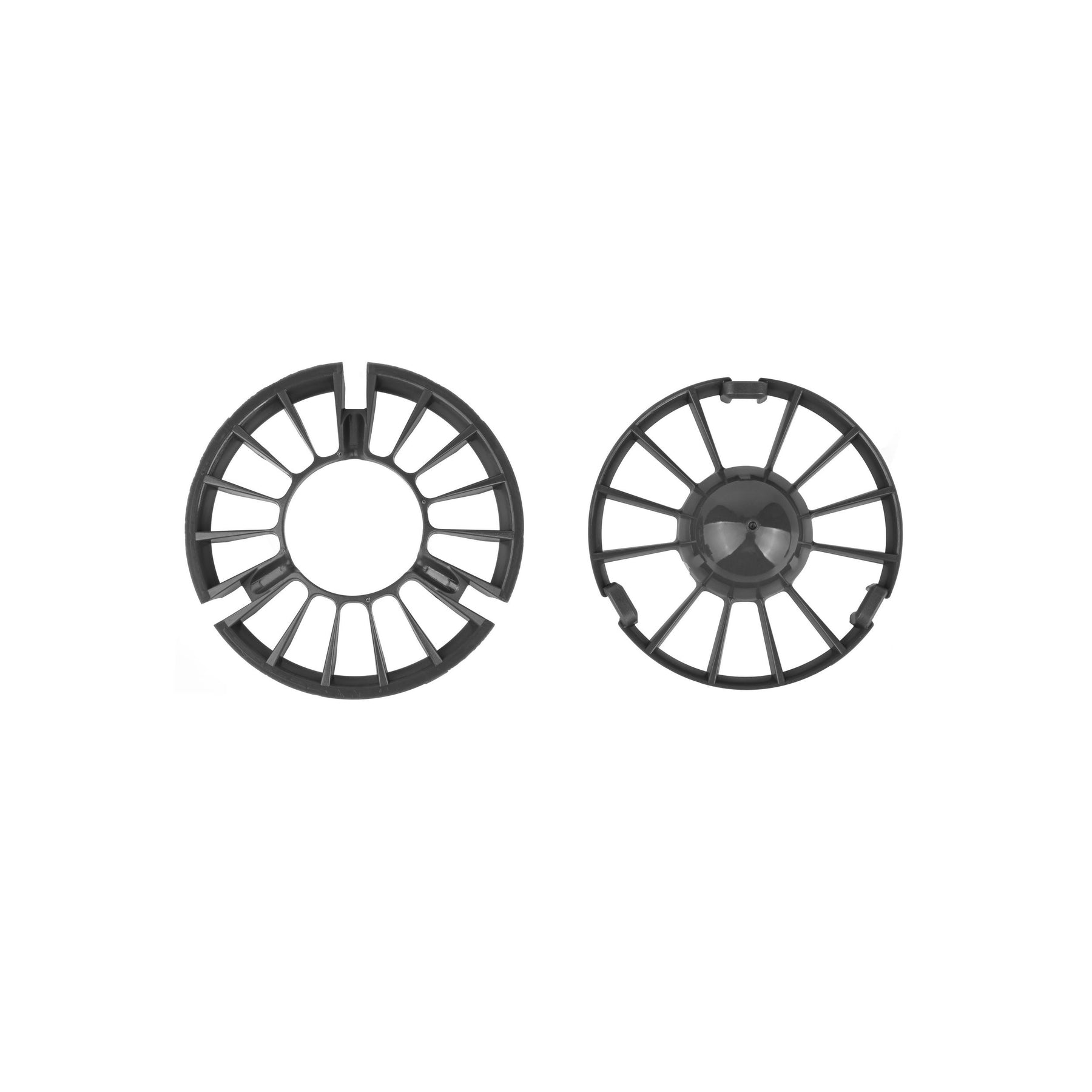

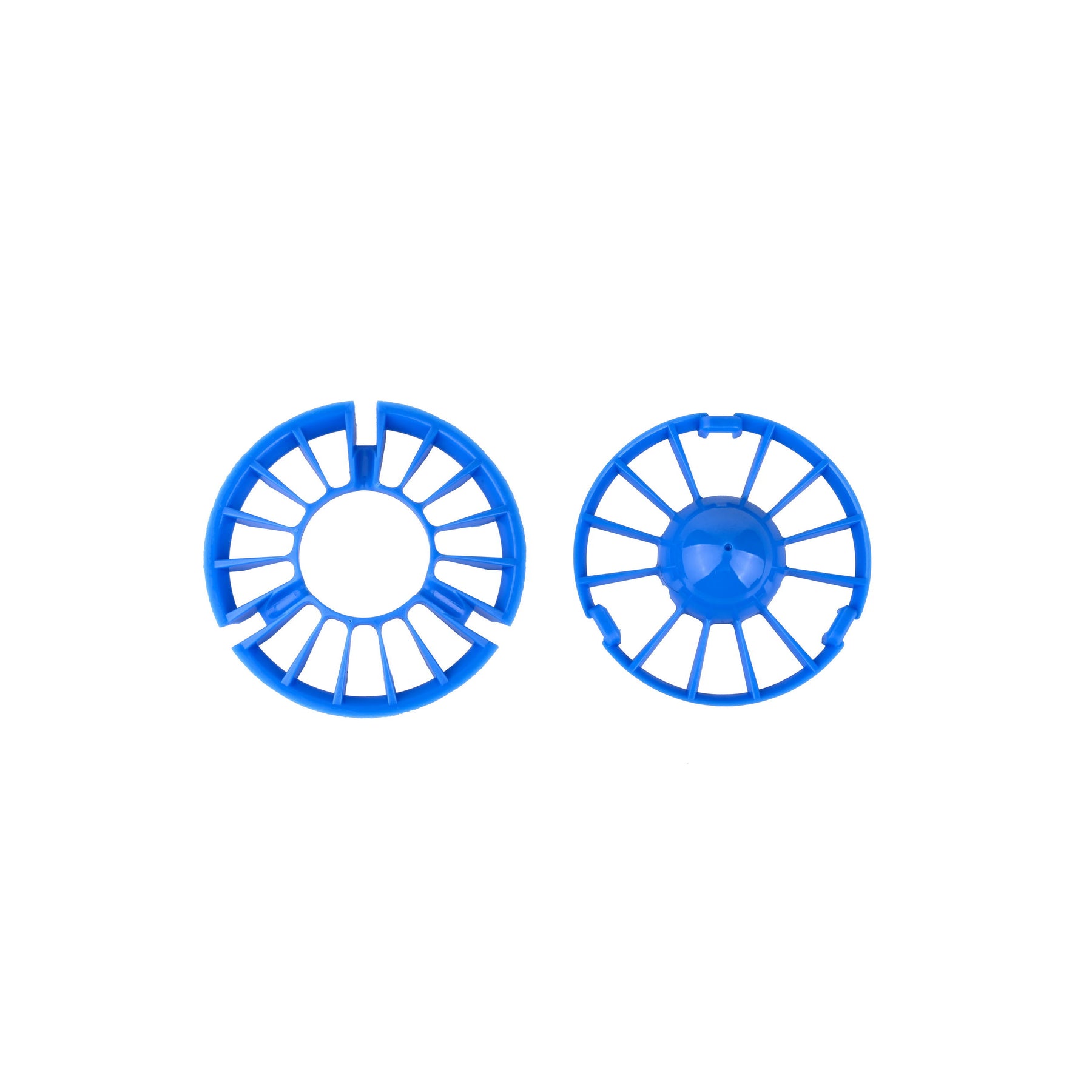

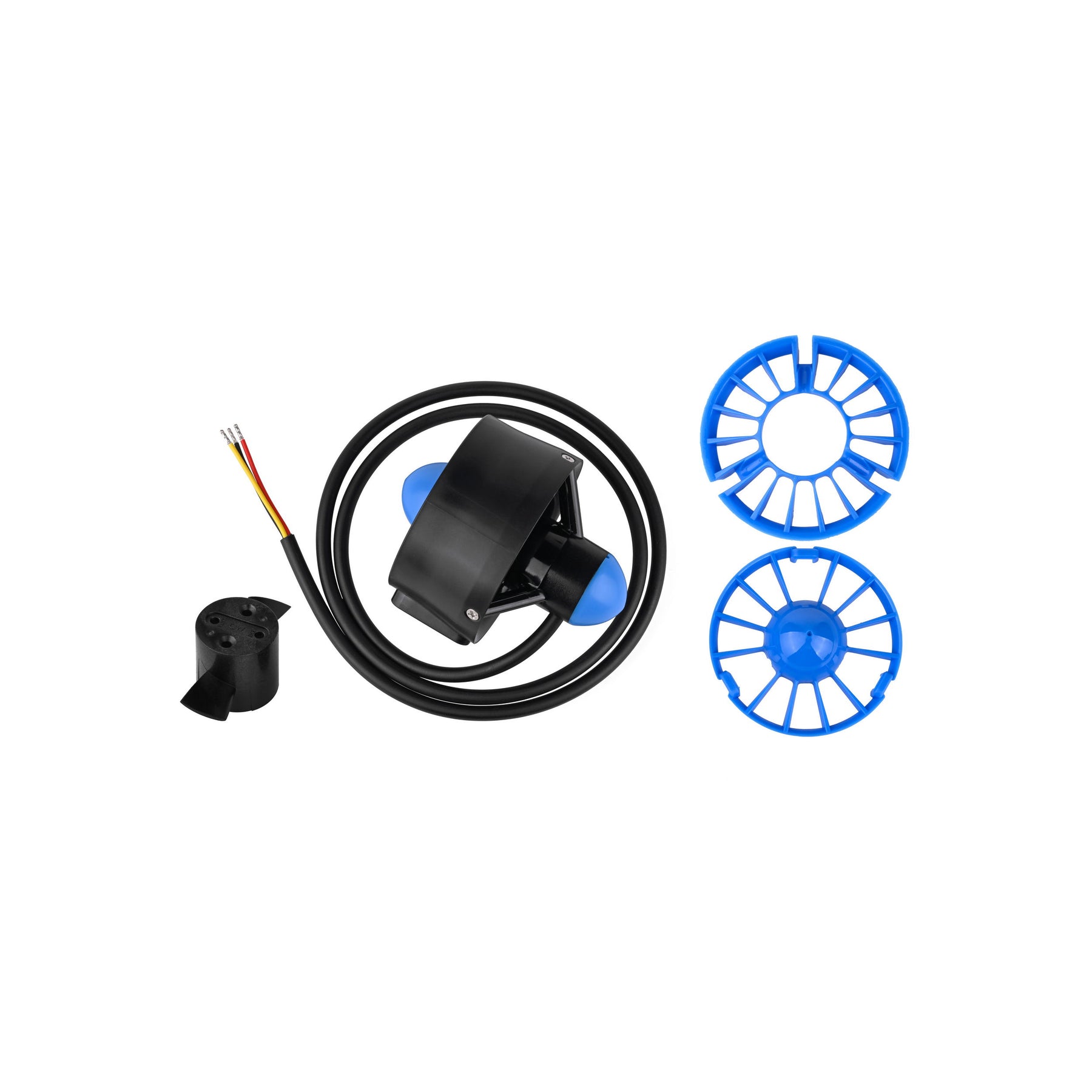

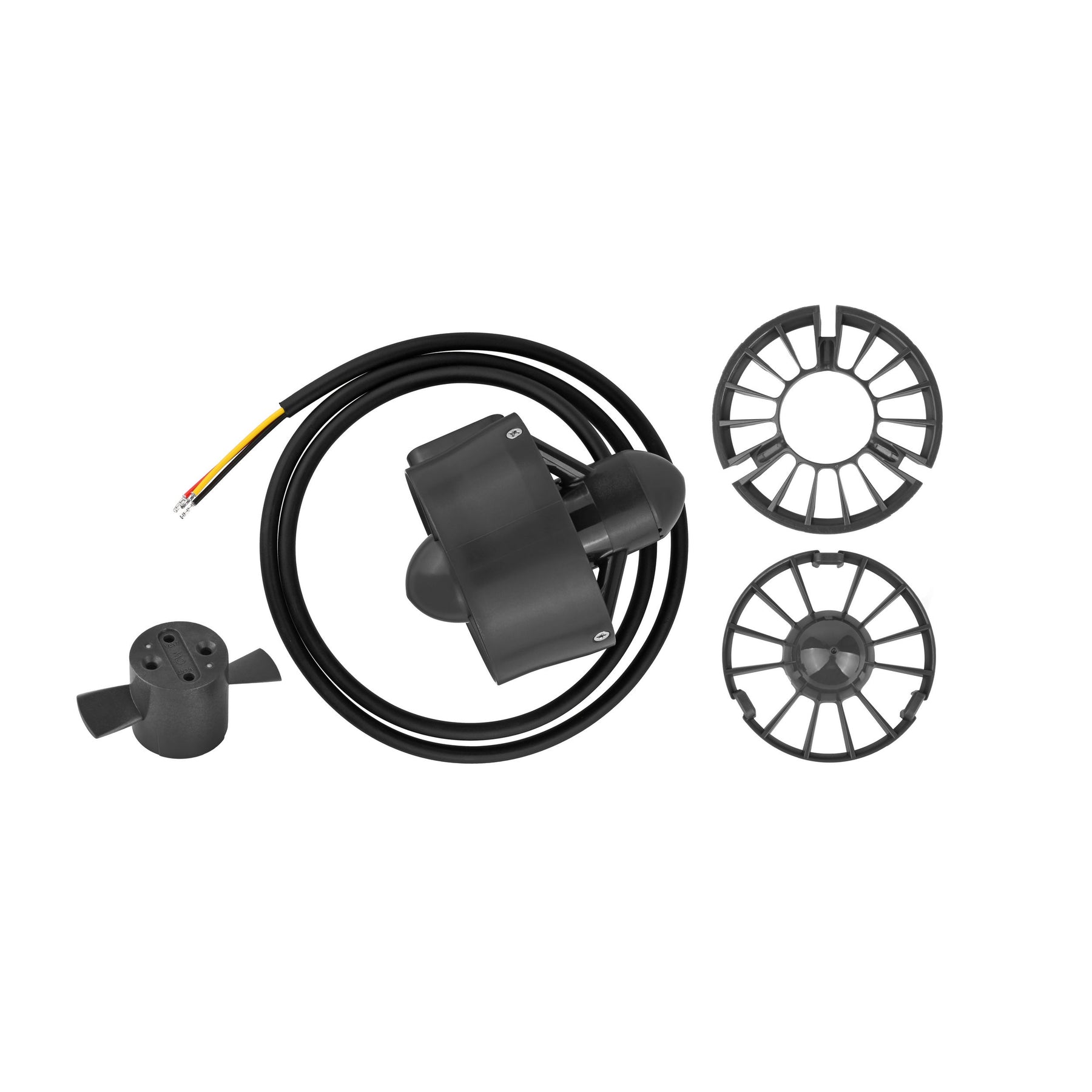

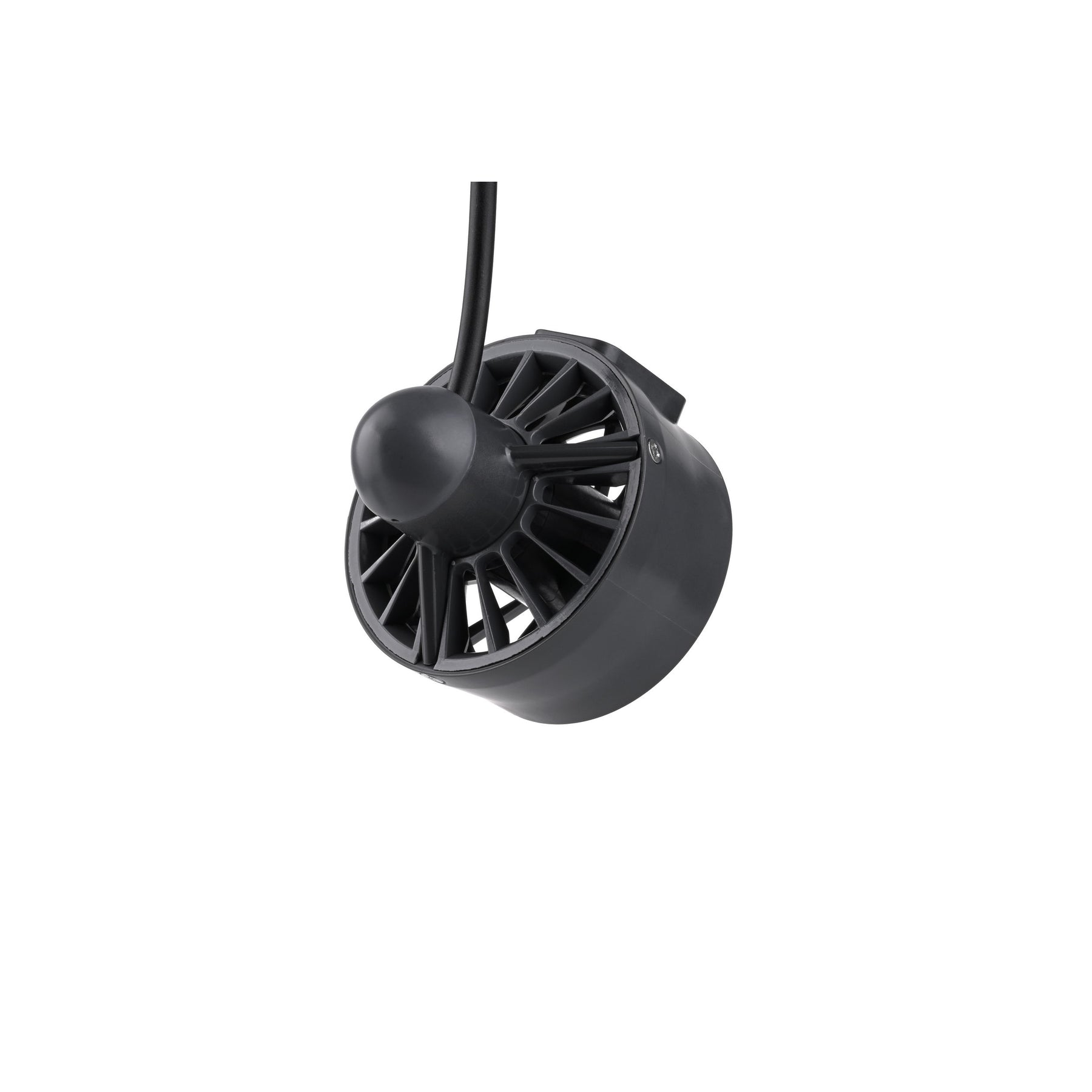

Propeller and Weed Guard Installation Reference:

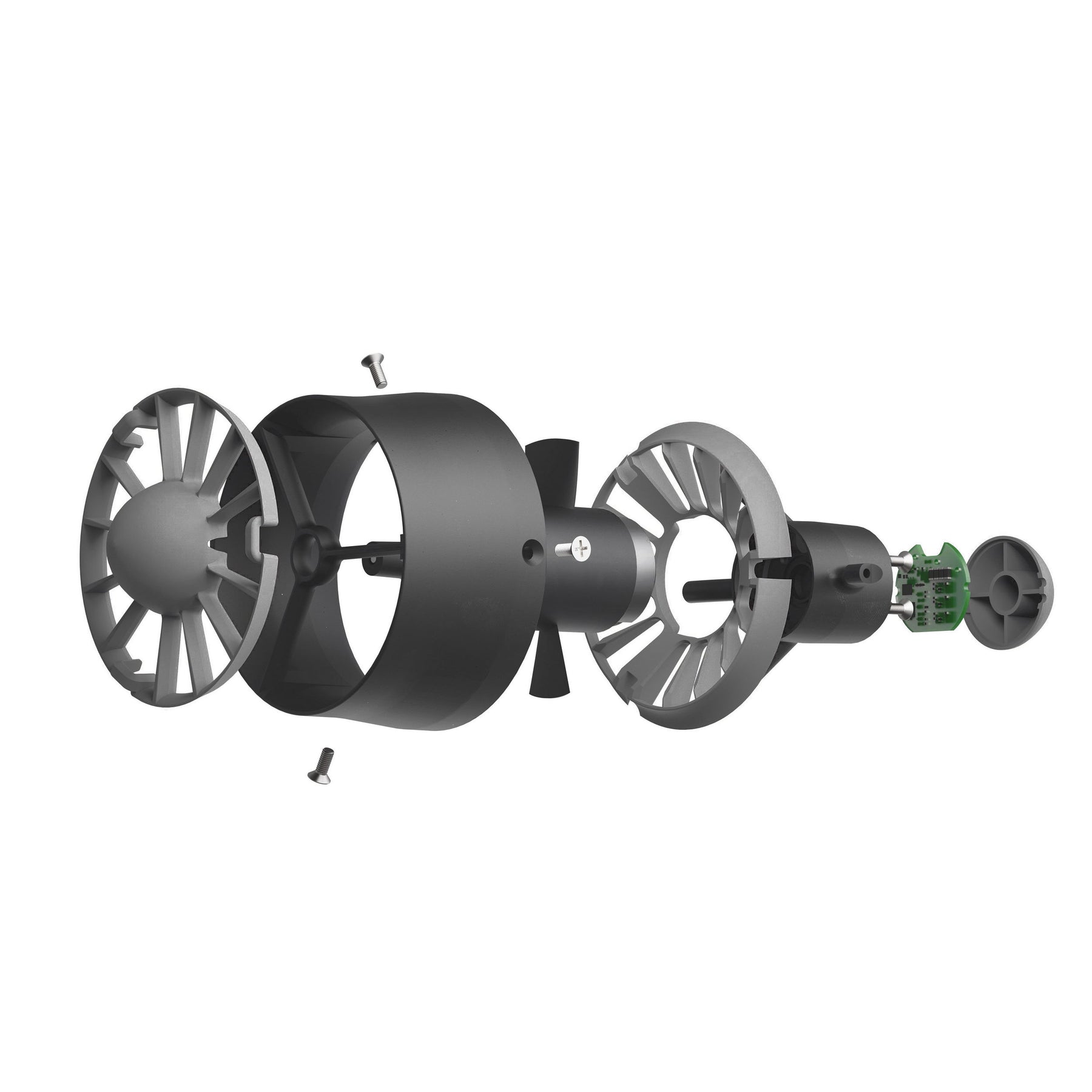

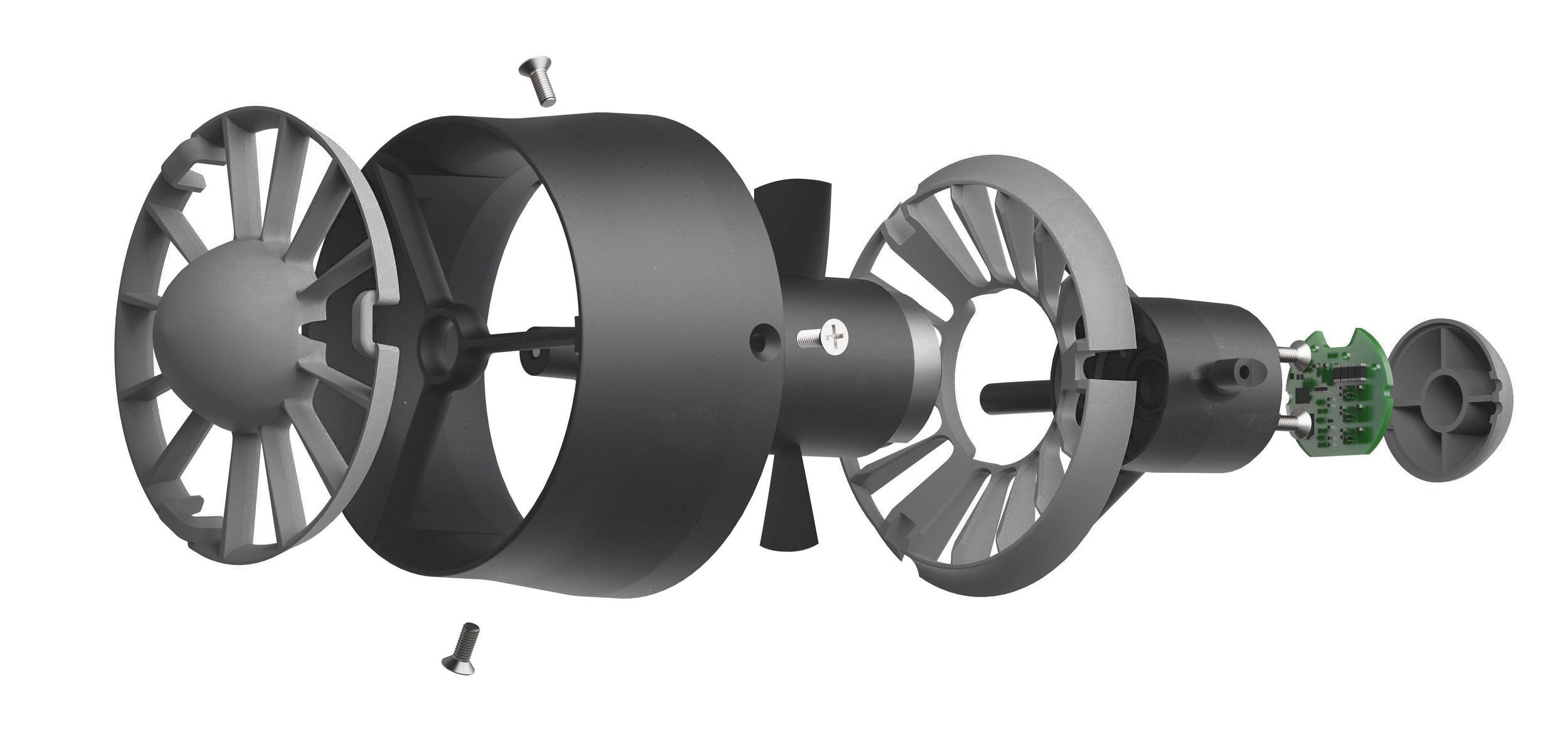

For propeller replacement, weed guard installation, and duct disassembly guidance, see the
Blu-Thrust Z60 / Z80 Weed Guard Assembly Guide.
This guide is applicable when replacing the standard Z60/Z60E propellers, installing or removing weed guards, replacing the standard plastic 2-blade propeller with the Blu-Thrust Z60 HD Aluminum Propeller, or converting a Z60/Z60E thruster to the 12V 3-blade propeller configuration.
Important HD Aluminum Propeller Screw Note:
The Blu-Thrust Z60 HD Aluminum Propeller is supplied with 2 mounting screws and is used only as a 2-blade replacement for the standard 24V / 6S propeller configuration.
Important 12V 3-Blade Propeller Screw Note:
The 12V 3-blade propellers use the same mounting screws as the standard Z60/Z60E 2-blade propellers.
Cable Length Reference:
The included thruster cable is approximately 900 mm in length. The A/B image below is an illustrative cable-measurement layout; use the Z60/Z60E dimension drawing for thruster geometry. Ensure sufficient internal clearance and strain relief when routing through a compatible gland cable penetrator to maintain watertight enclosure integrity.
Reading the curves: The PWM axis is pulse width in microseconds (µs). Curves show measured test response; do not infer the configured neutral deadband from a visually flat region. Use the built-in ESC settings in the Operation Guide. An external ESC may use different signal settings.
1. Before you begin
The PWM settings and initialization sequence below apply to Z60E built-in ESC models only. Standard Z60 models require an external ESC; follow that ESC's control and initialization instructions. Confirm the selected model, wiring diagram, supply voltage and propeller configuration before connecting power. Standard 2-blade Z60/Z60E: 10–25.2 VDC. With the 12V 3-blade conversion: 9–12.6 VDC only; do not connect that configuration to 4S or 6S.
2. PWM control — Z60E only
| PWM pulse width | Command |
|---|---|
| 1100 µs | Maximum reverse |
| 1500 µs | Initialize / stop / neutral |
| 1900 µs | Maximum forward |
PWM logic voltage: 3.3–5 V. Maximum update rate: 400 Hz. Neutral deadband: 1500 ± 25 µs (1475–1525 µs); the thruster does not rotate within this range. Compatible with the Arduino Servo library and ArduSub.
3. Power-up initialization — Z60E only
- Apply power and wait for three beeps.
- Send and hold a 1500 µs signal for 2–3 seconds.
- Two beeps confirm initialization is complete.
Initialization is required every time power is applied. The thruster can rotate only after initialization is complete. To command stop / neutral, send 1500 µs directly. This is an electronic control command; disconnect power before handling the propeller.
4. Wiring and common ground
For Z60E, red is Power +, black is Power − / signal ground, and yellow is the PWM signal. Signal ground and power ground are connected internally. Connect the controller ground to thruster power negative. On the standard non-ESC model, red, yellow and black are three motor phase wires for a separate ESC; they are not DC power/signal leads.
5. Safe operation and testing
Secure the thruster firmly during testing; do not leave it hanging unsupported. Install a propeller guard to reduce the risk of finger contact. Keep hands and loose objects clear of the propeller, and disconnect power before handling it.
6. Checks and maintenance
Disconnect power before inspecting wiring or connections, clearing debris or replacing propellers. If a Z60E does not start, check the wiring, common ground, PWM settings and completed initialization. For standard Z60 models, follow the external ESC's troubleshooting instructions. Rinse with fresh water after saltwater use and inspect for debris or damage.
For mechanical assembly instructions, see the Blu-Thrust Z60 / Z80 Weed Guard Assembly Guide.
7. Additional considerations
- Regulated power supplies: Some regulated power supplies and DC/DC converters cannot absorb energy returned by the thrusters. This may raise the bus voltage and damage the ESC. Use gradual throttle changes and observe the voltage limits for the selected model and propeller configuration. For DC/DC converters, follow the manufacturer's requirements for output capacitance, capacitor type and placement; the ESC's internal capacitance may not be sufficient.
- Power connection quality: Keep connections firmly tightened or reliably soldered. Loose, oxidized or poorly crimped connections can cause voltage drops under high current, ESC desynchronization and a damaging current surge. If the cable end has a crimp terminal, remove it before soldering.
- Free-running in air: There is no fixed time limit for continuous free-running in air for Z60E built-in ESC models. Observe the published voltage and temperature limits, secure the thruster and fit a propeller guard. Avoid stall or blockage.
- Mounting: Avoid thread-locking compound in the mounting holes, because contact with the injection-molded parts can cause cracking.

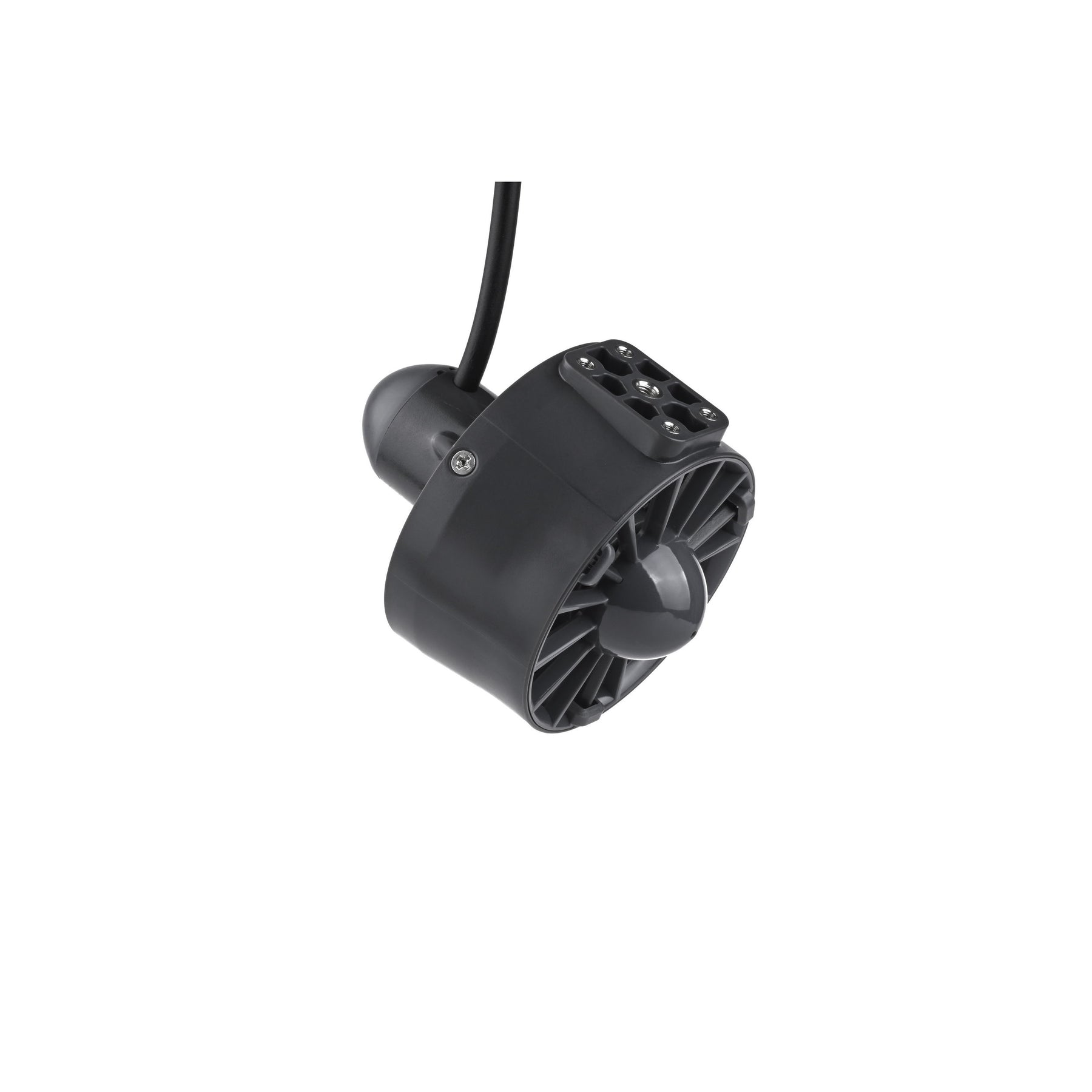

What is the difference between the standard and built-in ESC versions?
Both versions share identical external dimensions and core performance parameters when using the same propeller configuration. The standard model (Blu-Thrust Z60) requires connection to an external ESC via its three motor phase wires (red, yellow, black). The built-in ESC version (Blu-Thrust Z60E) integrates a specially tuned trapezoidal ESC inside the housing, reducing internal equipment bay space requirements while supporting effective drive heat dissipation. The Z60E uses a grey housing for version identification and wiring distinction.
Is the 12V version a different Z60 motor model?
No. The 12V configuration is not a separate motor model. The Z60 and Z60E remain the same approximate 500KV thruster platform. 12V optimization is achieved by replacing the standard propellers with the Blu-Thrust Z60/Z60E 12V 3-Blade Propeller Conversion Set (CCW+CW).

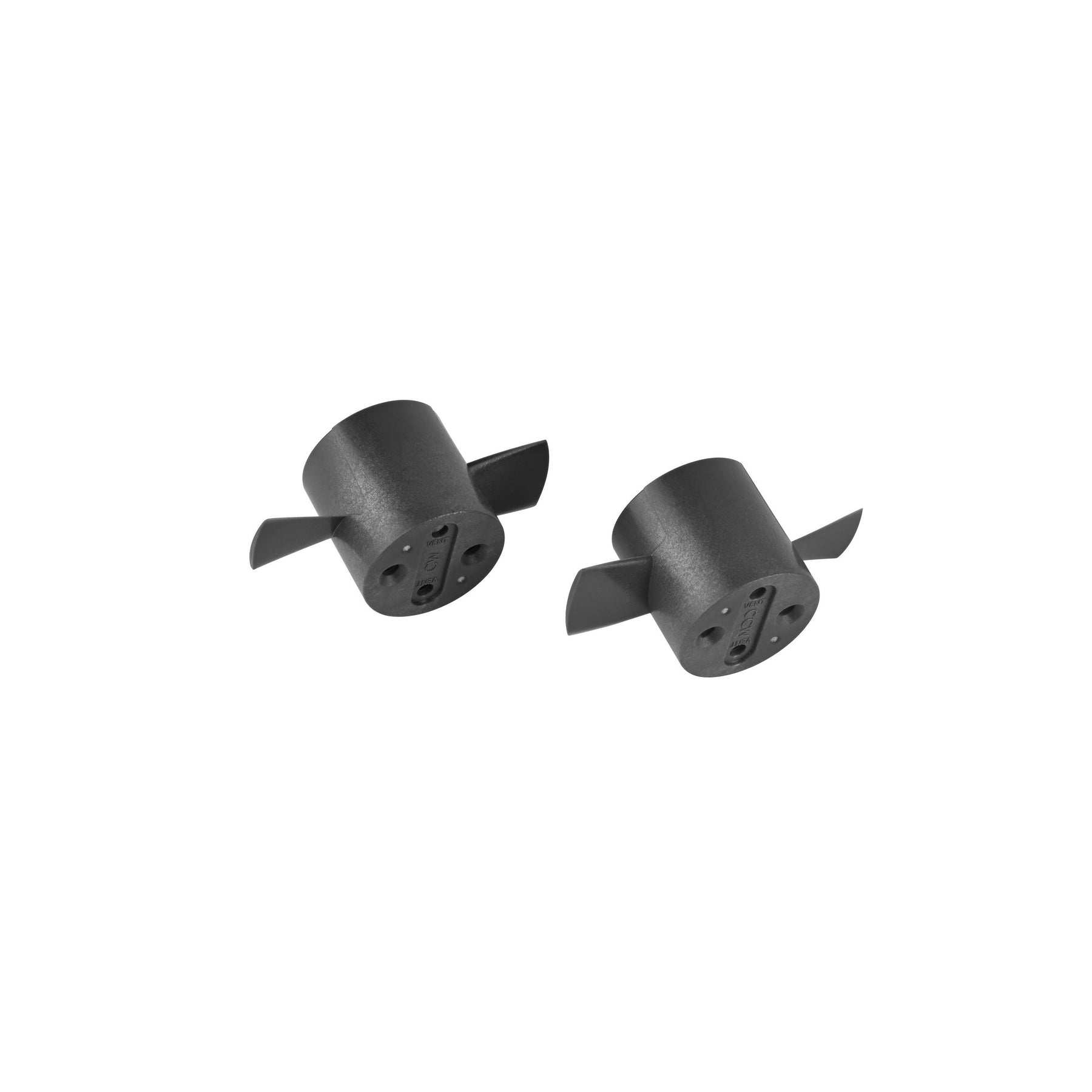

What does the 12V 3-blade propeller conversion set include?
The conversion set includes 1 × 12V 3-blade CCW propeller, 1 × 12V 3-blade CW propeller, and 4 × installation screws.
When should I choose the standard 24V / 6S propeller configuration?
Choose the standard propeller configuration when your vehicle uses a 24V-class / 6S power system and you want the highest Z60 thrust output. This is the standard configuration supplied with the Z60 and Z60E thruster kits.
What is the Blu-Thrust Z60 HD Aluminum Propeller?
The Blu-Thrust Z60 HD Aluminum Propeller is a 6061 aluminum 2-blade replacement propeller for the standard 24V / 6S Blu-Thrust Z60 and Blu-Thrust Z60E thruster configuration. It is sold individually in separate CW and CCW versions and includes 2 × mounting screws.
Does the HD aluminum propeller work with both Z60 and Z60E?
Yes. The HD aluminum propeller is compatible with both the Blu-Thrust Z60 and Blu-Thrust Z60E thrusters when used in the standard 24V / 6S 2-blade propeller configuration.
Can the HD aluminum propeller be used for the 12V / 3S configuration?
No. The HD aluminum propeller is a 2-blade propeller for the standard 24V / 6S configuration only. It is not a 12V / 3S conversion propeller and is not available in a 3-blade version.
Will the HD aluminum propeller change thrust or power output?
No noticeable difference is expected. The HD aluminum propeller uses the same blade profile as the standard plastic 2-blade propeller, so thrust and power characteristics remain effectively identical after installation.
Why choose the HD aluminum propeller instead of the standard plastic propeller?
The HD aluminum propeller provides enhanced structural strength and is less prone to fracture than the standard plastic propeller.
Is minor curling or bending at the aluminum blade edge a defect?
No. The aluminum blade edges are extremely thin, and slight curling or minor edge deformation is not normally considered a quality defect. Minor edge curling does not affect normal operation.
Is the HD aluminum propeller indestructible?
No. Although stronger than the standard plastic propeller, the aluminum propeller can still be permanently damaged by impacts with rocks, hard debris, foreign objects, or severe blockage.
Does the HD aluminum propeller require special maintenance?
Yes. Aluminum is susceptible to corrosion, especially after saltwater use. Rinse the propeller and thruster thoroughly with fresh water after every use.
When should I choose the 12V 3-blade propeller conversion set?
Choose the 12V 3-blade conversion for a 12 V / 3S system that remains within 9–12.6 VDC. The voltage must stay within this range throughout operation; a “12 V” supply label alone does not establish compatibility. Do not use this propeller configuration on 4S or 6S.
Does the 12V propeller conversion set work with both Z60 and Z60E?
Yes. The 12V 3-blade propeller conversion set is compatible with both the Blu-Thrust Z60 and Blu-Thrust Z60E thrusters.
Does the 12V conversion change the depth rating or mounting dimensions?
No. The 12V conversion changes the propellers only. It does not change the thruster body, cable, sealing method, mounting pattern, or 300 m / 984 ft depth rating.
Can I use the original standard propeller screws with the 12V 3-blade propeller conversion set?
Yes. The 12V 3-blade propellers use the same mounting screws as the standard Z60/Z60E 2-blade propellers.
Is the thruster repairable if damaged or miswired?
No. The motor utilizes fully resin-encapsulated isolation sealing and is not intended to be user-serviceable. Severe electrical or mechanical damage typically requires replacement.

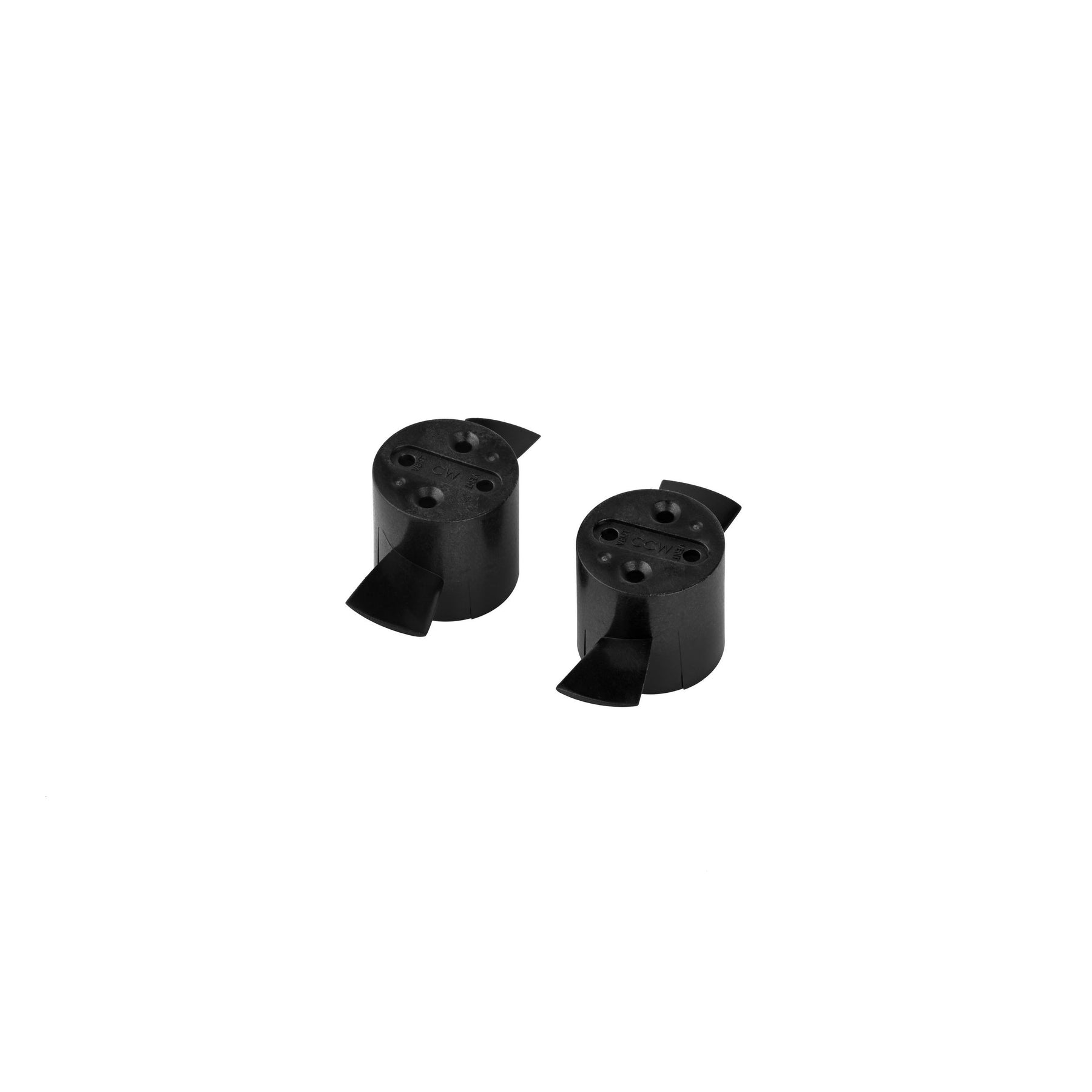

Why are there CW/CCW propellers?
The CW (clockwise) and CCW (counterclockwise) propellers are mirror-image designs used to help balance reactive torque generated during motor rotation. In multi-thruster systems, using matched CW and CCW propellers can help reduce unwanted rotational forces on the vehicle.
What does the “VENT” mark on the propeller blade mean?
“VENT” indicates the water inlet and outlet openings used for cooling the motor stator. For the standard Z60 series propellers, only two screws are required for installation. The remaining two VENT openings must be left unobstructed to allow proper water circulation and cooling.
Can the front cap be removed?
No. The front assembly is non-removable. The thrust duct assembly can be disassembled to allow propeller replacement and cleaning of foreign objects.
Will foreign object insertion or forced blockage cause permanent damage?
Yes. Severe blockage may permanently damage the motor or ESC through burnout.
Is it suitable for sandy underwater environments?
The thruster offers some sand resistance, but fine abrasive particles may still cause wear. After operating in sandy conditions, rinse the rotating components with fresh water to help reduce abrasive friction and long-term wear.
Can it be used in both saltwater and freshwater?
Yes. After use in saltwater, it should be promptly rinsed with fresh water to help reduce corrosion risk.
What is the expected service life?
Laboratory freshwater testing demonstrates 200+ hours of continuous operation. Actual service life varies depending on operating environment and usage conditions.
Can it operate in air?
Yes. The thruster can run freely in air. For Z60E built-in ESC models, there is no fixed time limit for continuous free-running in air. Observe the published voltage and temperature limits, secure the thruster firmly and install a propeller guard. Avoid stall or blockage, and disconnect power before handling the propeller.
What control signal does the built-in ESC use?
Z60E uses 3.3–5 V PWM logic at an update rate of up to 400 Hz. Pulse widths are 1100 µs for maximum reverse, 1500 µs for initialize / stop / neutral, and 1900 µs for maximum forward. The neutral deadband is 1475–1525 µs, with no rotation in this range. To command stop, send 1500 µs directly; disconnect power before handling the propeller. The built-in ESC is compatible with the Arduino Servo library and ArduSub. Standard Z60 models follow their external ESC's control requirements.
Why does my Z60E not rotate immediately after power-up?
Initialization is required every time power is applied. Wait for three beeps, then send and hold 1500 µs for 2–3 seconds. Two beeps confirm completion. The thruster can rotate only after this sequence is complete. If it still does not start, check the wiring, PWM settings and common ground.
Does the controller need a common ground?
Yes. In Z60E, the built-in ESC's signal ground is connected internally to power ground. Connect the external controller's ground to the thruster's power negative.
What precautions apply when using a regulated power supply or DC/DC converter?
Some regulated power supplies and DC/DC converters cannot absorb energy returned by the thrusters. This may raise the bus voltage and damage the ESC. Use gradual throttle changes and observe the voltage limits for the selected model and propeller configuration. For DC/DC converters, follow the manufacturer's requirements for output capacitance, capacitor type and placement; the ESC's internal capacitance may not be sufficient.
Should I use thread-locking compound in the mounting holes?
It is not recommended. Contact with the injection-molded parts can cause cracking.
